Description

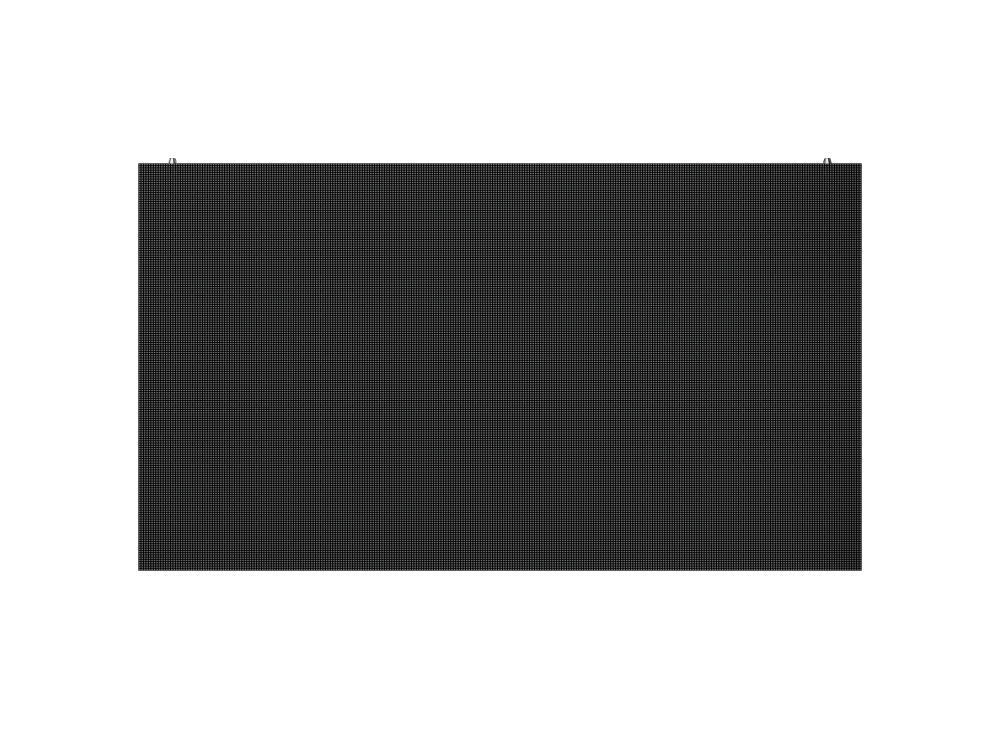

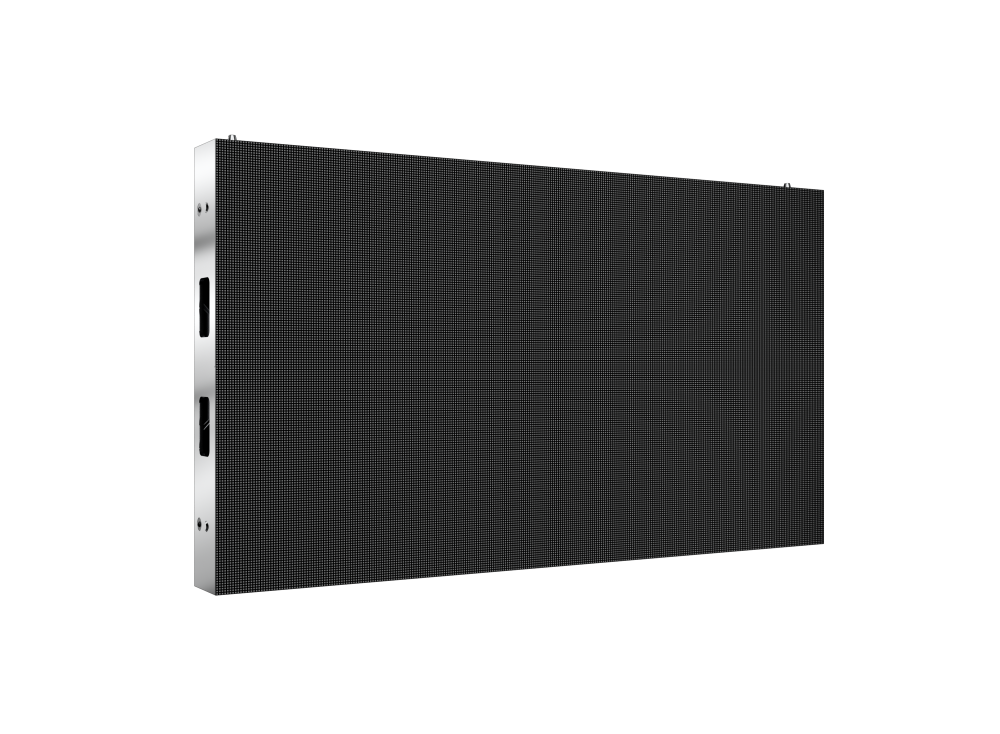

TrueHD-600 Series Indoor Fine Pixel in 1.25/1.45/1.56/1.875/2.0 mm LED Display 600x337 mm Aluminum Cabinet Small Pixel Pitch LED Display Screen
Unit Price Here is Per One Square Meter, Standard Version
Full Catalog of Fine Pixel Pitch LED Display Screen
Features:
* Fine Pixel Pitch produce high resolution pictures
* IP65 at Front and IP30 at Back
* 16:9 Aspect Ratio Cabinet Size 600x337.5mm
* 160 ° Wide Viewing Angle
* Intelligent Correction
* Double Backup of Power Signal
* Remove Colored Moire
* None-wire Connected Cabinet, More Humanized Design
* Front/Rear Installation; Front Maintenance
TrueHD-600GOB Series Series Indoor LED Display Specification
PART NUMBER BREAKDOWN
HD600-1.25： HD【Series Code : High Definition 】- 600【Cabinet length: 600mm】- G【GOB】- 1.2【Pixel Pitch: 1.25mm】
Part No.： HD600G-1.25 | HD600G-1.45 | HD600G-1.56 | HD600G-1.87
Pixel Pitch： 1.25mm | 1.45mm | 1.56mm | 1.875mm
LED： SMD1010 | SMD1010 | SMD1010 | SMD1515
LED Brand ： Standard: Kinglight/Huaguang etc. Premium:Nationstar
Pixel Configuration： 1R 1G 1B
Wave Length： R:620~625nm, G:520~530nm, B:460~475nm
Module
Module Size： 200*168.75mm | 200*168.75mm | 200*168.75mm | 200*168.75mm
Module Resolution： 160*120 | 138*116 | 128*96 | 106*90
Module Pixles： 19,200dots | 16,008dots | 12,288dots | 9,540dots
Scan： 1/27 | 1/30 | 1/27 | 1/32

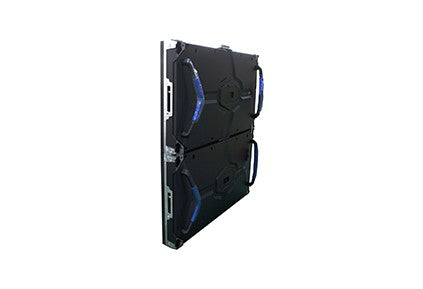

Cabinet/Panel
Cabinet Type： Die-casting Aluminum
Cabinet Size： 600*337.5*63mm
Module Qty./Cabinet : 6 | 6 | 6 | 6
Cabinet Qty./㎡ : 4.94 | 4.94 | 4.94 | 4.94
Cabinet Resolution: 480*270 | 414*232 | 384*216 | 320*180
Cabinet Pixles: 129,600dots | 96,048dots | 82,944dots | 57,600dots
Pixel Density: 640,000dots/㎡ | 474,477dots | 409,600dots | 284,444dots/㎡
Power Consumption (W/㎡)： Max.850 Avg.285
Optical Parameter
Brightness： 800 - 1200 cd/㎡
Contrast Rate： 3000:1
Color Depth： 16bit
Grey Level ： 16384
Refresh Frequency： >3840HZ
Driving IC： MBI/ICN
Color Uniformity： ≥97%
Viewing Angle： H:160deg. V:160deg.
Blind Spot Rate： ≤0.0003
Life span： ≥100,000 hours
Physical Parameter & Operation Conditions
Cabinet Weight： 7.5Kgs
Protection Rating： IP65&IP30
Operating Temperature： -20°C ~ 60°C(-4°F ~ 140°F)
Operating Humidity ： 10％ ～ 90％
Input voltage： AC100-240V
Power Supply： Standard: CE*1 / Premium:UL CE MeanWell *1
Controlling System： Nova
Maintainance： Front / Rear Installation; Front Maintenance
