Description

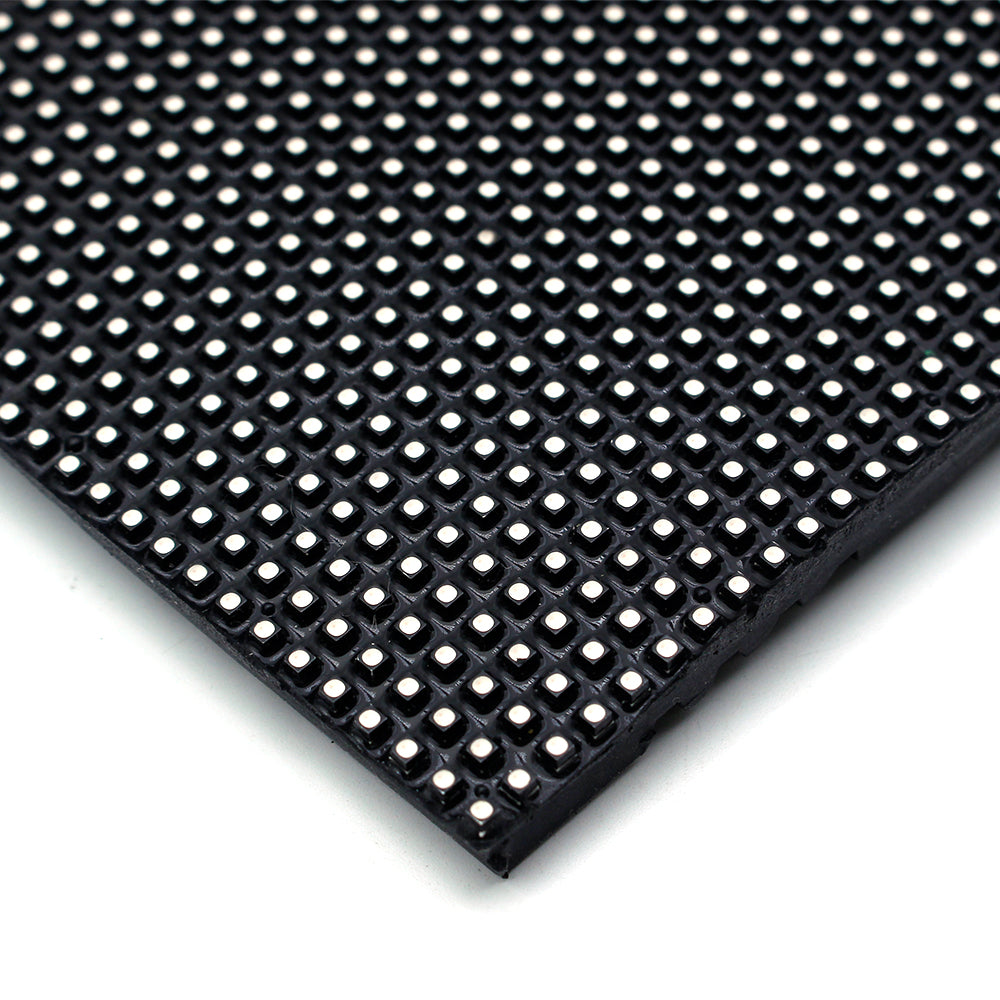

    M-WF2.5L P2.5 (2.5mm) Outdoor Waterproof LED Module, 2.5mm Small Pixel Pitch Full RGB LED Panel Screen in 320* 160 mm with 8192 dots, 1/24 Scan, 4500 Nits For Outdoor Display

    Features

    * Outdoor Waterproof IP65 Rated! With surface and back be covered by special gel, the LED Module can be used outdoor.
    * Flexible LED Tiles can be bent into concuve and convex with a radian around 150 degree
    * Ideal for customzing outdoor and irregular LED display screen
    * More Elaborate Performance! The pixel pitch of this outdoor module is only (4mm), smooths the image on screen and shows more details. (10scans) per seconds, provides great dynamic expression.
    * Bright and Even for Long Usage! This display screen provides brightness of (4500 Nits) and could be automatically adjust according to the changes in surrounding. Less lumen depreciation than LCD and DLP display, guarantee the even performance in long time usage!
    * Vivid Visual Experience! Bigger view angel(140°-160°) with digital RGB chip could provide a great visual of color, plus its scanning rate of 1/10, could almost bring you the real scenery.
    * A Whole Screen! This module could be seamless spliced, not like LCD or DLP display. It looks like an whole screen but LCD or DLP display have terrible black cracks on screen.
    * DIY with Widely Usage: It has so many combinations to fit your situation. [Tips for Customers: Need the cooperation of receiving card, sending card, software and DC 5V power supply to work. Make sure you know about this product and the parts before you buy it.] If you have your plan of display, please feel free to contact us!



    Parameter
    Pixel Pitch: 2.5mm

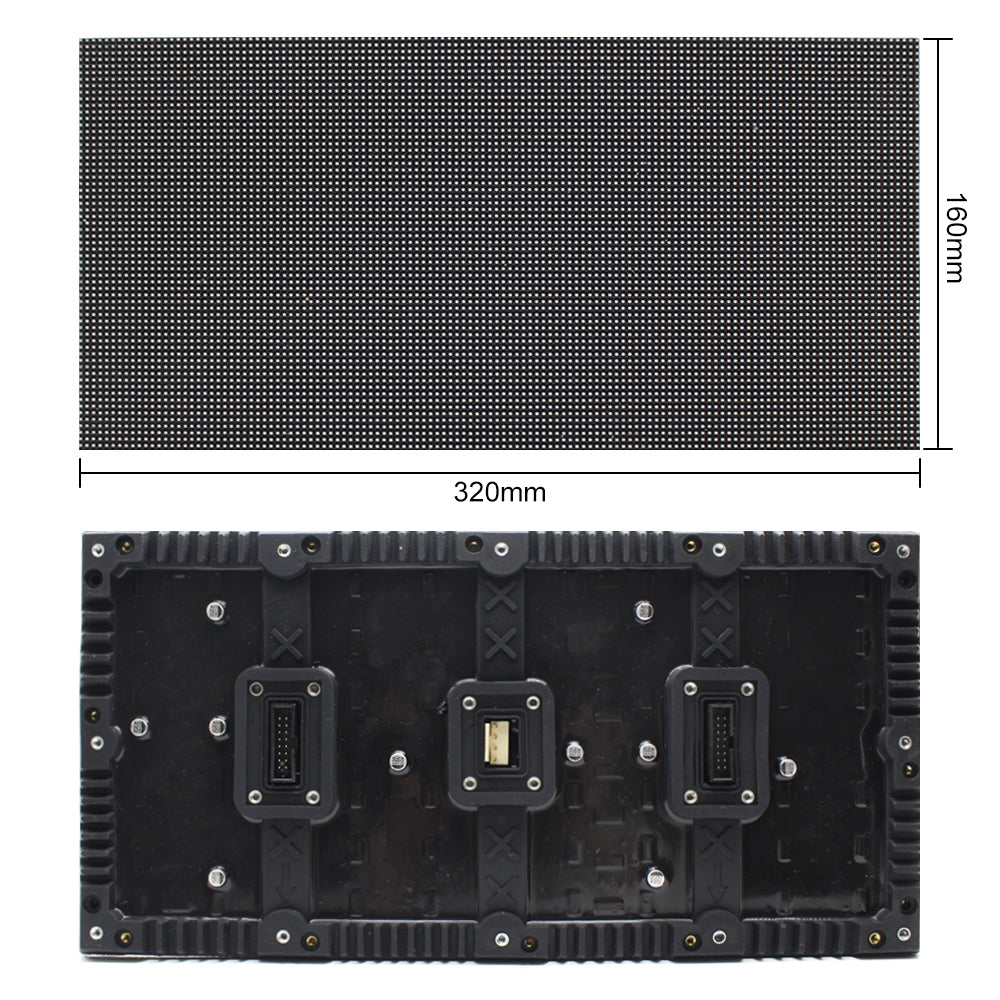

    Module Size: 320*160mm
    Module Resolution: 128*68
    Module Pixles: 8192dots
    Scan: 1/24
    Viewing Distance: >2.5m
    LED: SMD1921
    Pixel Configuration: 1R 1G 1B
    Brightness: ≥4500Nits
    Contrast Rate : 3000:1
    Color Depth: 16bit
    Grey Level: 16384
    Refresh Frequency: >3840HZ
    Driving IC: MBI/ICN
    Color Uniformity : ≥97%
    Protection Rating: IP65
    Life span: ≥100,000 hours
    Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
    Operating Humidity: 10％ ～ 90％
    Voltage: 5V
    Viewing Angle: H:160deg. V:140deg.
    Power Consumption(w) : Max. 50W
    Blind Spot Rate: ≤0.0003


    Included
    1 * Power Cable
    1 * Data Cable
    1 * P2.5 320*160mm RGB full color LED display module
