Description

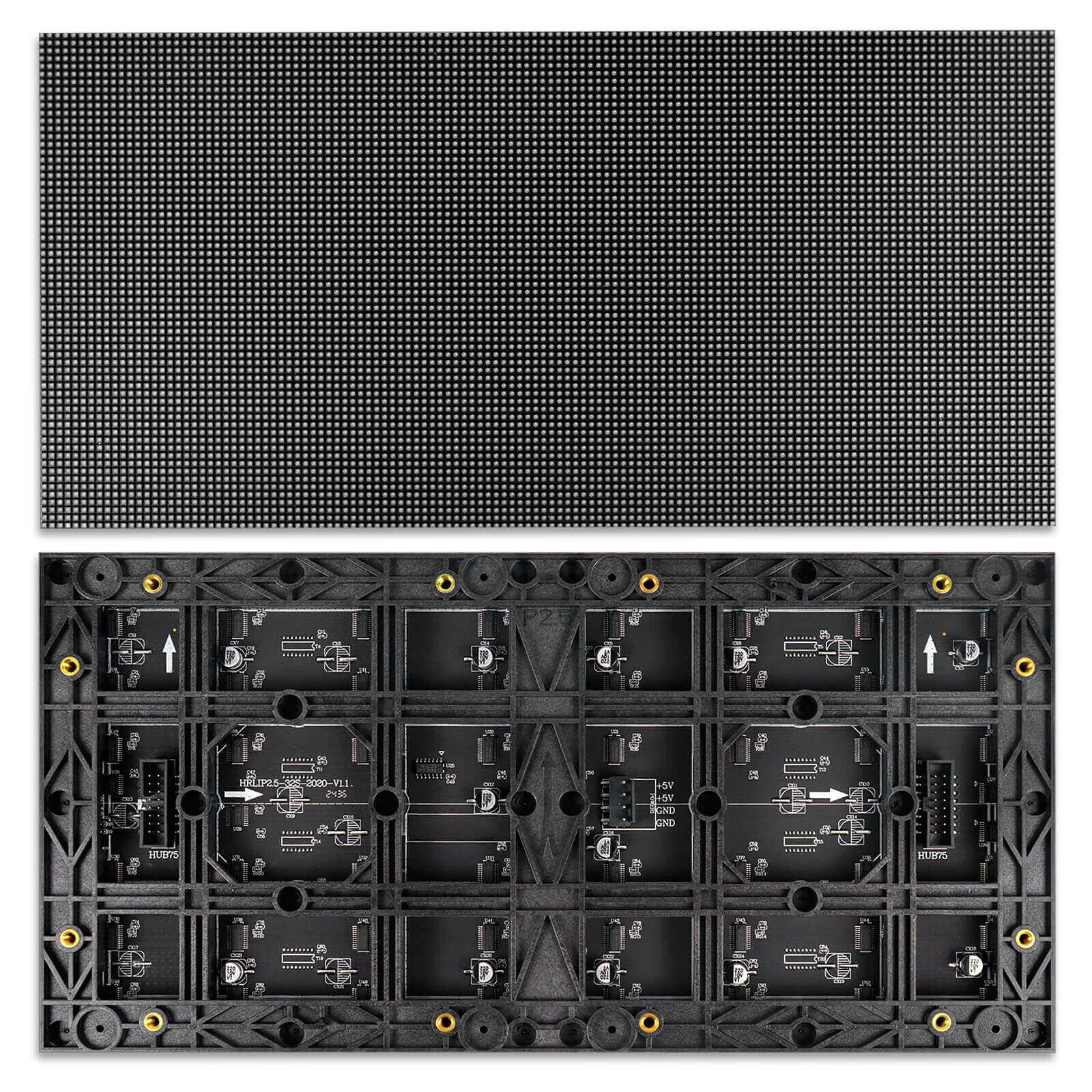

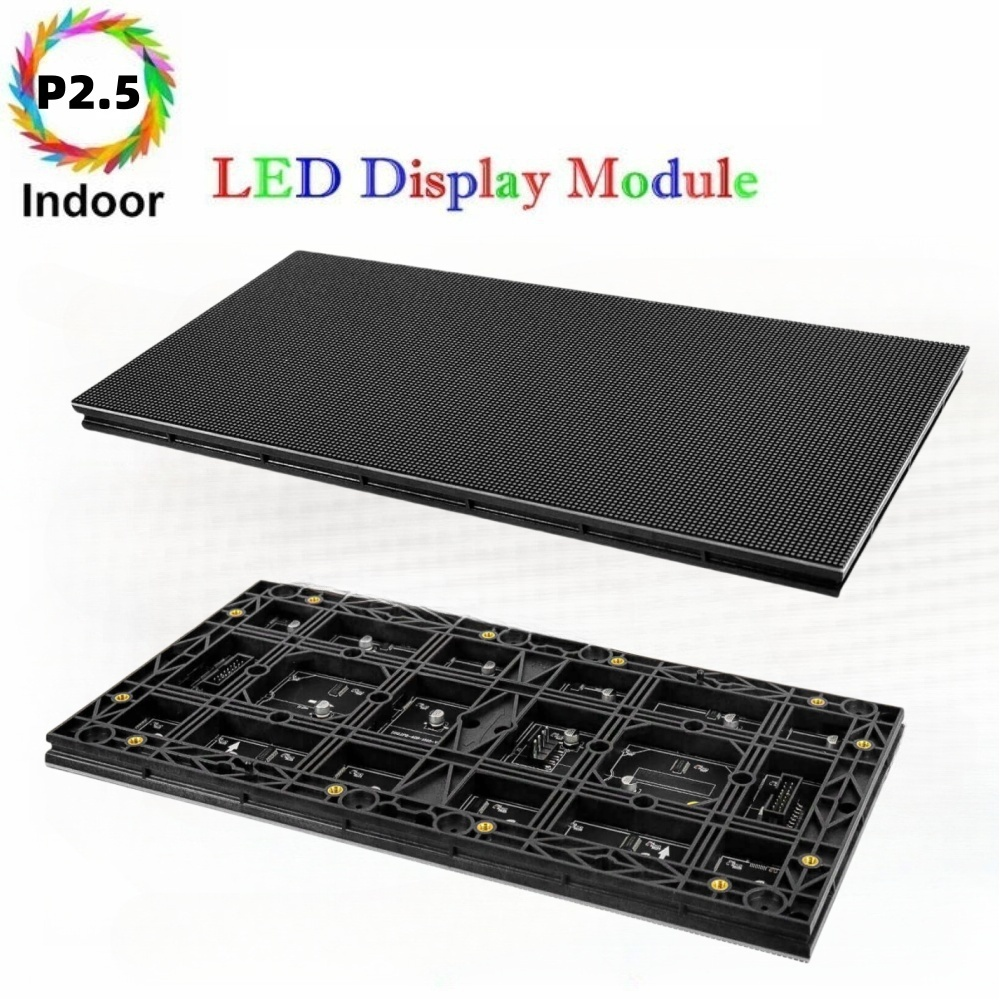

M-HD2.5L P2.5 (2.5mm) Small Pixel Pitch Indoor LED Display Panel, Full RGB Pixel LED Tile in 320*160mm with 8192dots, 1/32 Scan, 600 Nits for indoor Display
Specifications:
♥ Pixel Pitch:2.5mm
♥ Module Size: 320*160mm
♥ Module Resolution: 128*64
♥ Module Pixels: 8192dots
♥ Scan: 1/32
♥ Pixel Density : 160000dots/㎡
♥ Viewing Distance: >2.5m
♥ LED: SMD2121
♥ Pixel Configuration: 1R 1G 1B
♥ Brightness: ≥600 Nits
♥ Contrast Rate : 3000:1
♥ Color Depth: 16bit
♥ Grey Level: 16384
♥ Refresh Frequency: >3840HZ
♥ Driving IC: ICN/FM
♥ Color Uniformity : ≥97%
♥ Protection Rating: IP30
♥ Life span: ≥100,000 hours
♥ Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
♥ Operating Humidity: 10％ ～ 90％
♥ Voltage: 5V
♥ Viewing Angle: H:160deg. V:160deg.
♥ Power Consumption(w) : Max. 20W
♥ Blind Spot Rate: ≤0.0003
Package include:
♥1x LED Matrix Module
♥1x 1 to 2 Power Cord
♥1x 16pin cables (about 300mm)
Kindly Note:
If you need a large quantity of these items,
please contact us for wholesale price directly.
