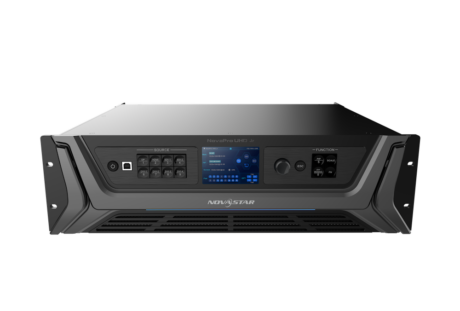

The NovaPro UHD Jr is NovaStar’s new all-in-one controller that features excellent video processing capabilities, sending card functions and LED screen configurations. The NovaPro UHD Jr provides a variety of video input connectors, supporting full HD 4K×[email protected] image processing and sending capabilities.
Besides, NovaPro UHD Jr supports 8K×[email protected] ultra-high resolution settings. With the help of smart control software V-Can from Novastar, the NovaPro UHD Jr can enable richer image mosaic effects and faster and easier operations. The NovaPro UHD Jr can send the processed video to the LED screen via Neutrik Ethernet ports and optical fiber ports.
Thanks to its powerful video processing capabilities and sending functions, the NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites and other high-end rental applications as well as fine-pitch LED displays.
A variety of inputs and outputs:
Provides 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output and 2 × 12G-SDIwith loop output.
More output connectors, larger loading capacity
Provides 16 × Neutrik Ethernet output and 4 × optical fiber output, with loading
capacity up to 10,000,000 pixels.
An input source can be made up of at most 4 DVI input sources.
Greatly enhances display image quality, providing more clear and vivid image.
Decimal frame rate
Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar A5 or later receiving cards.
Customized BKG settings
Supports pure color and image BKGs.
Personalized image scaling
Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom.
Captures input source image which can be used as a BKG image.
Up to 4 NovaPro UHD Jr units can be used together to load a super-large
V-Can (smart control software from NovaStar) supported
At most 10 user presets can be created and saved as templates which can be
used directly and conveniently.
EDID management supported
Supports custom EDID and standard EDID.
