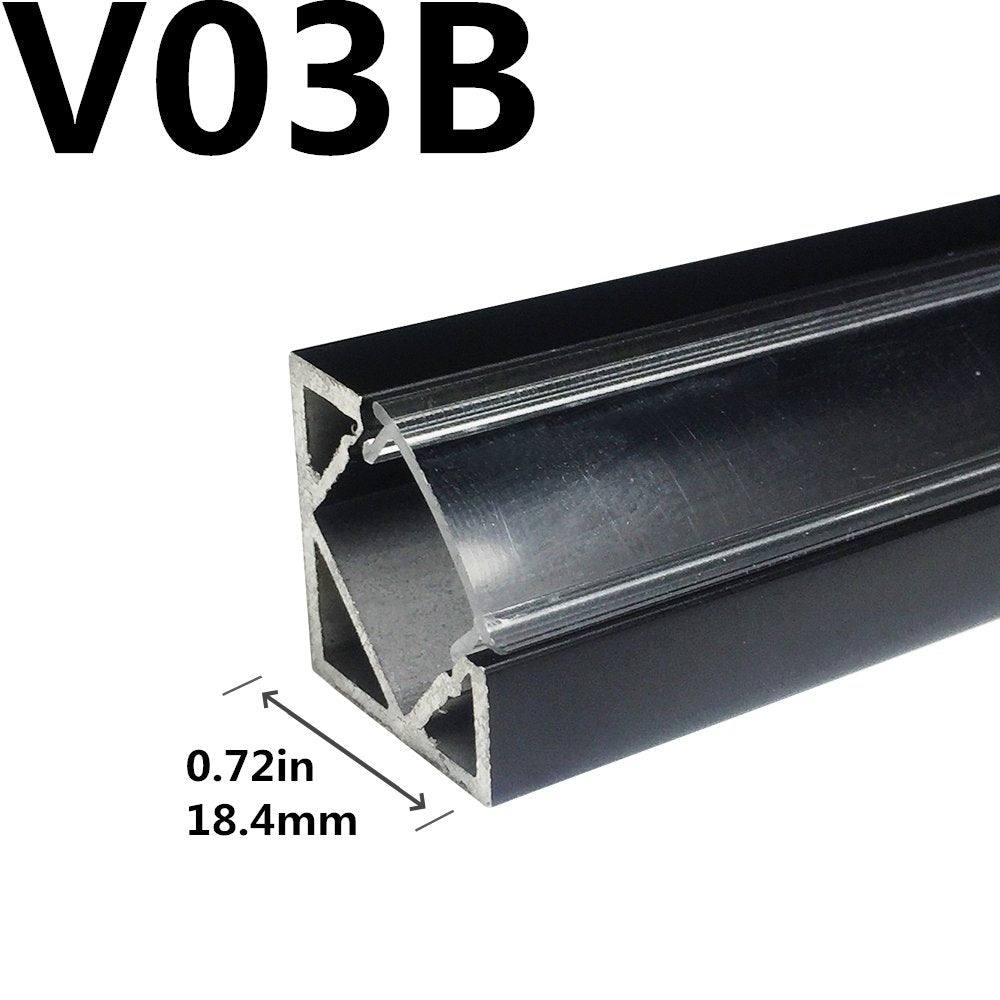

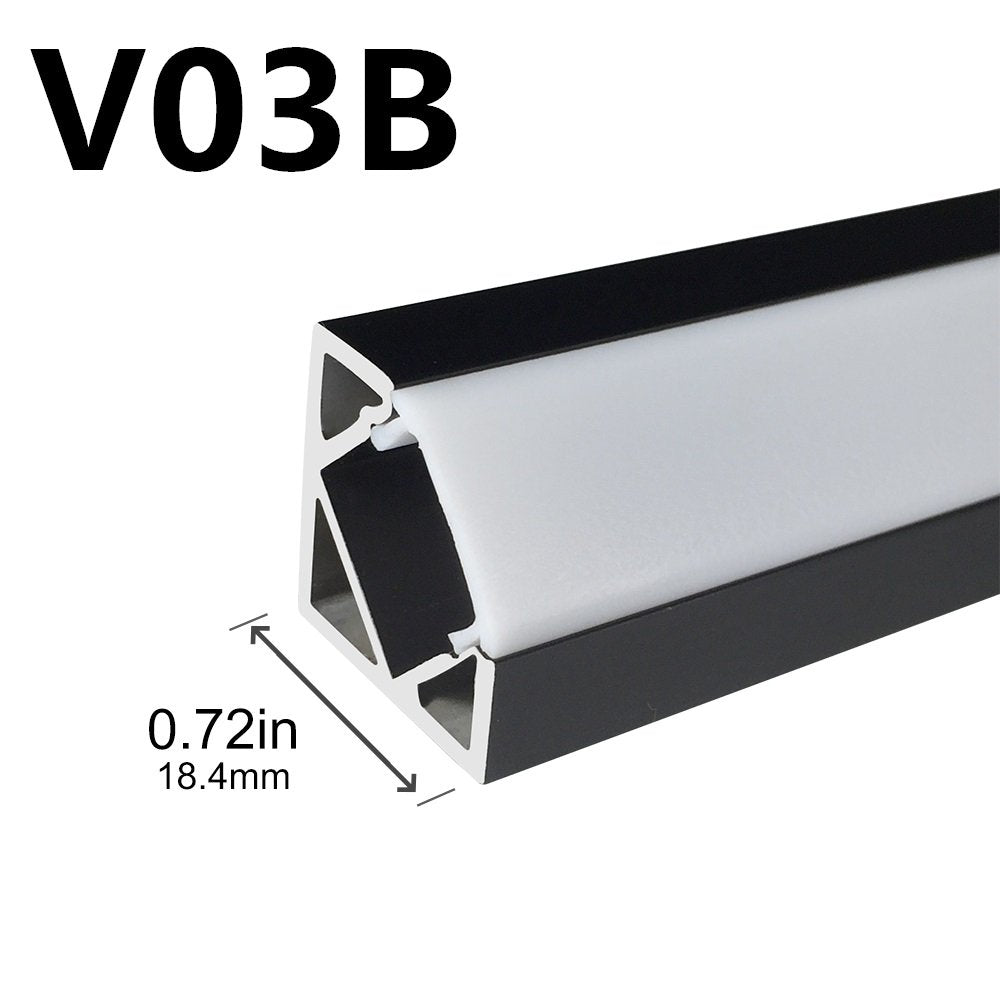

Black LED Profile V03 18x18mm V-Shape Corner LED Aluminum Channel System
Features:
1.Lightsworld Aluminum Profile Kit is a great solution for low-cost DIY under cabinet lighting fixtures.

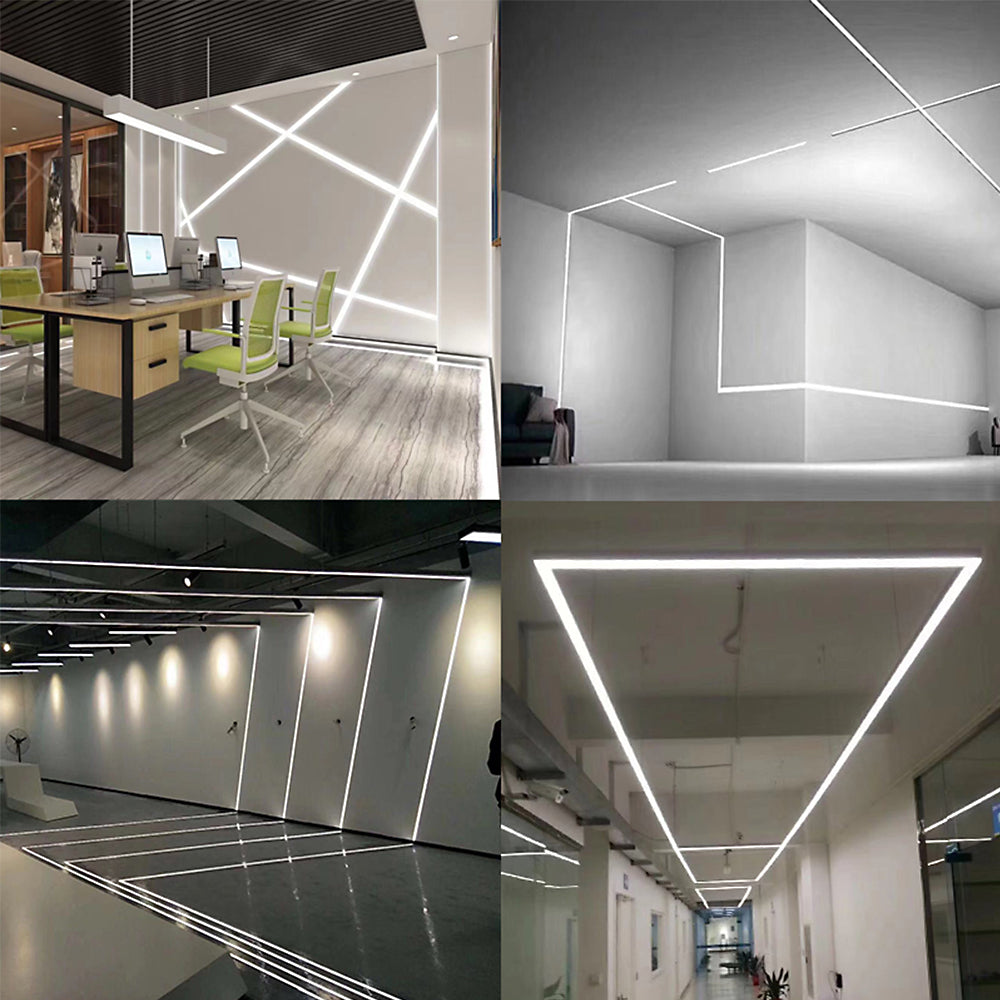

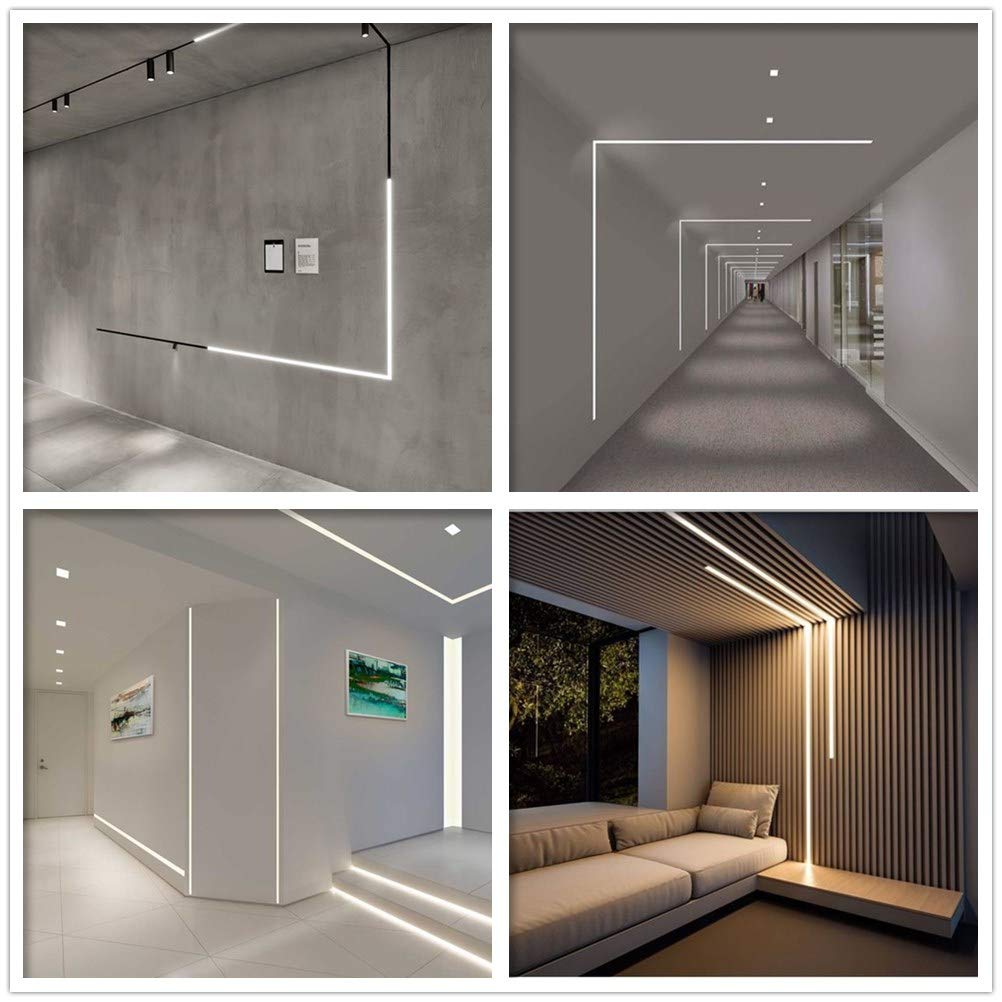

2. It is designed for recessed/surface mounting to tie-in furniture, under cabinet, shelves, drywall, wooden partitions, etc., also can be activated to create decorative luminescent bands in the walls, ceiling, floor, lights, work surfaces, shelves, steps, niches.

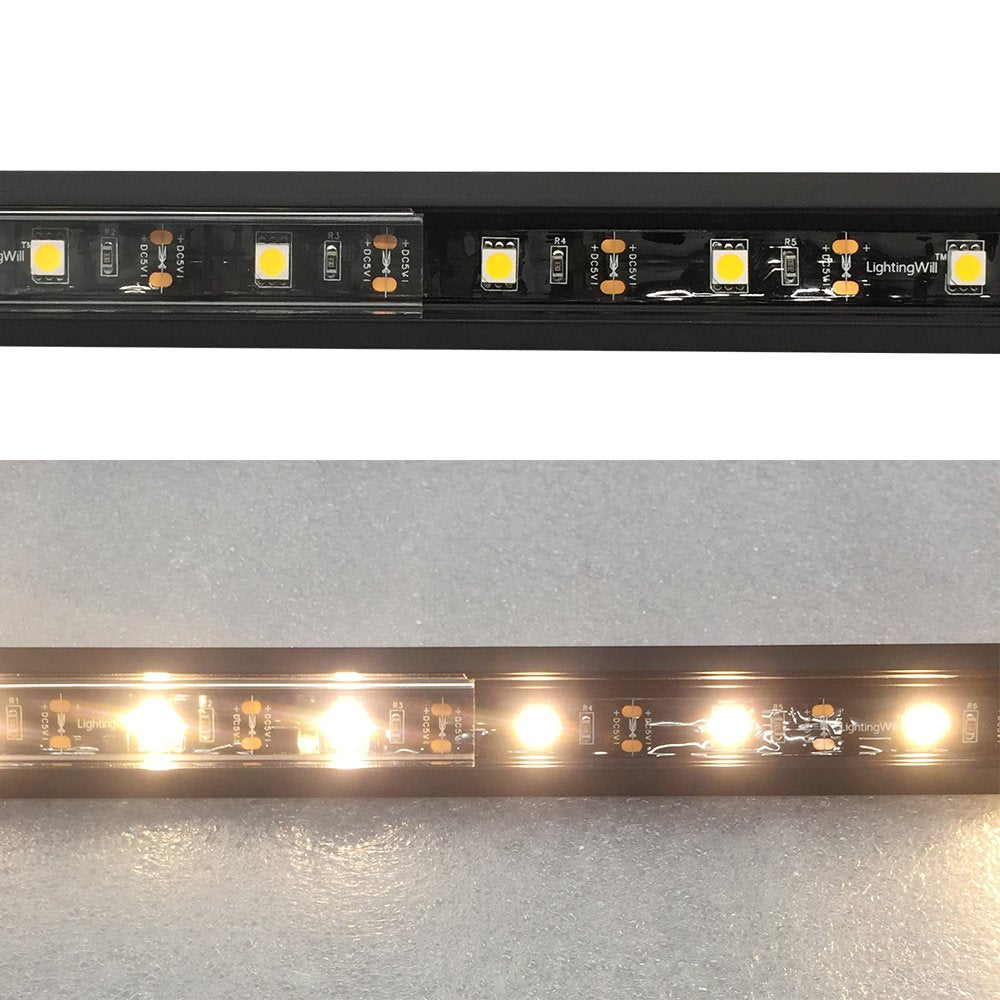

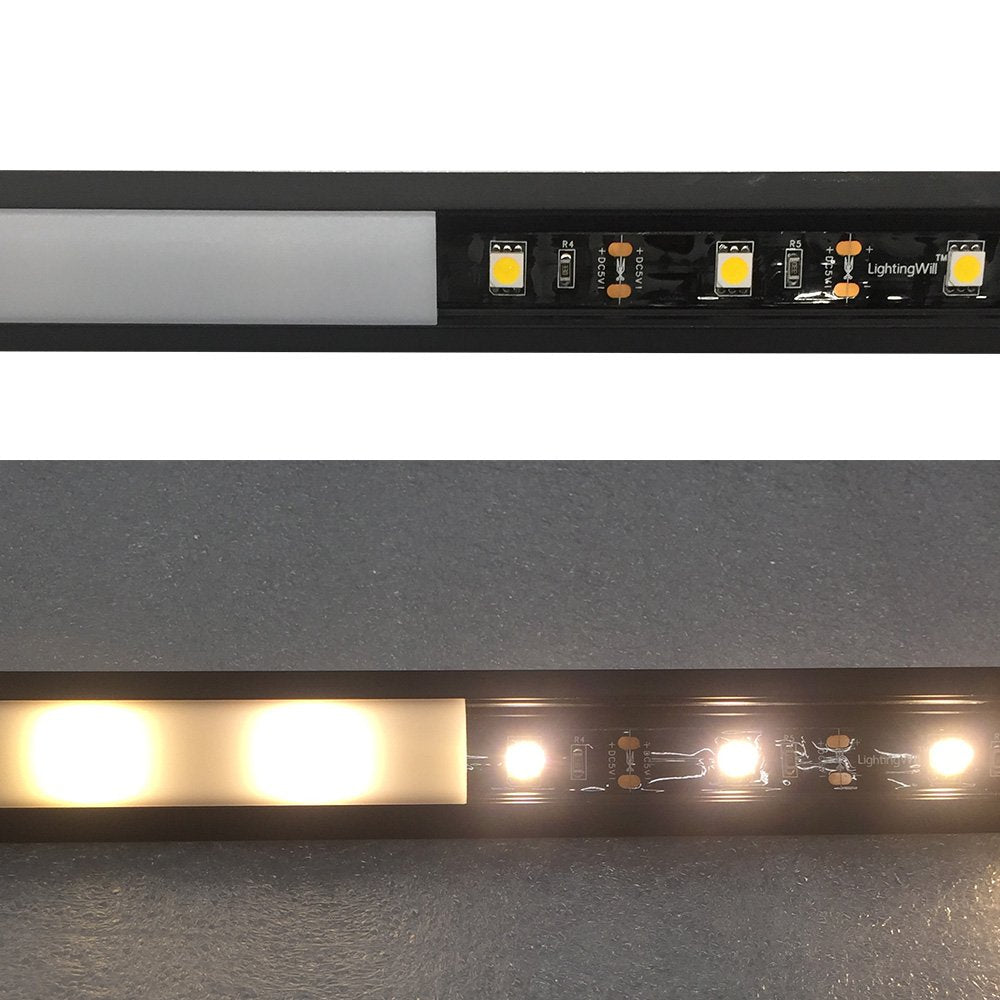

3. The Oyster/Opal white PC cover works well to help spread the light. This aluminum channel/profile works with LED flex/rigid strip lights (less than 12.15mm wide).

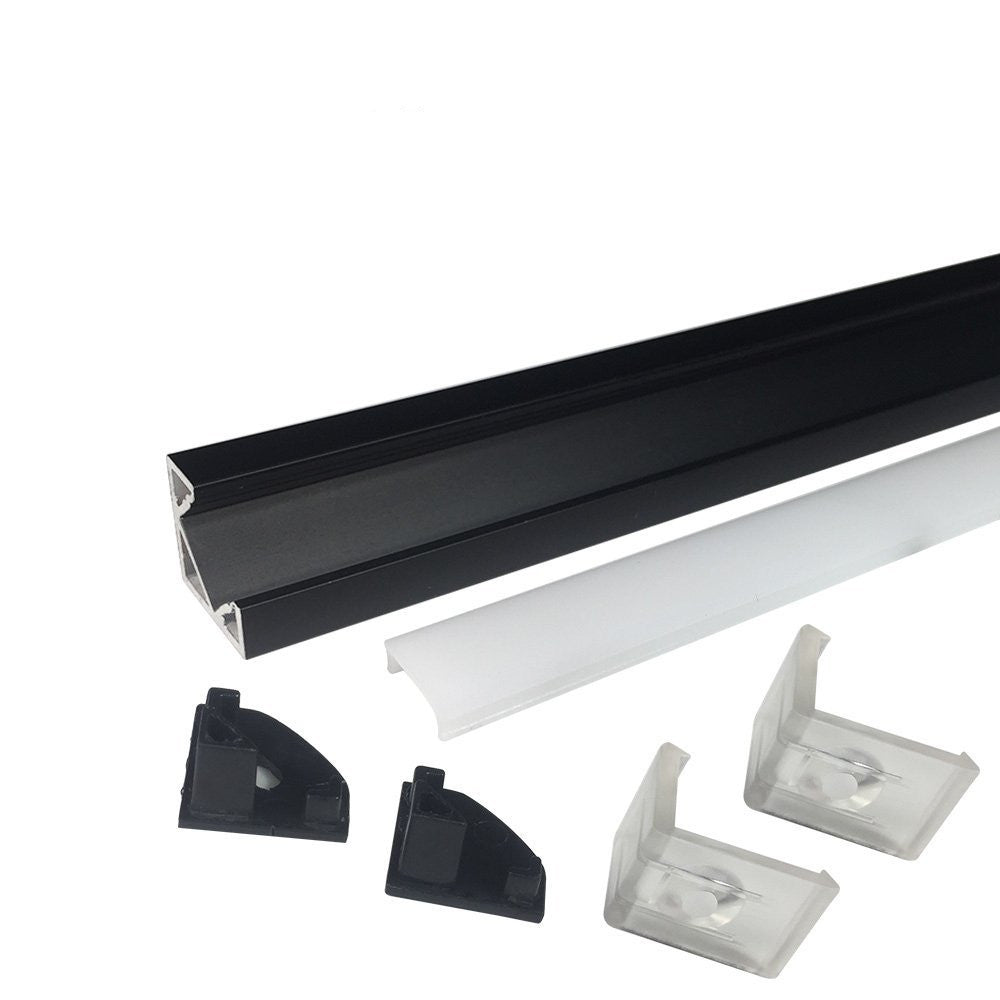

4.This kit includes the channel, cover, end caps, and mounting clips needed for a complete aluminum channel installation.

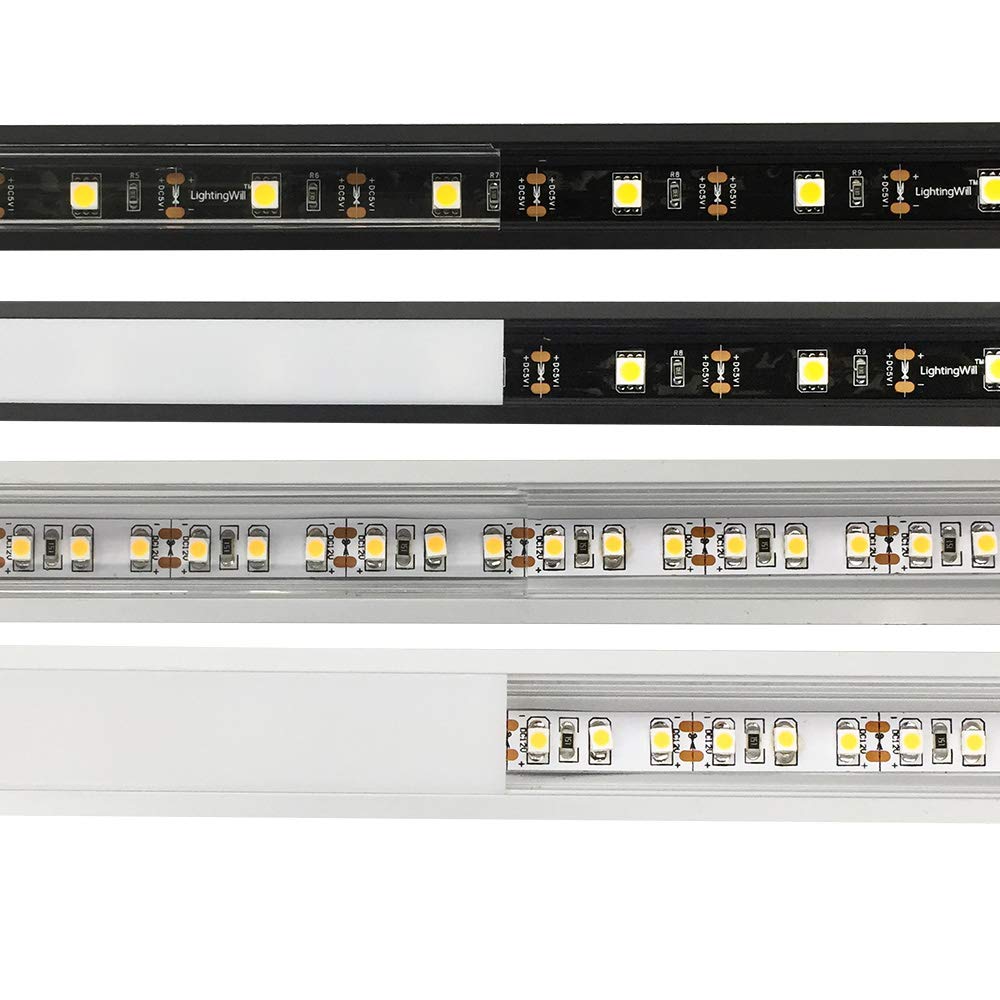

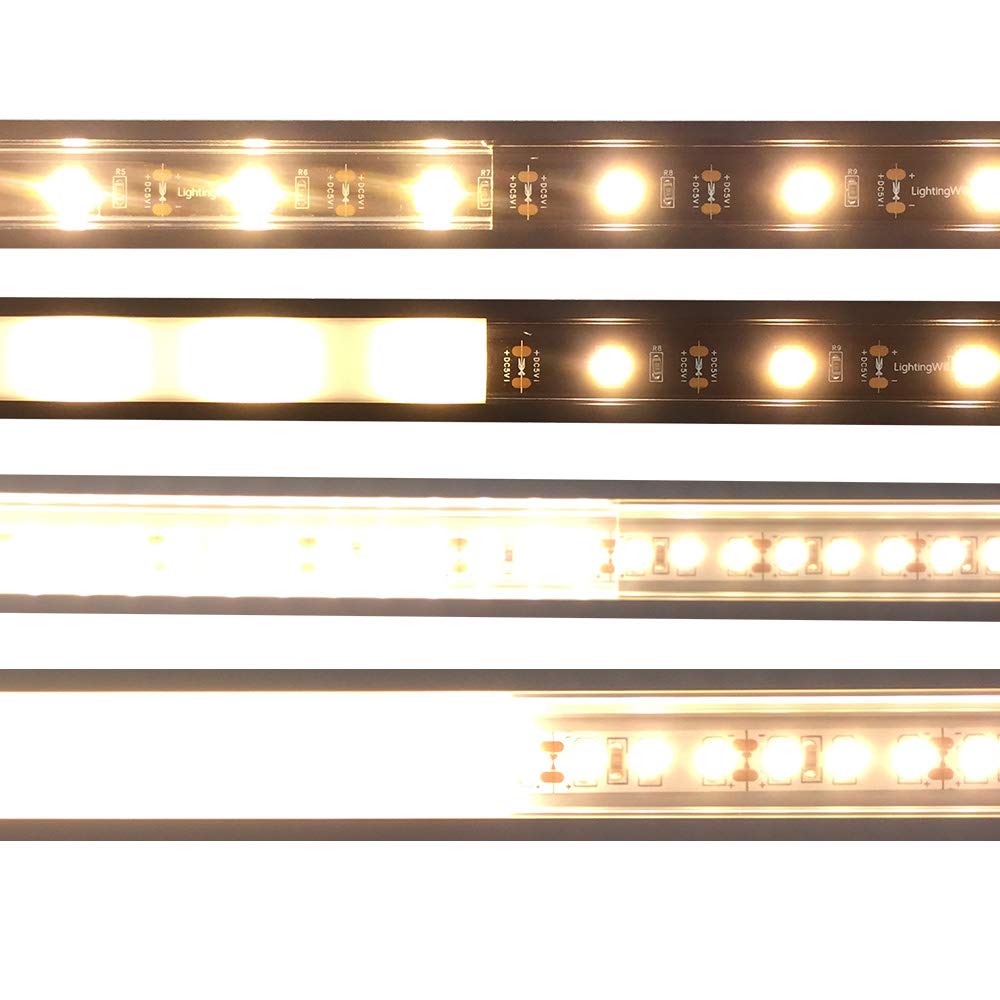

5. The cover softens the 'spottiness' of LED strip lights, producing a more consistent and pleasing light. This aluminum channel is extendable and sold by meter. You can add as many meters as you need and connect them together seamlessly.
Specifications:
Configuration: U-Shape Channel: Extruded aluminum
Diffuser: Oyster White / Clear Cover
Height: 0.35inch (9mm)
Inner Width: 0.48inch (12.15mm)
Top Width: 0.91inch (23mm)
Back Width: 0.67inch (16.9mm)
Compatible with strips whose PCB width within 12mm:
HK-F3528X30-X DC 12V Dimmable SMD3528-300 Flexible LED Strips 60 LEDs Per Meter 8mm Width 300lm Per Meter
HK-F3528X30-6MM-X Super Slim DC 12V Dimmable SMD3528-300 Flexible LED Strips 60 LEDs Per Meter 6mm Width 300lm Per Meter
HK-F3528X60-X DC 12V Dimmable SMD3528-600 Flexible LED Strips 120 LEDs Per Meter 8mm Width 600lm Per Meter
HK-F3528X30-X-HCRI High CRI > 90 DC 12V SMD3528-300 Flexible LED Strips 60 LEDs Per Meter 8mm Width 300lm Per Meter
HK-F5050X15-X DC 12V Dimmable SMD5050-150 Flexible LED Strips 30 LEDs Per Meter 10mm Width 450lm Per Meter
HK-F5050X30-X DC 12V Dimmable SMD5050-300 Flexible LED Strips 60 LEDs Per Meter 10mm Width 900lm Per Meter
HK-F5630X30-X DC 12V Dimmable SAMSUNG SMD5630-300 Flexible LED Strips 60 LEDs Per Meter 10mm Width 1200lm Per Meter
HK-F2835X30-X DC 12V Dimmable SMD2835-300 Flexible LED Strips 60 LEDs Per Meter 8mm Width 1000lm Per Meter
HK-F2835X30-X-HCRI High CRI > 90 DC 12V Dimmable SMD2835-300 Flexible LED Strips 60 LEDs Per Meter 8mm Width 1000lm Per Meter
Packages Include:
5x1M-PACK Includes:
5x 1meter Aluminum Channel
5x 1meter PC Lens
10x End Caps (5 with hole, 5 deaf)
10x Mounting Clips
10x1M-PACK Includes:
10x 1meter Aluminum Channel
10x 1meter PMMA Lens
20x End Caps (10 with hole, 10 deaf)
20x Mounting Clips
25x1M-PACK Includes:
25x 1meter Aluminum Channel
25x 1meter PMMA Lens
50x End Caps (10 with hole, 10 deaf)
100x Mounting Clips
25x2M-PACK Includes:
25x 2meter Aluminum Channel
25x 2meter PMMA Lens
50x End Caps (25with hole, 25 deaf)
100x Mounting Clips
50x2M-PACK Includes:
50x 2meter Aluminum Channel
50x 2meter PMMA Lens
100x End Caps (50 with hole, 50 deaf)
300x Mounting Clips
50x3M-PACK Includes:
50x 3meter Aluminum Channel
50x 3meter PMMA Lens
100x End Caps (50 with hole, 50 deaf)
300x Mounting Clips
