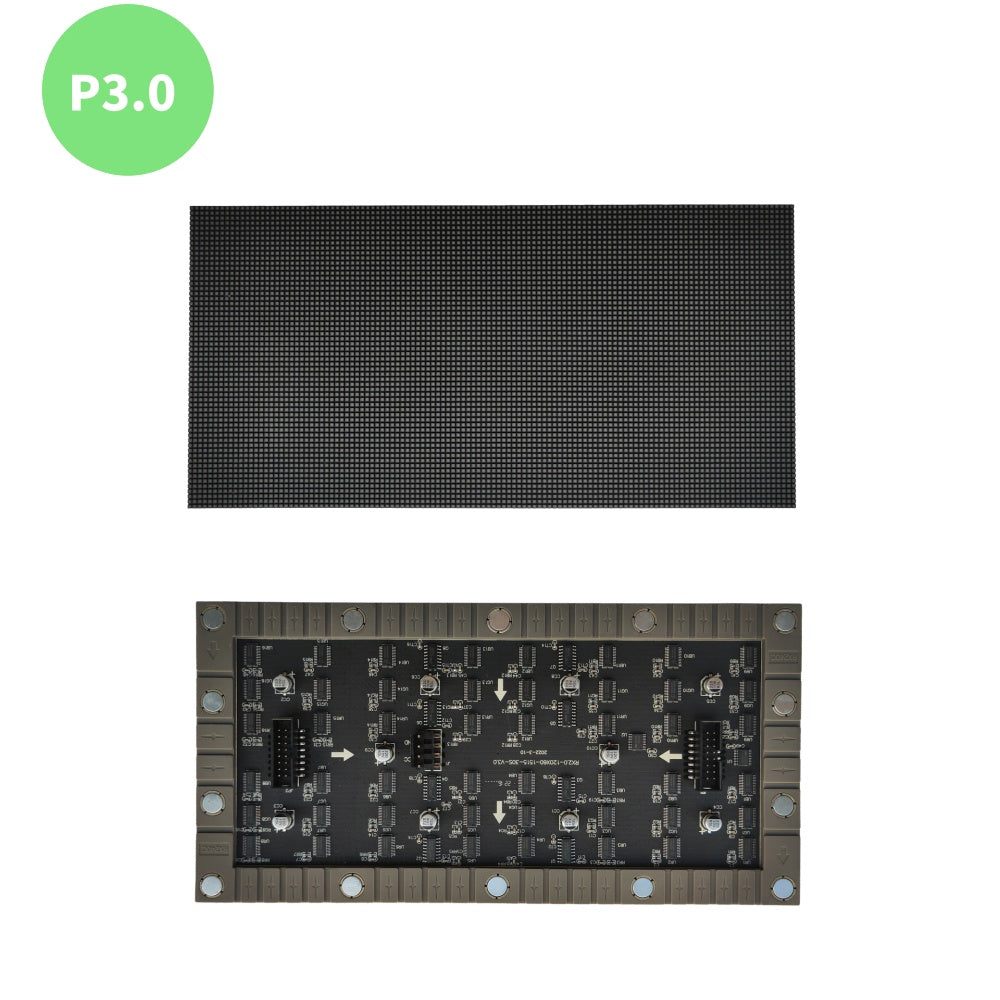

HKXR3S (P3) Indoor Flexible LED Display Module, 3mm Full RGB Pixel LED Display Panel Screen in 240* 120 mm with 3200 dots, 1/20 Scan, 800 Nits LED Tile for Indoor Display
Items |
HKXR3S |
Technical Parameters |
Pixel Configuration |
1R1G1B Full Color |
Encapsulation |
SMD2121 |
Pixel Density (dots/m2)
|
111111 |
Module Size (mm) |
240x120x8.6 (Width x Height x Thickness) |
Moduel Resolution (dots) |
80x40 |
Scan Mode |
1/20 |
Standard Dirver IC (Optional) |
Dual cache |
Refresh Rate (Hz) |
1920 |
Frame Rate (Hz) |
60 |
Gray Scale (bit) |
12 Adjustable |
Splicing diameter/mm |
458 |
Curved arc |
≥150° |
Data Interface Type |
HUB75(1 in 1 out) |
Moduel Barcket Materials |
Silicon Rubber Soft Bracket |
Module Weight (Kg/pcs) |
0.2 |
Cabinet Size |
Can be ODM freely upon module sizes |
Cabient Material |
Powder Coated Sheet Metal Steel Cabinet |
Cabinet Eveness (mm) |
≤ 0.5 |
IP Protection Grade |
IP20 |
Assembly / Maintanance Type |
Front & Rear Assembly / Maintenance |
Photoelectronic Special Features |
Brightness (nits) |
850-900 |
Color Temperature (K) |
10,000—12,000 Adjustable |
Brightness Eveness |
≥97% |
Horizontal / Vertical Veiw Angle |
≥140°/≥120° |
Contrast Ratio |
≥'5000:1 |
Electrical Parameters |
Module Input Voltage DC(V)
|
5 |
Moduel Maximum Current DC(A)
|
2.8 |
Module Maximum Power Consumption(w/pcs)
|
14 |
Working Input Voltage AC(V)
|
110—220 |
Peak Power Consumption(w/m2)
|
490 |
Average Power Consumption(w/m2)
|
140 |
Application Parameters |
Typical Life Span(hrs)
|
100,000 |
Working Temperature(℃)
|
-20—40 |
Storage Temperaure(℃)
|
-20—40 |
Working Humidity(RH)
|
20—75% (No Condensation) |
Storage Humidity(RH)
|
20—75% (No Condensation) |
