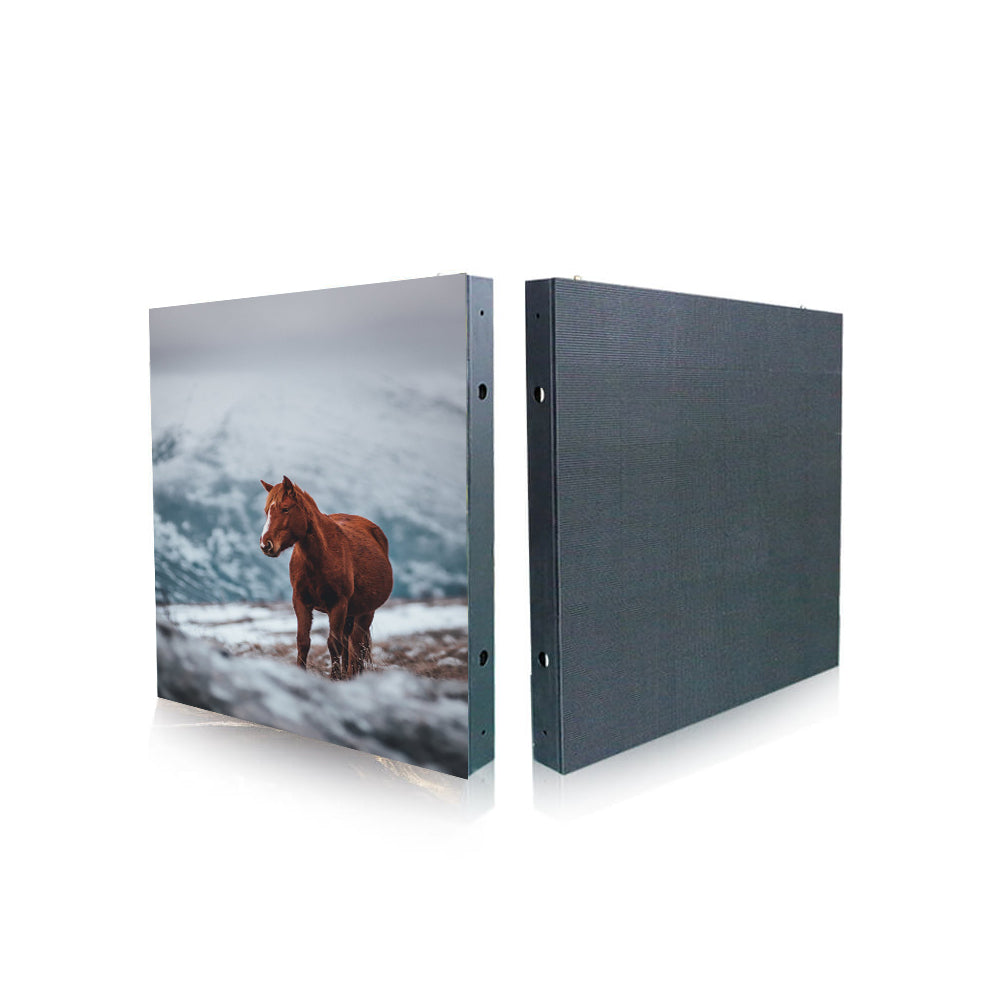

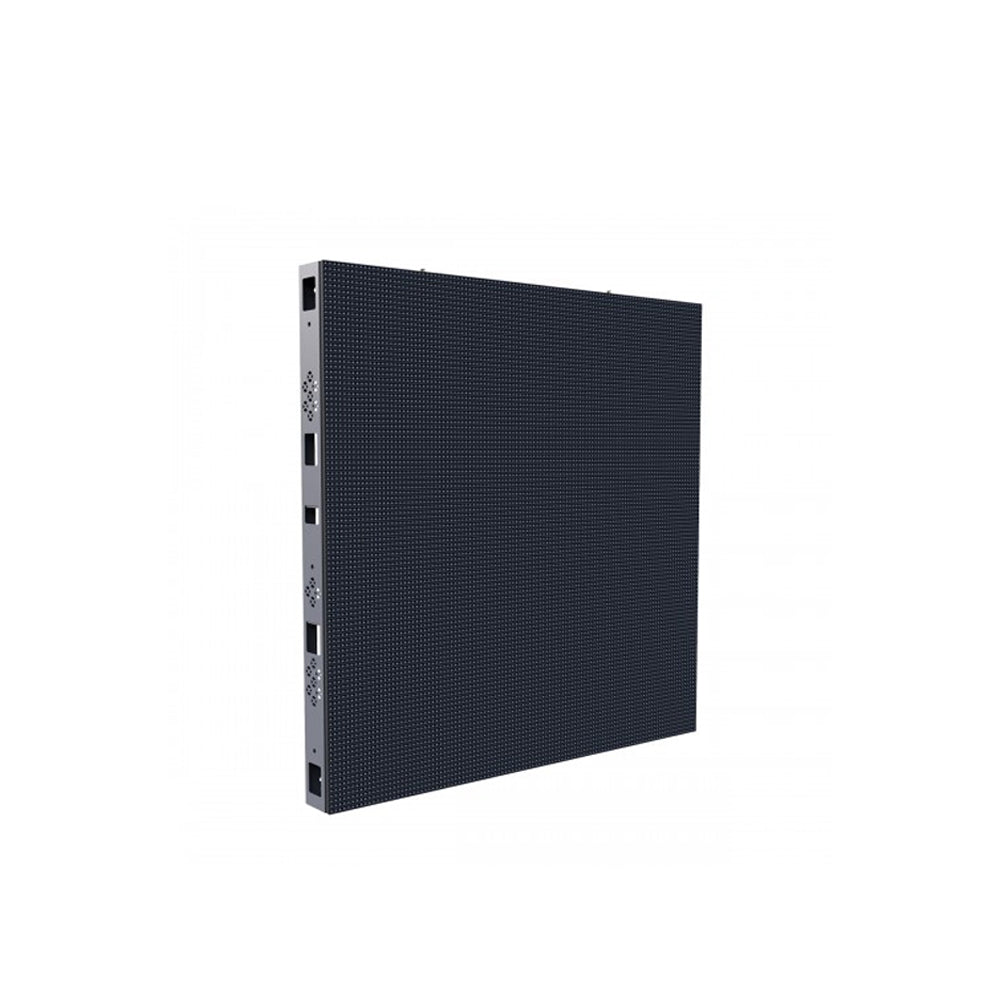

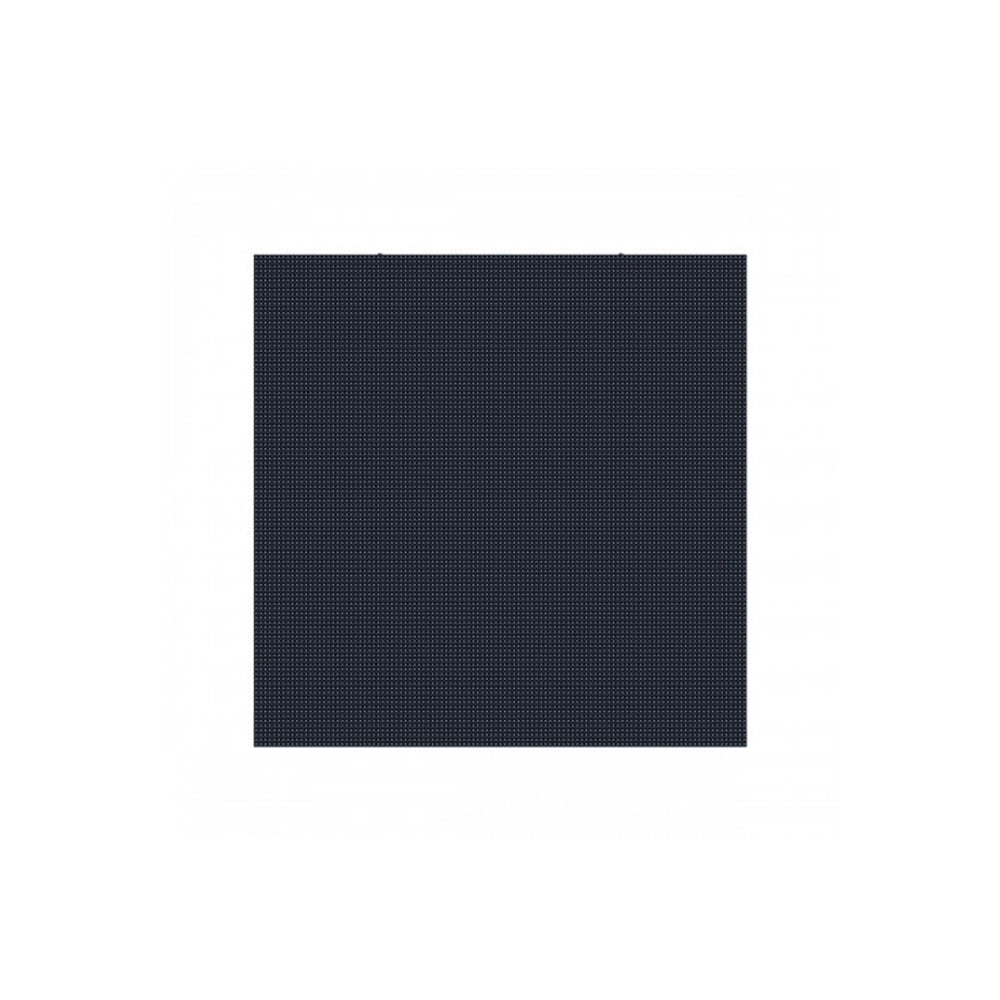

iF-S Series Indoor Fixed LED Display Screen 800nits Brightness in Pixel Pitch 3 | 4 | 5 | 6 mm Standard Aluminum Profile Cabinet
Specifications
Part No. |
iF-B3 |
iF-B4 |
iF-B5 |
iF-B6 |
Pixel Pitch |
3mm |
4mm |
5mm |
6mm |
LED |
SMD2121 |
LED Brand |
Standard: Kinglight/Huatian etc.Premium:Nationstar |
Pixel Configuration |
1R 1G 1B |
Wave Length |
R:620~625nm, G:520~530nm, B:460~475nm |
Module Size |
192*192mm |
256*128mm |
320*160mm |
192*192mm |
Module Resolution |
64*64 |
64*32 |
64*32 |
32*32 |
Module Pixles |
4096dots |
2048dots |
2048dots |
1024dots |
Scan |
1/32 |
1/16 |
1/16 |
1/16 |
Cabinet Size |
768*768*64mm |
512*512*64mm |
640*640*64mm |
768*768*64mm |
Module Qty./Cabinet |
14 |
8 |
8 |
8 |
Cabinet Qty./㎡ |
1.7 |
2.44 |
2.44 |
1.7 |
Cabinet Resolution |
256*256 |
208*208 |
160*160 |
128*128 |
Cabinet Pixles |
65536dots |
43264dots |
25600dots |
16384dots |
Cabinet Type |
Iron |
Pixel Density |
111111dots/㎡ |
62500dots/㎡ |
40000dots/㎡ |
27777dots/㎡ |
Brightness |
≥800cd/㎡ |
Contrast Rate |
3000:1 |
Color Depth |
16bit |
Grey Level |
16384 |
Refresh Frequency |
>1920HZ |
Driving IC |
MBI/ICN |
Color Uniformity |
≥97% |
Protection Rating |
IP30 |
Operating Temperature |
-20°C ~ 60°C(-4°F ~ 140°F) |
Operating Humidity |
10%~90% |
Input voltage |
AC100-240V |
Power Supply |
Standard: CE/Premium:UL CE MeanWell |
Controlling System |
Nova |
Viewing Distance |
>3m |
>4m |
>5m |
>6m |
Viewing Angle |
H:140deg.V:140deg. |
Power Consumption(w) |
Max.800W/㎡Avg.400W/㎡ |
Blind Spot Rate |
≤0.0003 |
Maintainance |
Front/Rear Access |
Features
* Indoor LED Display
* High Quality Aluminum Alloy with Good Dissipation
* Brightness > 800nits, Rated for Indoor LED Display Screen Projects

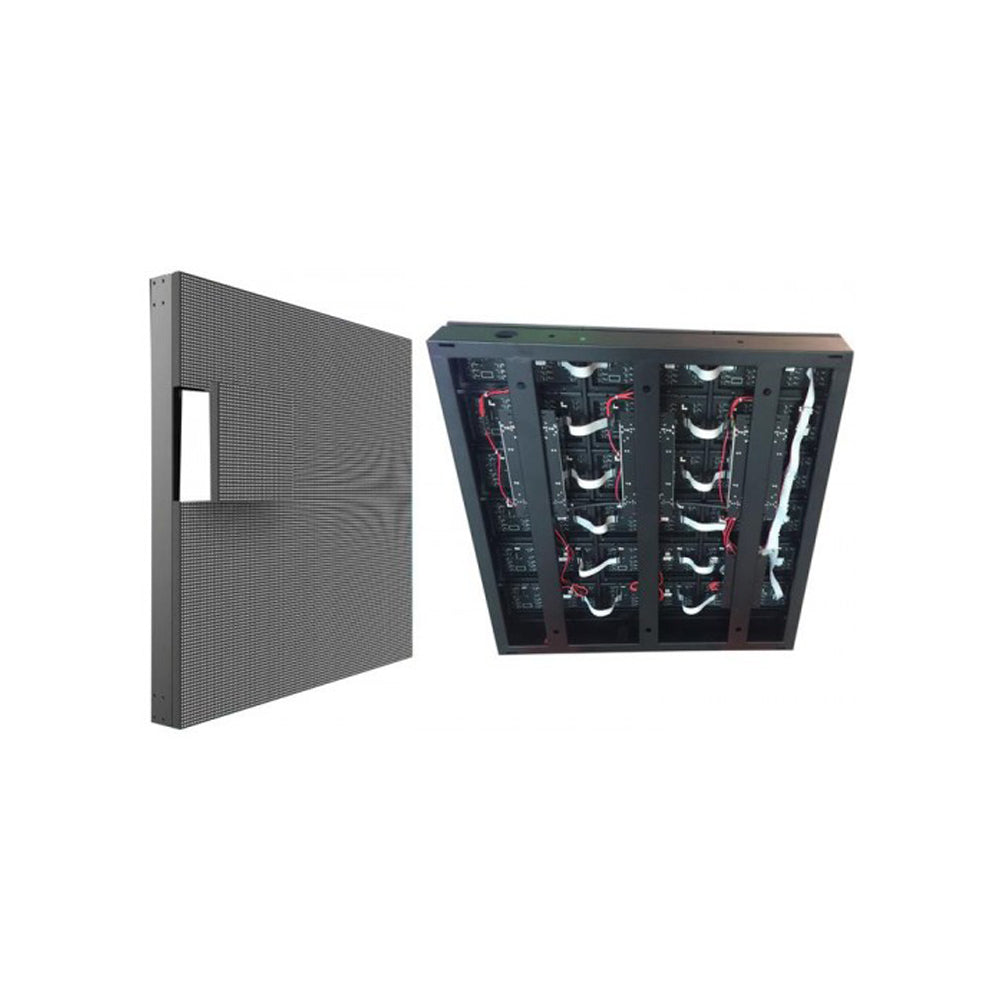

* Aluminum Profile Cabinet, Allow for Customization
* Silent Design with Fanless Cabinet, the Whole LED Display Works without Making any Noise.
* With fast lock each LED display cabinet, multiples can be spliced together into a Large LED Display soon.
