Description

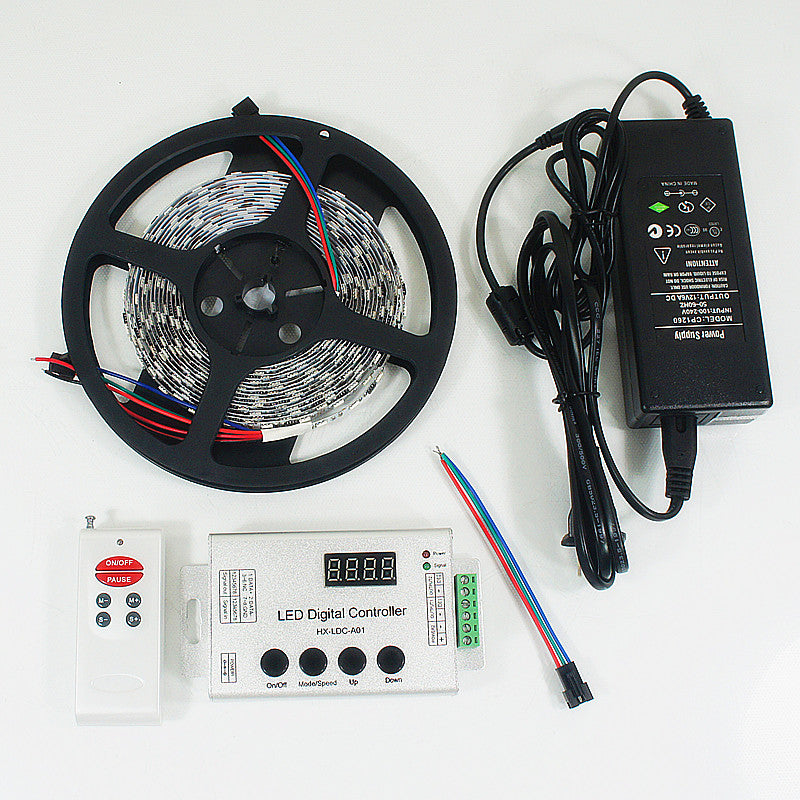

This 5050 60LED IC Controlled Dream Color RGB LED Strip Kit includes the following items:
1. 1 x TM1914 IC Controlled Dream Color 5050 RGB Pixel LED Strip Kit 5 meters with 60LEDs
2. 1 x DC12V RF Dream Color RGB LED Strip Controller
3. 1 x DC12V 8Amp Power supply
4. 1 x 3pin SM Connector
The strip in this kit is the DC 12V TM1914 Breakpoint Continuingly RGB Color Changing Addressable LED Strip Light 5050 RGB 16.4 Feet (500cm) 60LED/Meter
Power: 12VDC
Wattage: 18W/Mtr
LED QTY.: 60LED/Mtr
IC QTY.: 10pcs/Mtr
Beam Angle: 120°
PCB finish color : White
Protection grade option: Non-waterproof, IP65 Waterproof ,IP67 Waterproof
Packing:5Mtr/roll
Connector: 3-pin SM connector for strip extention and 2color wire for power supply connection
Specification of the 96Watt Transformer in the Kit:
The Input Voltage: 100-240VAC
Output voltage: 12V
Output current: 8A
Dimension(mm): 170*64*40 (mm)
Accessory: it comes with power plug suit to different country (Europe plug, US plug Italy Plug and so on).

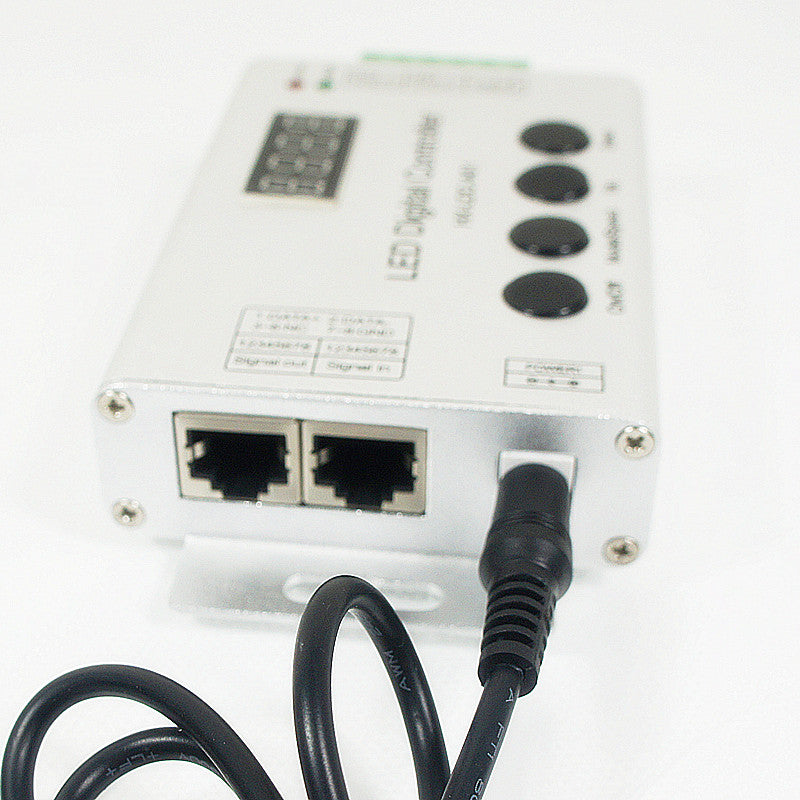

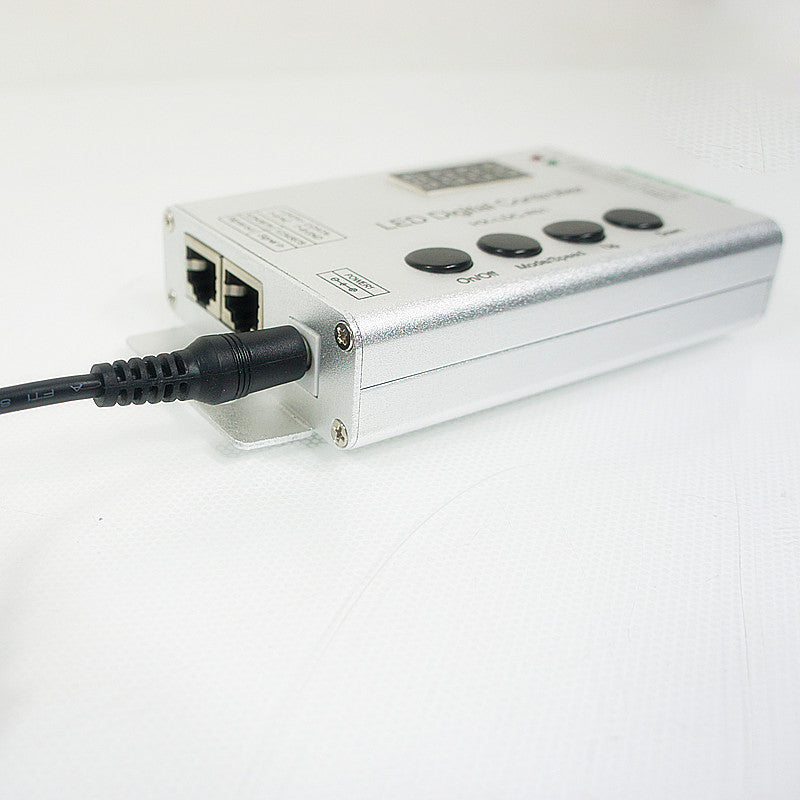

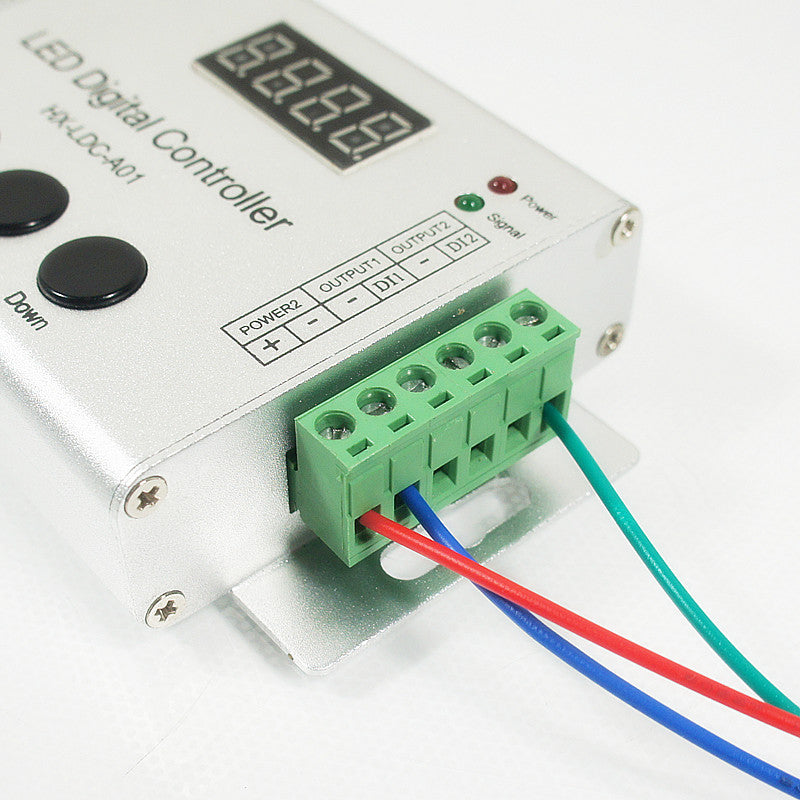

The RF Dream Color RGB Controller is the Dream Color Digital/SPI RF LED Controller - 5-24VDC / 2048 Pixels.
On/off：It can open or close output.
Mode/Speed ：Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
UP：Mode+/Speed+ button. When in mode regulator function, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
DOWN：Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
Standard color changes as follows:
