Description
U Shape LED Channel U02–B 12mm | Silver | Milky White Cover | With Installation Accessories | – Standard Aluminum Profile – 1 m / 2 m / 3 m | 50 / 100-Pack
Package Included
| Version | Package Included |
| Silver – 1 m × 50-Pack | 50 × 1 m Aluminum Channel (Silver); 50 × 1 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws |
| Silver – 2 m × 50-Pack | 50 × 2 m Aluminum Channel (Silver); 50 × 2 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws |
| Silver – 3 m × 100-Pack | 100 × 3 m Aluminum Channel (Silver); 100 × 3 m Milky White PC Lens; 200 × End Caps; 600 × Mounting Clips,Expansion tube, screws |
| Black – 1 m × 50-Pack | 50 × 1 m Aluminum Channel (Black); 50 × 1 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws |
| Black – 2 m × 50-Pack | 50 × 2 m Aluminum Channel (Black); 50 × 2 m Milky White PC Lens; 100 × End Caps; 300 × Mounting Clips,Expansion tube, screws |
| Black – 3 m × 100-Pack | 100 × 3 m Aluminum Channel (Black); 100 × 3 m Milky White PC Lens; 200 × End Caps; 600 × Mounting Clips,Expansion tube, screws |
About this item
- U02-B aluminum profile kit is a standard solution for DIY under-cabinet and decorative lighting
- Supports recessed or surface mounting on furniture, shelves, walls, ceilings, steps, and niches

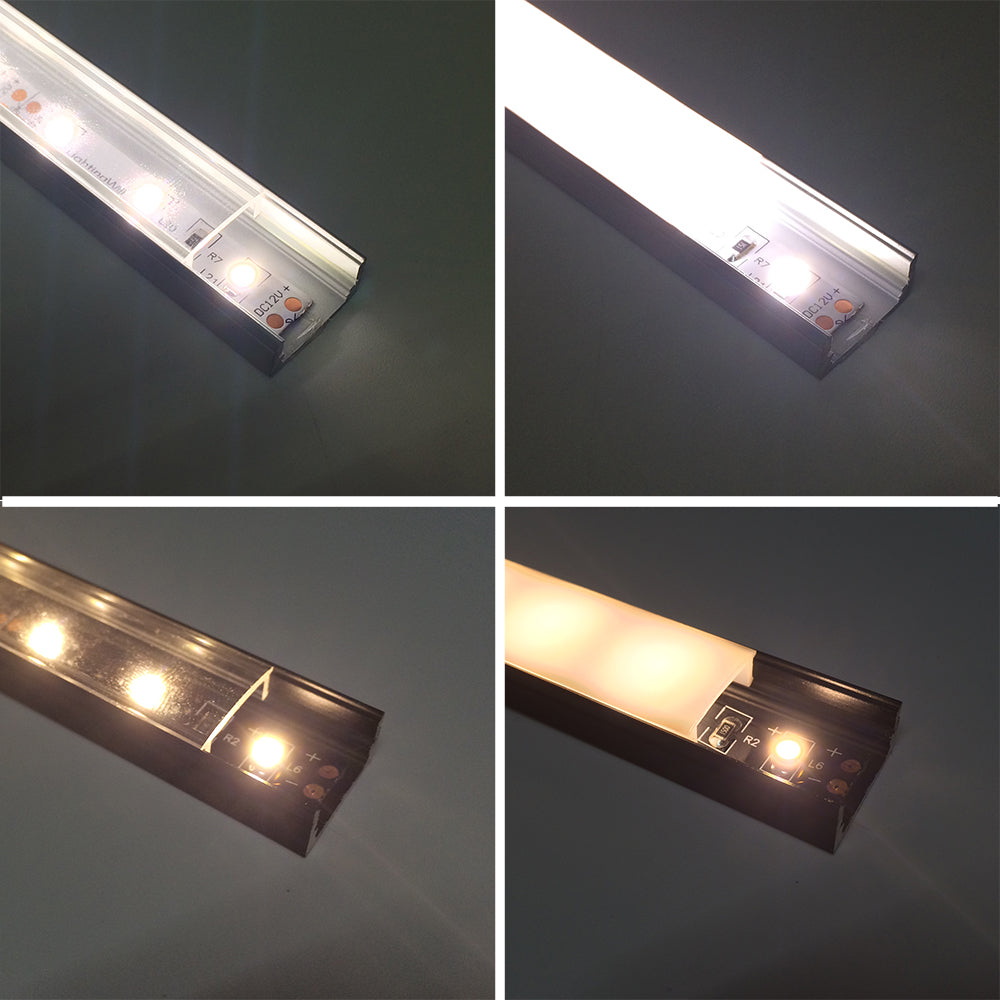

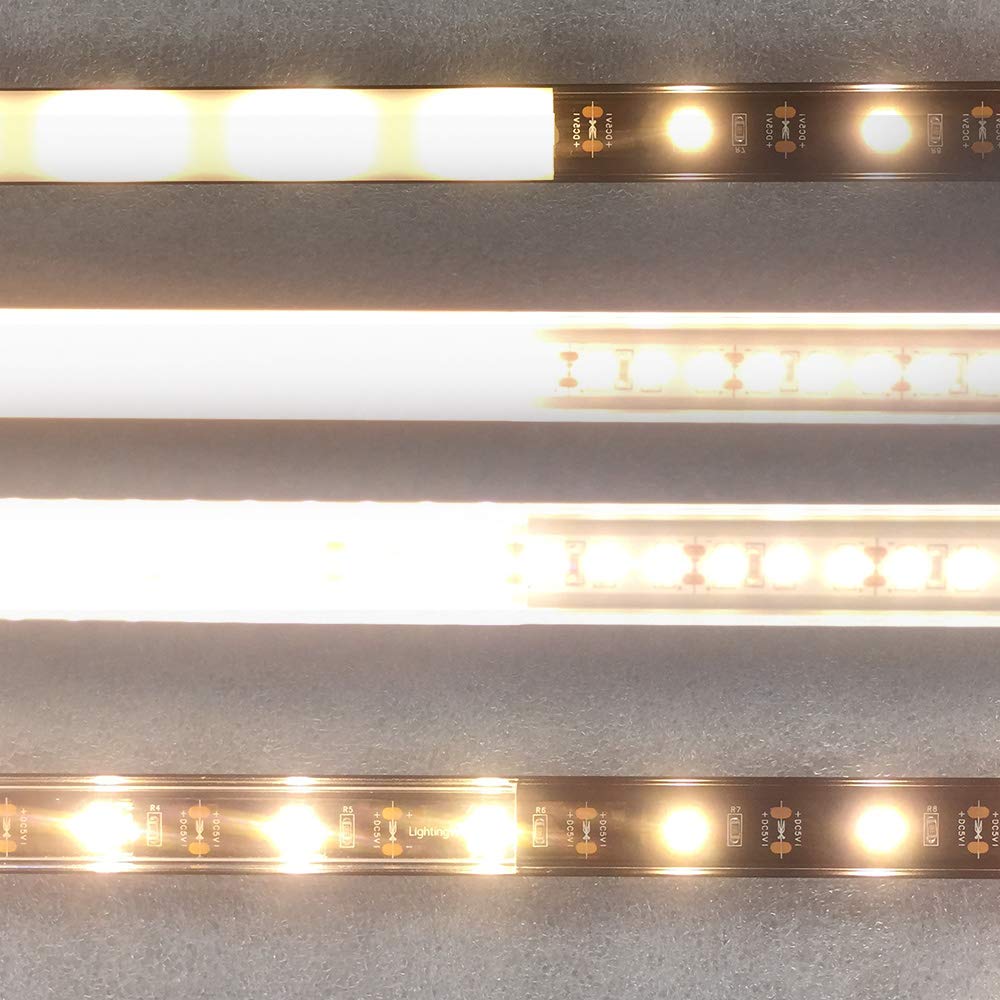

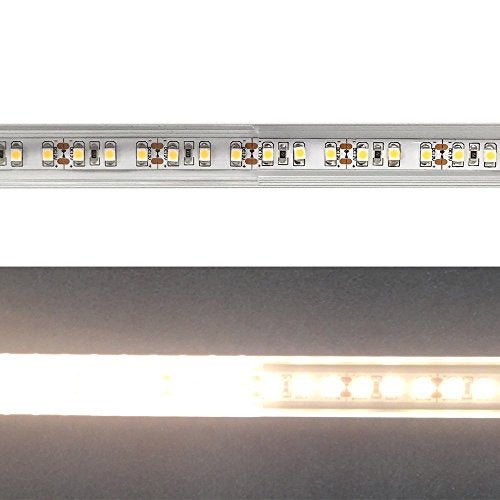

- Milky white PC diffuser softens and spreads LED light for uniform illumination

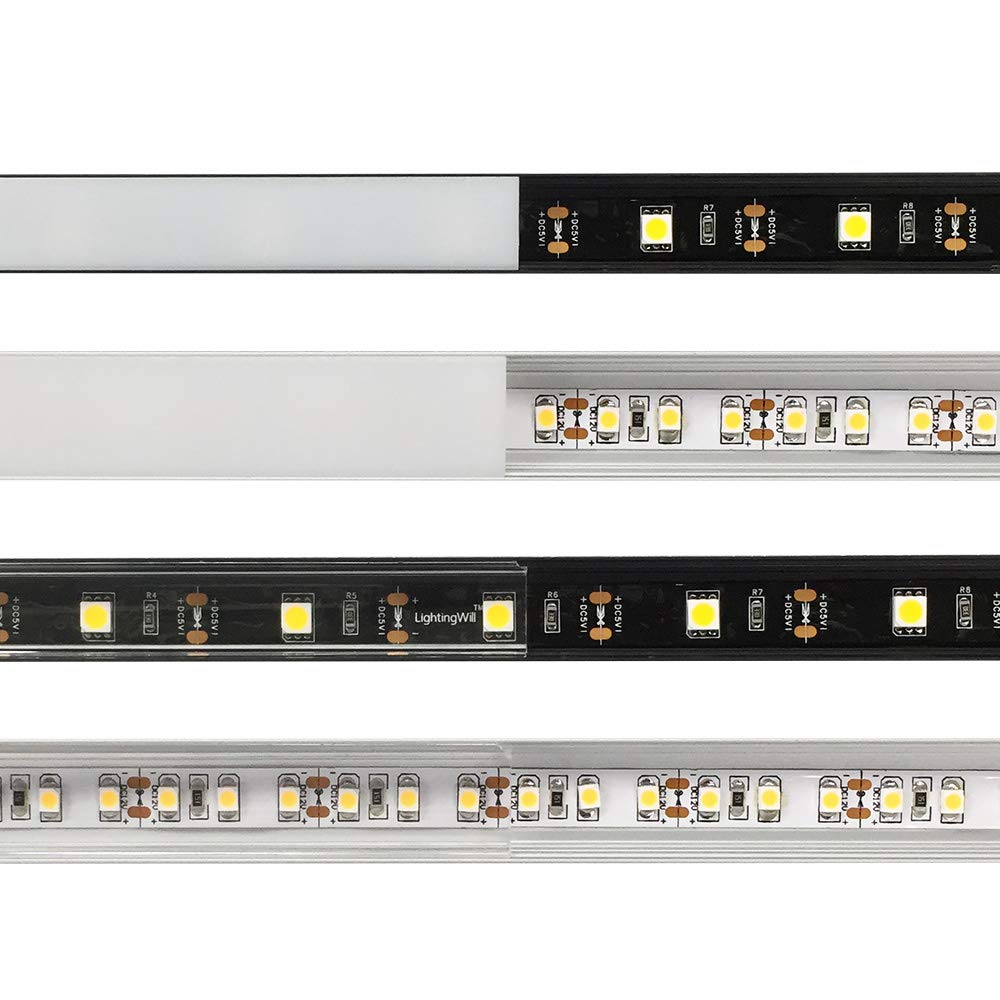

- Compatible with flexible or rigid LED strip lights up to 12.15 mm wide

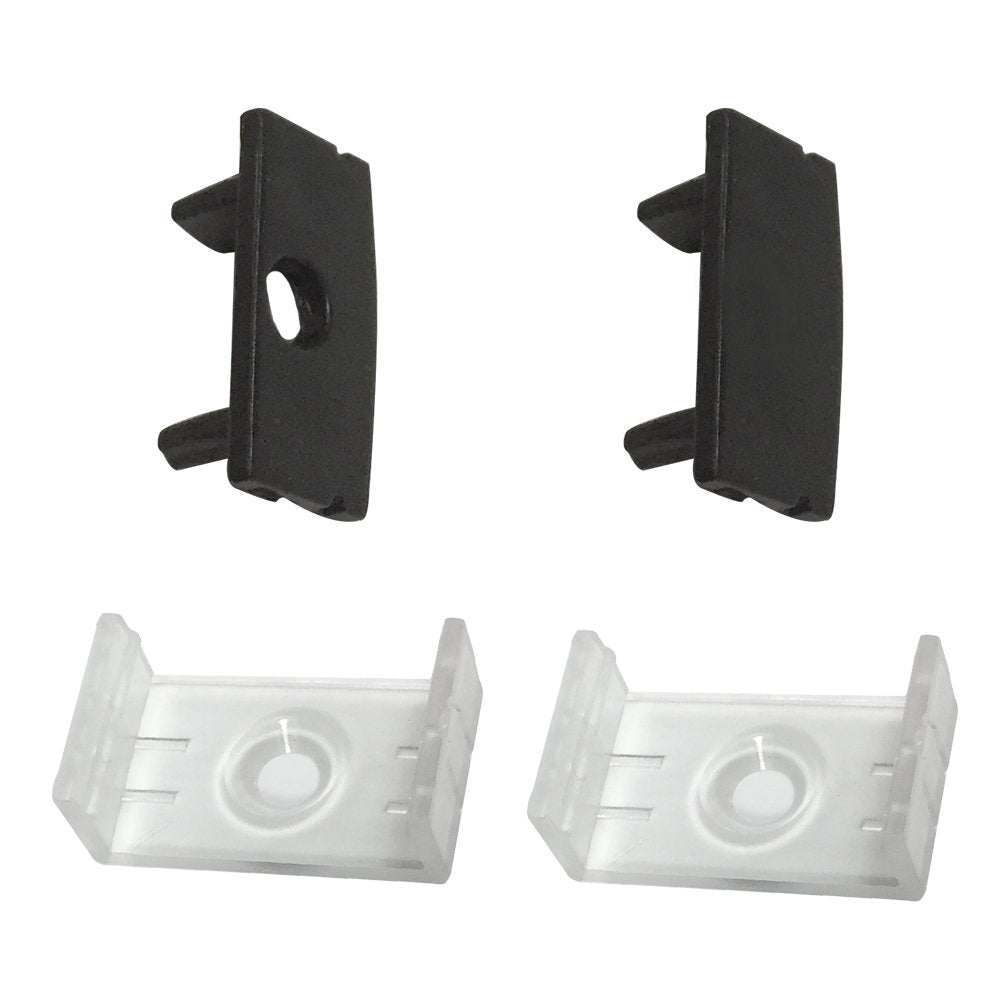

- Each kit includes aluminum channel, cover, end caps, and mounting clips
- Extendable design enables seamless connection for longer continuous runs
Order & Logistics
- Lead Time: Ships within 3–8 business days after order confirmation
- Packing: Heavy-duty cardboard box with protective padding
- Shipping Note:
- LED aluminum profiles are classified as oversized products and require special packaging and logistics handling. Therefore, this product series is not included in our Free Shipping Policy for orders over $399, and shipping fees will be charged based on the actual freight cost. Air Freight (10–20 Days - Air + Ground)
- Terms: All freight shipments are under DDP terms (all duties & taxes included). For countries where this service is unavailable, buyer will be contacted before dispatch

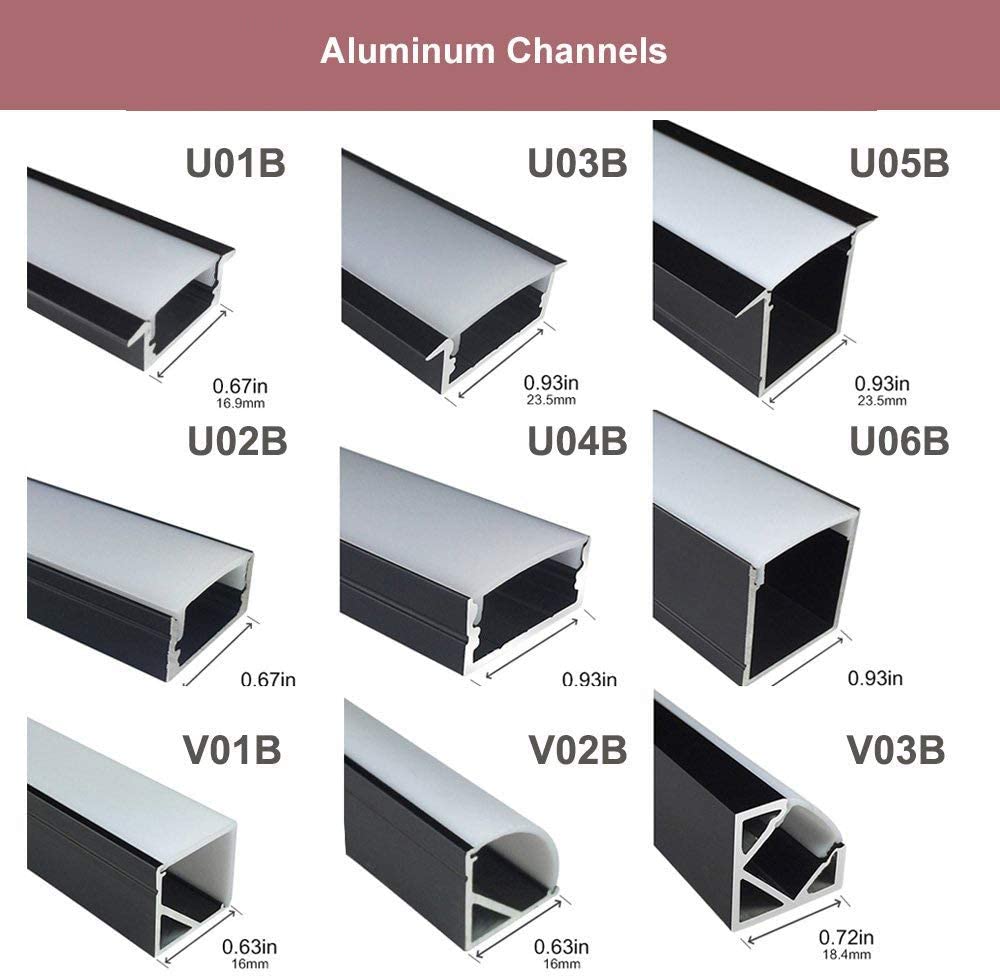

Key Specifications
| Specification | Value |
| Configuration | U-shape aluminum channel |
| Material | Extruded aluminum + milky PC cover |

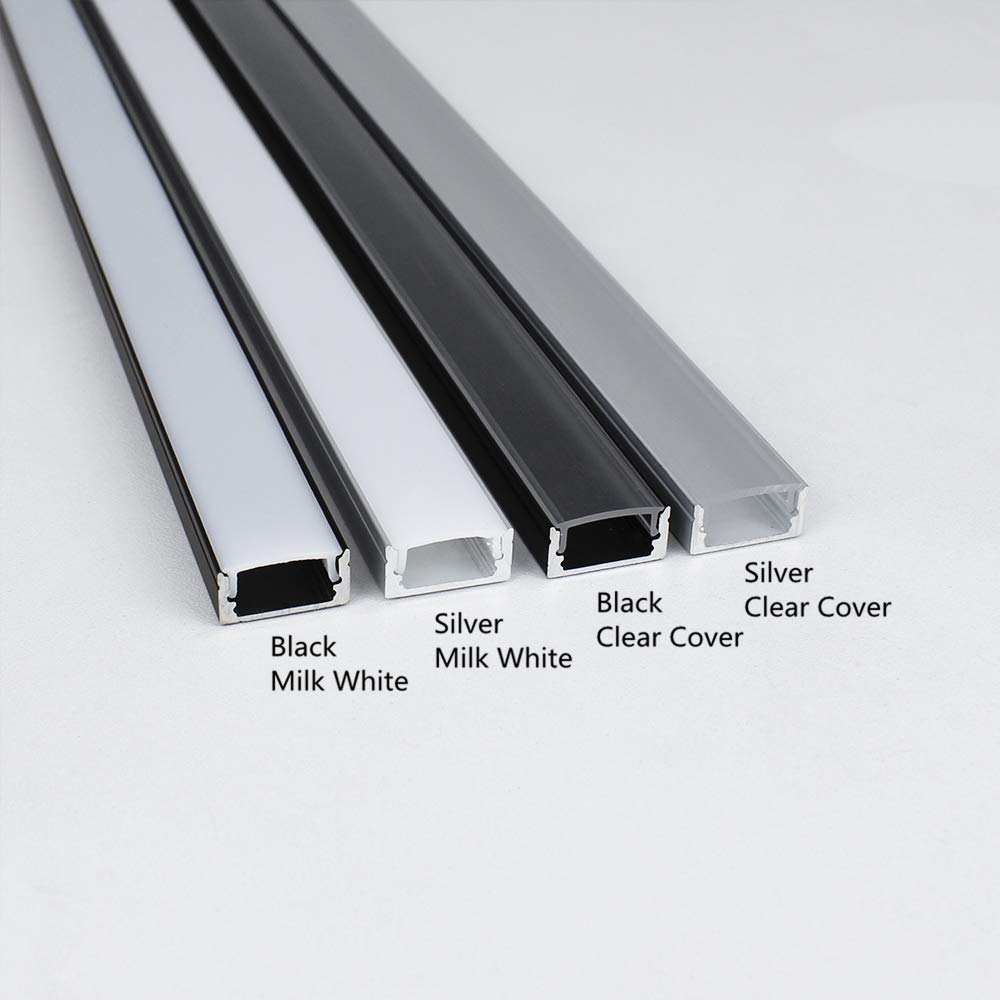

| Colors | Silver / Black |
| Height | 0.35 in (9 mm) |
| Inner Width | 0.48 in (12.15 mm) |
| Top Width | 0.91 in (23 mm) |
| Back Width | 0.67 in (16.9 mm) |
| Compatible LED Strip Width | ≤ 12 mm |
Usage Notes / Installation Tips
- Cut channels to required length before installation
- Mark and pre-drill mounting positions for clean recessed or surface mounting
- Secure with included mounting clips or flat-head screws
- Insert LED strip (observe polarity/voltage) and snap on diffuser cover
- Use indoors; ensure ventilation for heat dissipation
Applications
- Under-cabinet and shelf lighting
- Decorative linear lighting for walls, ceilings, steps, and niches
- Retail displays and showcase illumination
- DIY residential and commercial lighting projects
