Description

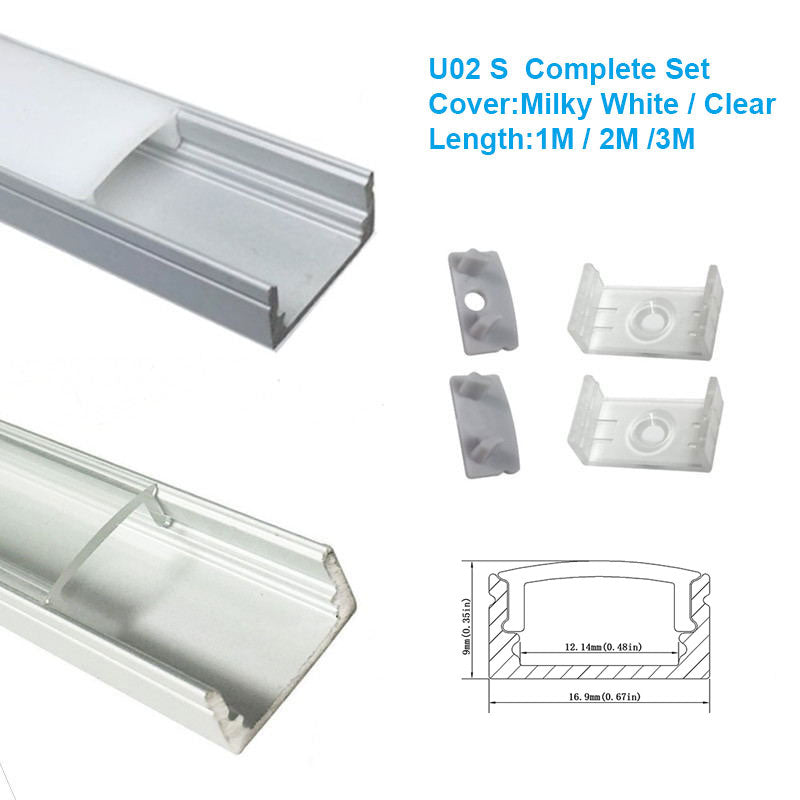

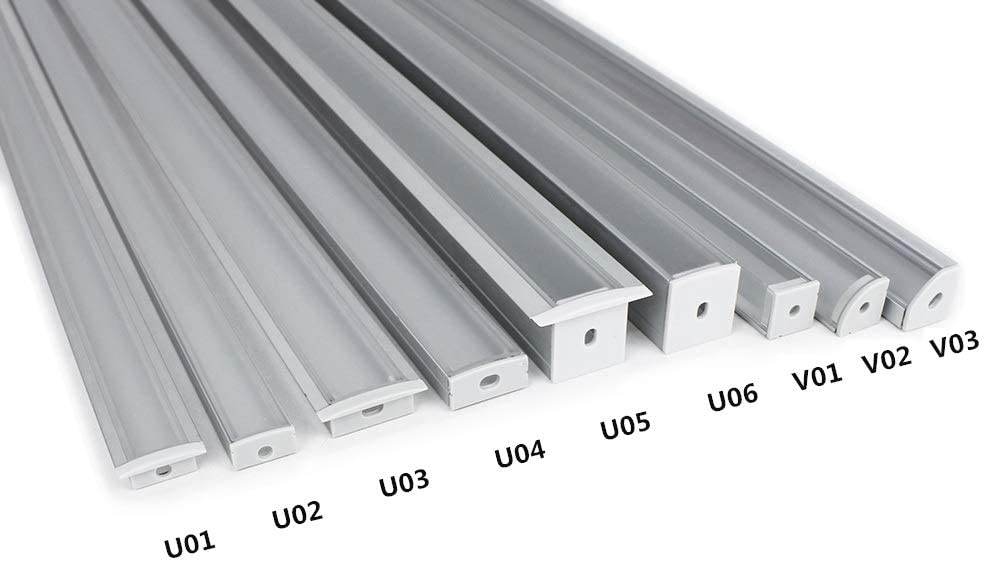

U Shape LED Channel U02-A – 12mm | Silver / Black | Milky White Cover | With Installation Accessories | Heavy-Duty Aluminum Profile – 1 m / 2 m / 3 m | 50 / 100-Pack
Package Included
| Version | Package Included |
| Silver – 1 m × 50-Pack | 50 × 1 m Aluminum Channel, 50 × 1 m PC/PMMA Lens, 100 × End Caps, 300 × Mounting Clips,Expansion tube, screws |
| Silver – 2 m × 50-Pack | 50 × 2 m Aluminum Channel, 50 × 2 m PMMA Lens, 100 × End Caps, 300 × Mounting Clips,Expansion tube, screws |
| Silver – 3 m × 100-Pack | 100 × 3 m Aluminum Channel, 100 × 3 m PMMA Lens, 200 × End Caps, 600 × Mounting Clips,Expansion tube, screws |
| Black – 1 m × 50-Pack | 50 × 1 m Aluminum Channel, 50 × 1 m PC/PMMA Lens, 100 × End Caps, 300 × Mounting Clips,Expansion tube, screws |
| Black – 2 m × 50-Pack | 50 × 2 m Aluminum Channel, 50 × 2 m PMMA Lens, 100 × End Caps, 300 × Mounting Clips,Expansion tube, screws |
| Black – 3 m × 100-Pack | 100 × 3 m Aluminum Channel, 100 × 3 m PMMA Lens, 200 × End Caps, 600 × Mounting Clips,Expansion tube, screws |
About this item
- U02-A aluminum profile kit is a cost-effective solution for DIY under-cabinet lighting.
- Supports recessed or surface mounting on furniture, cabinets, shelves, drywall, partitions, walls, ceilings, floors, steps, and niches.

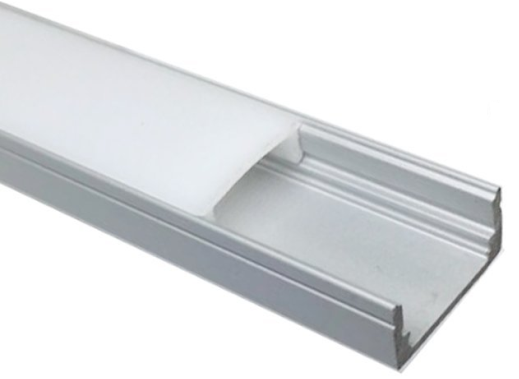

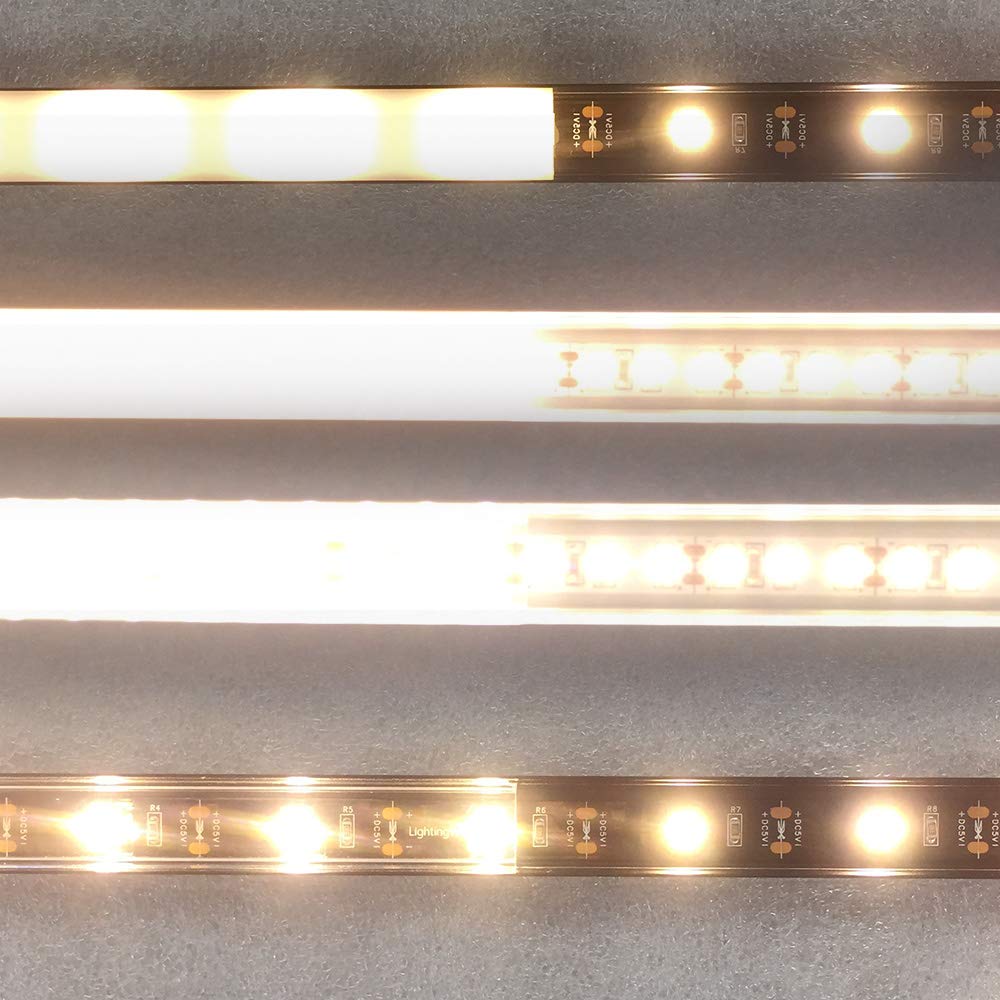

- Opal milky PC diffuser softens output for uniform, glare-free illumination.

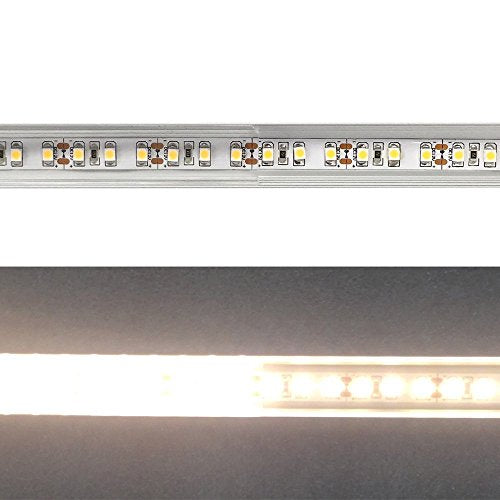

- Compatible with flexible or rigid LED strip lights up to 12.15 mm wide.

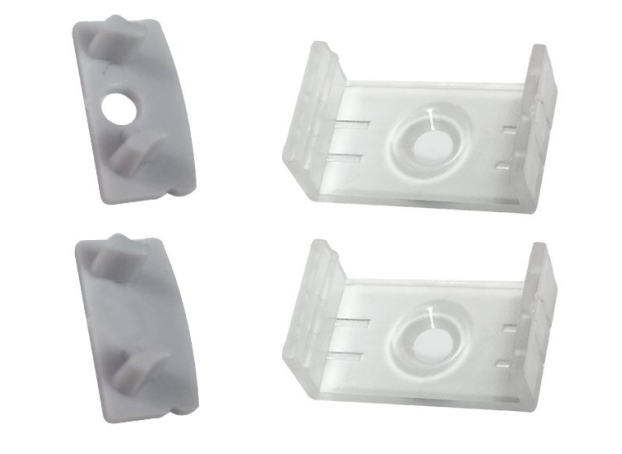

- Each kit includes channel, diffuser cover, end caps, and mounting clips for a complete installation.
- Extendable design allows seamless connection for longer continuous runs.
Order & Logistics
- Lead Time: Ships within 3–8 business days after order confirmation
- Packing: Heavy-duty cardboard box with protective padding
- Shipping Note:
- LED aluminum profiles are classified as oversized products and require special packaging and logistics handling. Therefore, this product series is not included in our Free Shipping Policy for orders over $399, and shipping fees will be charged based on the actual freight cost. Air Freight (10–20 Days - Air + Ground)
- Terms: All freight shipments are under DDP terms (all duties & taxes included). For countries where this service is unavailable, buyer will be contacted before dispatch
Key Specifications
| Specification | Value |
| Channel Type | U-Shape LED aluminum channel |

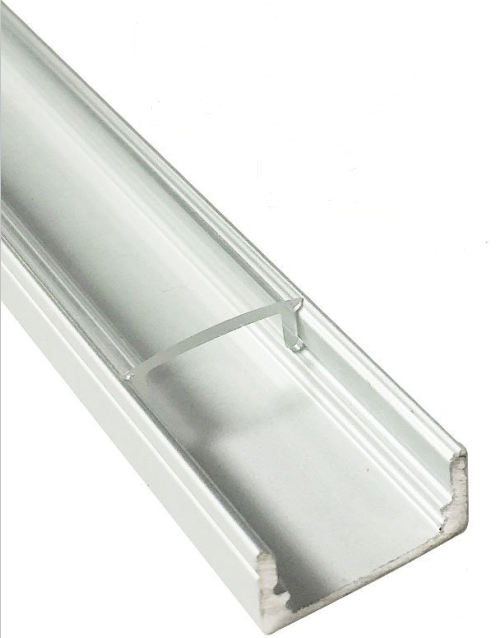

| Material | Extruded aluminum + milky PC/PMMA cover |
| Color Options | Silver / Black |

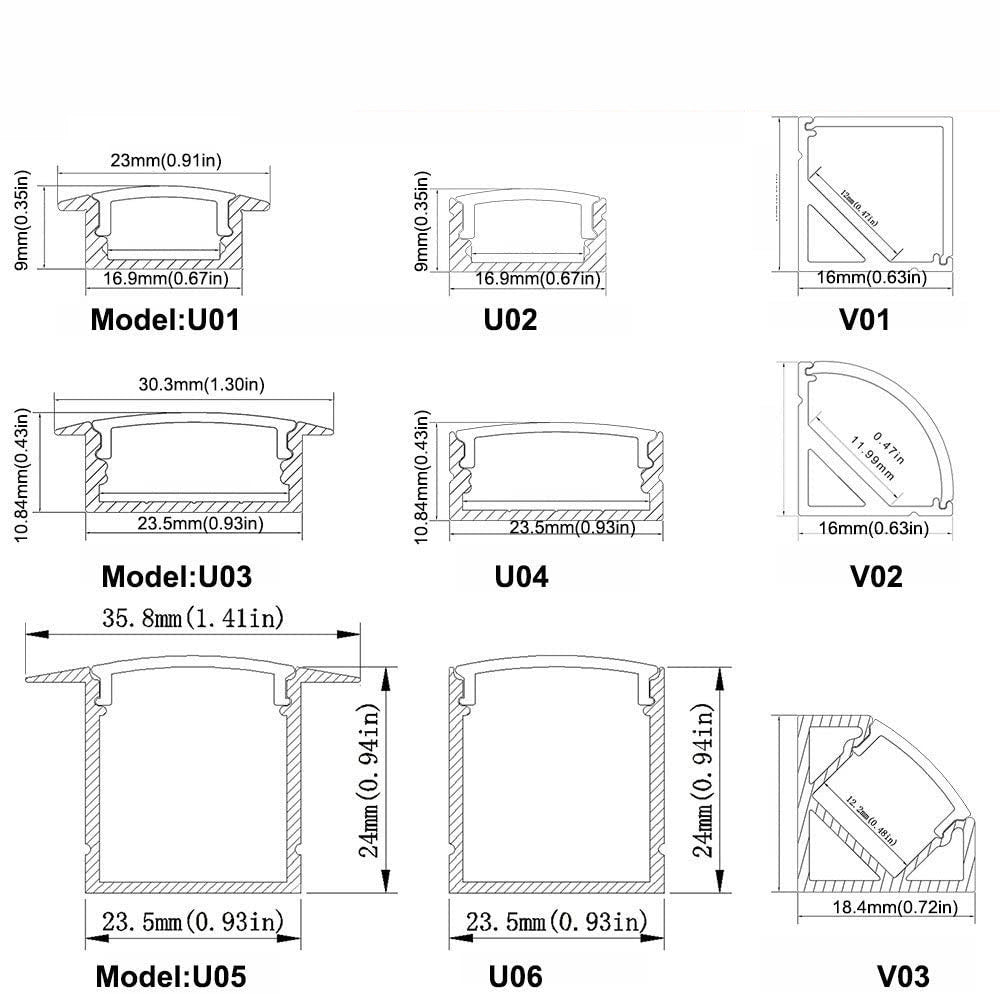

| Dimensions | Height 0.35 in (9 mm); Inner width 0.48 in (12.15 mm); Top width 0.91 in (23 mm); Back width 0.67 in (16.9 mm) |
| Compatible Strip Width | ≤ 12 mm |
| Segment Length Options | 1 m / 2 m / 3 m |
| Pack Options | 50 / 100 segments |
Usage Notes / Installation Tips
- Cut channels to required length before installation.
- Mark mounting positions and pre-drill if necessary for clean, flush mounting.
- Fix channel with flat-head screws or mounting clips (screws not included).
- Place LED strip (observe voltage/polarity), then snap on diffuser cover.
- Intended for indoor use; ensure adequate ventilation for heat dissipation.
Applications
- Under-cabinet and shelf lighting
- Accent lines on walls, ceilings, steps, and niches
- Retail display and showcase illumination
- General decorative linear lighting for residential and commercial projects
