Description

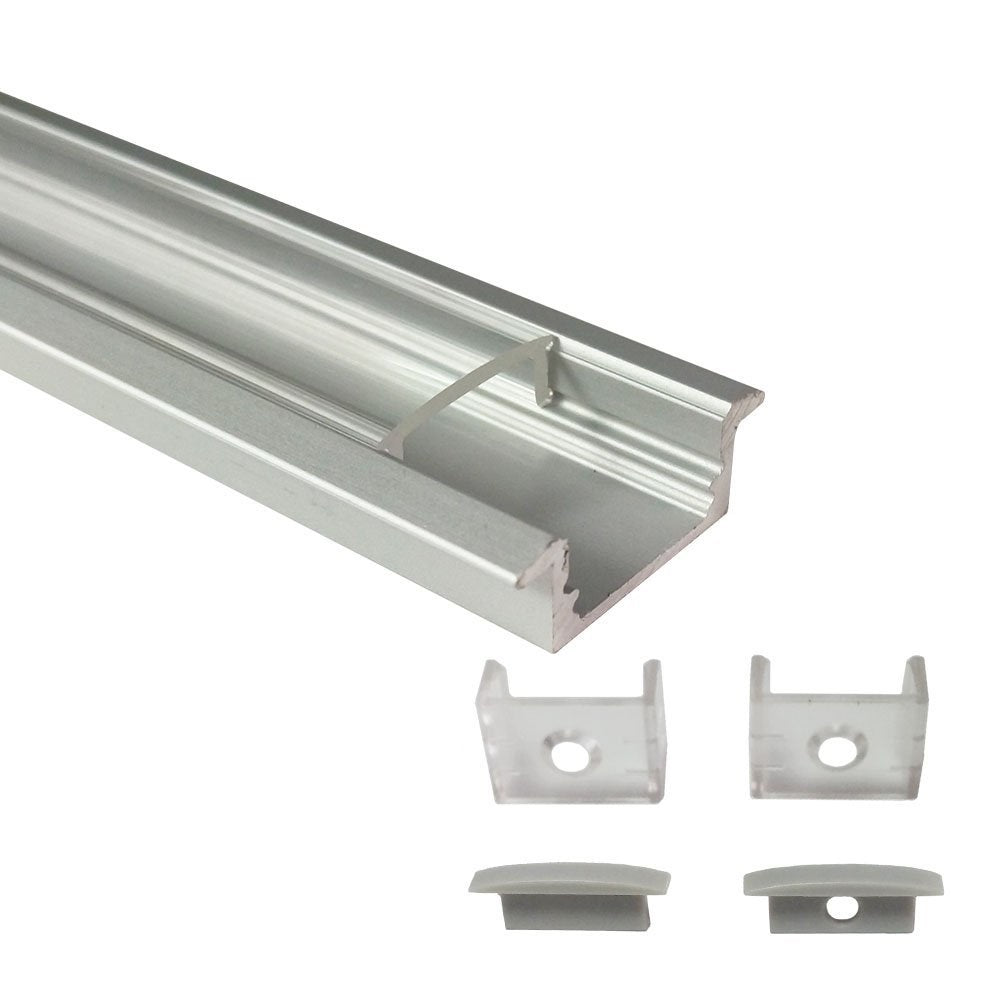

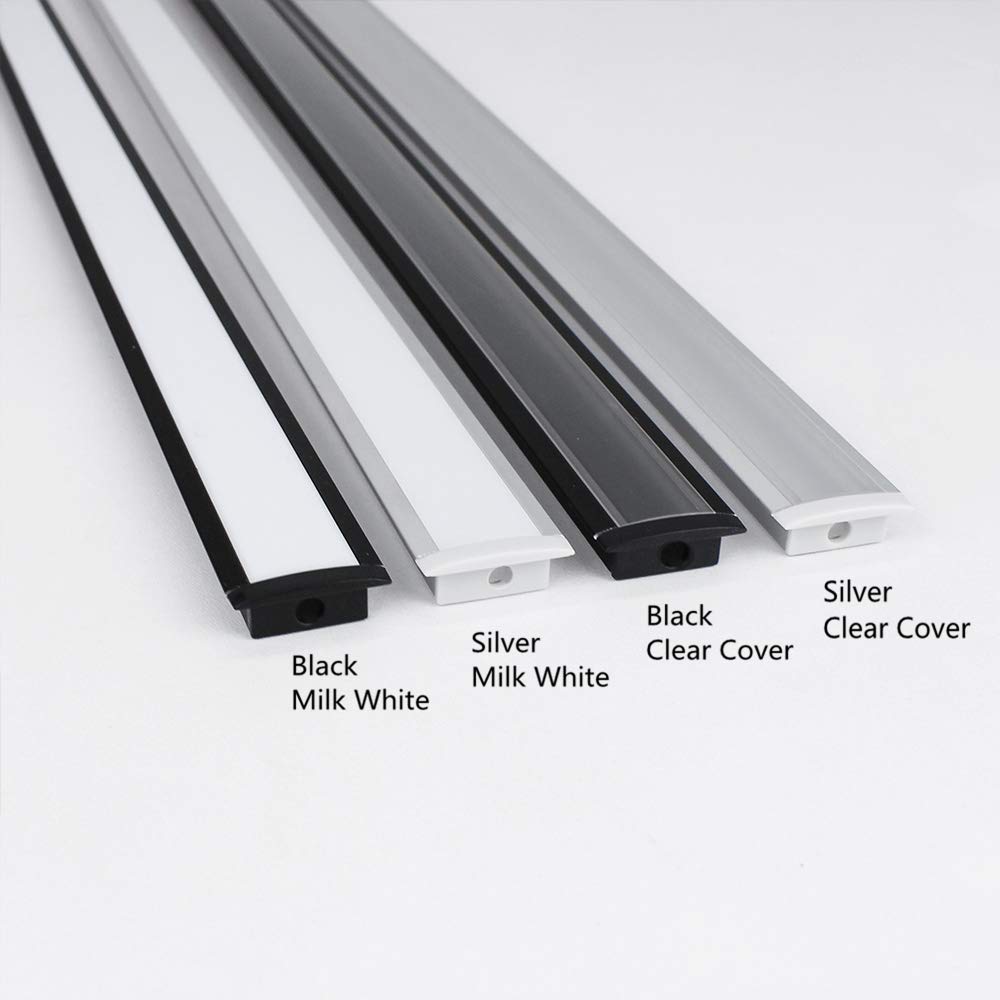

U Shape LED Channel U01-A – 12mm | Silver / Black | Milky White Cover | With Installation Accessories | Heavy-Duty Aluminum Profile – 1 m / 2 m / 3 m | 50 / 100-Pack
Package Included
| Version | Package Included |
| 5 × 1 m Pack | 5 × 1 m Aluminum Channel, 5 × 1 m PC Lens, 10 × End Caps (5 with hole, 5 without), 10 × Mounting Clips,Expansion tube, screws |
| 10 × 1 m Pack | 10 × 1 m Aluminum Channel, 10 × 1 m PMMA Lens, 20 × End Caps (10 with hole, 10 without), 20 × Mounting Clips,Expansion tube, screws |
| 25 × 1 m Pack | 25 × 1 m Aluminum Channel, 25 × 1 m PMMA Lens, 50 × End Caps (25 with hole, 25 without), 100 × Mounting Clips,Expansion tube, screws |
| 25 × 2 m Pack | 25 × 2 m Aluminum Channel, 25 × 2 m PMMA Lens, 50 × End Caps (25 with hole, 25 without), 100 × Mounting Clips,Expansion tube, screws |
| 50 × 2 m Pack | 50 × 2 m Aluminum Channel, 50 × 2 m PMMA Lens, 100 × End Caps (50 with hole, 50 without), 300 × Mounting Clips,Expansion tube, screws |
| 50 × 3 m Pack | 50 × 3 m Aluminum Channel, 50 × 3 m PMMA Lens, 100 × End Caps (50 with hole, 50 without), 300 × Mounting Clips,Expansion tube, screws |
About this item
- U01-A aluminum profile kit is a cost-effective solution for DIY under-cabinet lighting
- Designed for recessed or surface mounting; suitable for furniture, cabinets, shelves, partitions, walls, ceilings, floors, steps, and niches

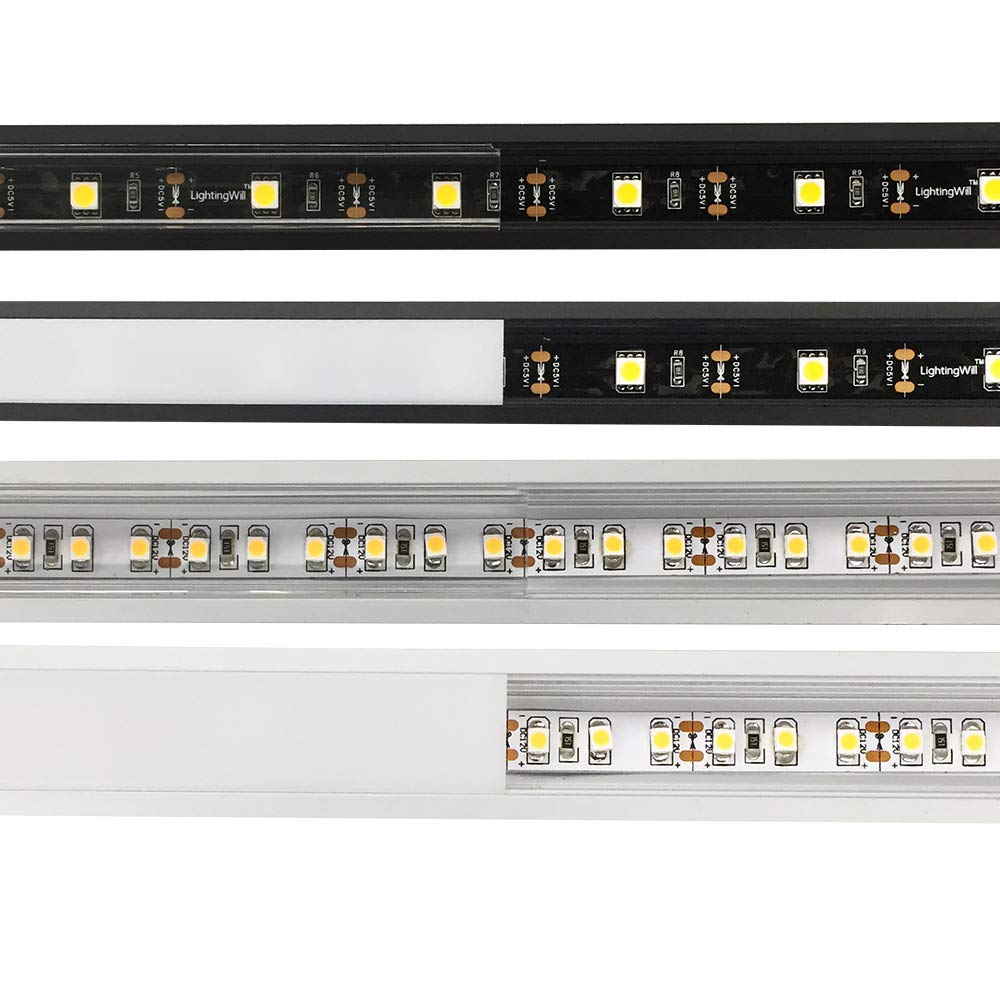

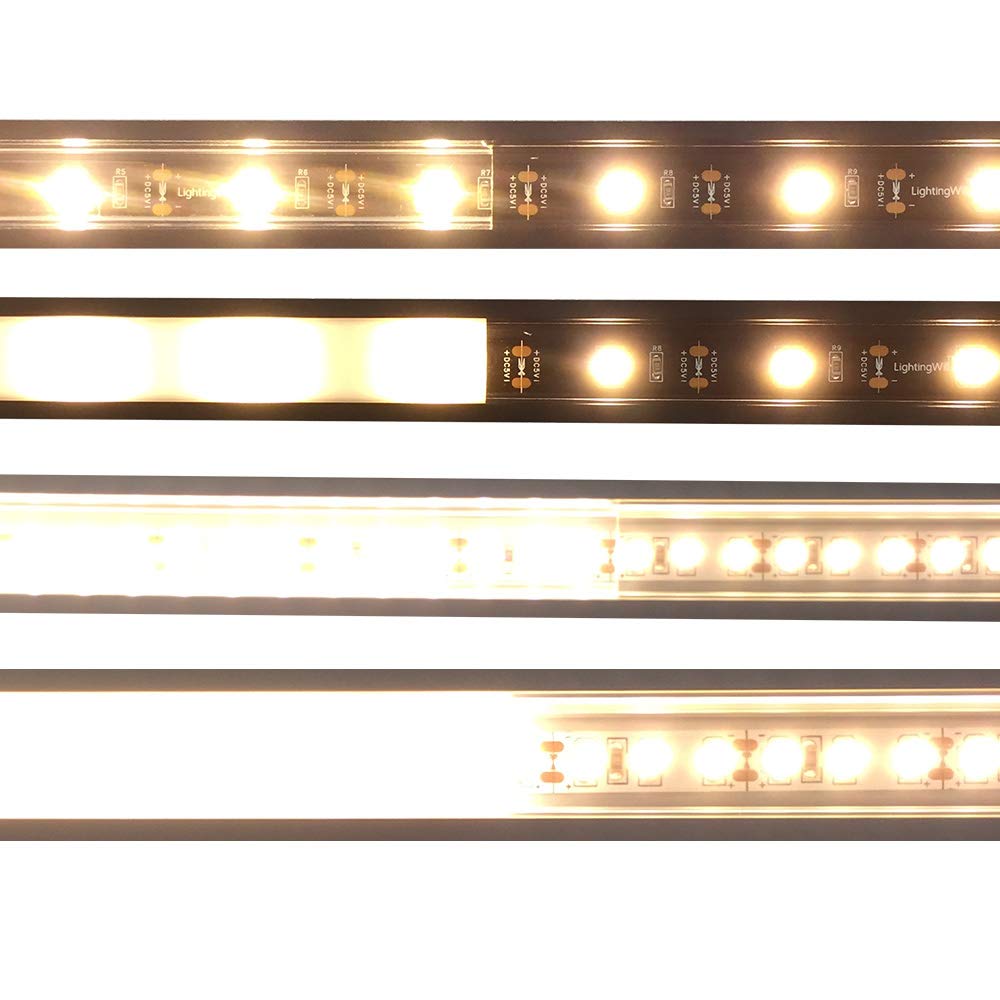

- Milky white PC cover diffuses light for a softer, more uniform glow
- Compatible with LED strip lights up to 12.15 mm wide (flexible or rigid)

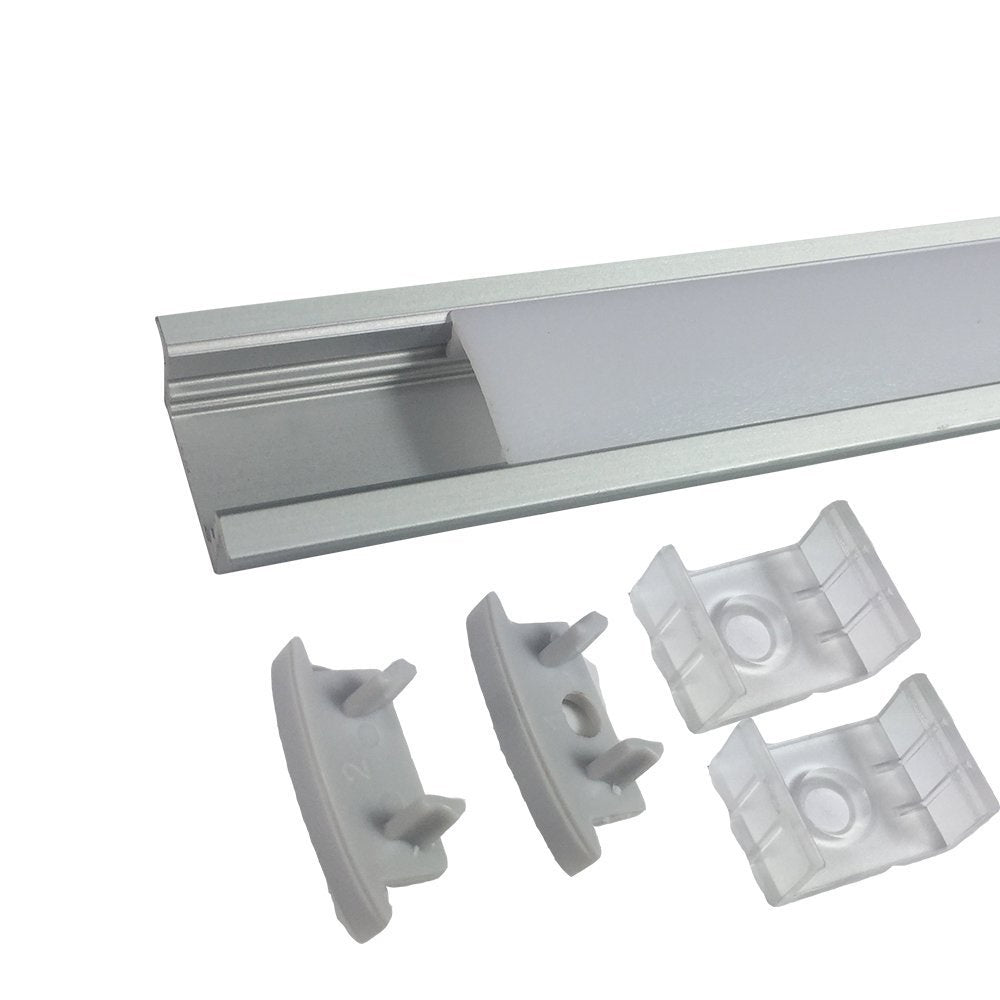

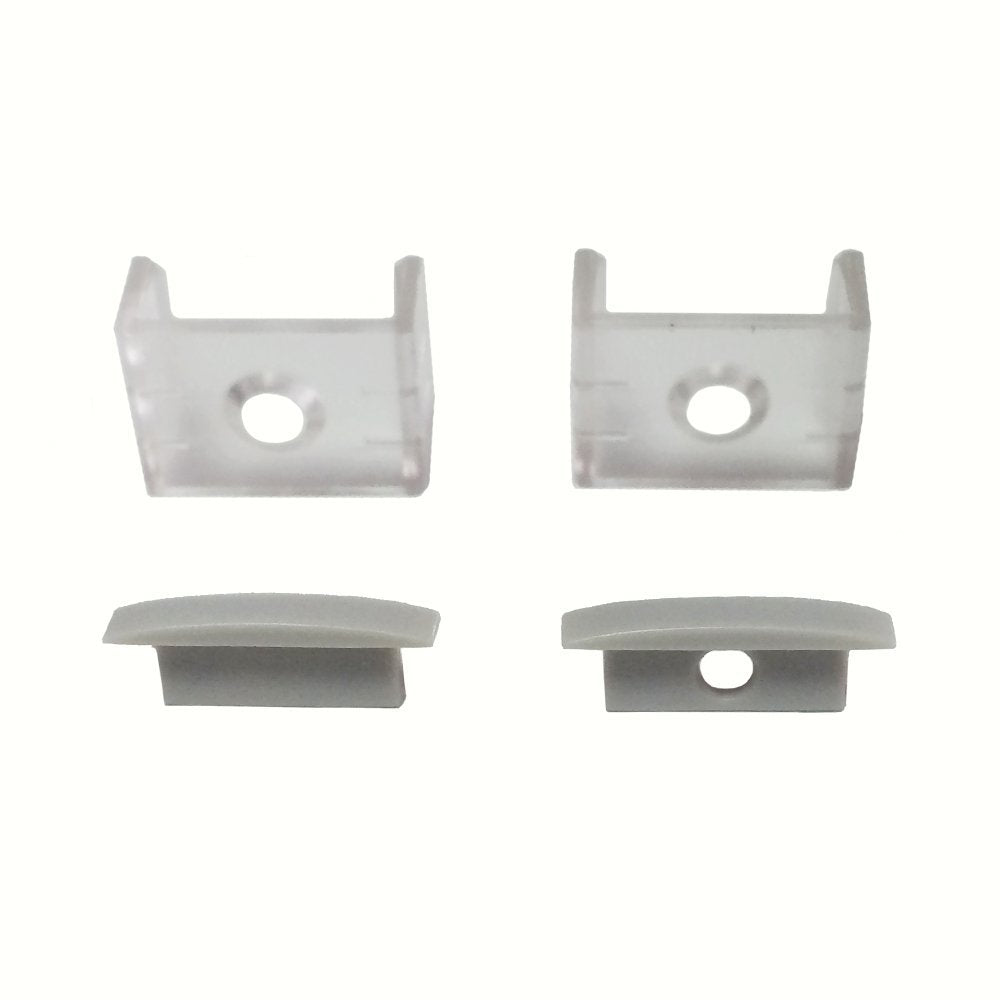

- Kit includes channel, cover, end caps, and mounting clips for a complete installation
- Extendable design allows seamless connection for longer runs
Order & Logistics
- Lead Time: Ships within 3–8 business days after order confirmation
- Packing: Heavy-duty cardboard box with protective padding
- Shipping Note:
- LED aluminum profiles are classified as oversized products and require special packaging and logistics handling. Therefore, this product series is not included in our Free Shipping Policy for orders over $399, and shipping fees will be charged based on the actual freight cost. Air Freight (10–20 Days - Air + Ground)
- Terms: All freight shipments are under DDP terms (all duties & taxes included). For countries where this service is unavailable, buyer will be contacted before dispatch

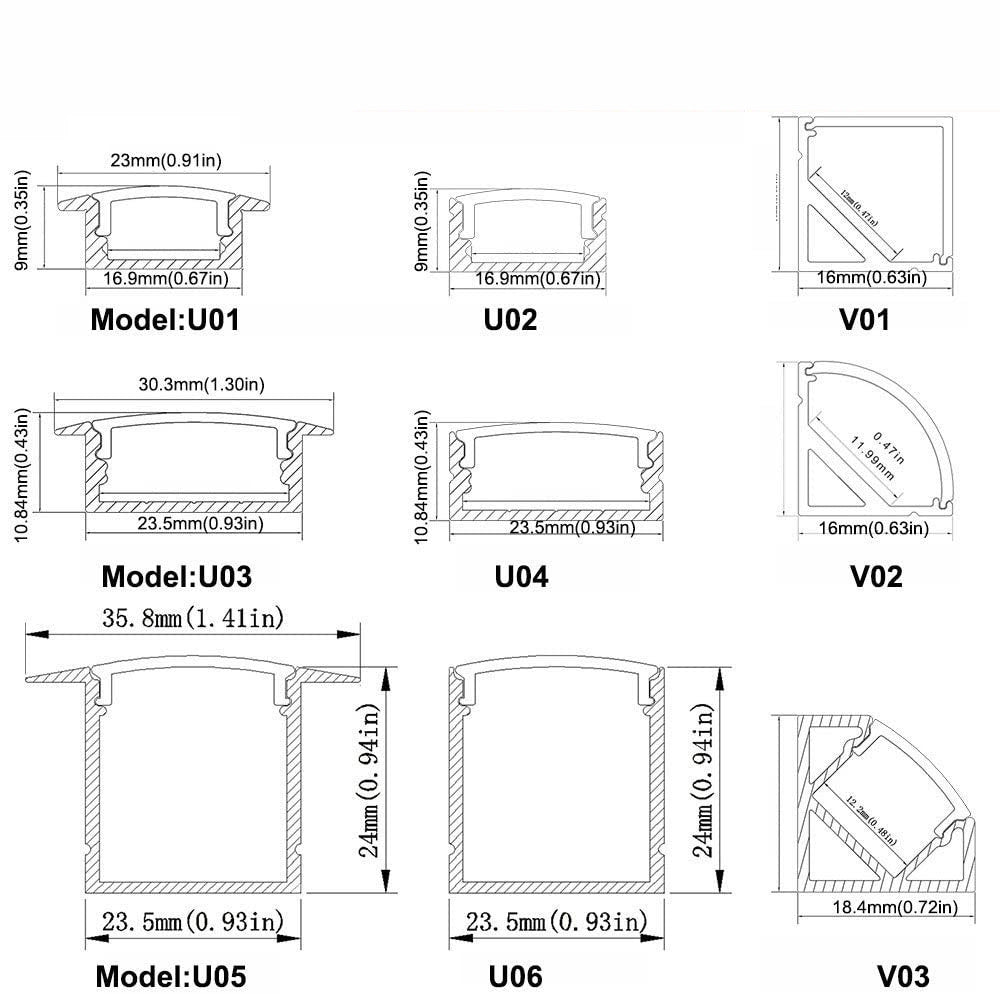

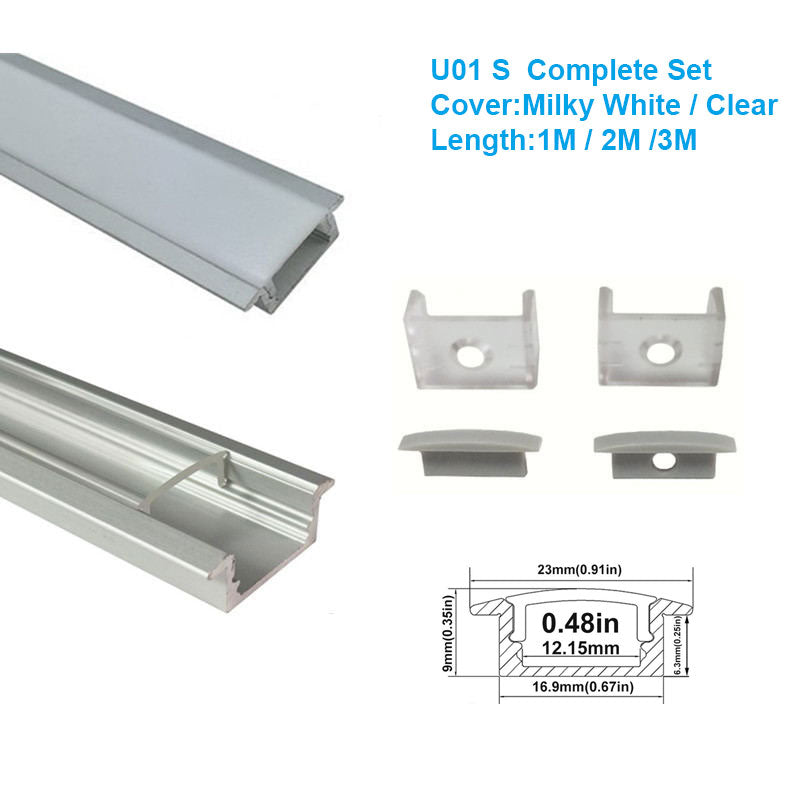

Key Specifications
| Specification | Value |
| Configuration | U-shape channel |
| Material | Extruded aluminum + milky white PC cover |
| Height | 0.35 in (9 mm) |
| Inner Width | 0.48 in (12.15 mm) |
| Top Width | 0.91 in (23 mm) |
| Back Width | 0.67 in (16.9 mm) |
| Compatible LED Strip Width | ≤ 12 mm |
Usage Notes / Installation Tips
- Cut aluminum channels to desired length before installation
- Secure with included mounting clips or recess into desired surfaces
- Insert LED strip and snap diffuser cover for smooth light distribution
- Recommended for indoor applications; check LED strip width before purchase

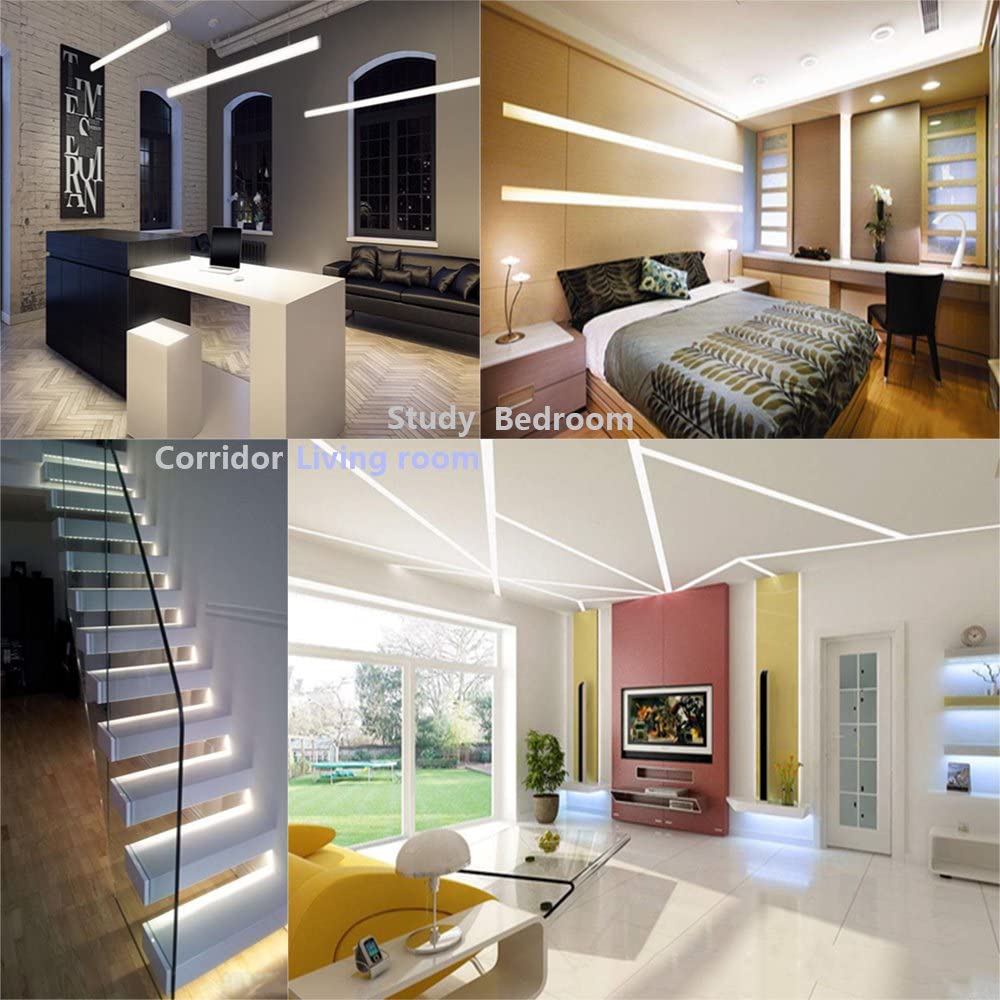

Applications
- Cabinet and shelf lighting
- Decorative linear lighting for walls, ceilings, steps, and niches
- Retail display and showcase illumination
- DIY residential and commercial lighting projects
