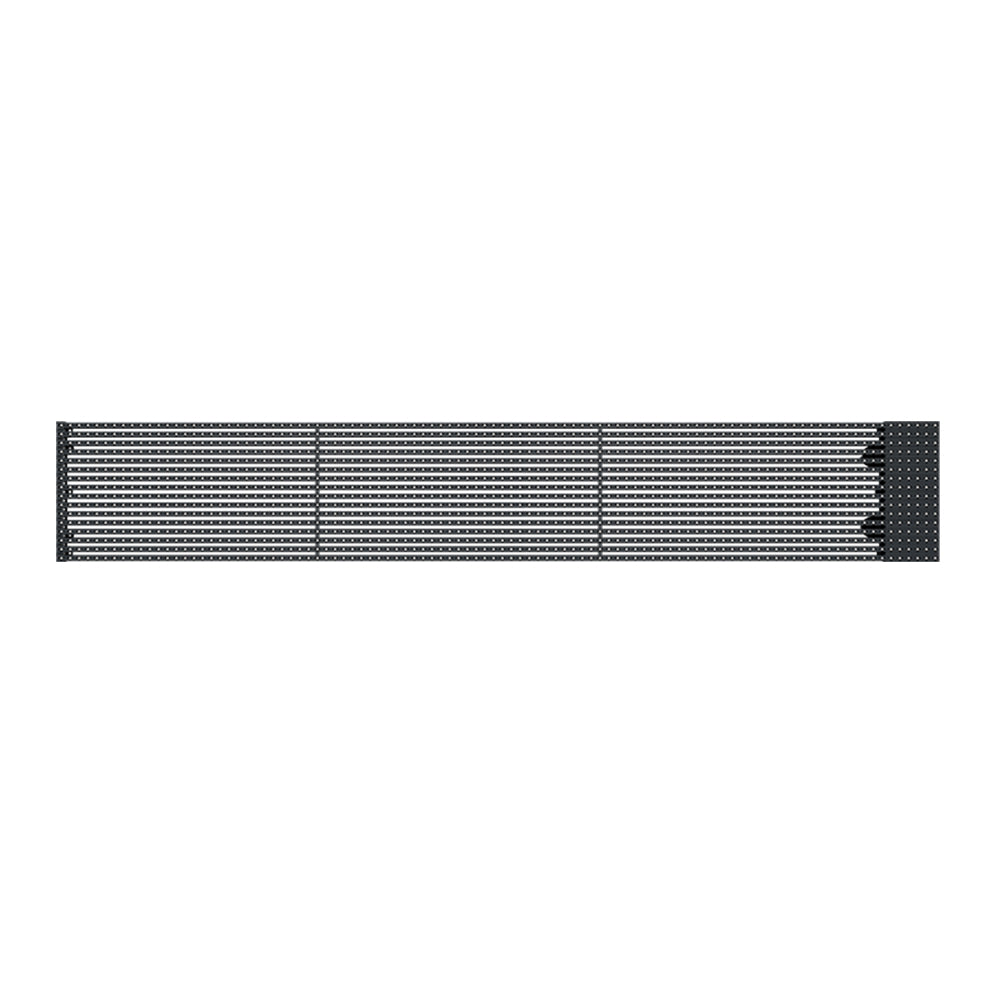

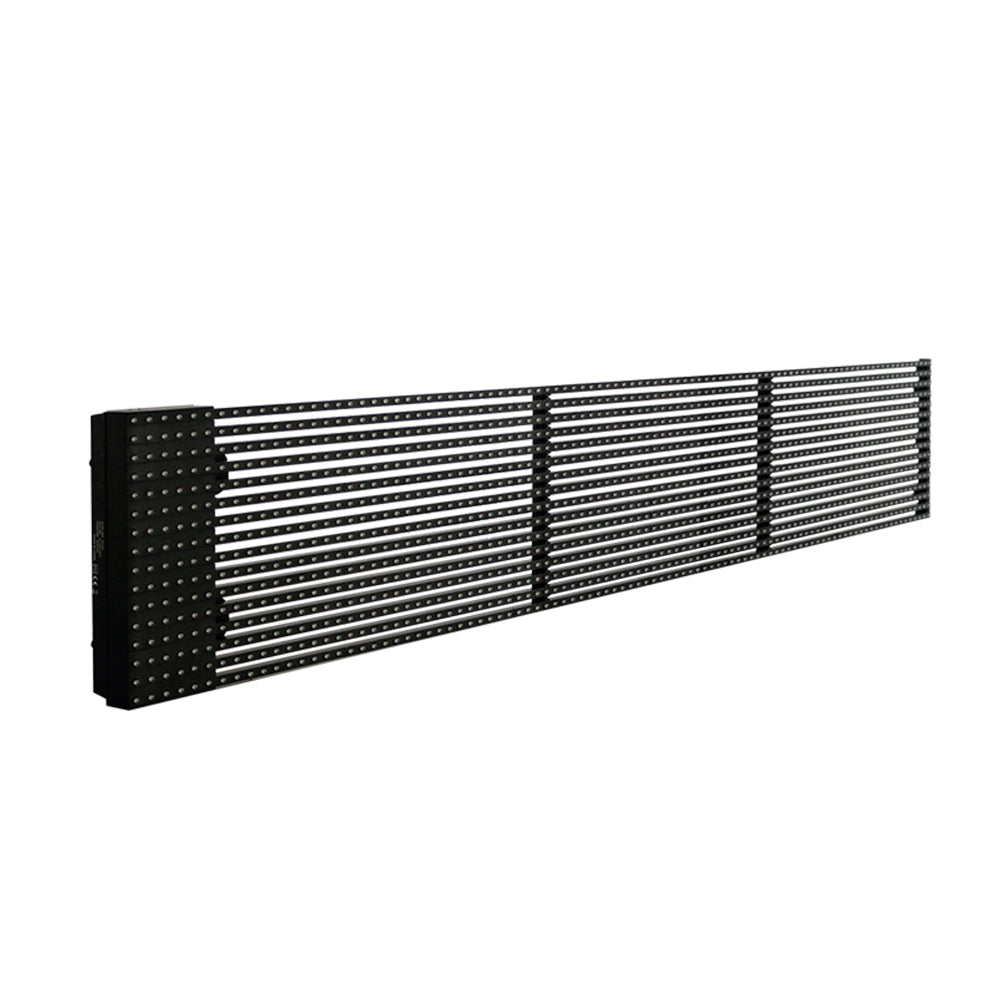

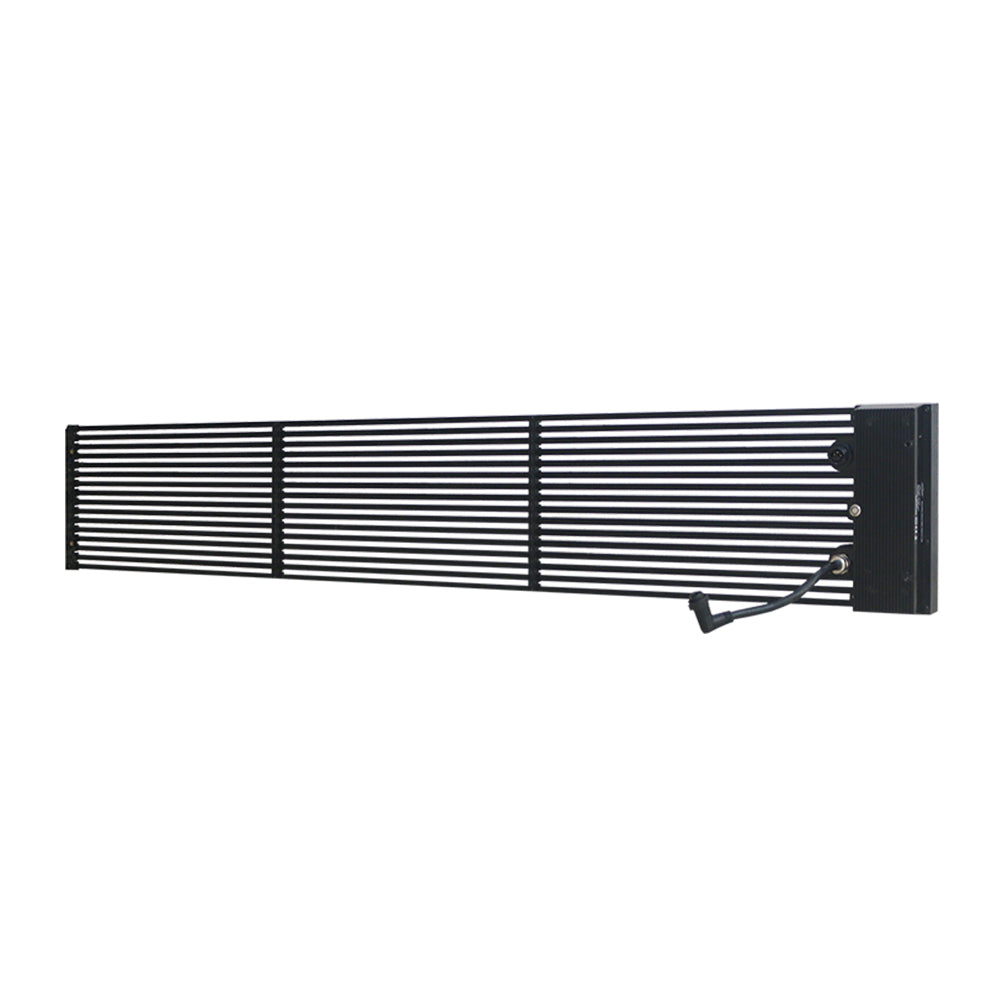

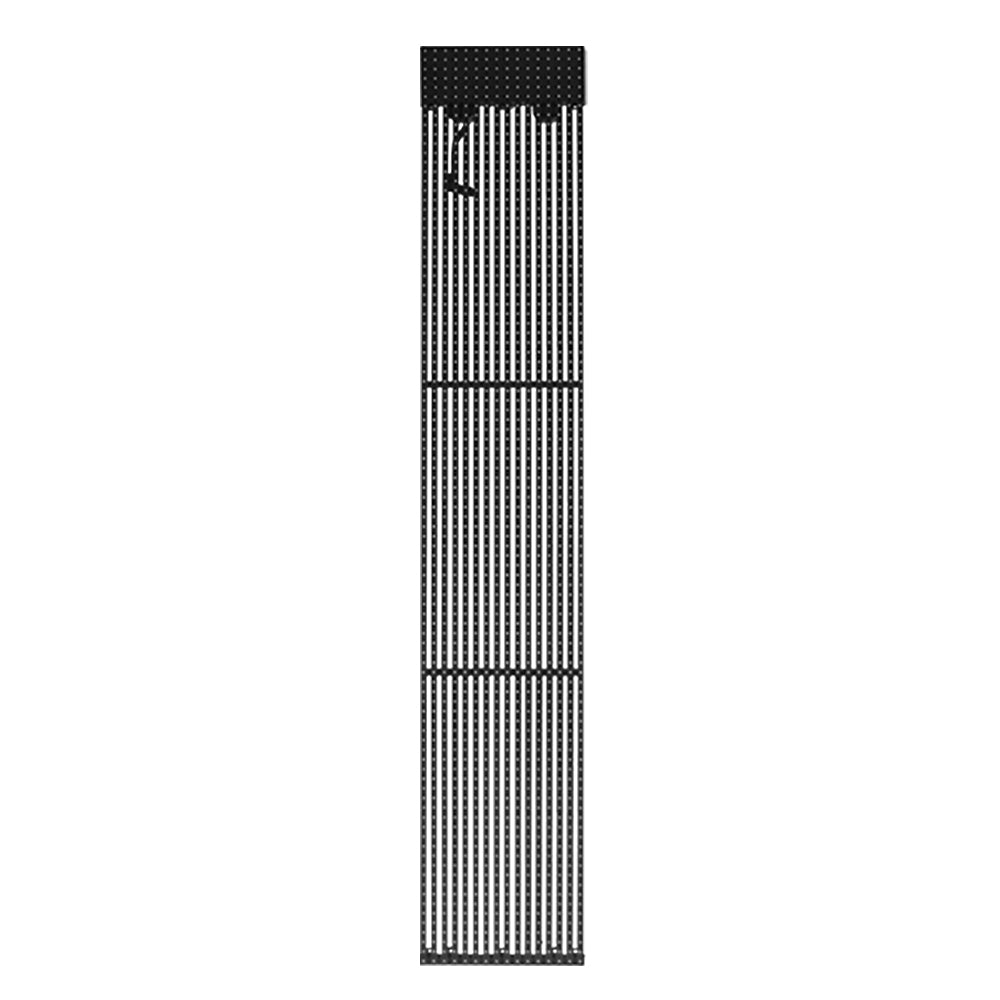

oClear B Series Outdoor Waterpoof P15.6/15.6mm Transparent LED Mesh Display High Brightness 7500nits in Size 1500x250mm Aluminum Cabinet for Fixed Installation
Unit Price Here is Per One Square Meter
A Transparent LED Mesh Screen is ideal for outdoor, it's a ideal outdoor advertising media that fixed on building outline.
To advertise or to inform, these screens are an excellent option for anyone who wishes to display content in style without blocking out light or the view on both sides.
It allows designers to offer a screen solution for retail buildings with a focus on glass architecture without detracting from the overall design.
Features:
WATERPOOF-PROOF
This Transparent LED Screen, the surface is covered by gel, which can protect from water, dust and attack.
A double protection.
GET ATTRACTIVE
This transparent screen opens up new creative options that were not possible with LCD screens and other LED screens.
BRIGHT ENOUGH
With brightness up to 7500nits, the Transparent LED Screens are visible for outdoor daylight from a great distance.
TRANSPARENCY
Traditional LED window displays act as a dark wall, so shoppers can’t see in, and they block sunlight, so your indoor areas need to rely on unnatural lighting.
The Transparent LED screen allow people by both sides of the display can see each other.
MODULAR DESIGN - build the size you need
Available in small and slim cabinet 1500x250, that can freely combine into large format LED Screens.
EASY SETUP and INSTALLATION
Front or back installation and maintenance, more flexible and faster.
CUSTOMIZED OR OUT OF THE BOX
Besides standard size cabinet panels, the Transparent LED display can also be customzied to fit abnormal shapes or sizes.
Applications:
Windows, glass walls & facades
Corporate buildings & offices
Retail stores & shopping centres
Stadiums & arenas
Hotels & airports
Car showrooms
Specifications:
Part # | HKoC-BP1013 | HKoC-BP1515 | HKoC-BP1531 | HKoC-BP1616 | HKoC-BP15X | HKoC-BP31X |
Pixel Configuration | DIP570 | DIP570 | DIP570 | DIP570 | DIP570 | DIP570 |
Pixel Pitch (mm) | 10.4X13.8 | 15.6X15.6 | 15.625X31.25 | 16.6X16.6 | 15.625 | 31.25 |
Pixel matrix per panel | 144X18 | 96X16 | 96X8 | 90X15 | \ | \ |
Cabinet Dimensions (LxWxH)/(mm) | 1500X250X66 | 1500X250X70 | 1500X250X65 | 1500X250X68 | \ | \ |
Module Dimensions (LxWxH)/(mm) | \ | \ | \ | \ | 1500X15X80 | 1500X18X80 |
Transparency Rate | 17.20% | 45.00% | 70.00% | 16.00% | \ | \ |
Panel material | Aluminum profile | |||||
Cabinet weight (kg/panel) | 9.2 | 6.9 | 4.1 | 7.8 | 0.5 | 0.48 |
Gray Scale per Color (level) | 16384 | 65536 | 65536 | 16384 | 65536 | 65536 |
Refresh Rate(Hz) | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
Brightness(nit) | 6500 | 7000 | 6000 | 7000 | 5000 | 3000 |
Optimal Horizontal Viewing Angle(°) | 110 | 110 | 110 | 110 | 110 | 110 |
Optimal Vertical Viewing Angle(°) | 55 | 55 | 55 | 55 | 55 | 55 |
IP rating (Front/Rear) | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 |
Cabinet installation type | Fix | Fix | Fix | Fix | Fix | Fix |
