oClear B Series Outdoor Waterpoof P15.6/31.2mm Transparent LED Mesh Display High Brightness 7500nits in Size 1500x250mm Aluminum Cabinet for Fixed Installation


Price:
Sale price$3,299.00 USD

Description

oClear B Series Outdoor Waterpoof P15.6/31.2mm Transparent LED Mesh Display High Brightness 7000nits in Size 1500x250mm Aluminum Cabinet for Fixed Installation

Unit Price Here is Per One Square Meter

Catalog of oClear Outdoor LED Transparent Mesh Display

A Transparent LED Mesh Screen is ideal for outdoor, it's a ideal outdoor advertising media that fixed on building outline.
To advertise or to inform, these screens are an excellent option for anyone who wishes to display content in style without blocking out light or the view on both sides.
It allows designers to offer a screen solution for retail buildings with a focus on glass architecture without detracting from the overall design.

Features:

WATERPOOF-PROOF
This Transparent LED Screen, the surface is covered by gel, which can protect from water, dust and attack.
A double protection.



GET ATTRACTIVE
This transparent screen opens up new creative options that were not possible with LCD screens and other LED screens.



BRIGHT ENOUGH
With brightness up to 7500nits, the Transparent LED Screens are visible for outdoor daylight from a great distance.


TRANSPARENCY
Traditional LED window displays act as a dark wall, so shoppers can’t see in, and they block sunlight, so your indoor areas need to rely on unnatural lighting.
The Transparent LED screen allow people by both sides of the display can see each other.



MODULAR DESIGN - build the size you need

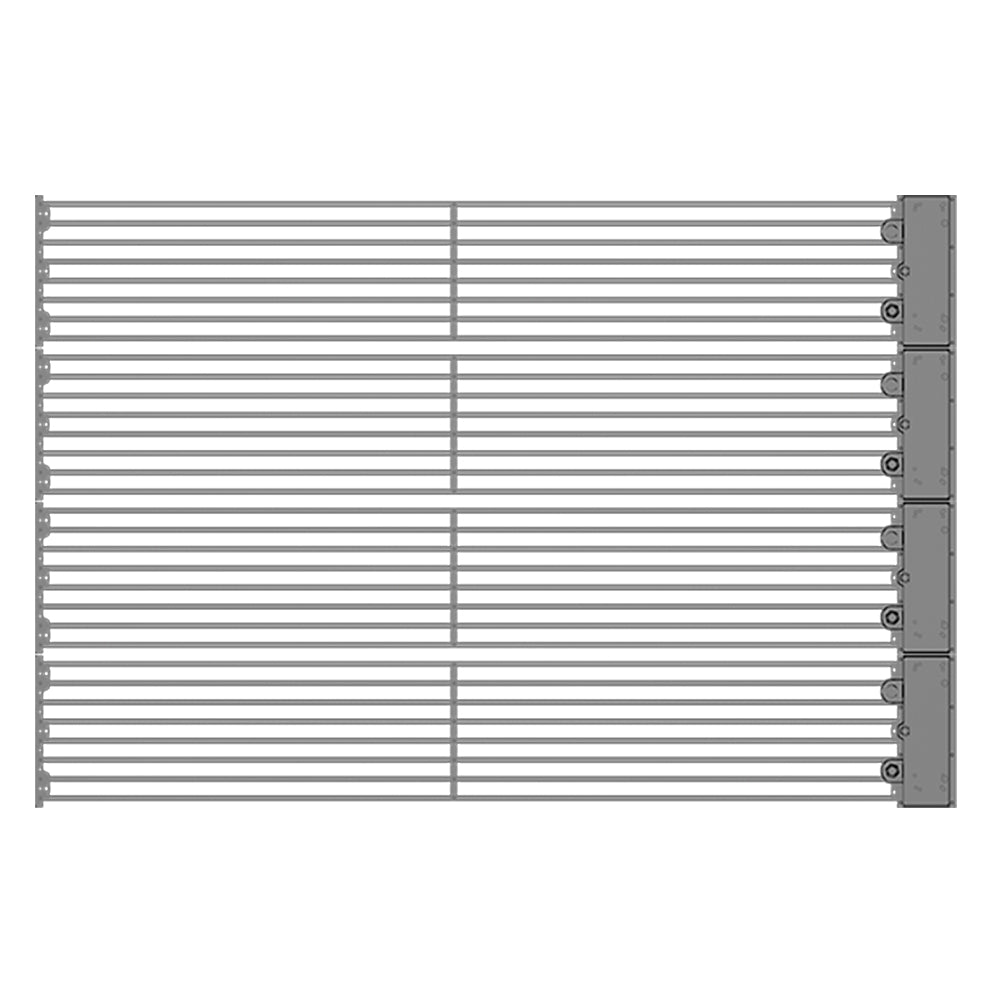

Available in small and slim cabinet 1500x250, that can freely combine into large format LED Screens.



EASY SETUP and INSTALLATION
Front or back installation and maintenance, more flexible and faster.



CUSTOMIZED OR OUT OF THE BOX
Besides standard size cabinet panels, the Transparent LED display can also be customzied to fit abnormal shapes or sizes.

Applications:
Windows, glass walls & facades
Corporate buildings & offices
Retail stores & shopping centres
Stadiums & arenas
Hotels & airports
Car showrooms

Specifications:

Part # HKoC-BP1013 HKoC-BP1515 HKoC-BP1531 HKoC-BP1616 HKoC-BP15X HKoC-BP31X
Pixel Configuration DIP570 DIP570 DIP570 DIP570 DIP570 DIP570
Pixel Pitch (mm) 10.4X13.8 15.6X15.6 15.625X31.25 16.6X16.6 15.625 31.25
Pixel matrix per panel 144X18 96X16 96X8 90X15 \ \
Cabinet Dimensions (LxWxH)/(mm) 1500X250X66 1500X250X70 1500X250X65 1500X250X68 \ \
Module Dimensions (LxWxH)/(mm) \ \ \ \ 1500X15X80 1500X18X80
Transparency Rate 17.20% 45.00% 70.00% 16.00% \ \
Panel material Aluminum profile
Cabinet weight (kg/panel) 9.2 6.9 4.1 7.8 0.5 0.48
Gray Scale per Color (level) 16384 65536 65536 16384 65536 65536
Refresh Rate(Hz) 1920 1920 1920 1920 1920 1920
Brightness(nit) 6500 7000 6000 7000 5000 3000
Optimal Horizontal Viewing Angle(°) 110 110 110 110 110 110
Optimal Vertical Viewing Angle(°) 55 55 55 55 55 55
IP rating (Front/Rear) IP65/IP65 IP65/IP65 IP65/IP65 IP65/IP65 IP65/IP65 IP65/IP65
Cabinet installation type Fix Fix Fix Fix Fix Fix
