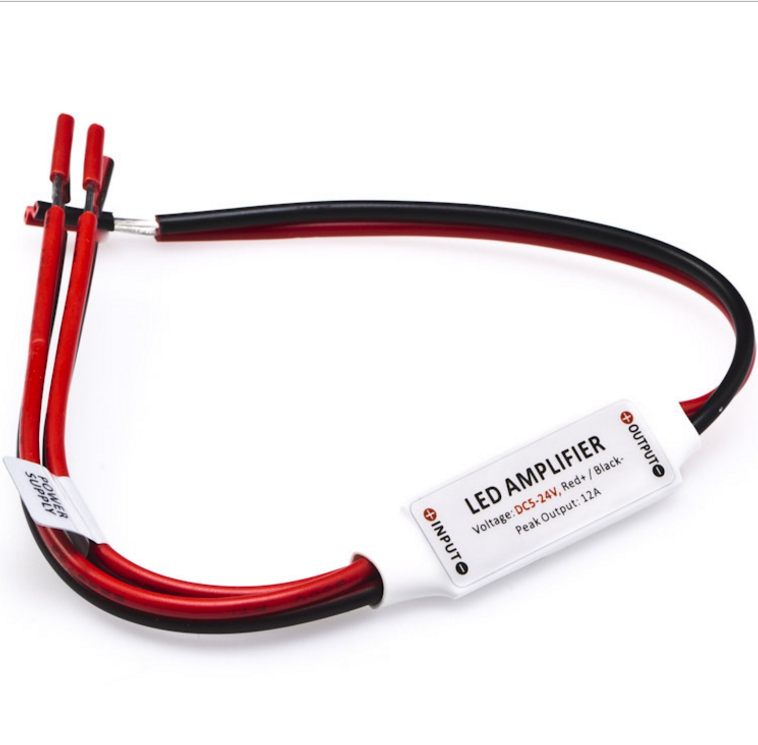

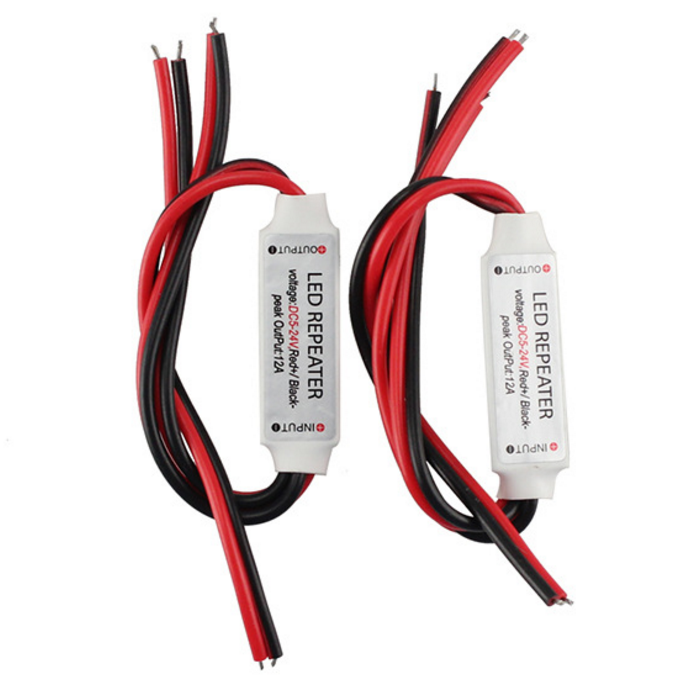

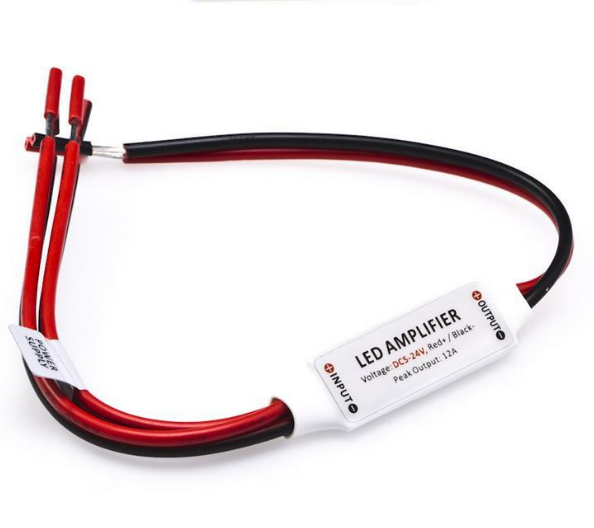

Mini Amplifier 2 Channel for 5V 12V or 24V for Single Color LED Flexible Strip Lights
This 1channel Amplifier is able to use for single color 5V/12V/24VDC LED lights. Its max load is 12Amp. It's usually used with controller together, to enlarge the signal, to make one controller can control more LED Lights that over its rated load.
Specification
Operating Voltage | DC5-24V |
Product Size | L35*W10*H8 (mm) |
Net Weight | 15g |
Output Channel | 1 channel |
Connection Way | Common Anode |
Output Current | 12Amp/Cannel |
Output Wattage | 5V<60W, 12V:<144W, 24V:<288W |
Application | Enlarge signal, work for single color LED strips or bars |

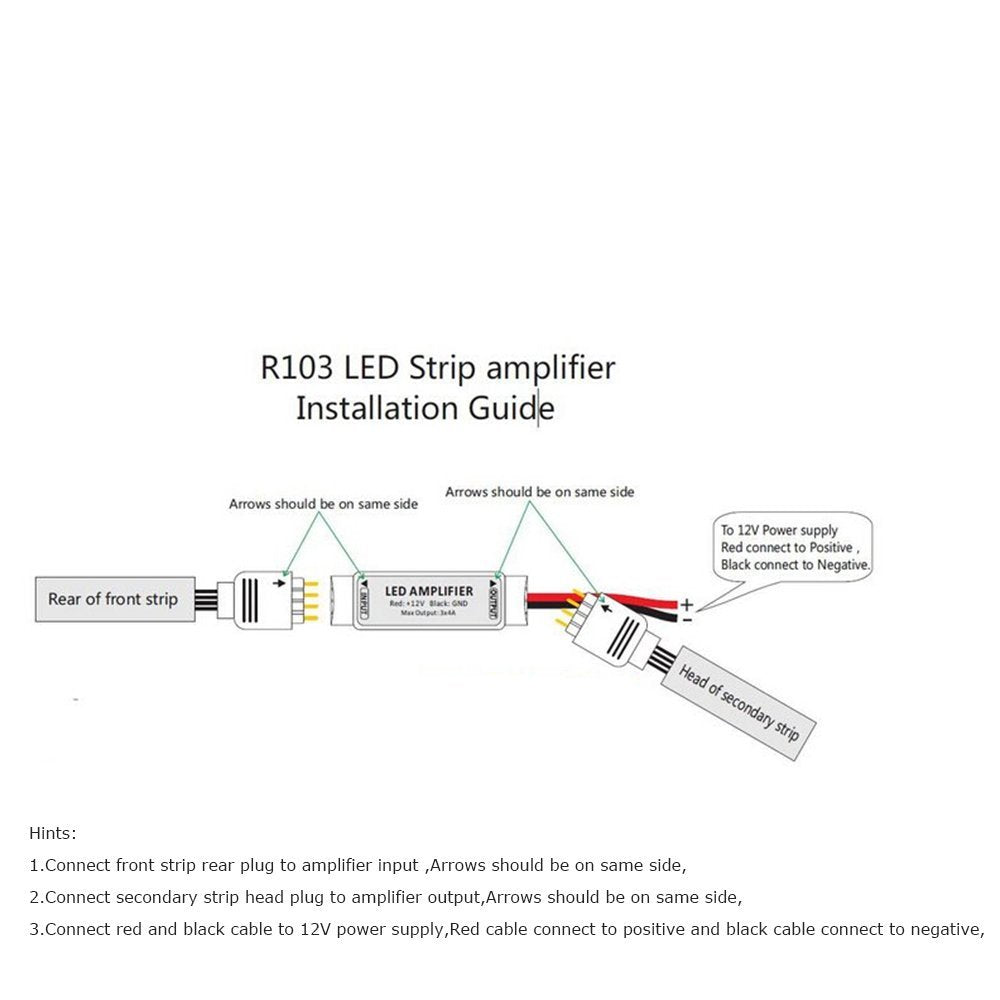

Wiring
INPUT (with label Power Supply): The Red/Black Wire for connect to Power Supply Postive(Red) and Negative(Black) Poles.
INPUT: Red wire for postive of strip, White/Black wire for negative of strip.
OUTPUT: Red wire for postive of strip, White/Black wire for negative of strip.
