Description

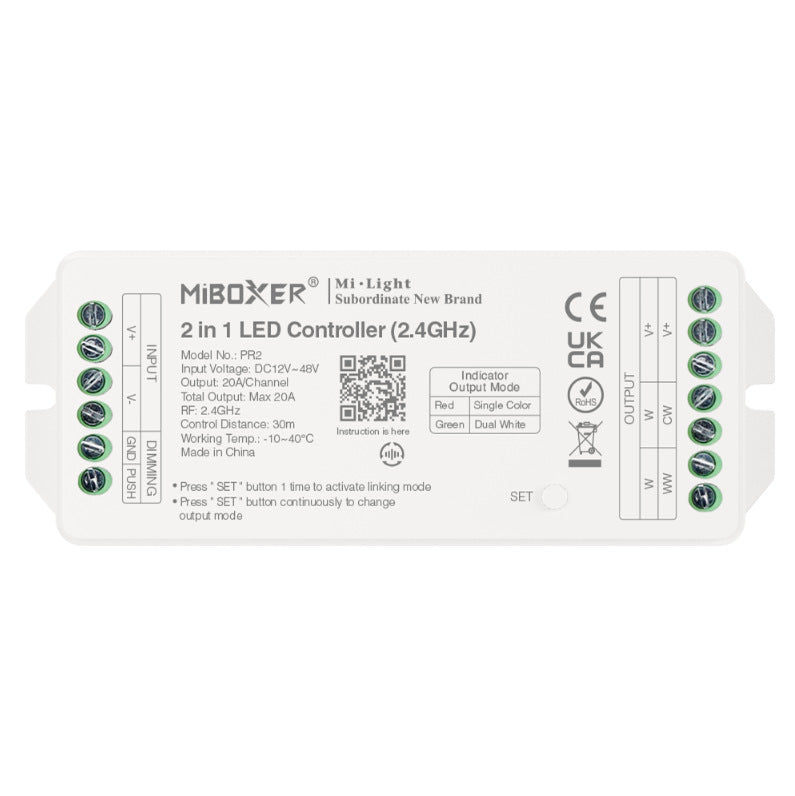

MiBoxer PR2 2 in 1 LED Controller (2.4GHz) Output Max 20A

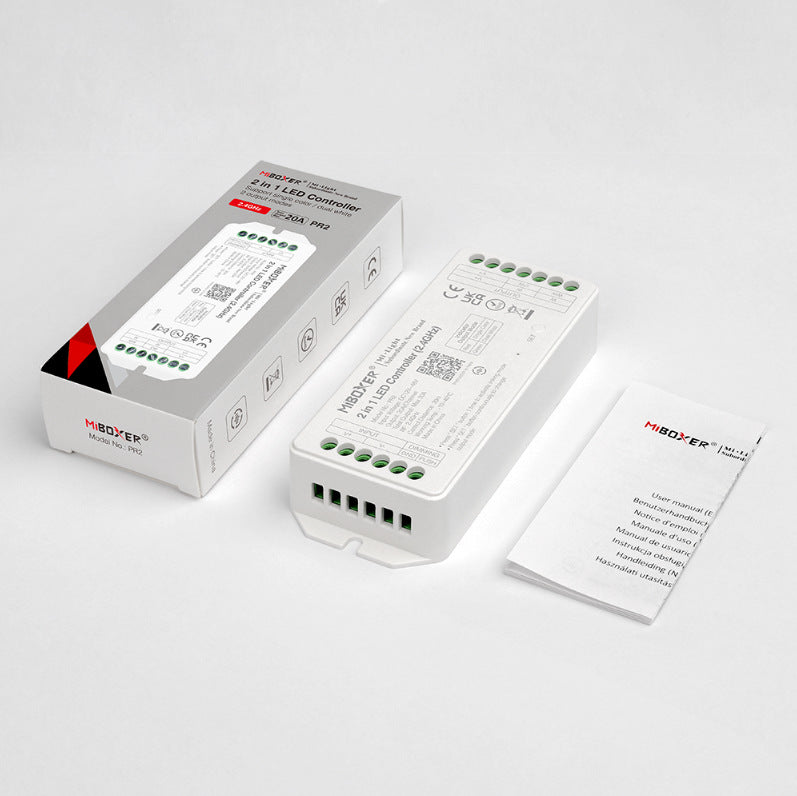

Package Included
| Version | Package Included |
| PR2 2-in-1 | 1 × PR2 2-in-1Controller, 1 × User Manual |
Order & Logistics
Lead Time
- Ships directly from headquarters. Handling time 3–5 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
- Packing: Cardboard box
About this item
PR2 adopt the widely used 2.4GHz wireless technology. Controlled by wireless remote controller, also with smartphone control and 4G long distance control (2.4GHz gateway is needed). controller with brightness, CCT output mode. One compatible remote control many controllers at the same time. Widely used on the controlling of hotel lighting and home lighting.
● Color temperature and brightness adjustable
● 4096 levels smooth dimming, Min brightness 0.1%
● One controller can be paired with 12 remote (Control distance 30m)
● Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite
● Auto-synchronization: The same dynamic pattern is automatically synchronized to keep the pattern consistent
● Support do not disturb mode setting, Suitable for areas with frequent power outages to save electricity
● Supports “Tuya Smart” app control (2.4GHz gateway is needed)
● Support Alexa, Google Assistant, Yandex Alice (2.4GHz gateway is needed)
Parameters
| Product Name: | 2 in 1 LED Controller (2.4GHz) |
|---|---|
| Model No.: | PR2 |
| Input Voltage: | DC12-48V |
| Output Current: | Max 20A |
| Output Power: | 960W |
| Output Type: | Constant Voltage |
| Control Signal: | 2.4GHz RF |
| Control Distance: | 30m |
| IP Rate: | IP20 |
| Working Temperature: | -10~40°C |
| Dimming Grayscale: | 4096 Levels |
|---|---|
| Dimming Range: | 0.1%-100% |
| Dimming Curve: | Logarithmic |
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-3 V2.1.1 |
| Safety Standard (LVD): | EN 61347-1：2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, RED |
| Warranty: | 5 Years |
Support Tuya smart app control (2.4GHz gateway is needed)
Support third party voice control (2.4GHz gateway is needed)
Connection Diagram
single color
Dual white
