Description

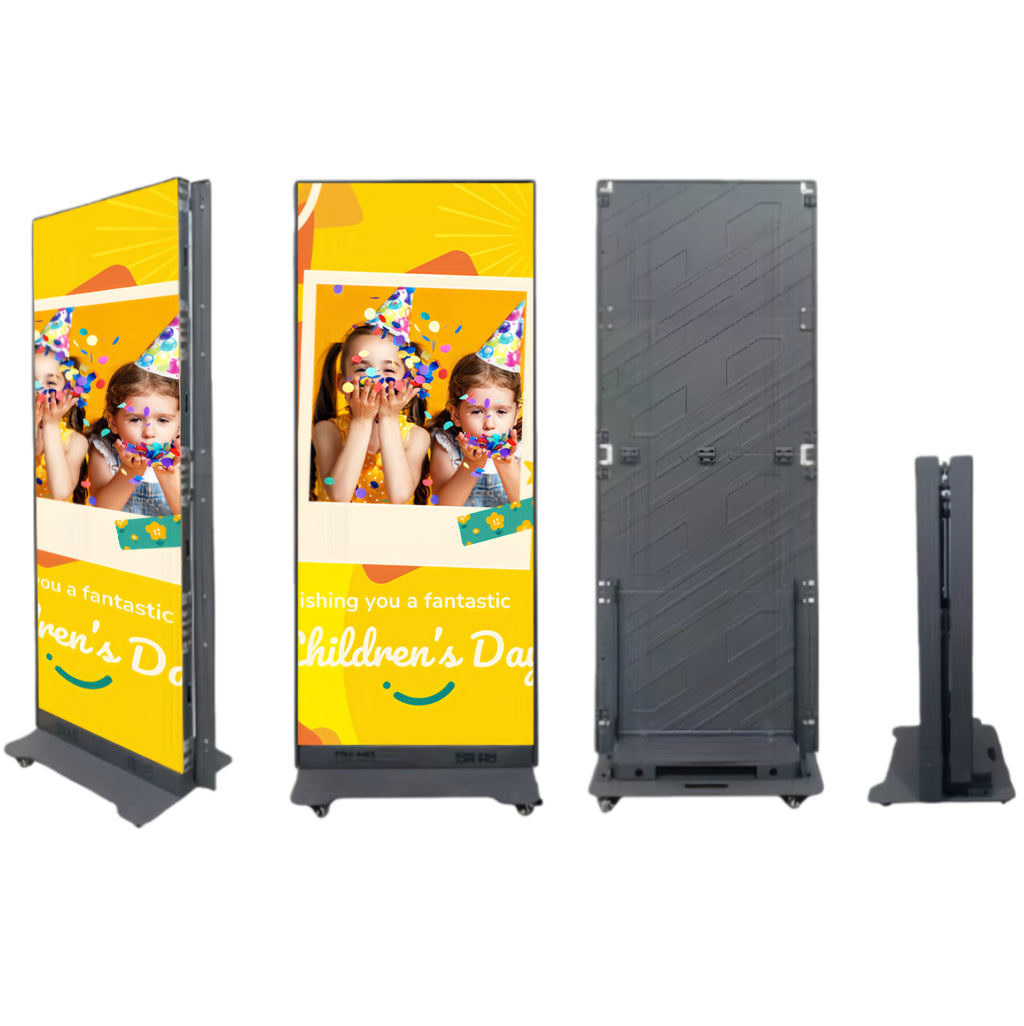

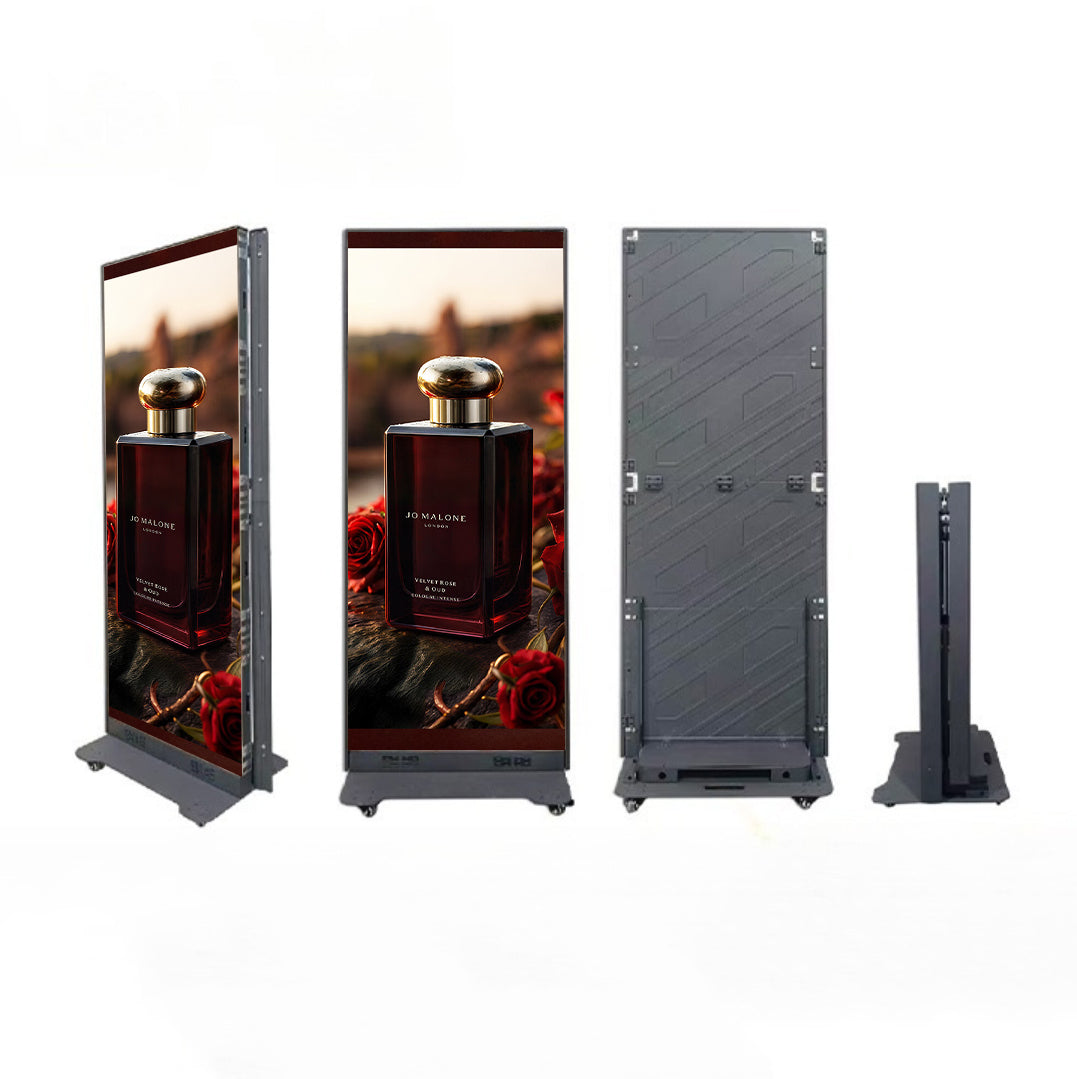

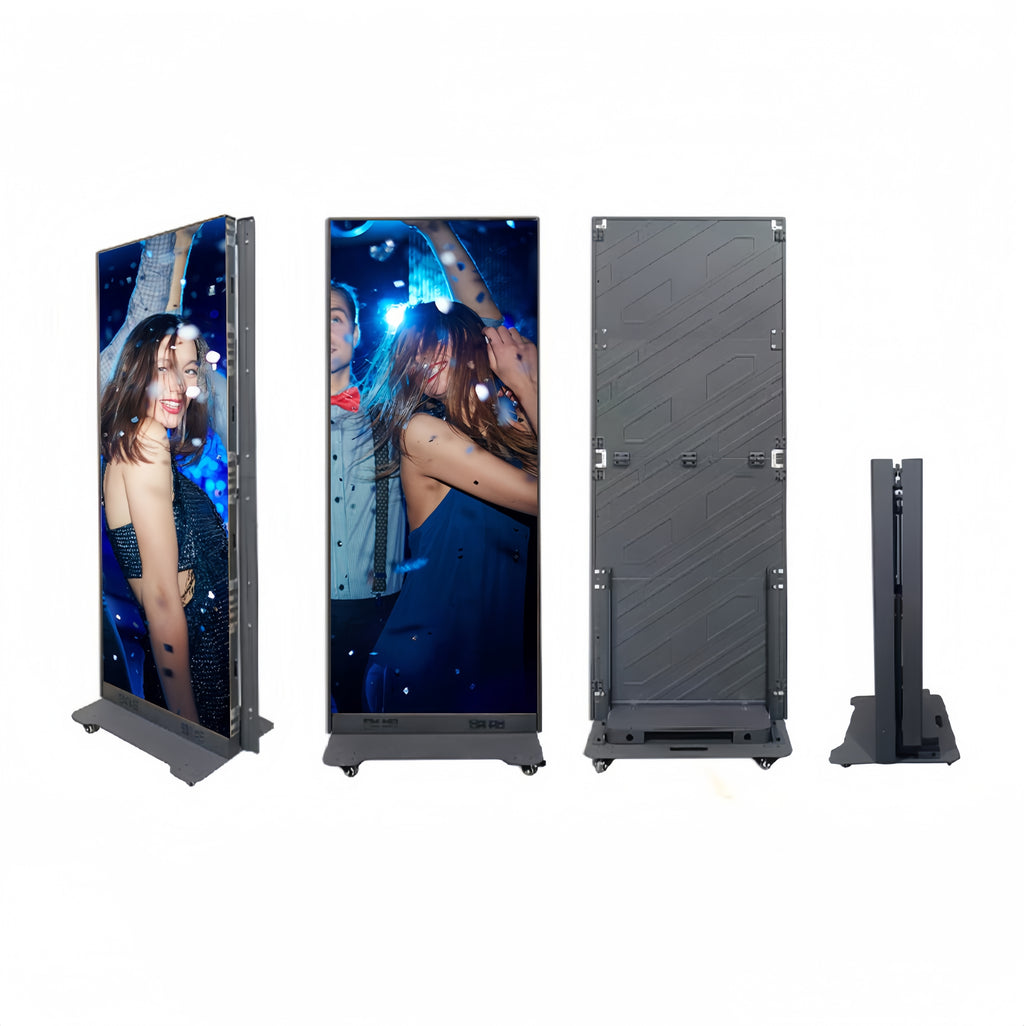

Free-Standing LED Digital Poster, Backward Foldable LED Poster Display with Flip Open Magnetic Frame and GOB Protective IP65 Front Surface in 640x1920mm Large Display Area P1.25 | P1.53 | P1.86 | P2.5 mm Indoor LED Poster Display
FEATURES:
- 【Large Display Area】 ：640mm Wide by 1920mm Height, made with 320x160 mm LED Display Modules
- 【Multiple Pixel Pitch Options】 ：Available for various pixel pitch options: P1.25, P1.53, P1.86, P2.5.
- 【Free Standing】 ：With universal direction wheel, the LED poser is free to move around.
-

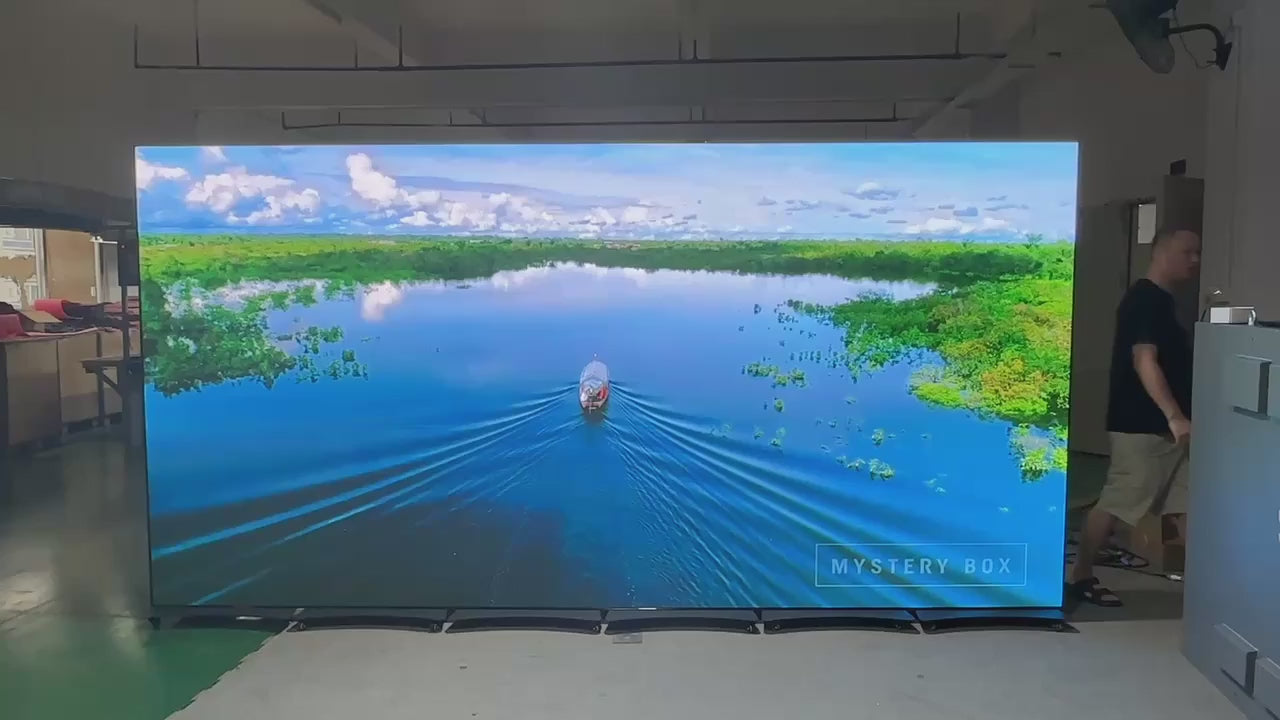

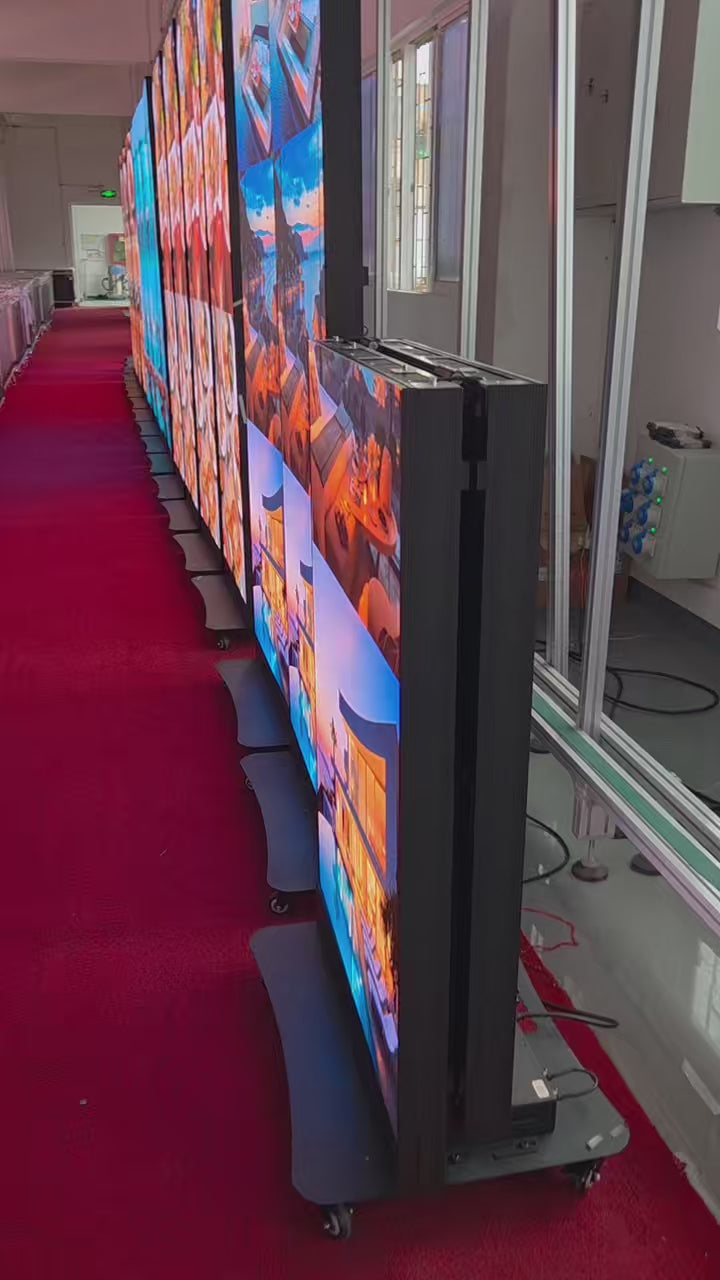

【Multiple Pieces Linkable】 ：LED poster video display allow for multi-pieces chain together and get big SEAMLESS display screen. P.S. With built-in Novastar TB40 box, the P1.25 supports 2pcs, P1.53 support 4pcs, P1.86 support 6pcs, P2 supports 7pcs, and P2.5 support 8pcs to chain together.

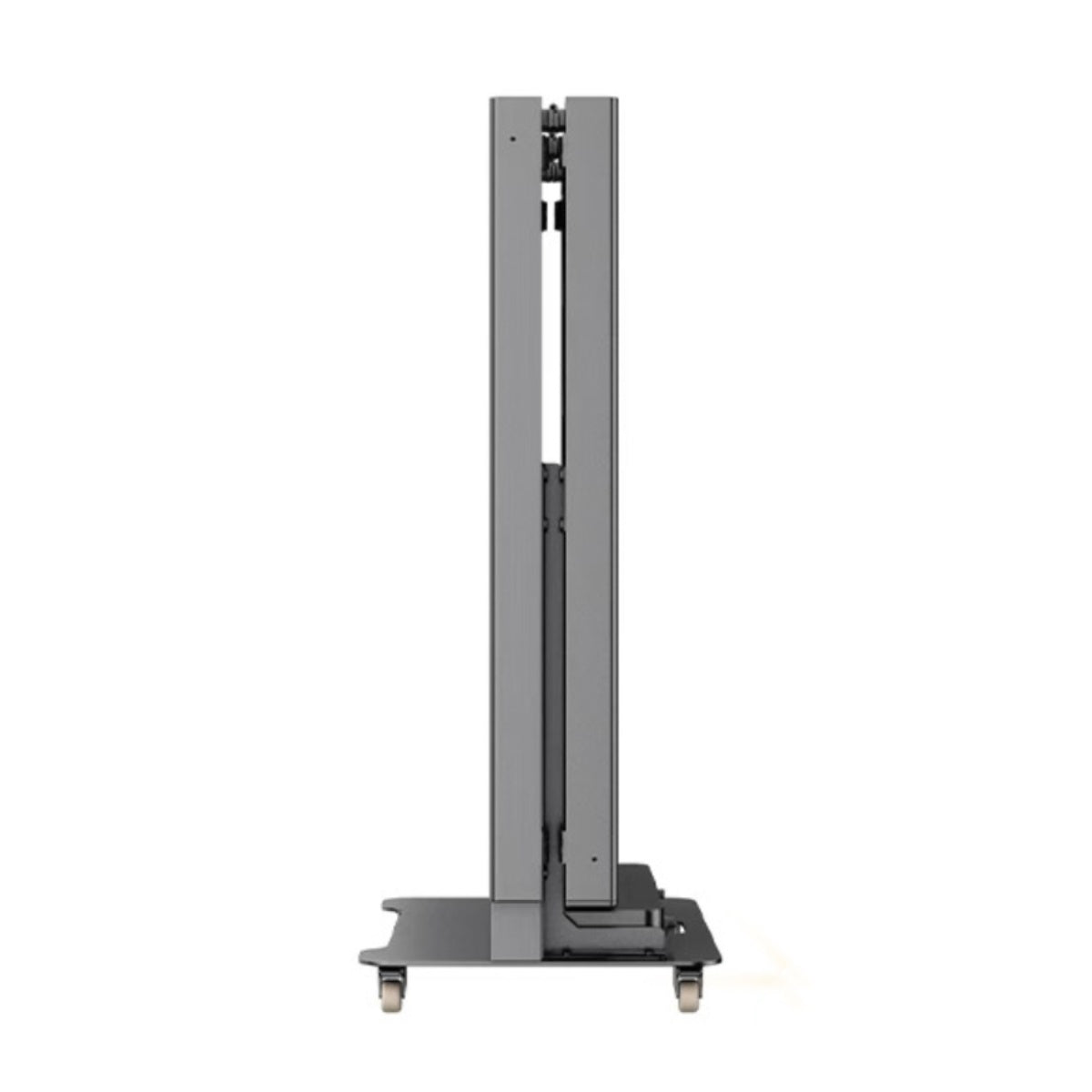

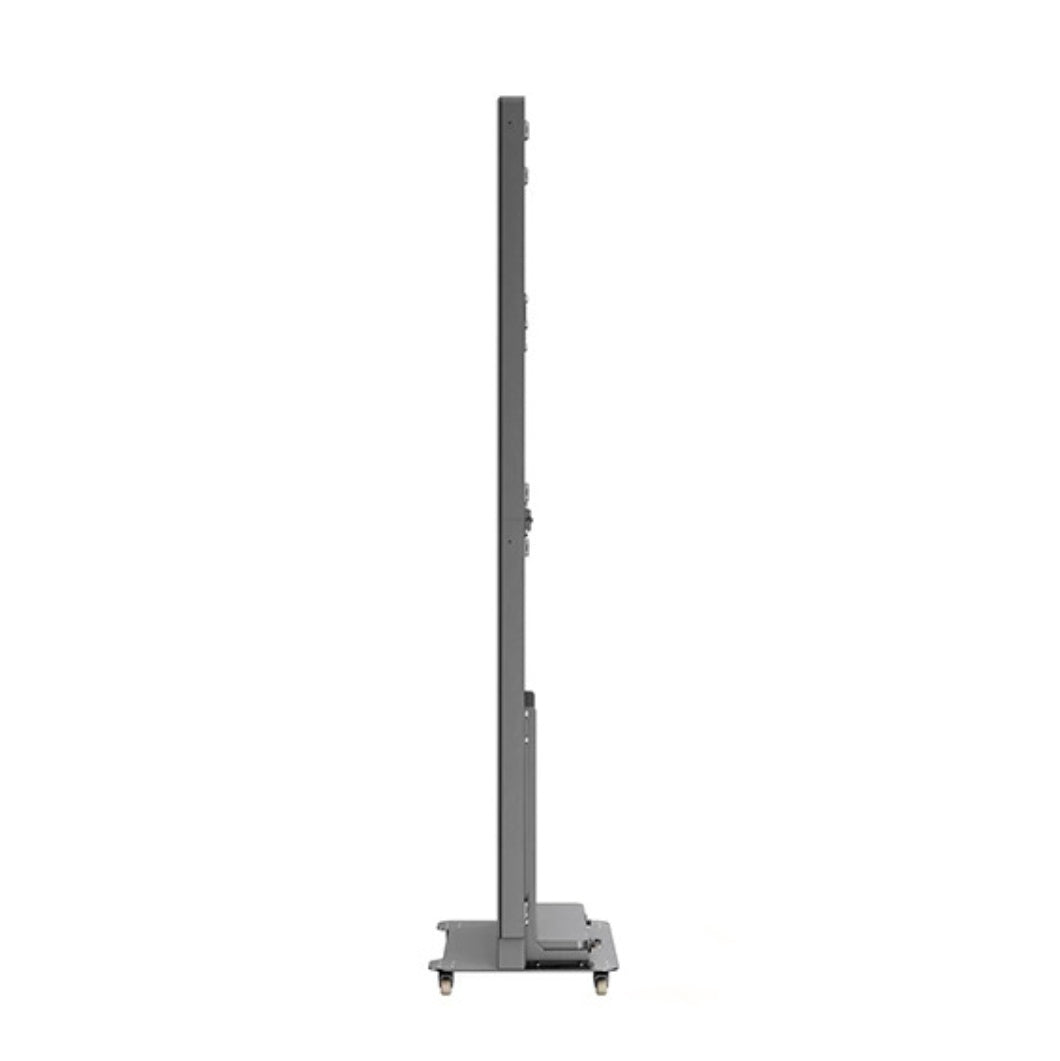

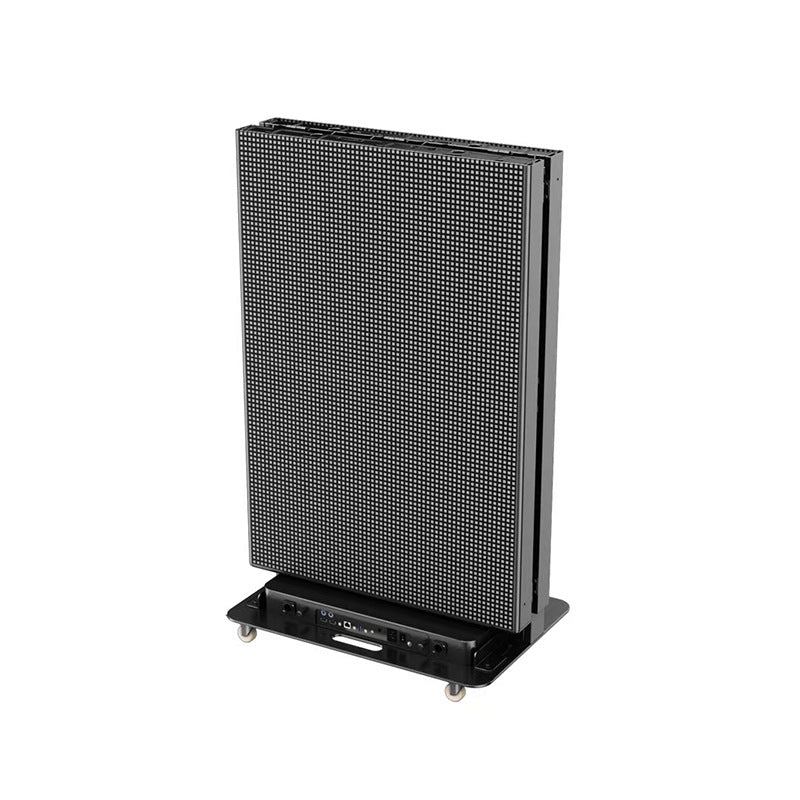

- 【Upgraded Frame】: Made with Backward Foldable Bracket, to save transportation and storage space. Upgrade with flip open magnetic frame, making multi-screen combination process simpler. Just need to ope the edge frame and fasten the quick locks of the two adjacent LED digital posters.

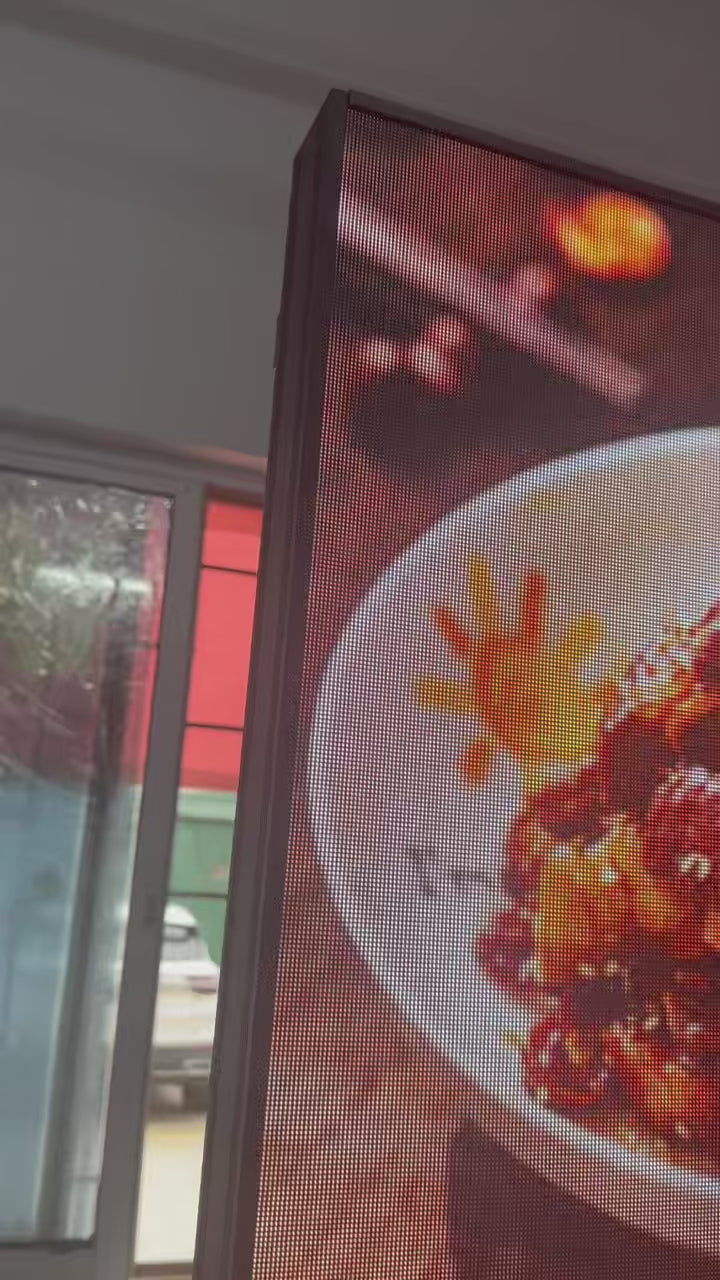

- 【GOB Technology】 ：GOB (gel on board) Technology LED module protecting from water and bump. Modules are fixed with magnets, front access for maintenance.
Connection and Control System:

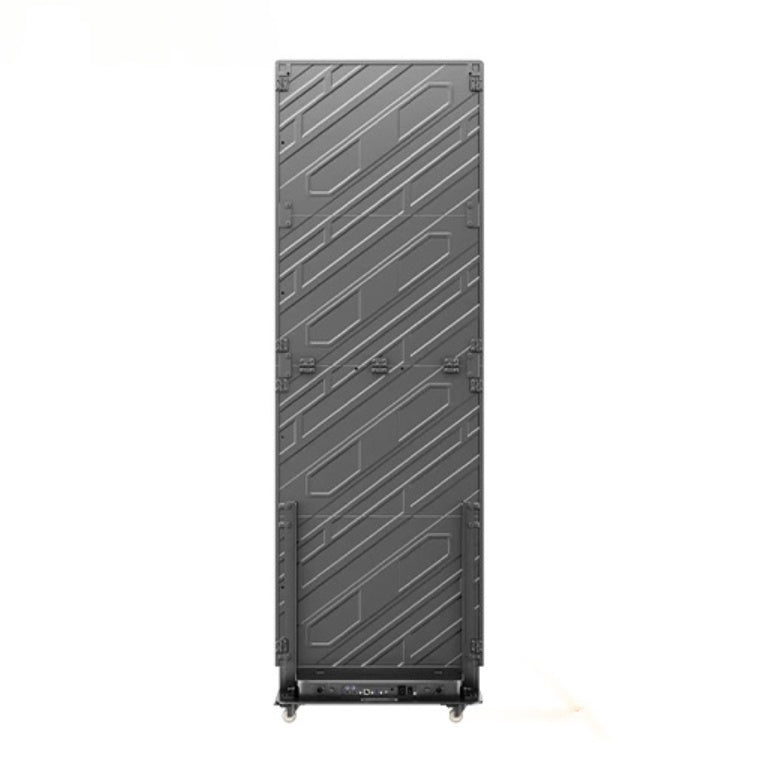

* Connections Power/Data: Locking power In/Out; Data EtherCon In/Out; Audio Out; Ethernet RJ45
* Publishing System: Novastar Asynchronous Control with Control via Mobile APP (APP Name: Viplex Handy) or Synchronous Control via HDMI, PC Software (Viplex Express) and Novastar VNNOX Care Cloud Platform.
* Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
* Supported Picture formats: JPEG, BMP, GIF, PNG, WEBP
* Supported Video formats: AVI, MKV, MP4, MOV, 3GP, DAT, MPG, VOB, TS, FLV, WEBM, WMV, ASF, TS
PACKAGE INCLUDED :
* 2PCS/PACK
- 2 Units of W640mm x H1920mm display LED Poster
- 2 Sets of Cables (HDMI loop connector, Power Chain connector, and Wall outlet Power Plug)
- 1 Set of Tool for LED Poster Splicing.
- 1 pcs of Manual small suction cup (not electrical model)
- 1 Unit of Air flight Case
- Free Software Included
* 1PCS/PACK
- 1 Units of W640mm x H1920mm display LED Poster
- 1 Sets of Cables (HDMI loop connector, Power Chain connector, and Wall outlet Power Plug)
- 1 Set of Tool for LED Poster Splicing.
- 1 pcs of Manual small suction cup (not electrical model)
- 1 Unit of Air flight Case
- Free Software Included
SPECIFICATON :
| EP-F Series Foldable LED POSTER PARAMETERS LIST | |||||
| ITEM | EP-F-P1.25 | EP-F-P1.25 | EP-F-P1.25 | EP-F-P1.25 | |
| LED | SMD 3 IN 1 | ||||
| LED | Pixel Pitch (mm) | 1.25 | 1.538 | 1.86 | 2.5 |
| Module | Module Resolution | 256*128 | 208*104 | 172*86 | 128x64 |
| Module Size (WxH) | 320*160mm | ||||
| Module weight (Kg/pcs) | 0.45kg | ||||
| Module Quantity (WxH) | 2x12 | ||||
| Pixel Density (dots/m2) | 640,000 | 422753 | 289,050 | 160,000 | |
| LED Poster Cabinet | Cabinet Resolution (WxH) | 512*1536 | 408*1248 | 344*1032 | 256*768 |
| Cabinet Size (WxH) | 640*1920mm | ||||

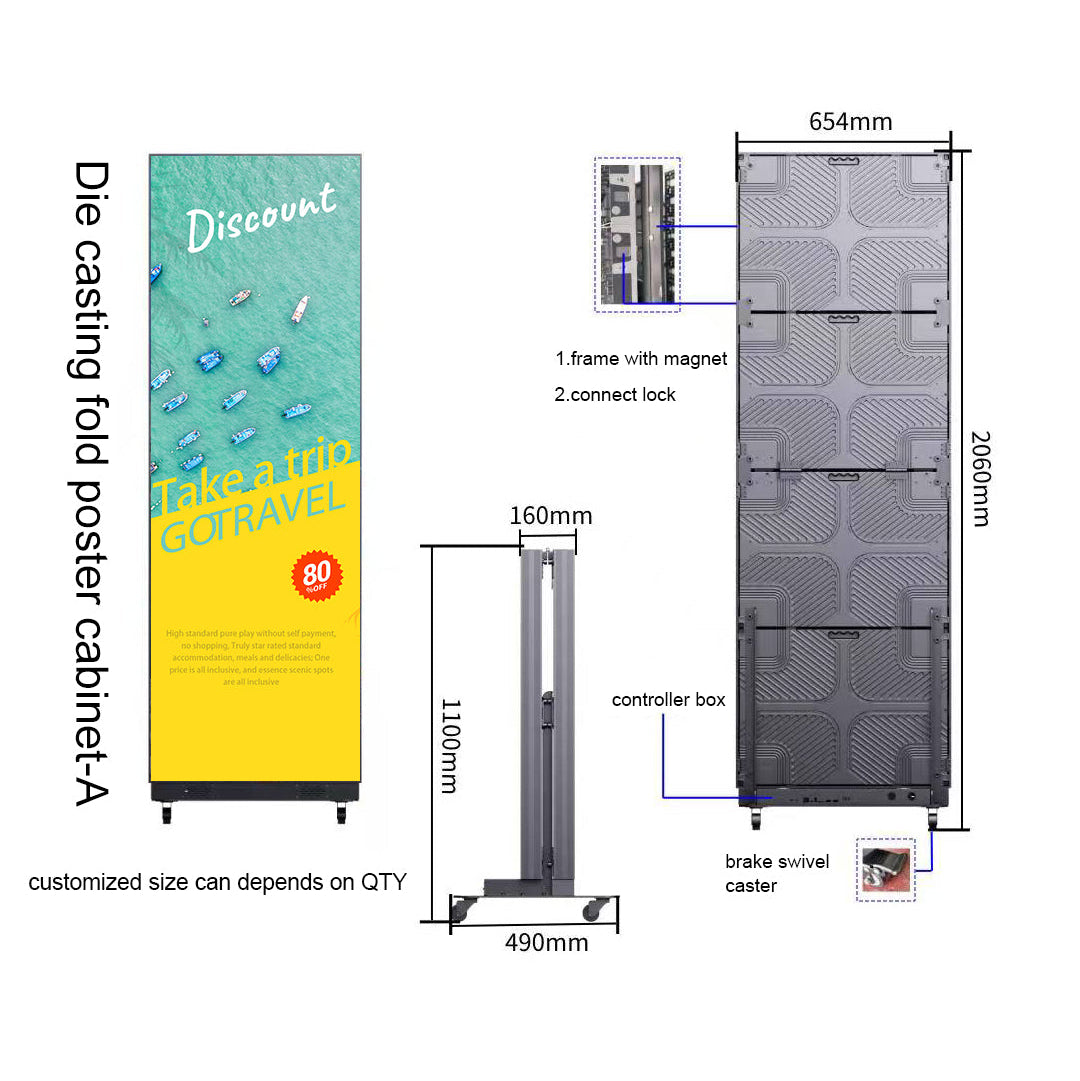

| Whole set size (mm) | W654*H2060mm(Includes feet:W654*H2060mm*L490mm) | ||||
| Cabinet Weight (kg/pcs) | 55 | ||||
| Cabinet Material | Aluminum | ||||
| Ingress Protection | IP65 the front, IP30 the back | ||||
| Electrical Parameter | Color Temperature (K) | 3,200-12,000 (Adjustable) | |||
| Brightness (nits) | >550 | ||||
| View Angle | H.140。/ V.140。 | ||||
| Contrast Ratio | 4,000:1 | ||||
| Max. Power Consumption | 720 W/PCS | ||||
| Avg. Power Consumption | 220 W/PCS | ||||
| Working Voltage | AC110/220V | ||||
| Refresh Rate (Hz) | ≥3840Hz | ||||
| Lifetime (Hrs) | 50,000 | ||||
| Control System | Controller Brand | Novastar (Default), Colorlight, HuiDu | |||
| Connectivity | HDMI, Ethernet, RS232 control via USB | ||||
| Usage | Working Temperature | - 10℃~ 40℃ | |||
| Environment | Storage Temperature | - 20℃~ 60℃ | |||
| Working Humidity | 10-60%RH | ||||
| Storage Humidity | 10-60%RH | ||||
| Application | Indoor Only | ||||
| Remark: Brightness and power consumption is subject to different level LED lamp parameters, tolerance is ±10%, please recheck with technician for the specified parameters. | |||||
APPLICATIONS:

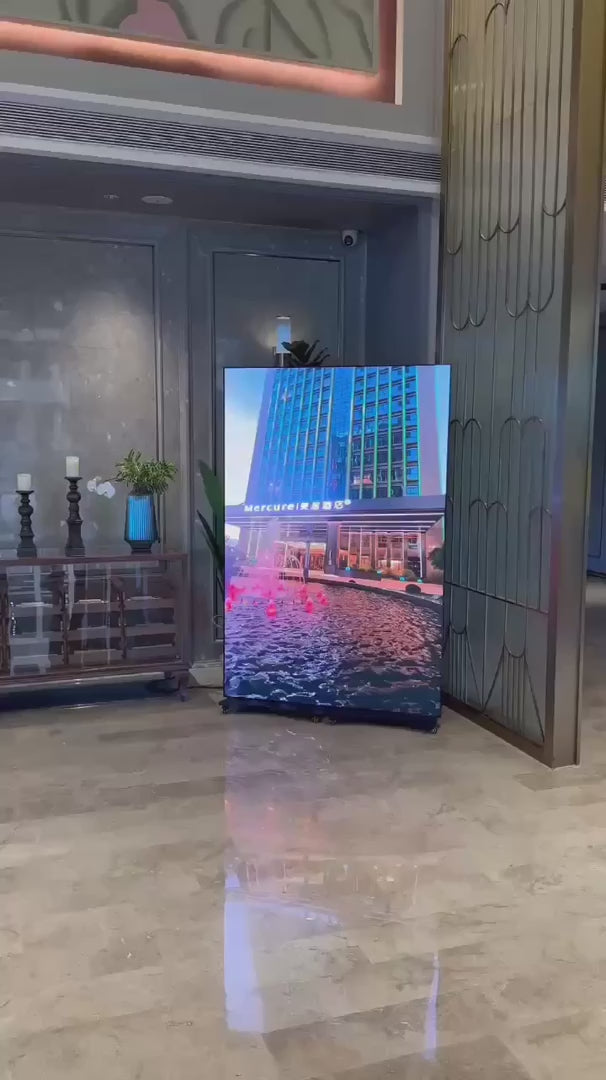

The poster display can be widely used in retail stores, hotels, restaurants, shopping malls, banks, companies, hospitals, schools, airports, subway stations and etc.
IMPORTANT NOTICE !
- 【Lead Time】: The products takes 15-20 days to make if none in stock.
- 【Packing】：The LED Signage Poster will be packed in road rolling airflight case for shipping.
- 【Free Shipping】：
- For shipping, the prices on this page include free shipping by SEA +Delivery to door by truck. It's by Fast Boat which in regular would take around 30-35days at least in transportation after boat departure;
- DDP TERM (delivery duty paid, all fee included) except the to destination country that this shipping service is not available, then we will contact the buyer if this clause does not apply to his country.
