Description

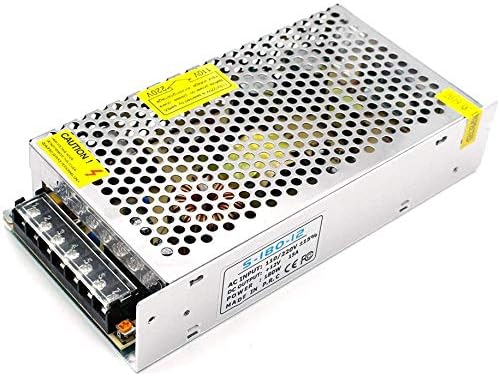

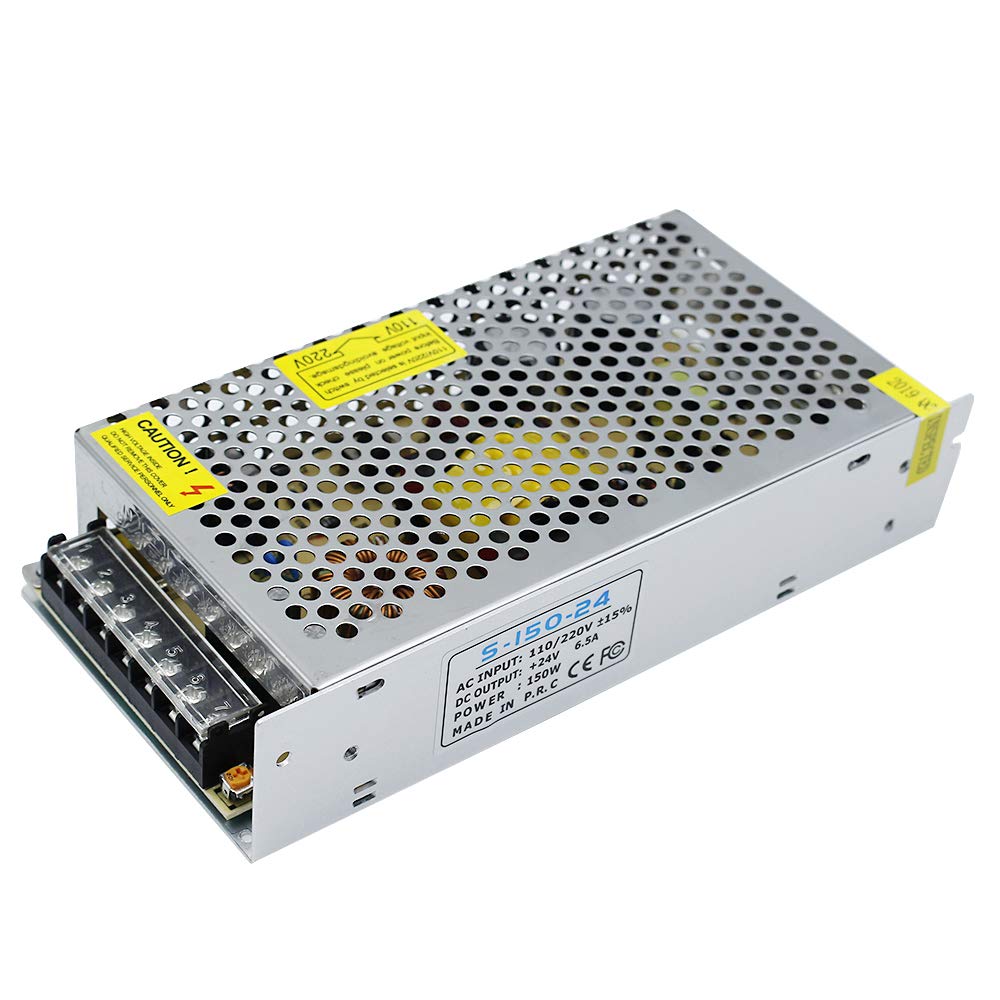

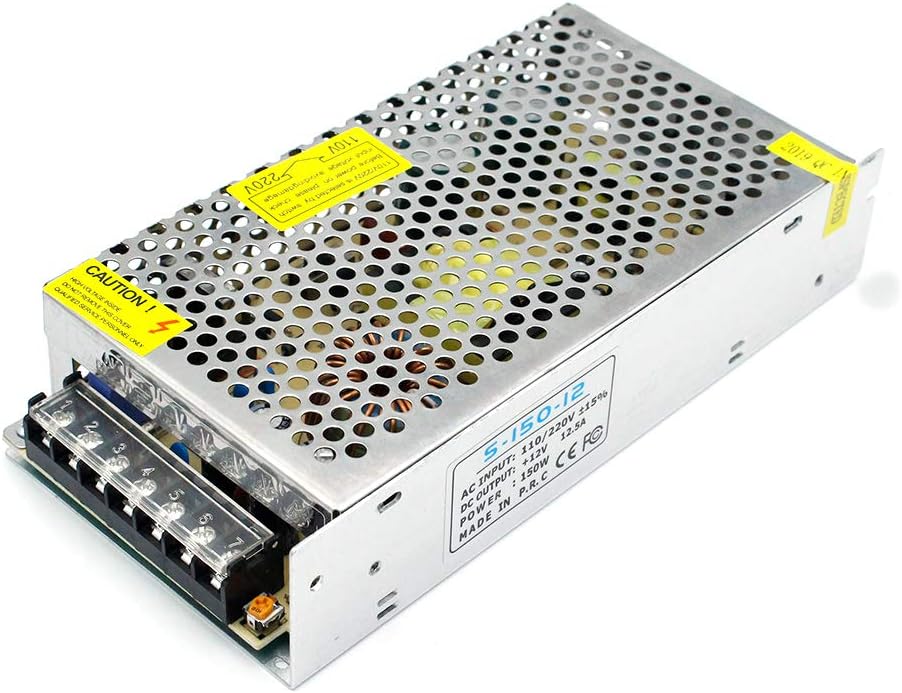

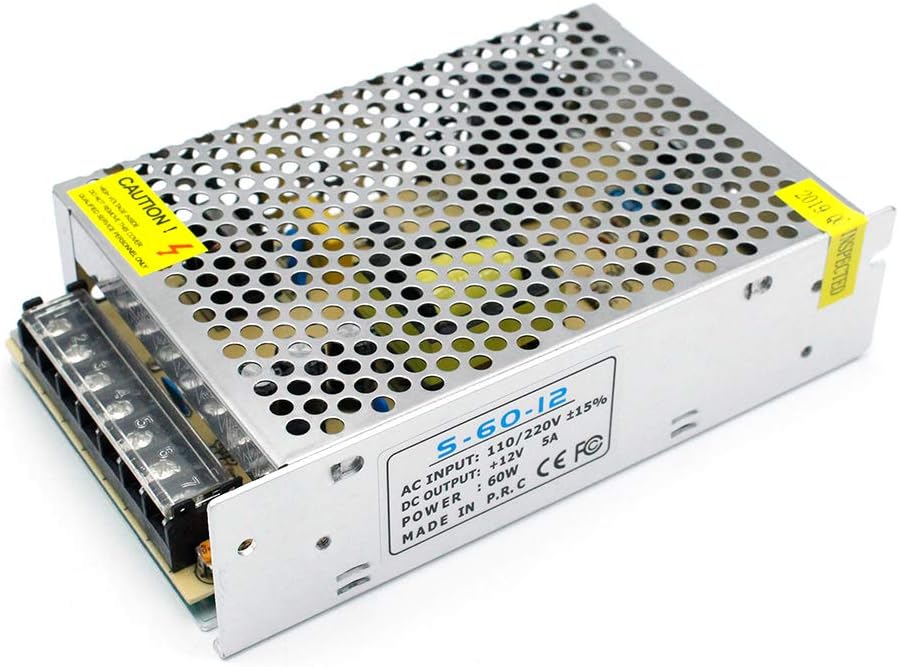

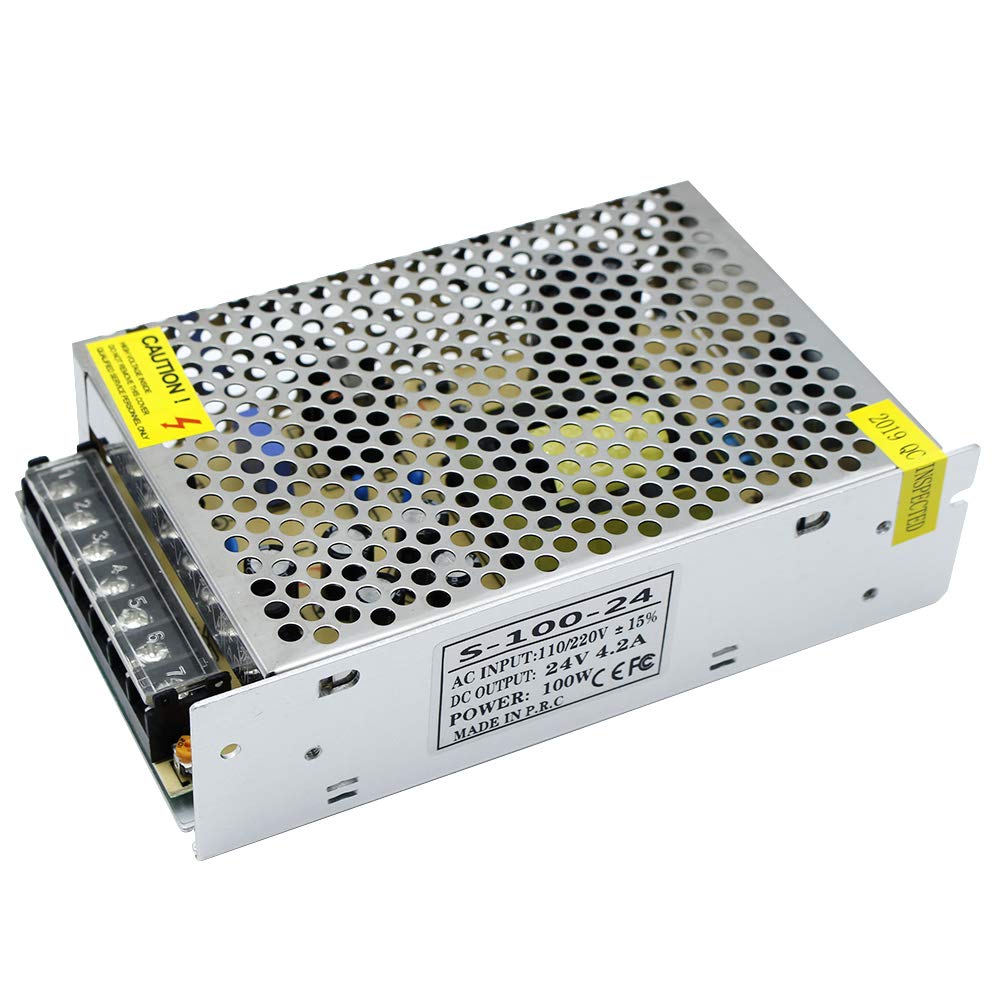

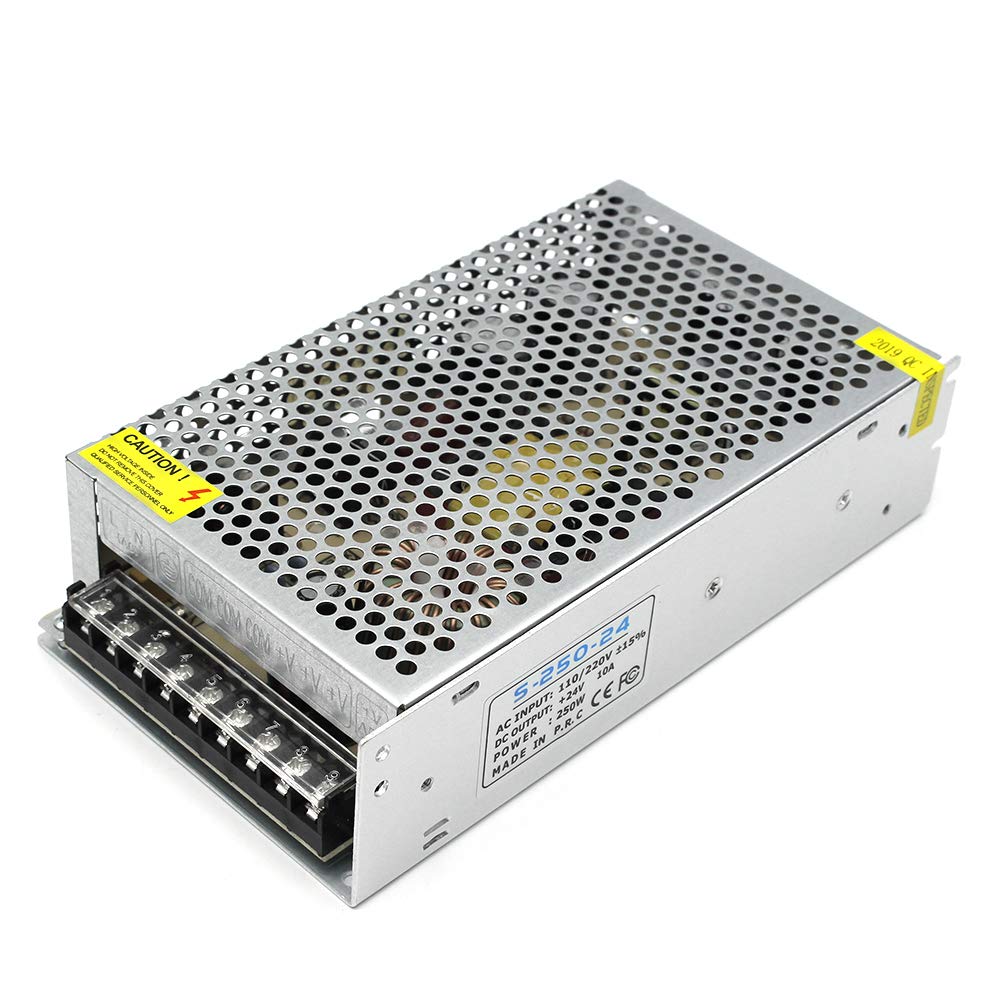

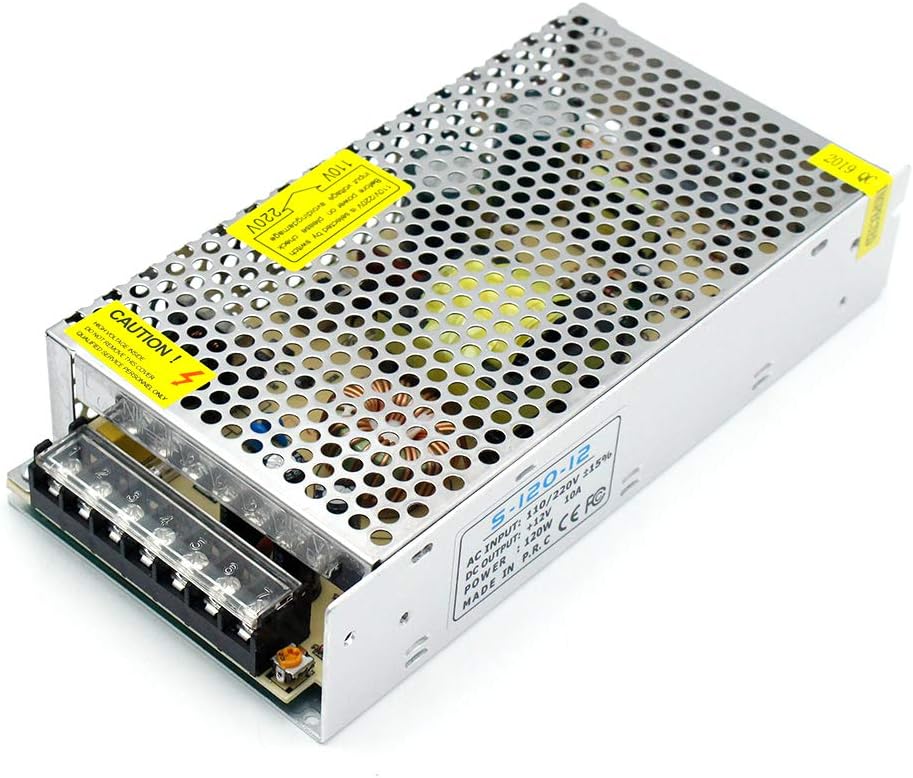

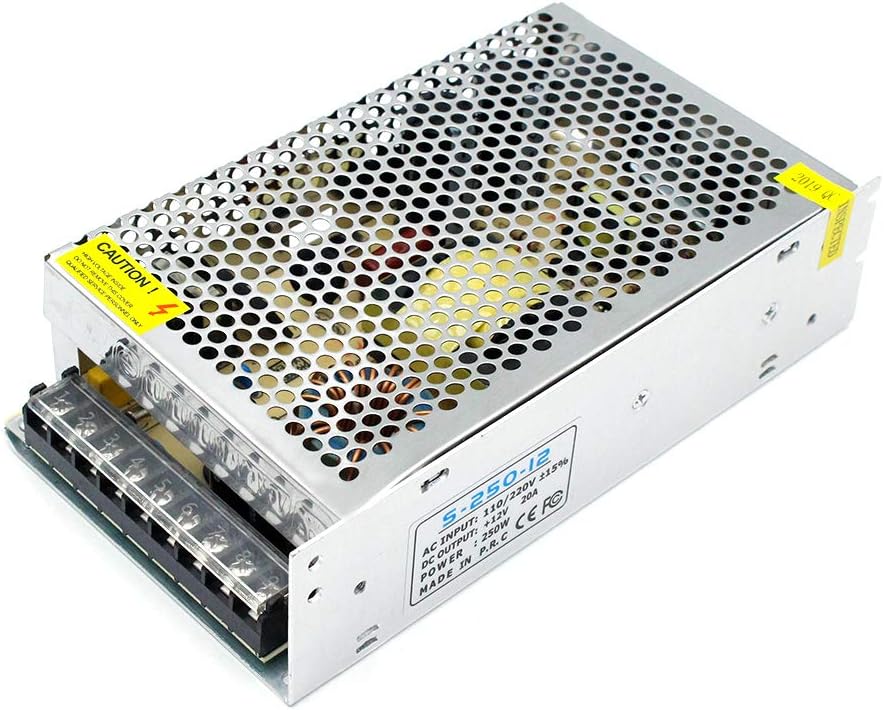

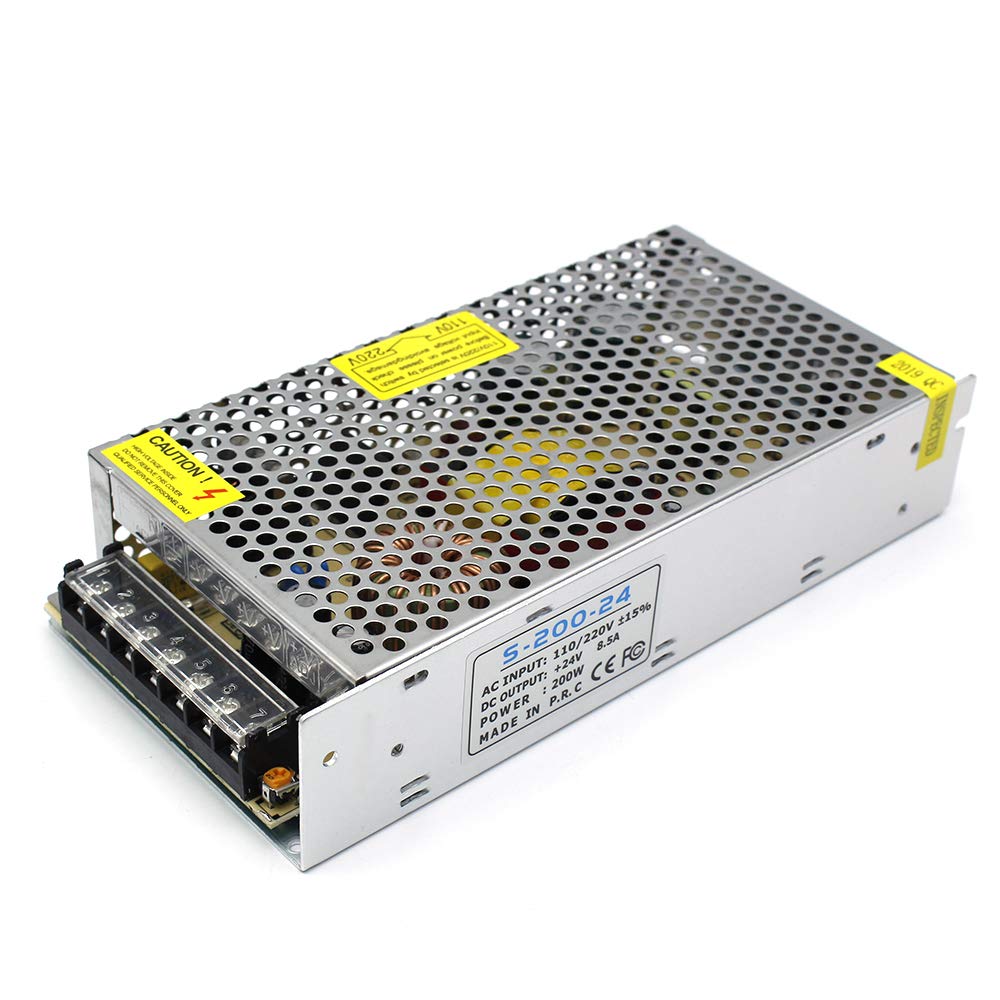

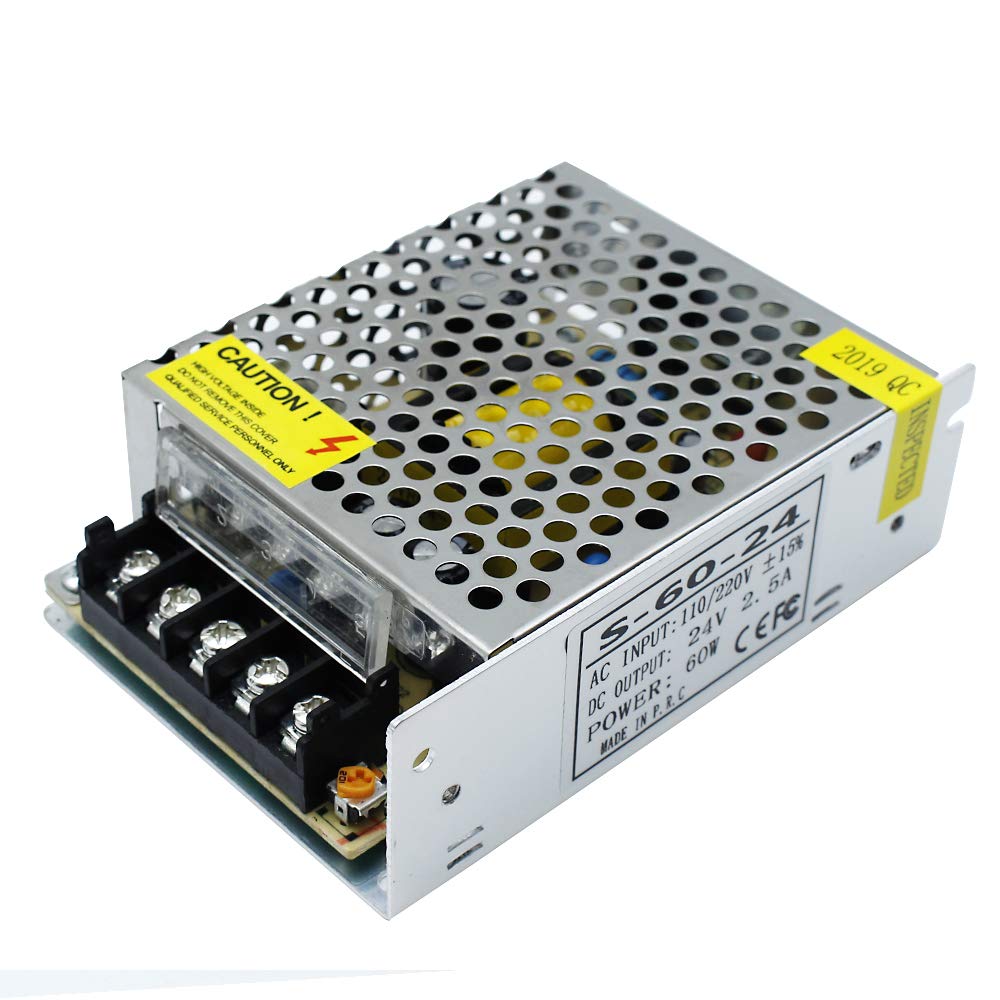

DC 12V/24V Switching Power Supply 60W–250W, AC 110/220V Input, Constant Voltage LED Driver Transformer, Metal Case with Screw Terminals, CE/FCC/RoHS Certified
Package Included
| Version | Package Included |

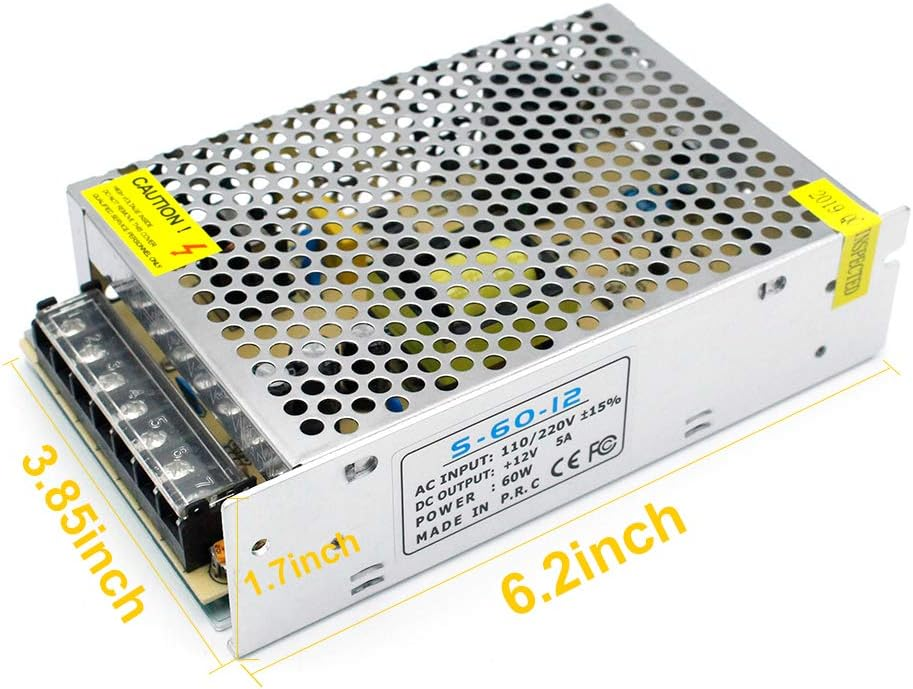

| 60W 12V DC (1-Pack) | 1 × 60W 12V DC Switching Power Supply, 1 × User Manual |
| 100W 12V DC (1-Pack) | 1 × 100W 12V DC Switching Power Supply, 1 × User Manual |

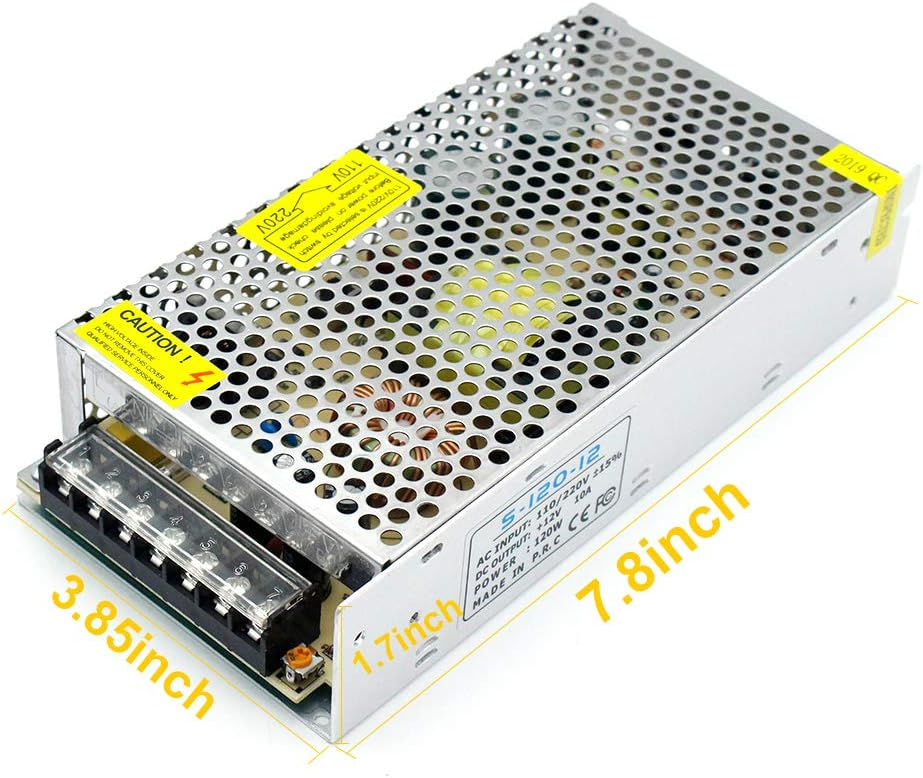

| 120W 12V DC (1-Pack) | 1 × 120W 12V DC Switching Power Supply, 1 × User Manual |

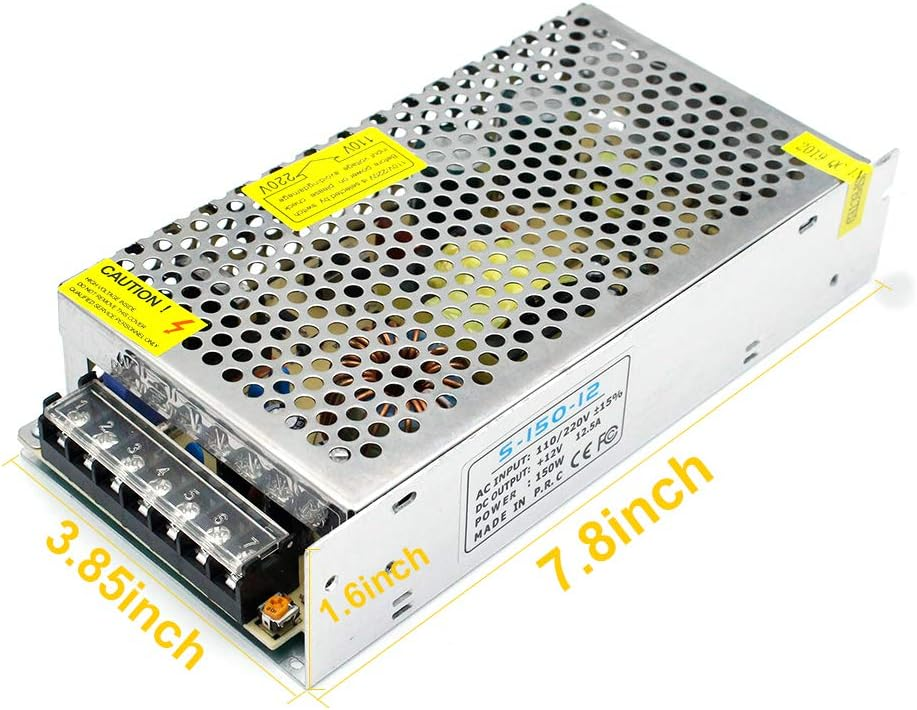

| 150W 12V DC (1-Pack) | 1 × 150W 12V DC Switching Power Supply, 1 × User Manual |
| 180W 12V DC (1-Pack) | 1 × 180W 12V DC Switching Power Supply, 1 × User Manual |
| 200W 12V DC (1-Pack) | 1 × 200W 12V DC Switching Power Supply, 1 × User Manual |
| 250W 12V DC (1-Pack) | 1 × 250W 12V DC Switching Power Supply, 1 × User Manual |
| 60W 24V DC (1-Pack) | 1 × 60W 24V DC Switching Power Supply, 1 × User Manual |
| 100W 24V DC (1-Pack) | 1 × 100W 24V DC Switching Power Supply, 1 × User Manual |
| 120W 24V DC (1-Pack) | 1 × 120W 24V DC Switching Power Supply, 1 × User Manual |
| 150W 24V DC (1-Pack) | 1 × 150W 24V DC Switching Power Supply, 1 × User Manual |
| 180W 24V DC (1-Pack) | 1 × 180W 24V DC Switching Power Supply, 1 × User Manual |
| 200W 24V DC (1-Pack) | 1 × 200W 24V DC Switching Power Supply, 1 × User Manual |
| 250W 24V DC (1-Pack) | 1 × 250W 24V DC Switching Power Supply, 1 × User Manual |
About this item
- Universal AC 110/220V input with stable DC 12V or 24V output options
- Constant voltage LED driver transformer for reliable performance
- Available in 60W, 100W, 120W, 150W, 180W, 200W, and 250W models
- Metal case with screw terminals for secure and easy installation
- Certified by CE, FCC, and RoHS for safety and compliance
- Ideal for LED strips, CCTV, routers, pumps, and DIY electronics
Order & Logistics
Lead Time
- Ships within 1–3 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
- Packing: Cardboard box, sealed with polybag for small parts
Key Specifications
- Input Voltage: AC 110/220V
- Output Voltage: DC 12V / DC 24V
- Wattage Options: 60W / 100W / 120W / 150W / 180W / 200W / 250W
- Package Qty: 1-Pack
- Housing: Metal Case with Screw Terminals
- Protection: Overload, Short-circuit, Over-voltage
Technical Specifications
| Model | 60W | 100W | 120W | 150W | 180W | 200W | 250W |
|---|---|---|---|---|---|---|---|
| Output (Voltage / Current) | 12V ⎓ 5A | 24V ⎓ 4.2A | 12V ⎓ 10A | 12V ⎓ 12.5A | 12V ⎓ 15A | 24V ⎓ 8.5A | 12V ⎓ 20A |
| Max Output Power | 60W | 100W | 120W | 150W | 180W | 200W | 250W (240W Max) |

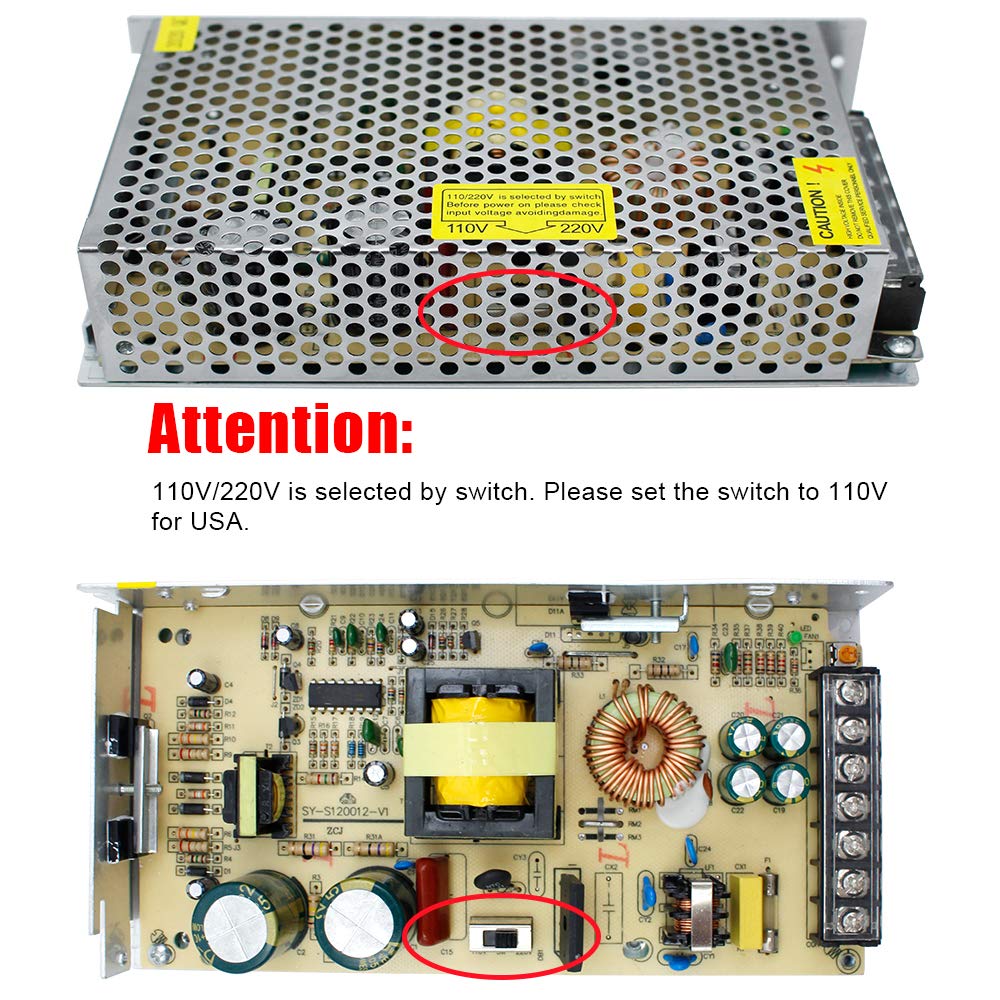

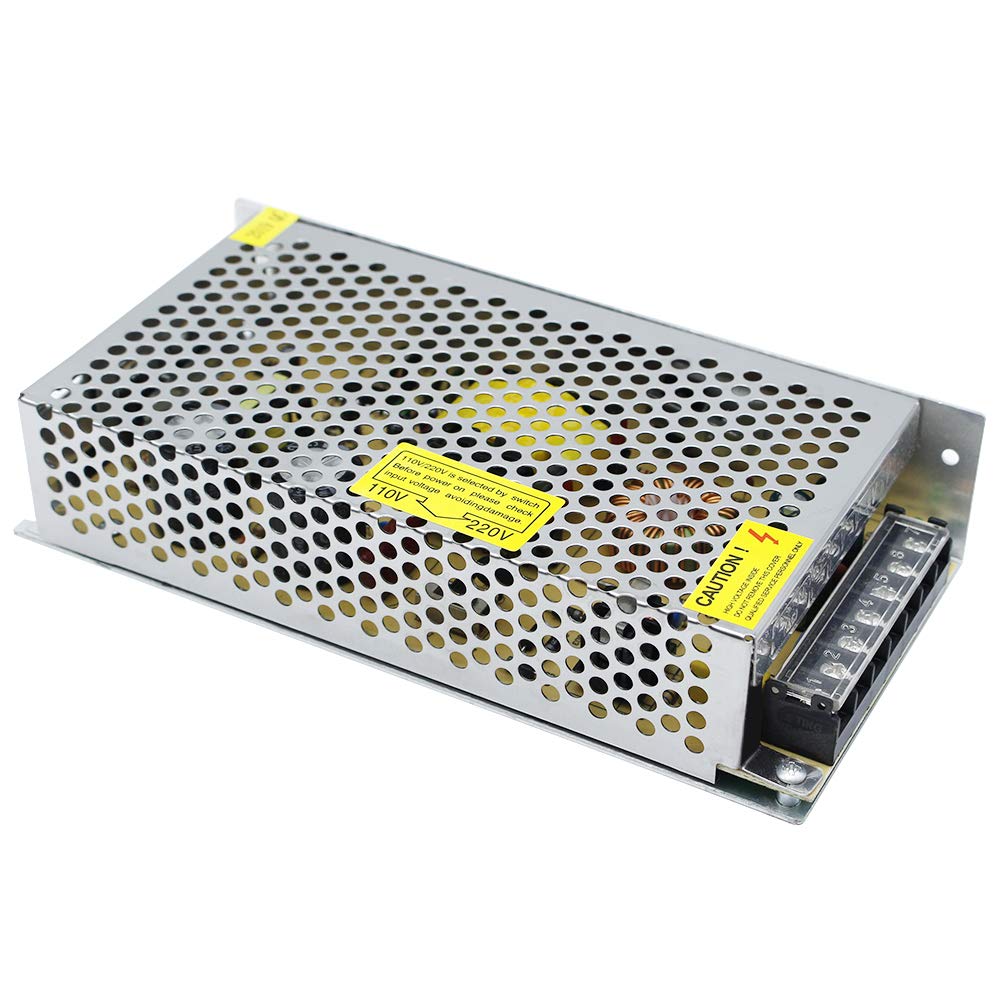

| Input Voltage | AC 110V / 220V ±15%, 50/60Hz (100W & 200W: 100–240V AC). Dual input with selector switch; set to 110V for USA/CA. | ||||||
| Voltage Adjustment Range | ±15% | ||||||

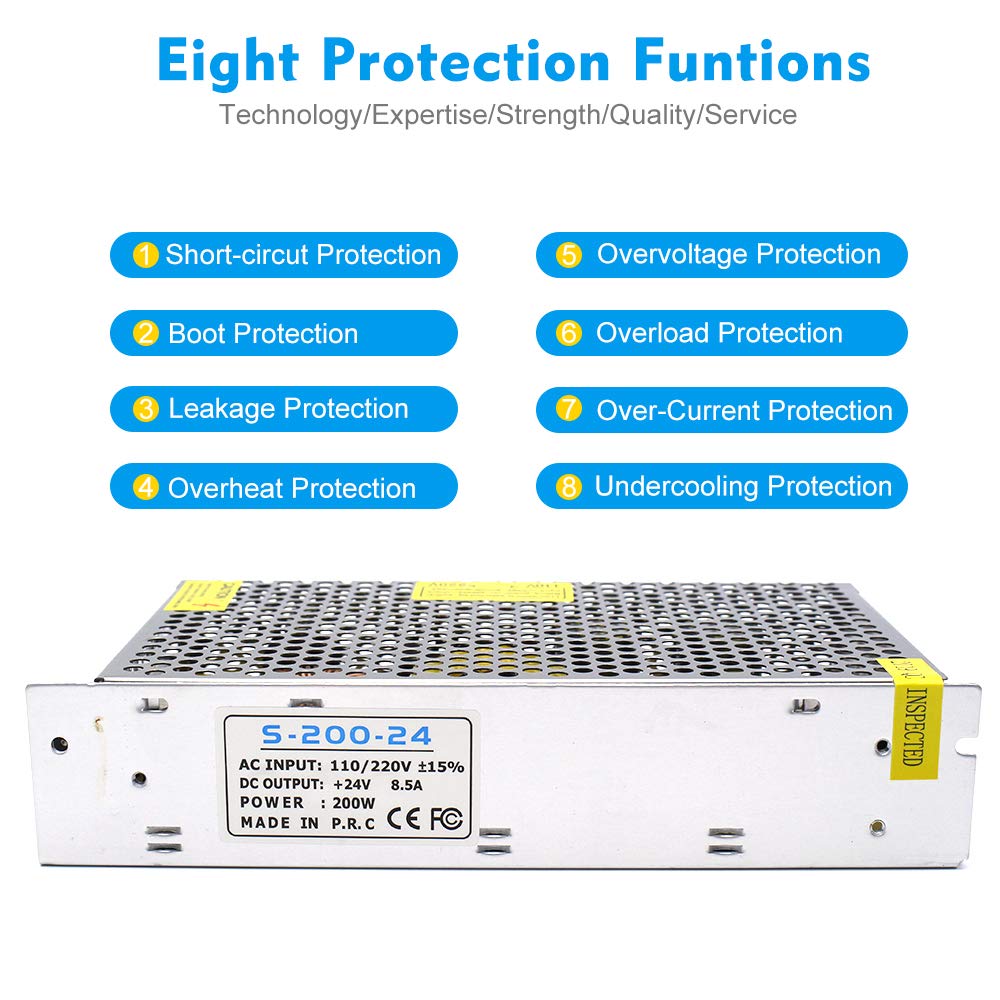

| Protection Features | Automatic overload shutdown, overvoltage shutdown, thermal shutdown, short-circuit protection | ||||||
| Voltage Stability | Stable output without significant fluctuation during power on/off or load changes | ||||||
| Housing / Use | Metal perforated enclosure; indoor use; suitable for LED strips, 3D printers, CCTV, amplifiers, routers, etc. | ||||||
| Part Number | 12V/24V-60W |
12V/24V-100W |
12V/24V-120W | 12V/24V-150W | 12V/24V-180W | 12V/24V-200W | 12V/24V-250W |
| Weight | 0.31 kg | 0.5 kg |
0.5 kg |
0.5 kg | 0.5 kg | 0.5 kg | 0.6 kg |

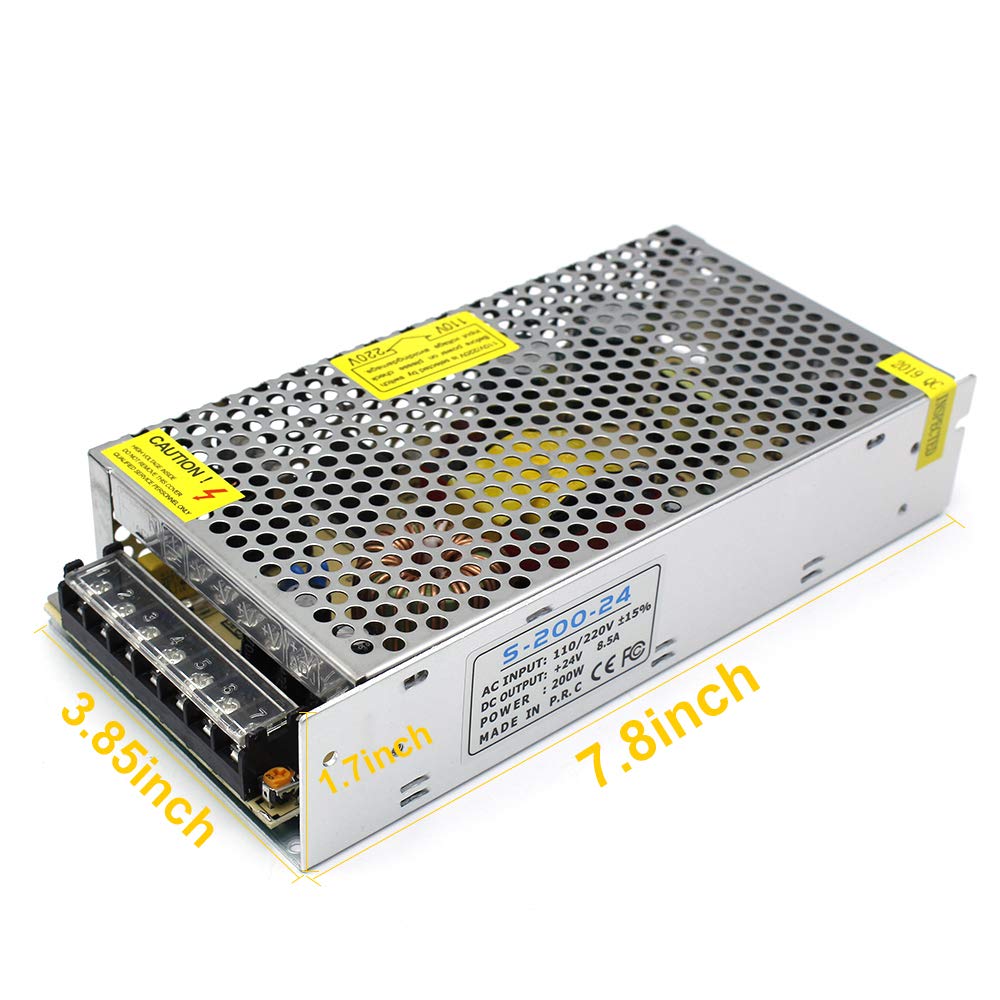

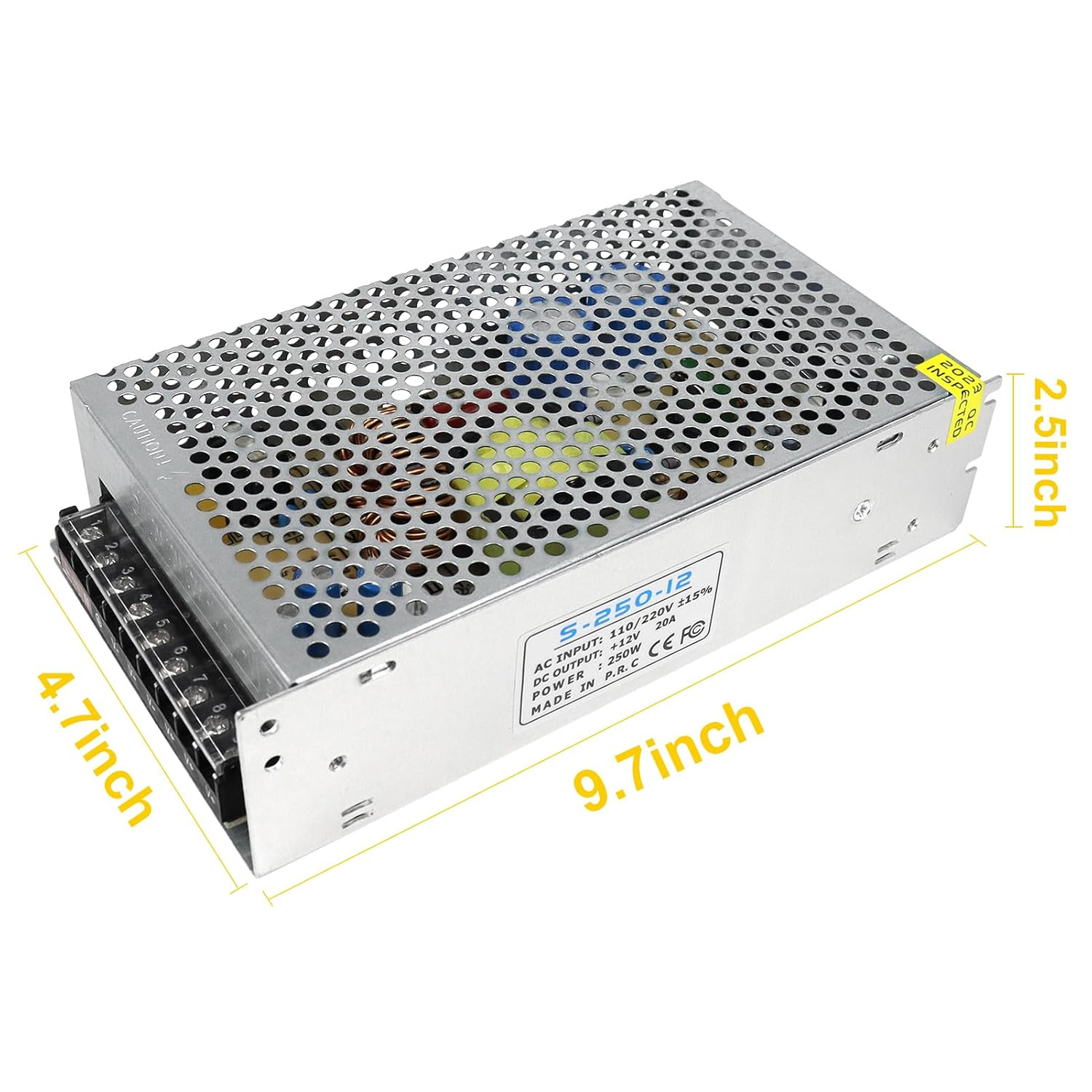

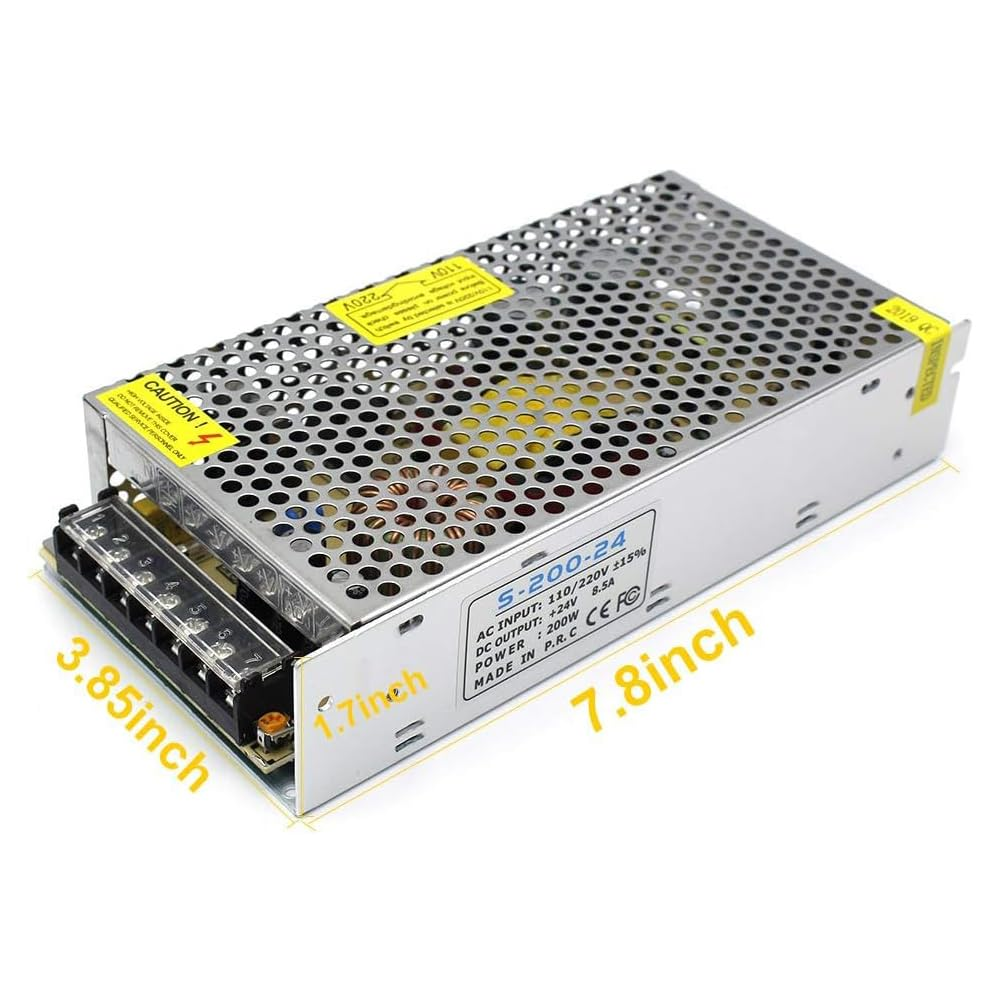

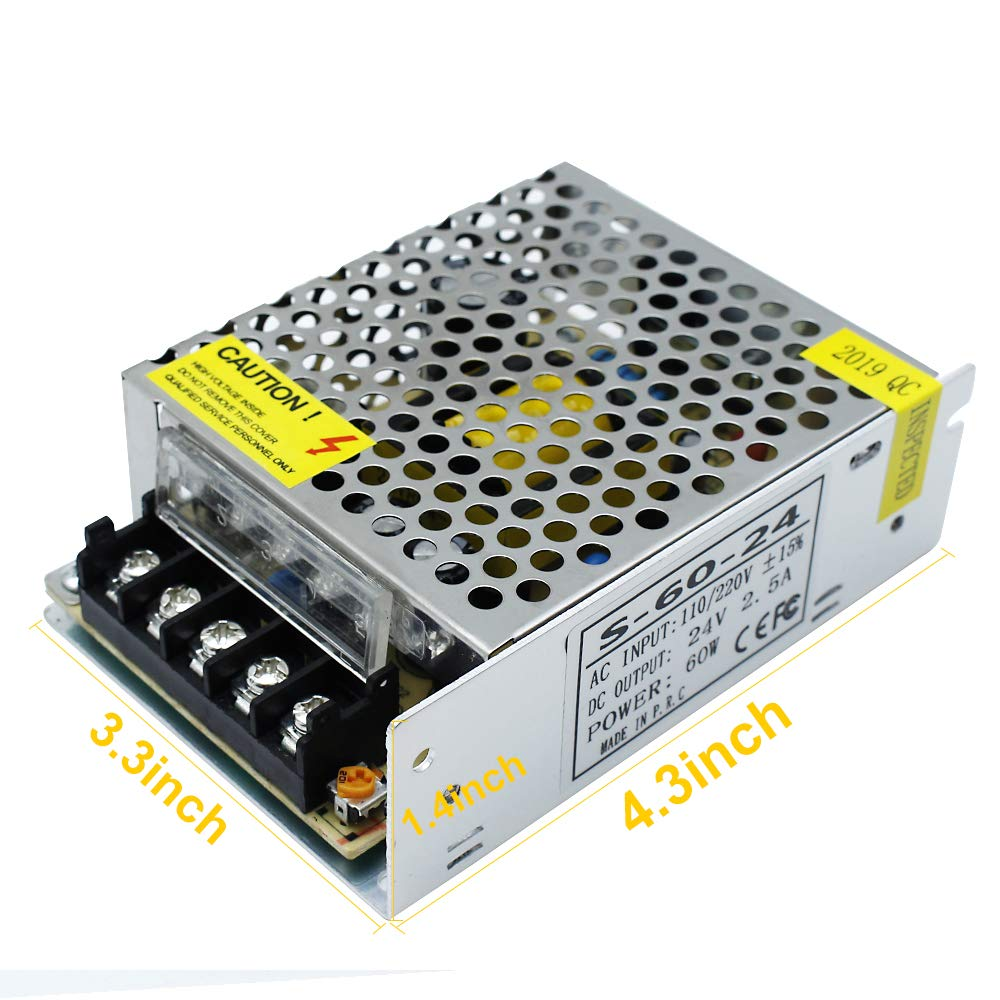

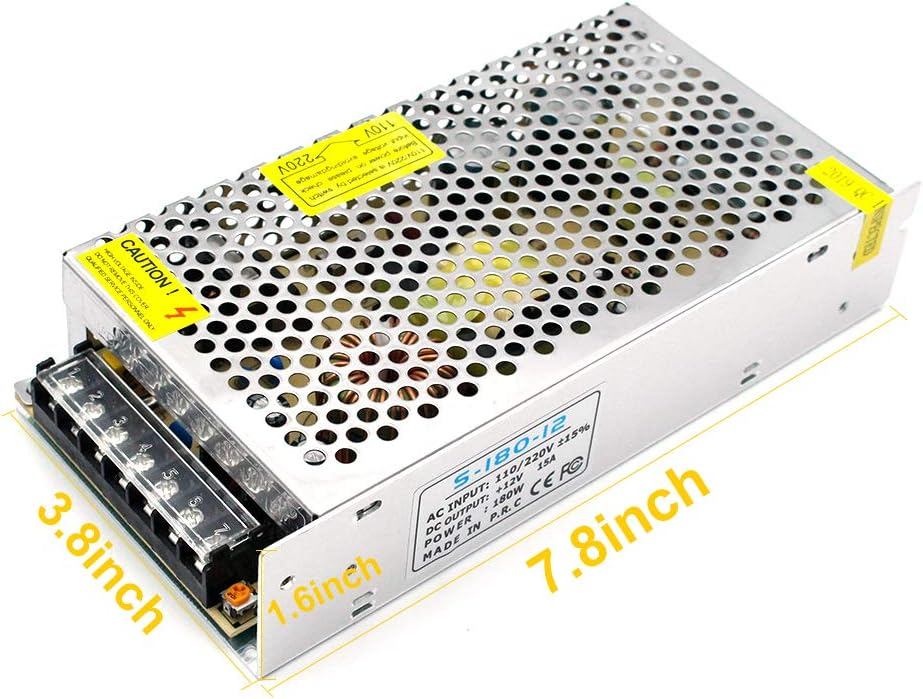

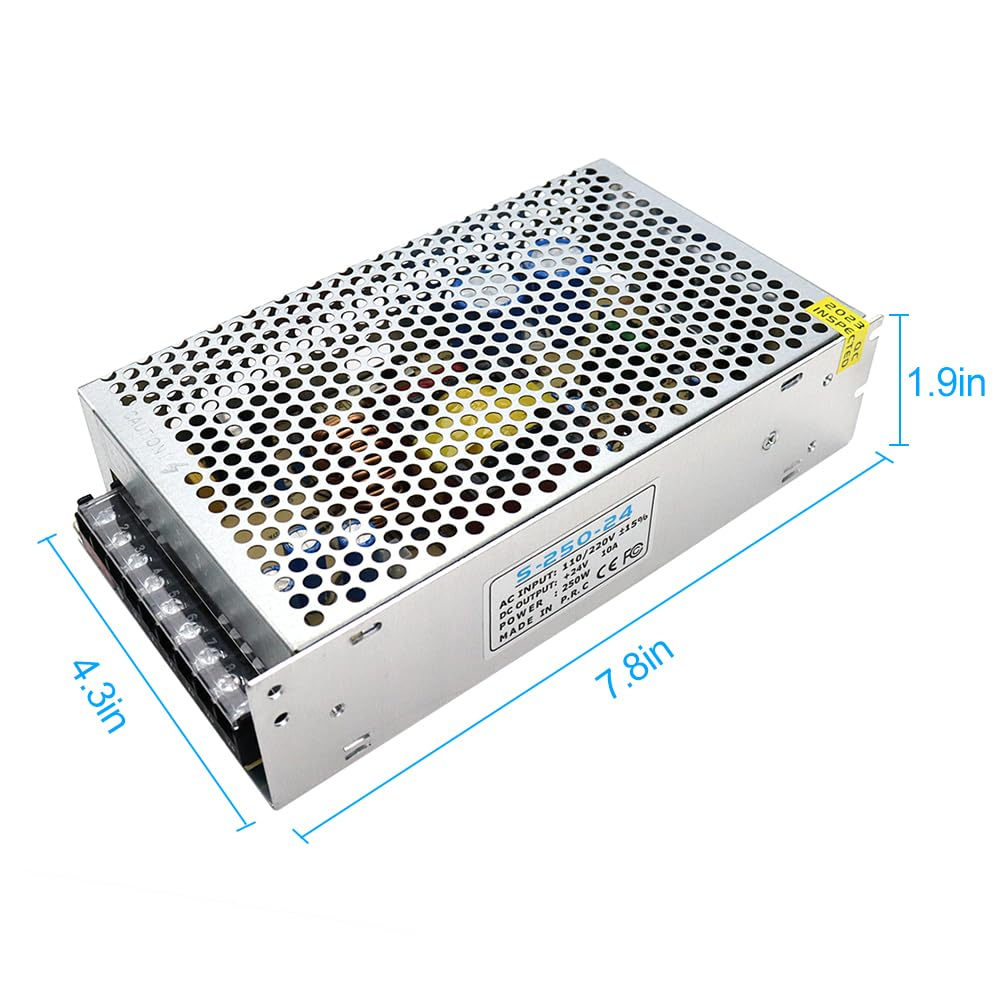

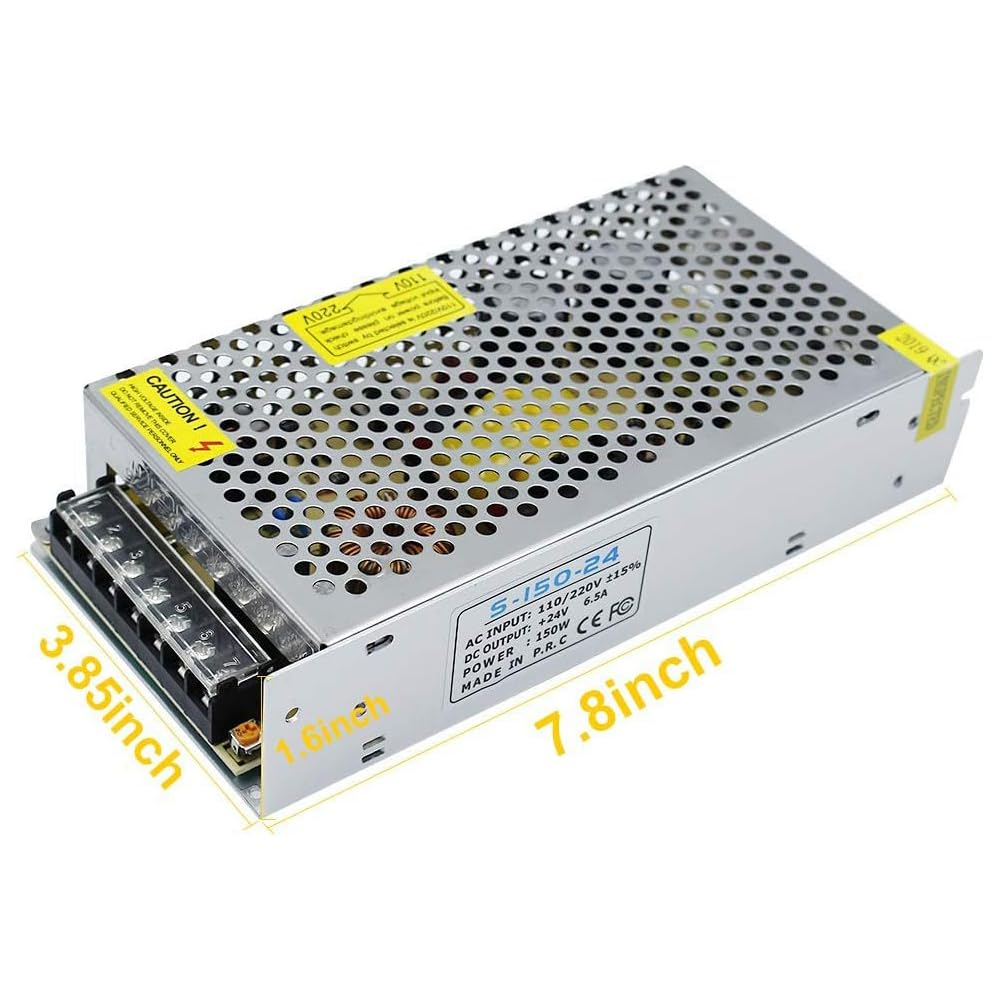

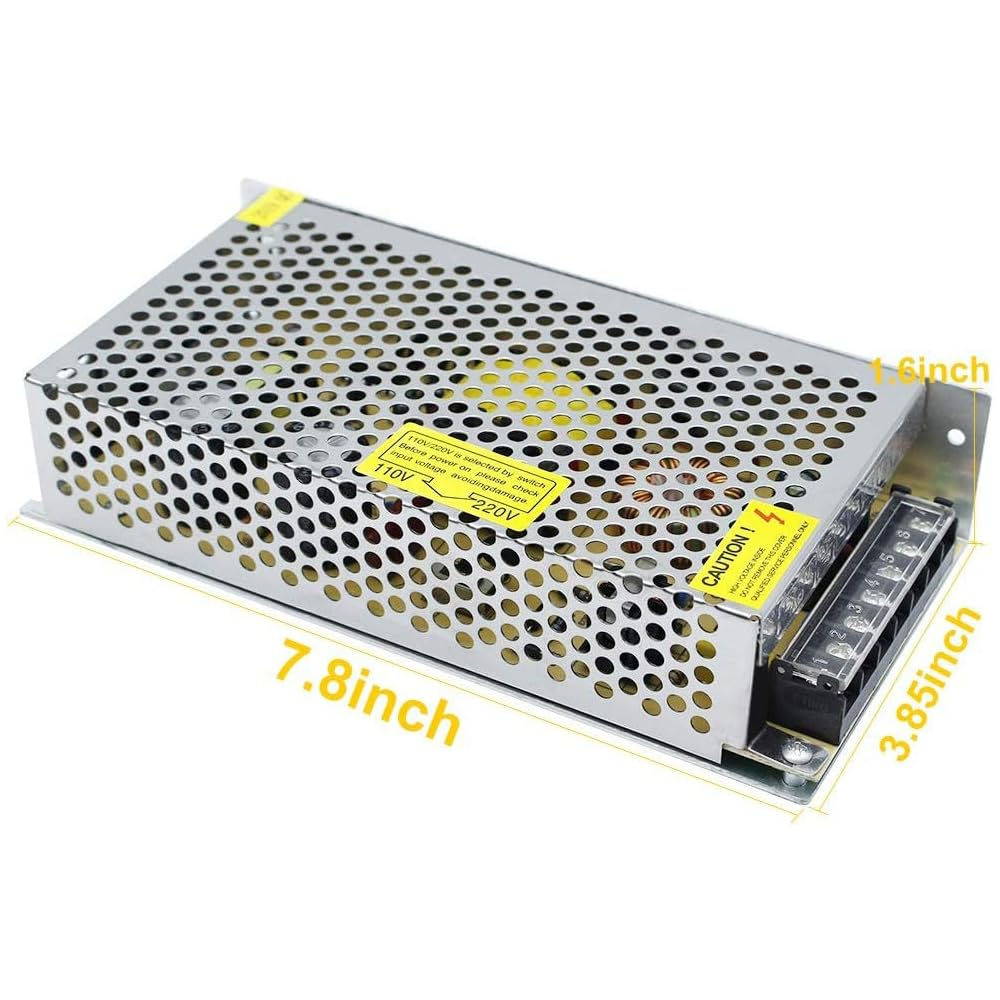

| Package Dimensions | 11.7 × 8.6 × 4.2 cm | 16.51 × 10.67 × 4.83 cm | 16.6 × 10.8 × 4.5 cm | 20.5 × 10.5 × 4.7 cm | 20.6 × 10.3 × 4.5 cm | 20.5 × 10.4 × 4.7 cm | 20.5 × 11.8 × 5.4 cm |

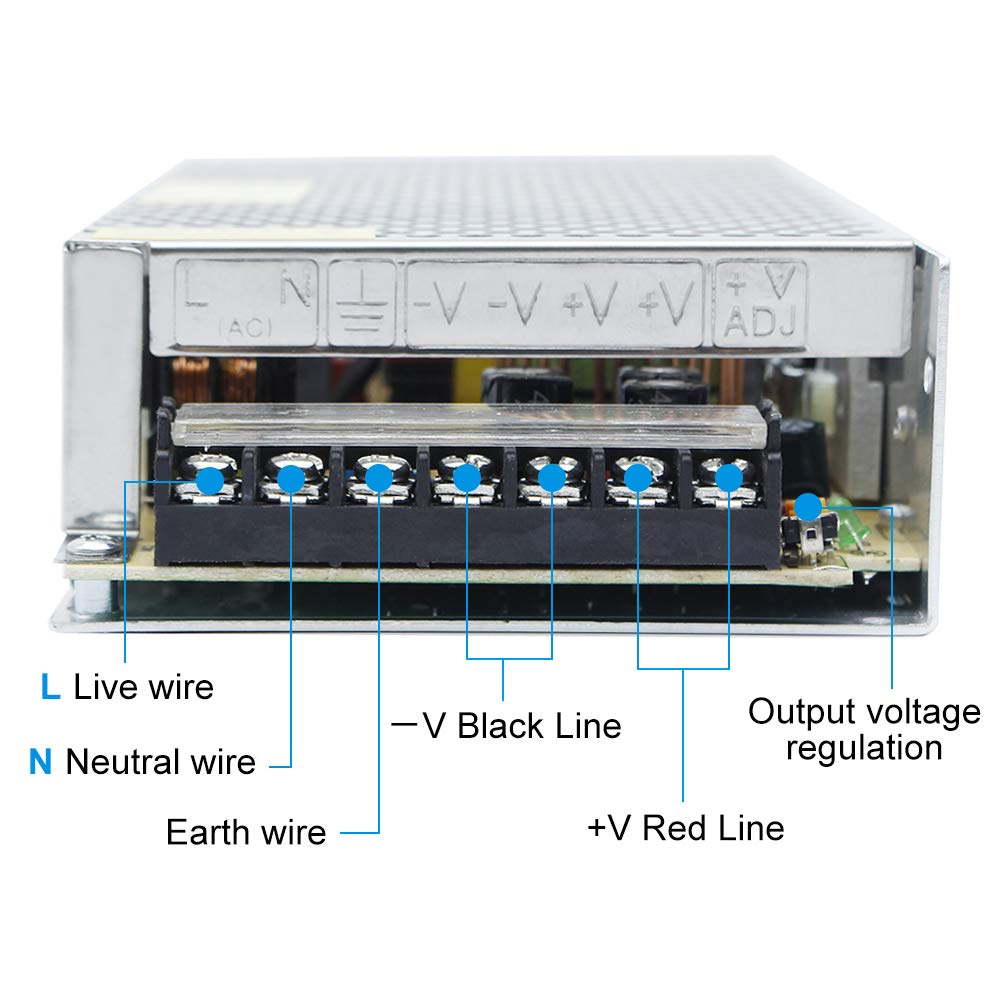

| Connection Type | Screw terminals | ||||||
| Warranty | 1 year warranty; support via email | ||||||
Usage Notes / Installation Tips
- Ensure correct AC input (110V or 220V) before powering on
- Do not exceed rated wattage capacity of each model
- Use indoors with adequate ventilation for heat dissipation
- Disconnect power before installation or wiring adjustments
- Recommended for LED strips, CCTV, routers, and other DC-powered devices
Applications
- LED strip lights and LED drivers
- CCTV cameras and security systems
- Routers, hubs, and communication devices
- Pumps, fans, and small appliances
- DIY electronics projects
