Description

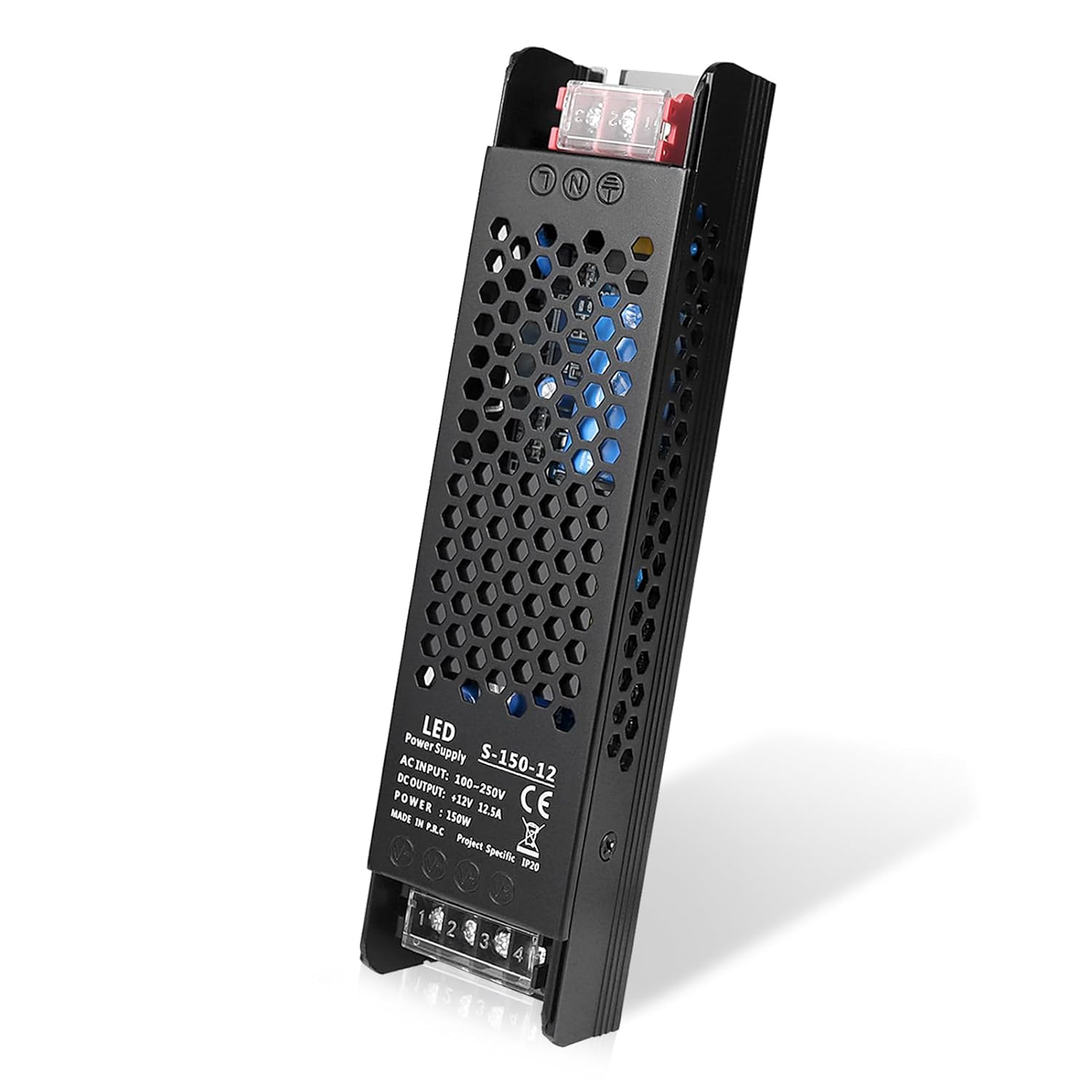

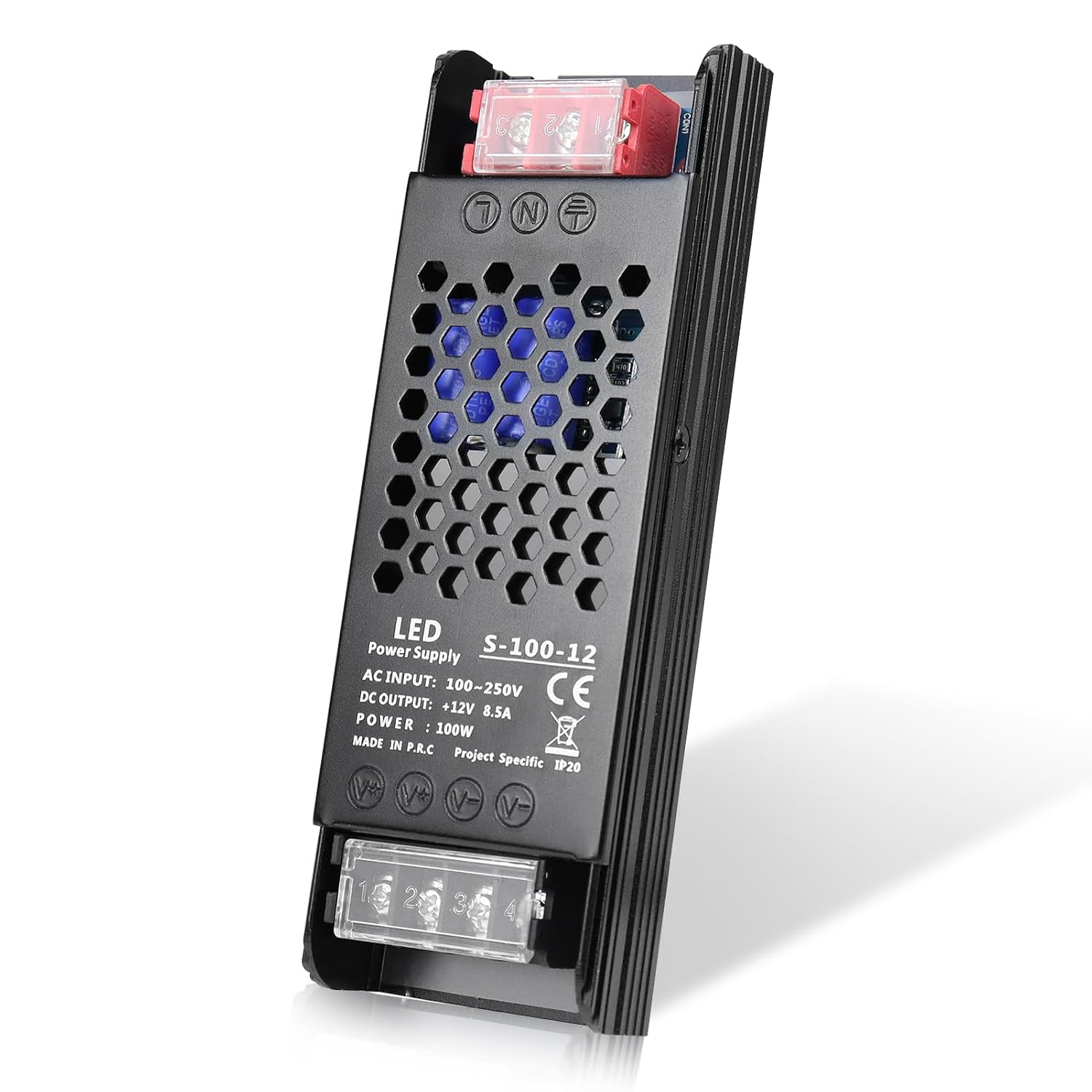

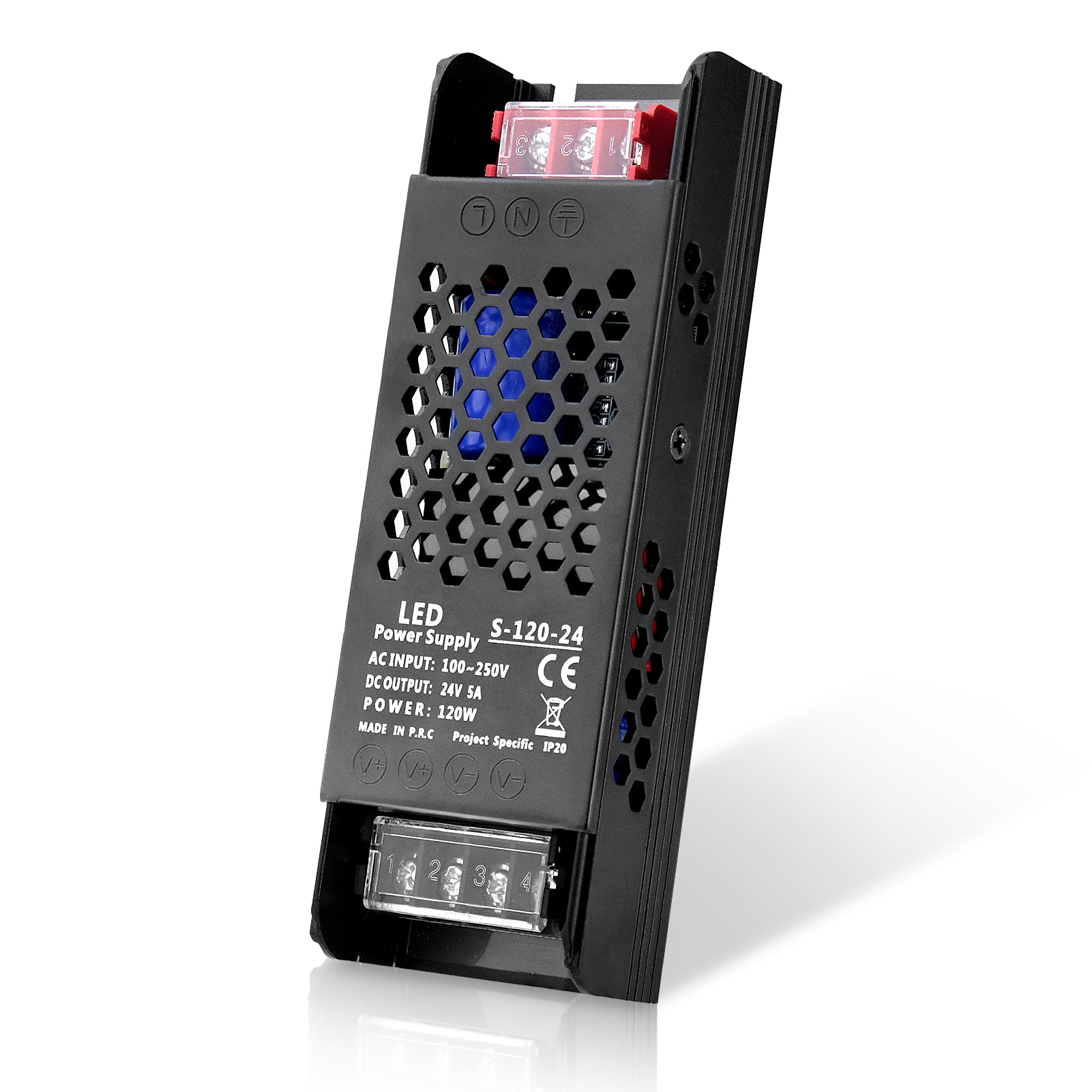

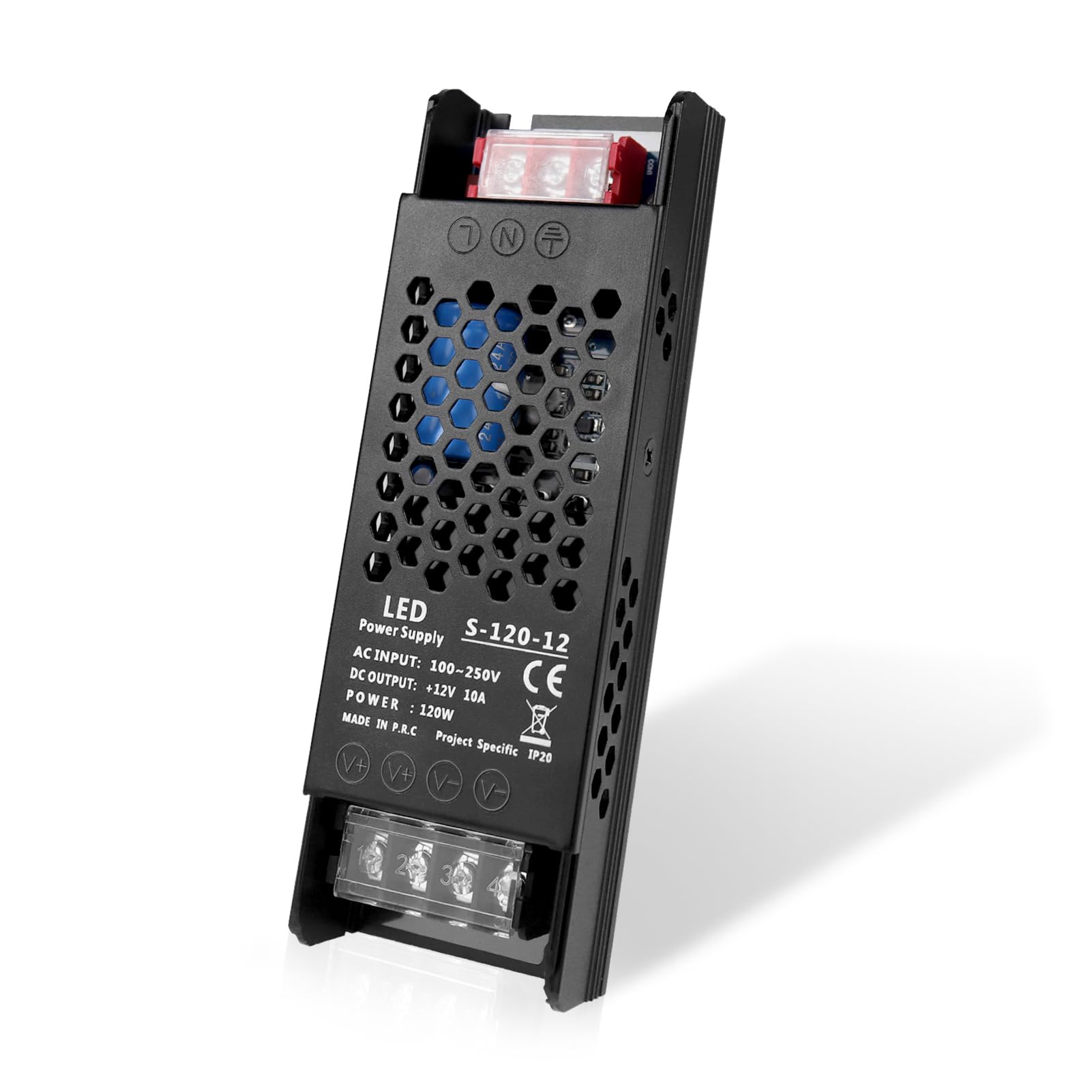

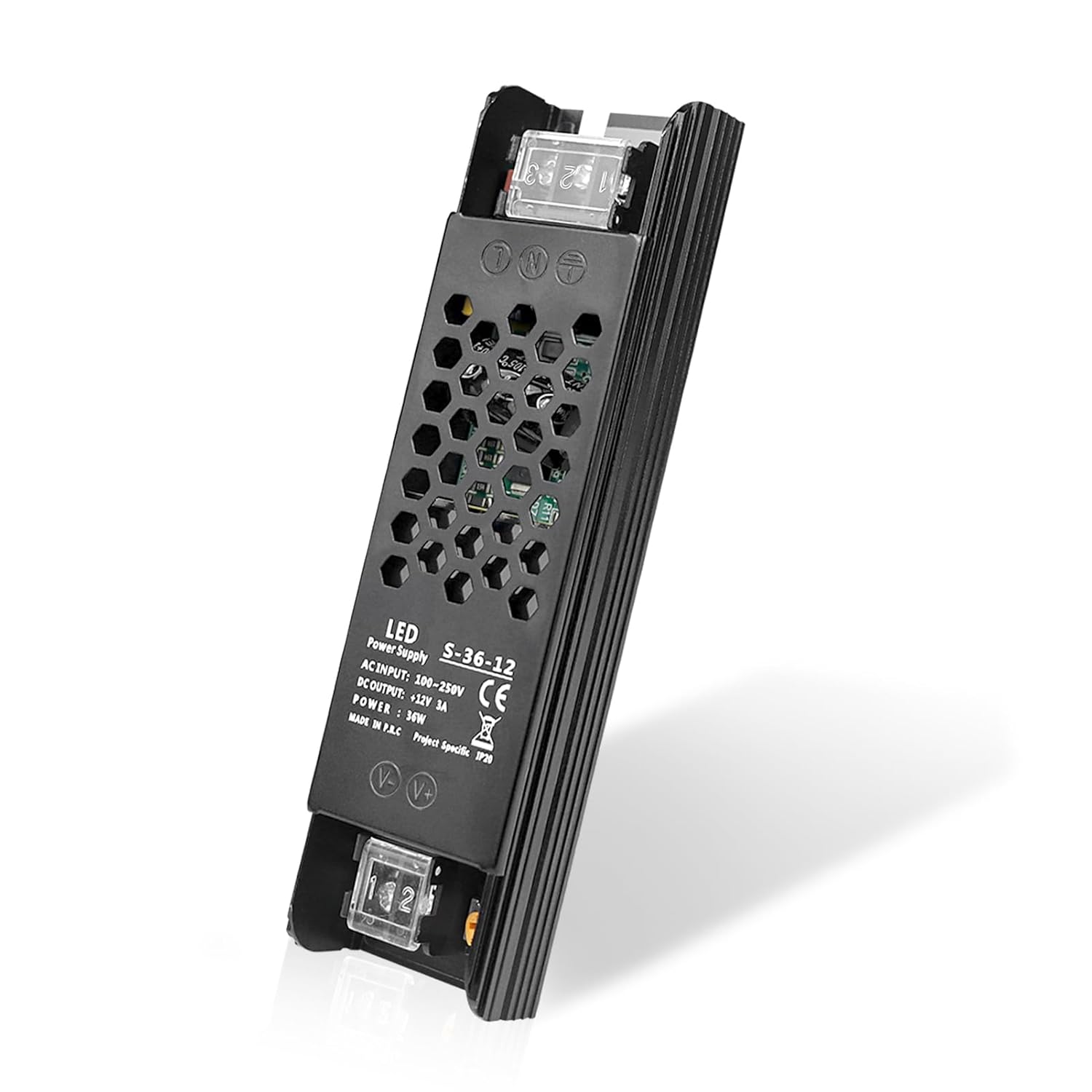

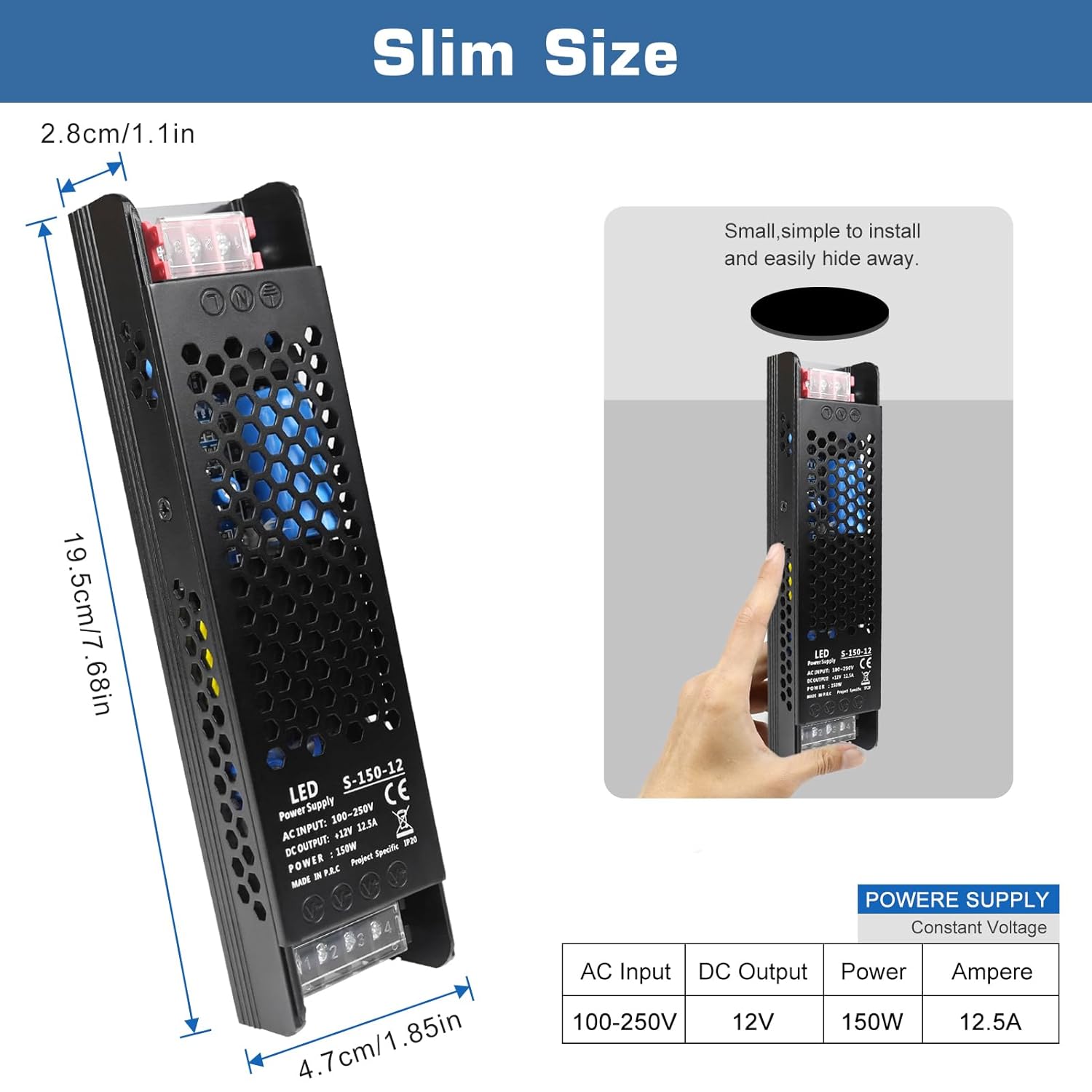

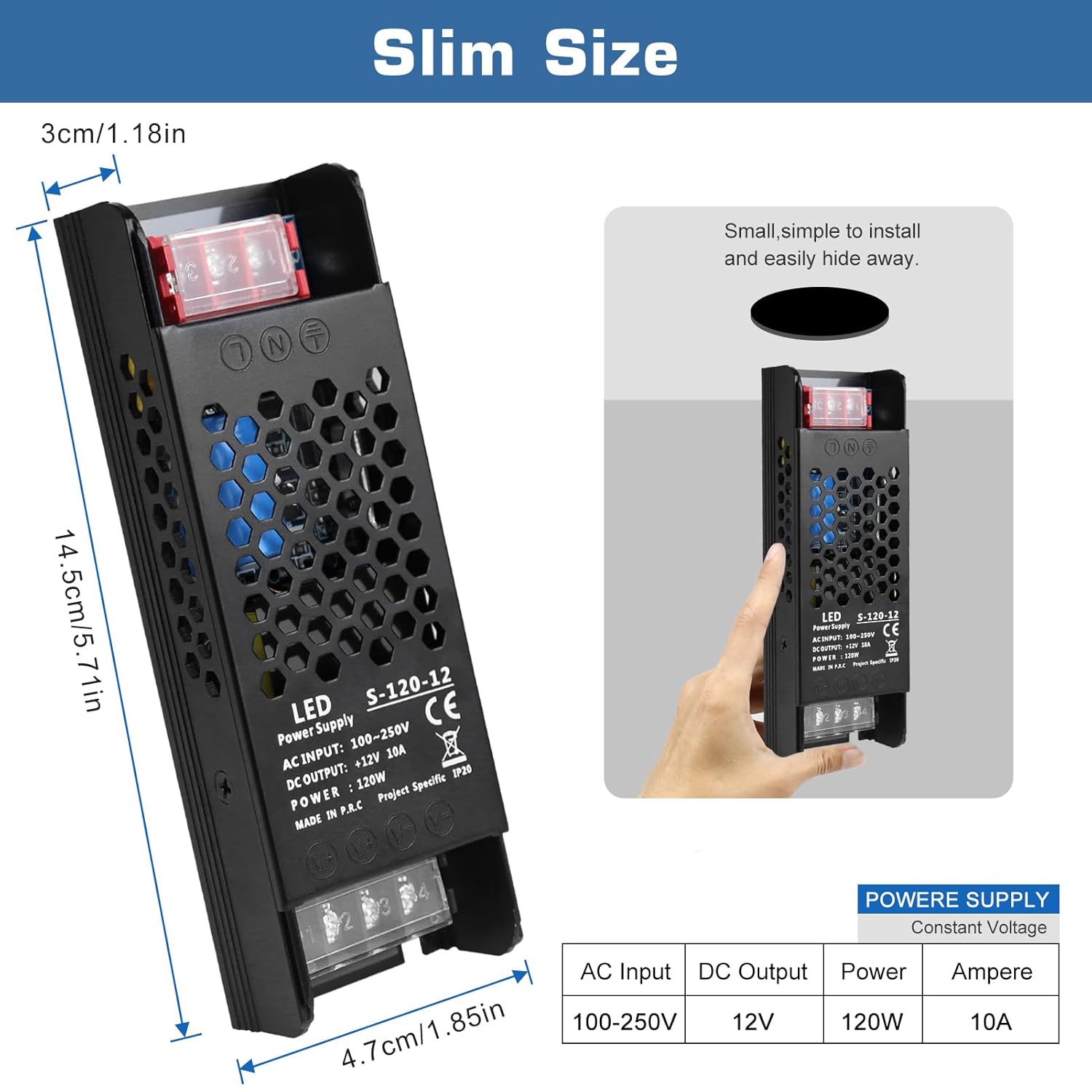

DC 12V/24V Slim Black Switching Power Supply 36W–200W, AC 110–250V Input, Narrow Type LED Transformer, Compact Metal Housing, CE/FCC/RoHS Certified
Package Included
| Version | Package Included |
| 36W 12V DC (1-Pack) | 1 × 36W 12V DC Slim Black Switching Power Supply, 1 × User Manual |
| 60W 12V DC (1-Pack) | 1 × 60W 12V DC Slim Black Switching Power Supply, 1 × User Manual |
| 100W 12V DC (1-Pack) | 1 × 100W 12V DC Slim Black Switching Power Supply, 1 × User Manual |
| 120W 12V DC (1-Pack) | 1 × 120W 12V DC Slim Black Switching Power Supply, 1 × User Manual |
| 150W 12V DC (1-Pack) | 1 × 150W 12V DC Slim Black Switching Power Supply, 1 × User Manual |
| 200W 12V DC (1-Pack) | 1 × 200W 12V DC Slim Black Switching Power Supply, 1 × User Manual |
| 36W 24V DC (1-Pack) | 1 × 36W 24V DC Slim Black Switching Power Supply, 1 × User Manual |
| 60W 24V DC (1-Pack) | 1 × 60W 24V DC Slim Black Switching Power Supply, 1 × User Manual |
| 100W 24V DC (1-Pack) | 1 × 100W 24V DC Slim Black Switching Power Supply, 1 × User Manual |
| 120W 24V DC (1-Pack) | 1 × 120W 24V DC Slim Black Switching Power Supply, 1 × User Manual |
| 150W 24V DC (1-Pack) | 1 × 150W 24V DC Slim Black Switching Power Supply, 1 × User Manual |
| 200W 24V DC (1-Pack) | 1 × 200W 24V DC Slim Black Switching Power Supply, 1 × User Manual |
About this item

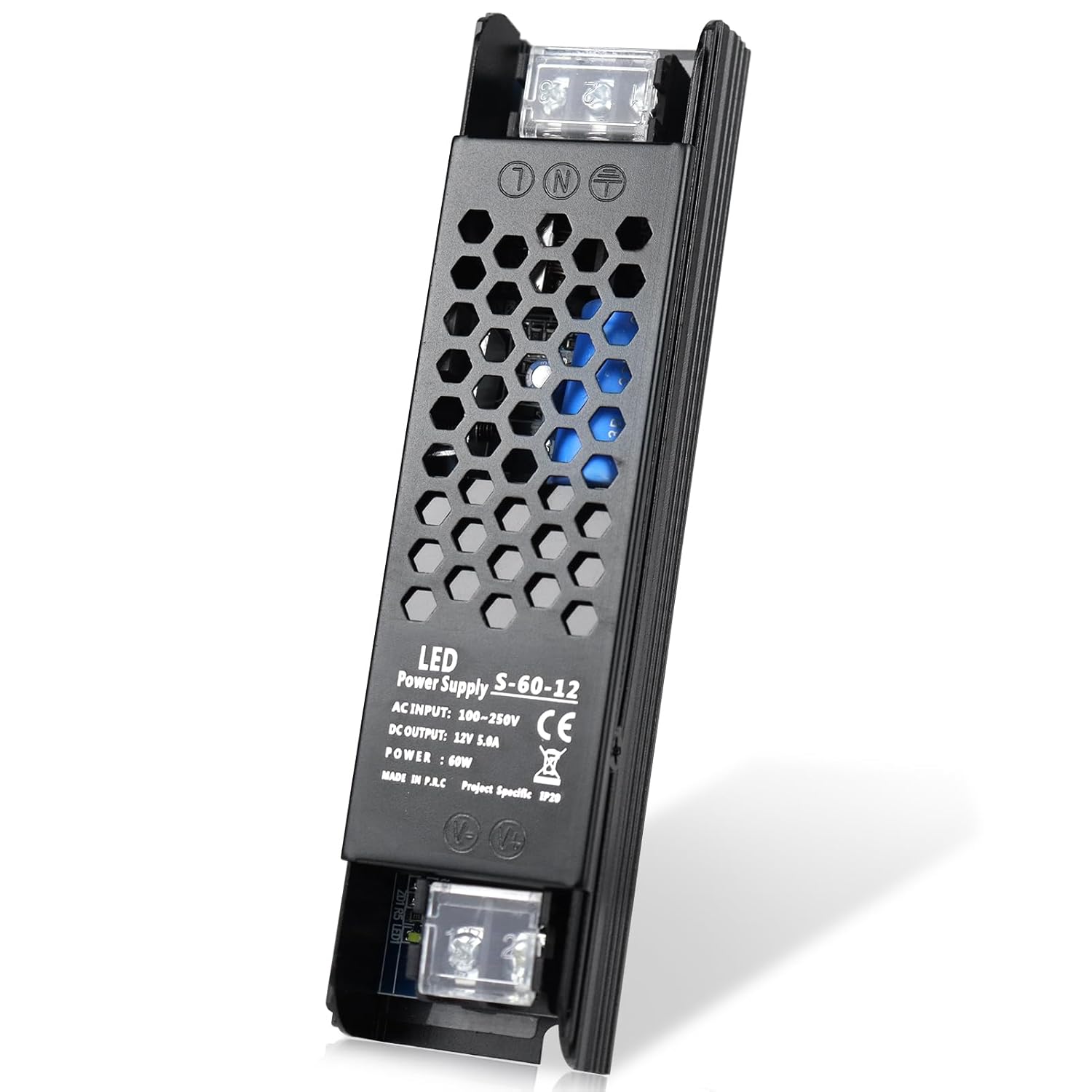

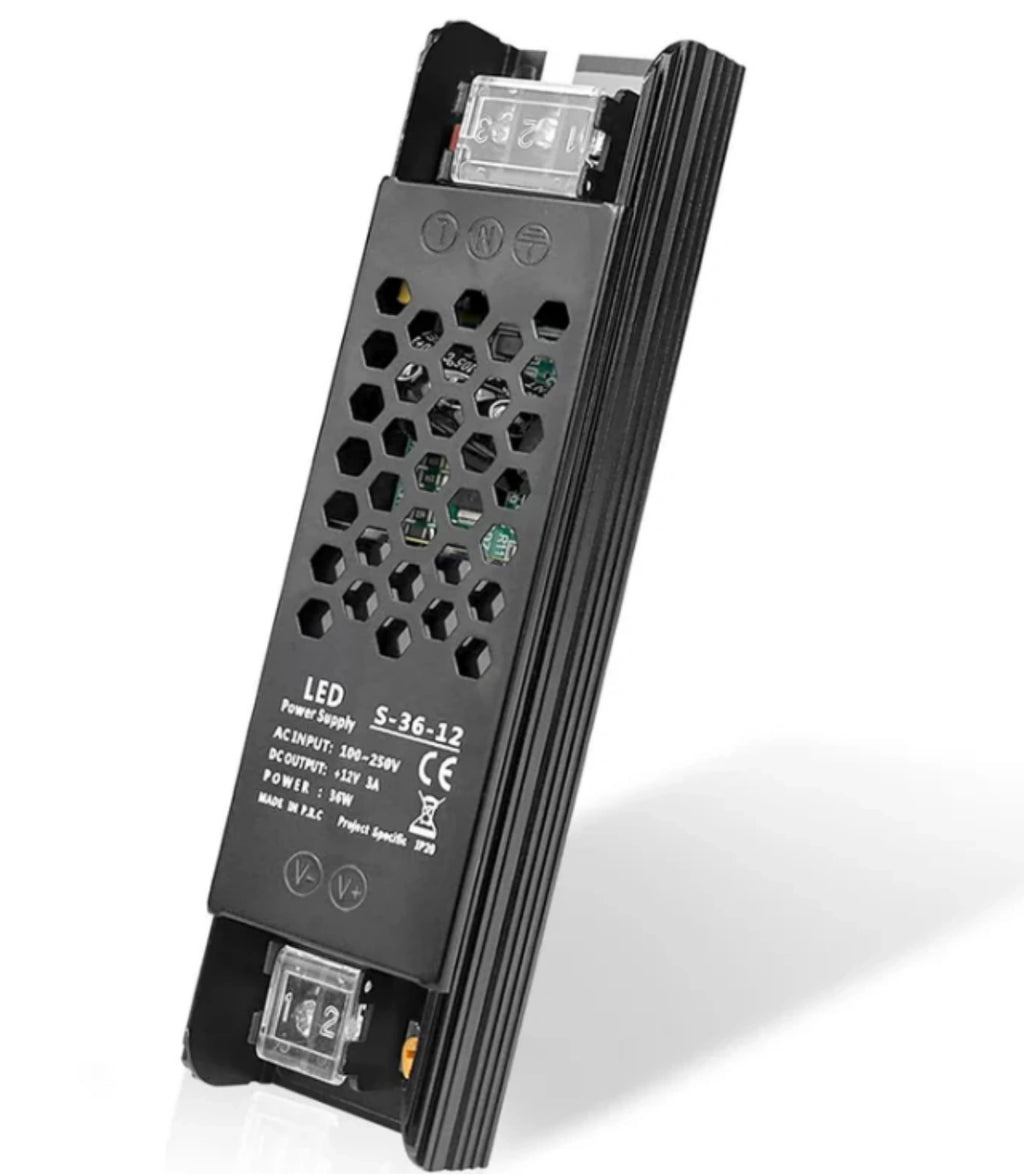

- Slim black constant voltage switching power supply with compact metal housing
- Wide AC 110–250V input range, stable DC 12V or 24V output options
- Available in 36W, 60W, 100W, 120W, 150W, and 200W models
- Narrow type design ideal for space-limited installations
- CE, FCC, and RoHS certified for safety and reliability
- Suitable for LED strips, signage, CCTV, and other DC-powered applications
Order & Logistics
Lead Time
- Ships within 1–3 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
- Packing: Cardboard box, sealed with polybag for small parts
Key Specifications
- Input Voltage: AC 110–250V
- Output Voltage: DC 12V / DC 24V
- Wattage Options: 36W / 60W / 100W / 120W / 150W / 200W
- Package Qty: 1-Pack
- Housing: Slim Black Compact Metal Case
- Protection: Overload, Short-circuit, Over-voltage
Technical Specifications
| Model | 36W | 60W | 100W | 120W | 150W | 200W |
|---|---|---|---|---|---|---|

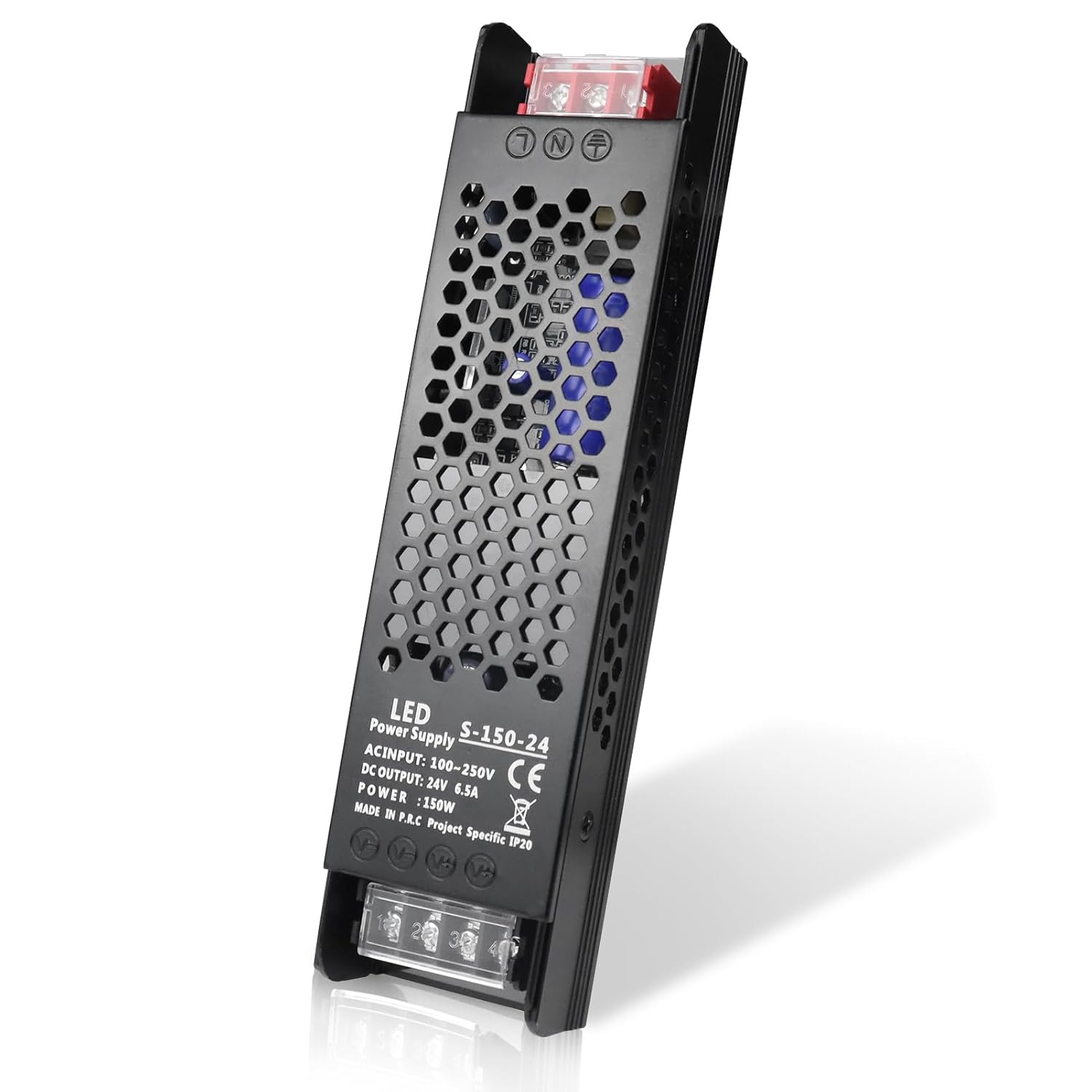

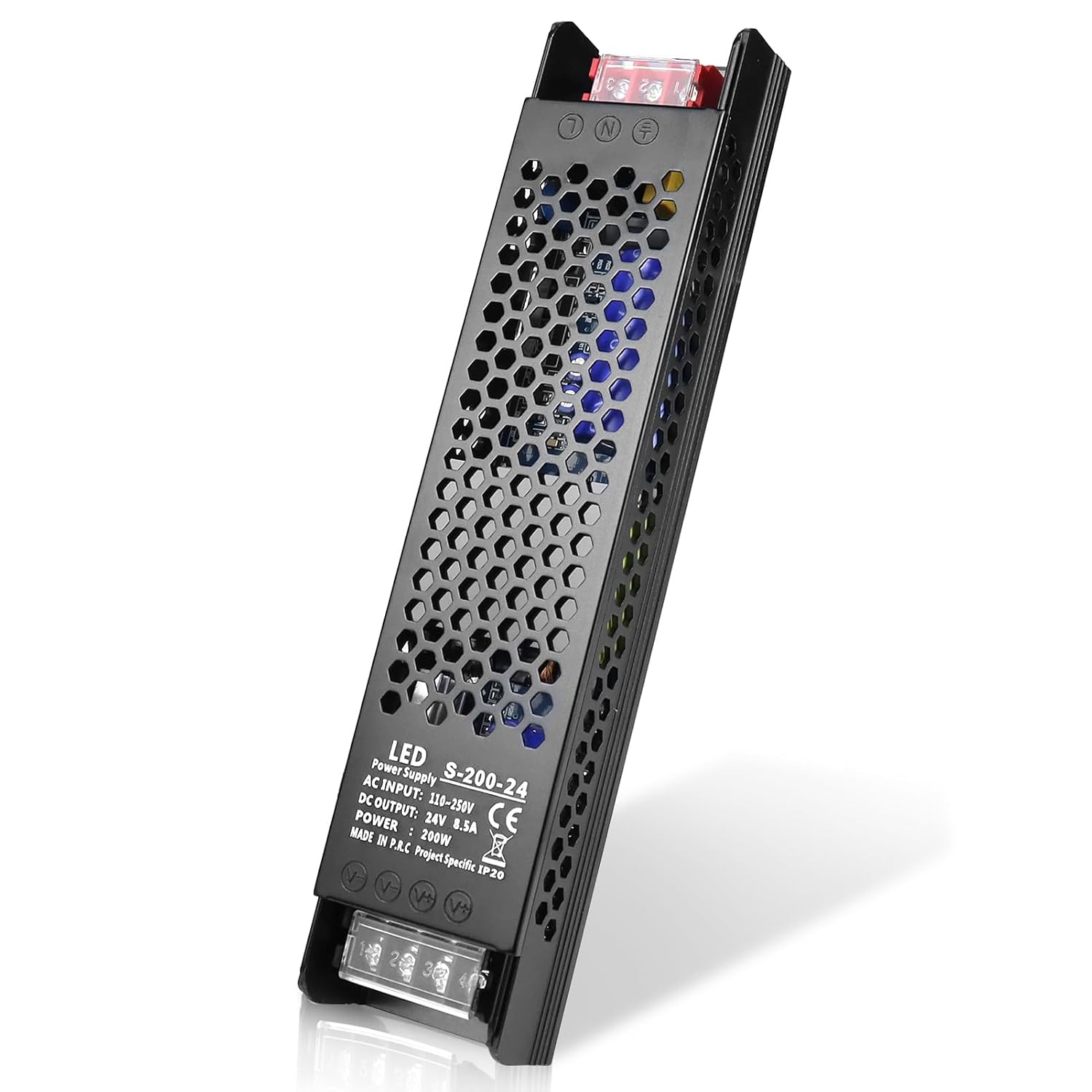

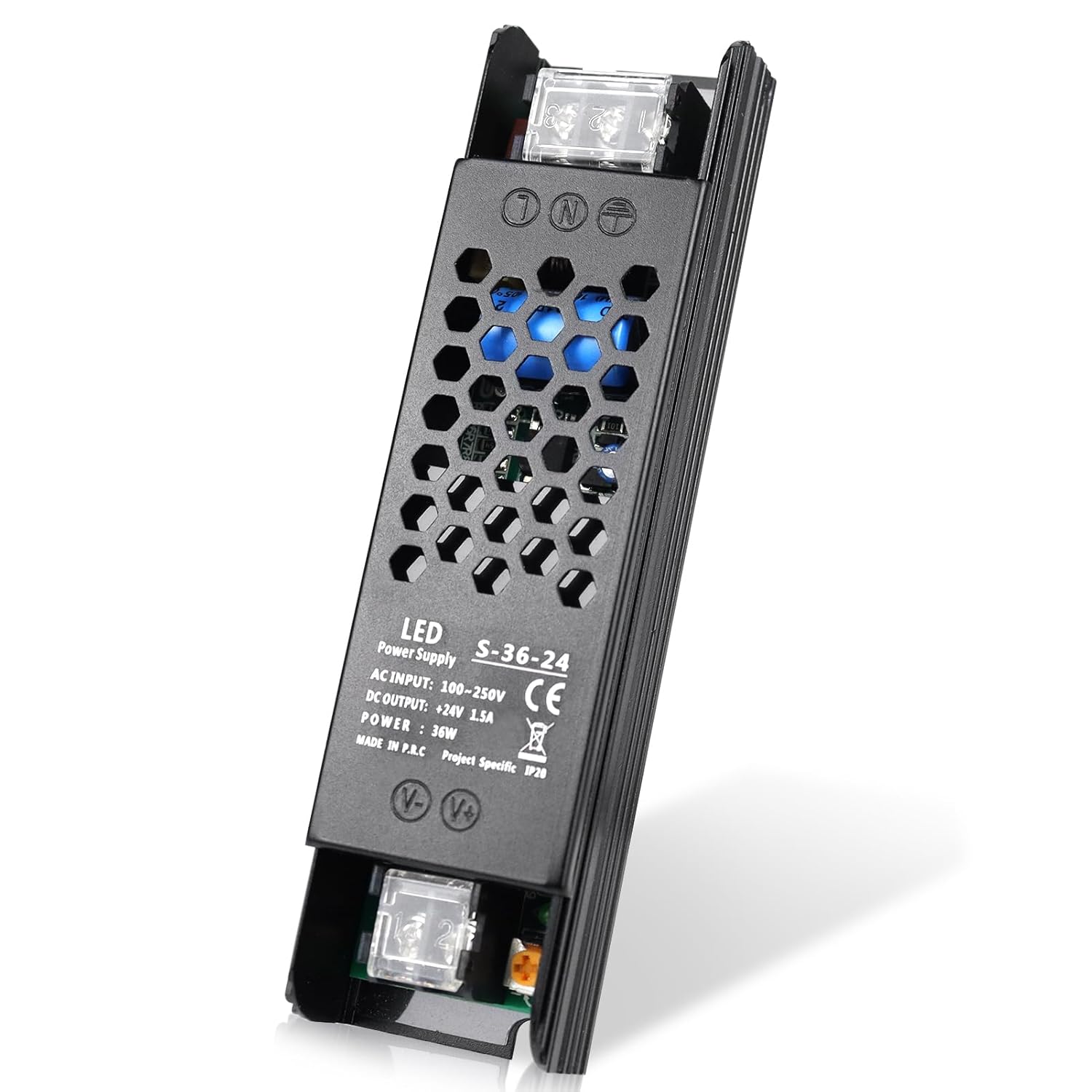

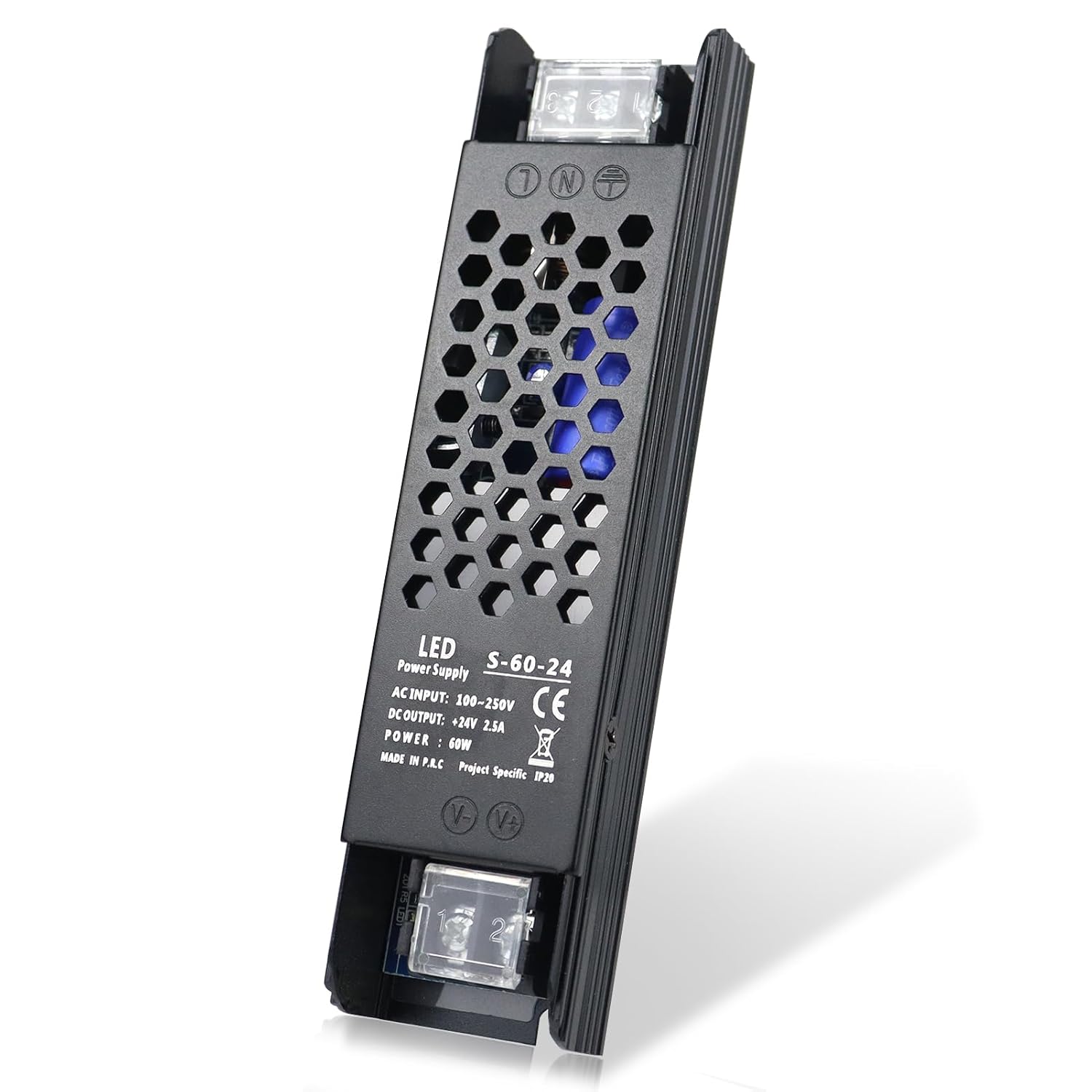

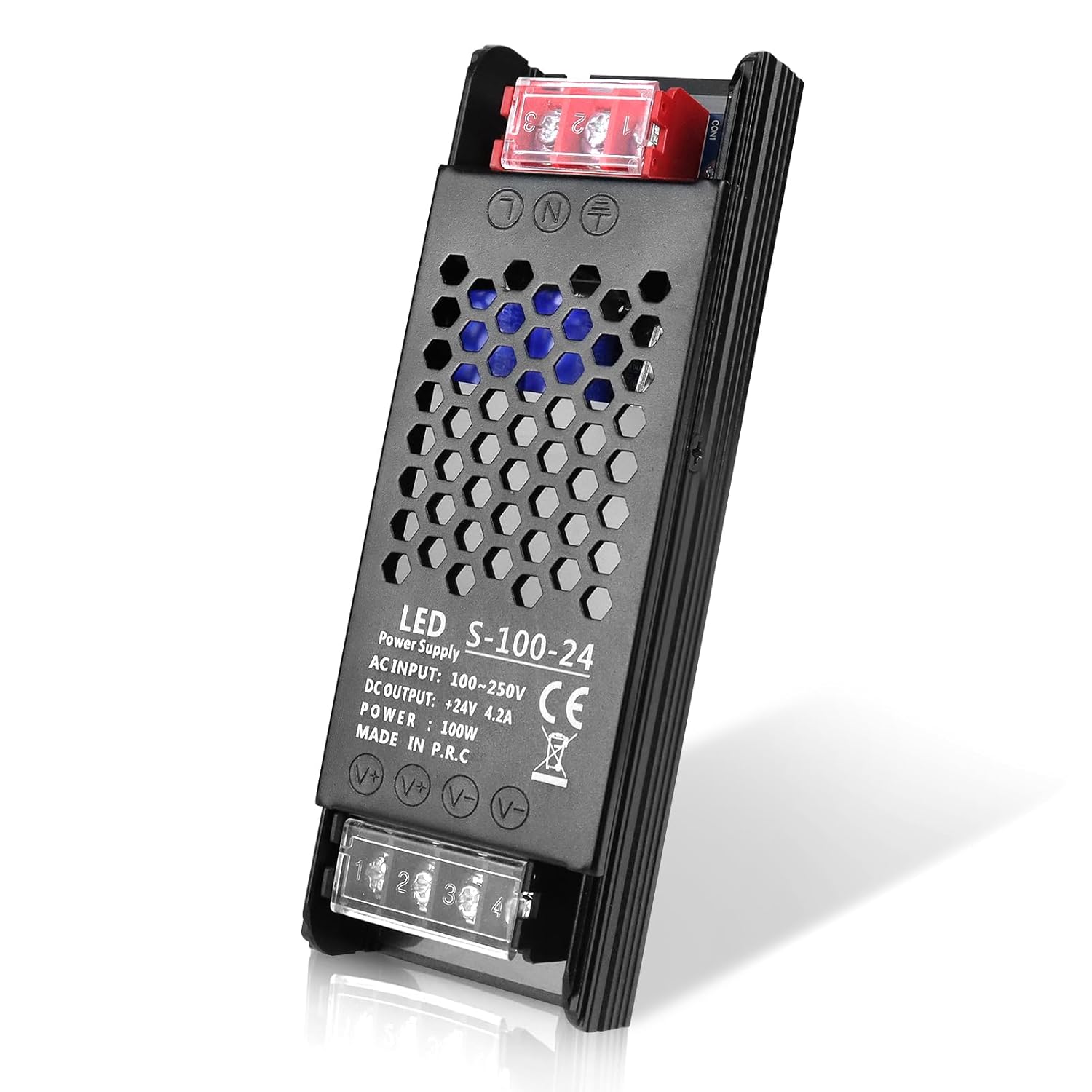

| Output (Voltage / Current) | 24V ⎓ 1.5A | 24V ⎓ 2.5A | 24V ⎓ 4.1A | 24V ⎓ 5A | 24V ⎓ 6.5A | 24V ⎓ 8.5A |
| Max Output Power | 36W | 60W | 100W | 120W | 150W | 200W |
| Input Voltage | AC 100–250V, 50/60Hz Constant Voltage | |||||
| Voltage Adjustment Range | ±15% | |||||

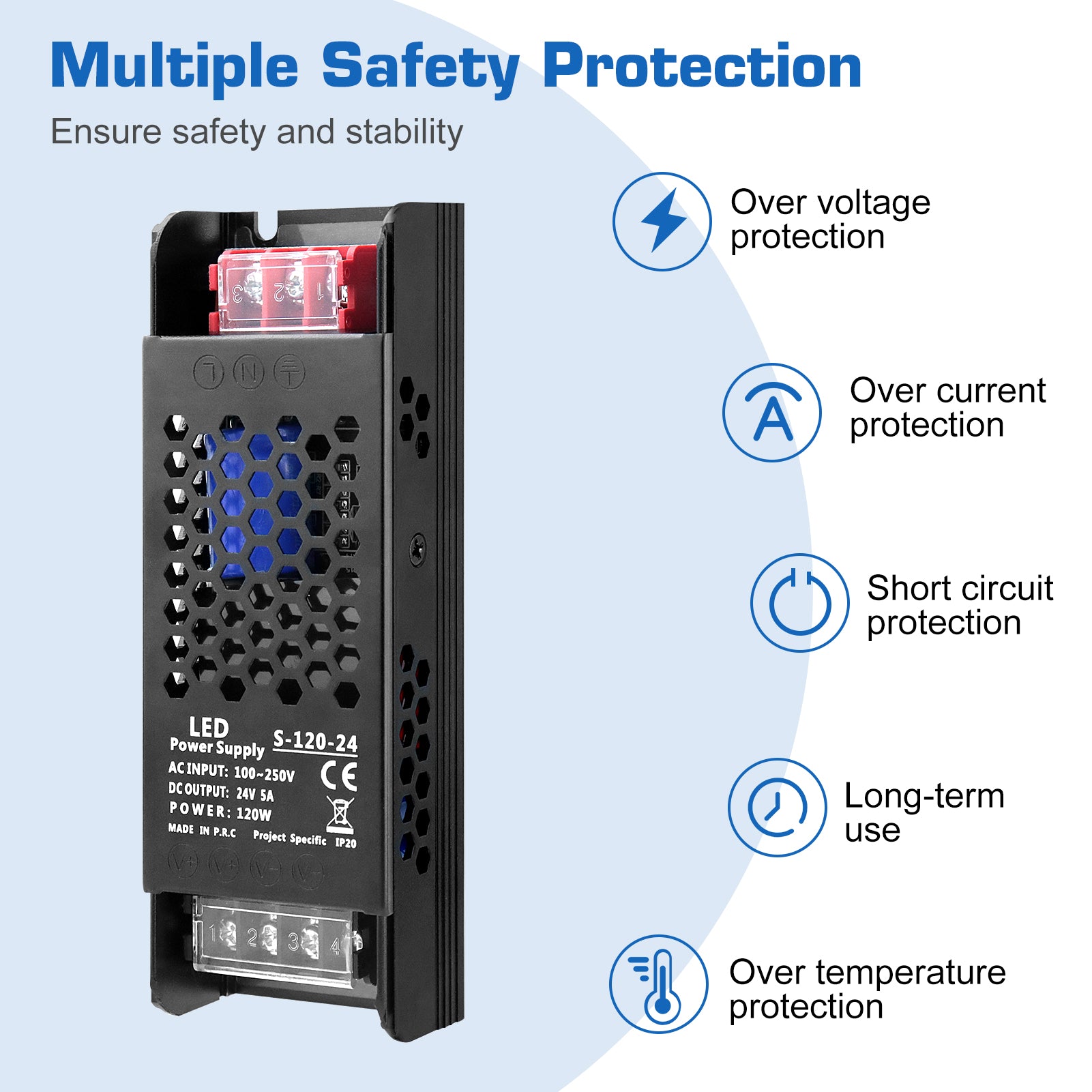

| Protection Features | Thermal overload, overcurrent, overvoltage, overtemperature, short-circuit protection; auto-recovery after fault removal | |||||

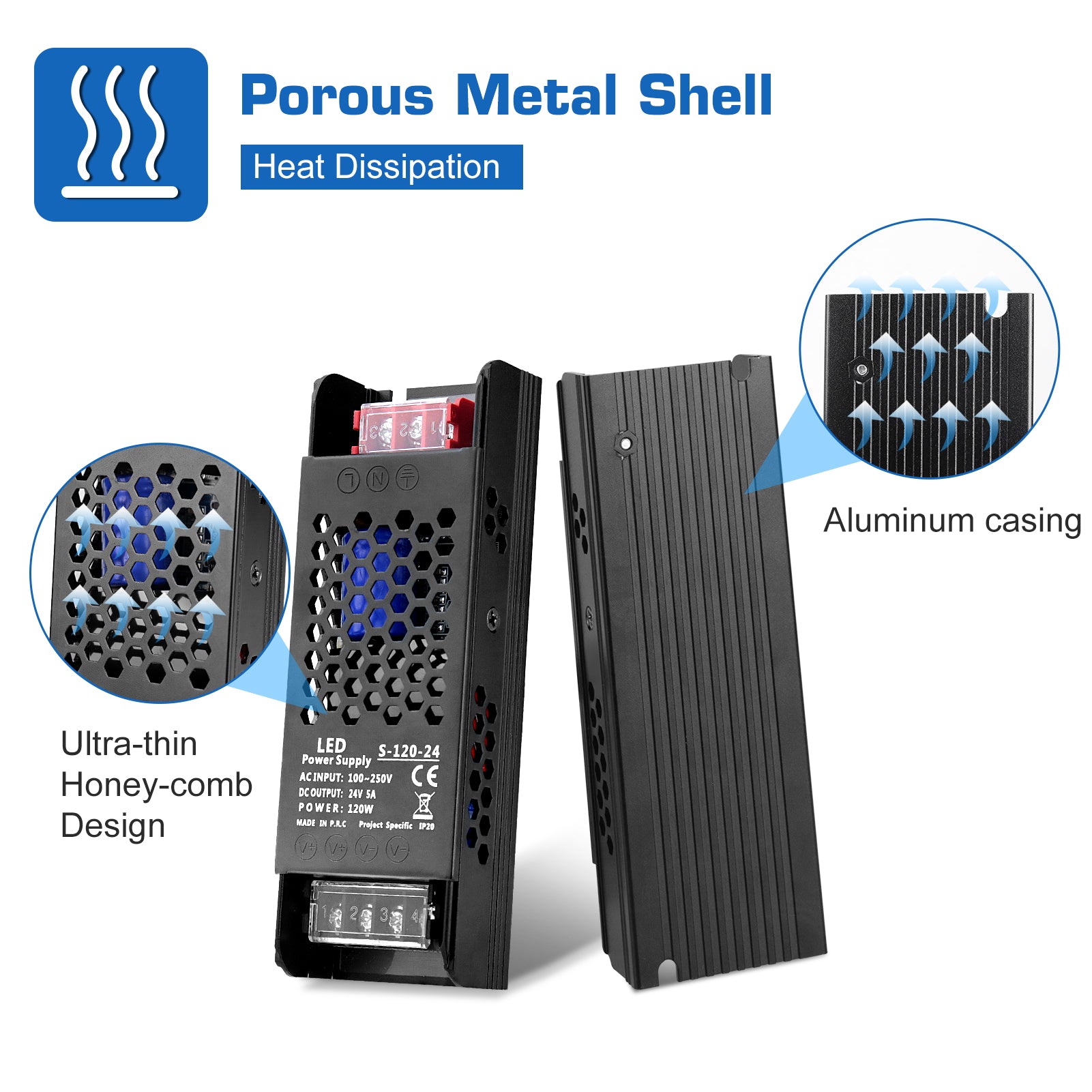

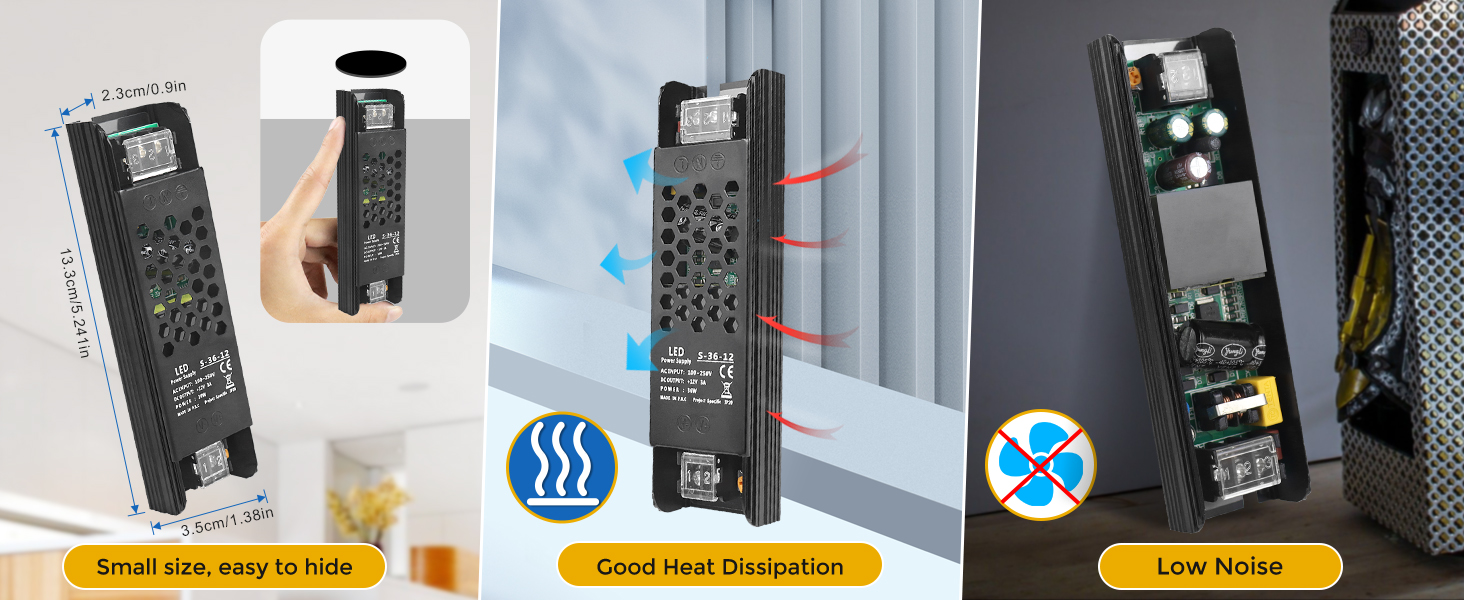

| Cooling | Fanless metal enclosed body for silent operation and good heat dissipation | |||||
| Housing / Installation | Ultra-thin aluminum or metal body; easy to hide; indoor use only | |||||
| Manufacturer | inShareplus | |||||
| Part Number | 24V36W | 24V60W | 24V100W | 24V120W | 24V150W | 24V200W |
| Weight | 0.1 kg | 0.1 kg | 0.2 kg | 0.2 kg | 0.3 kg | 0.3 kg |

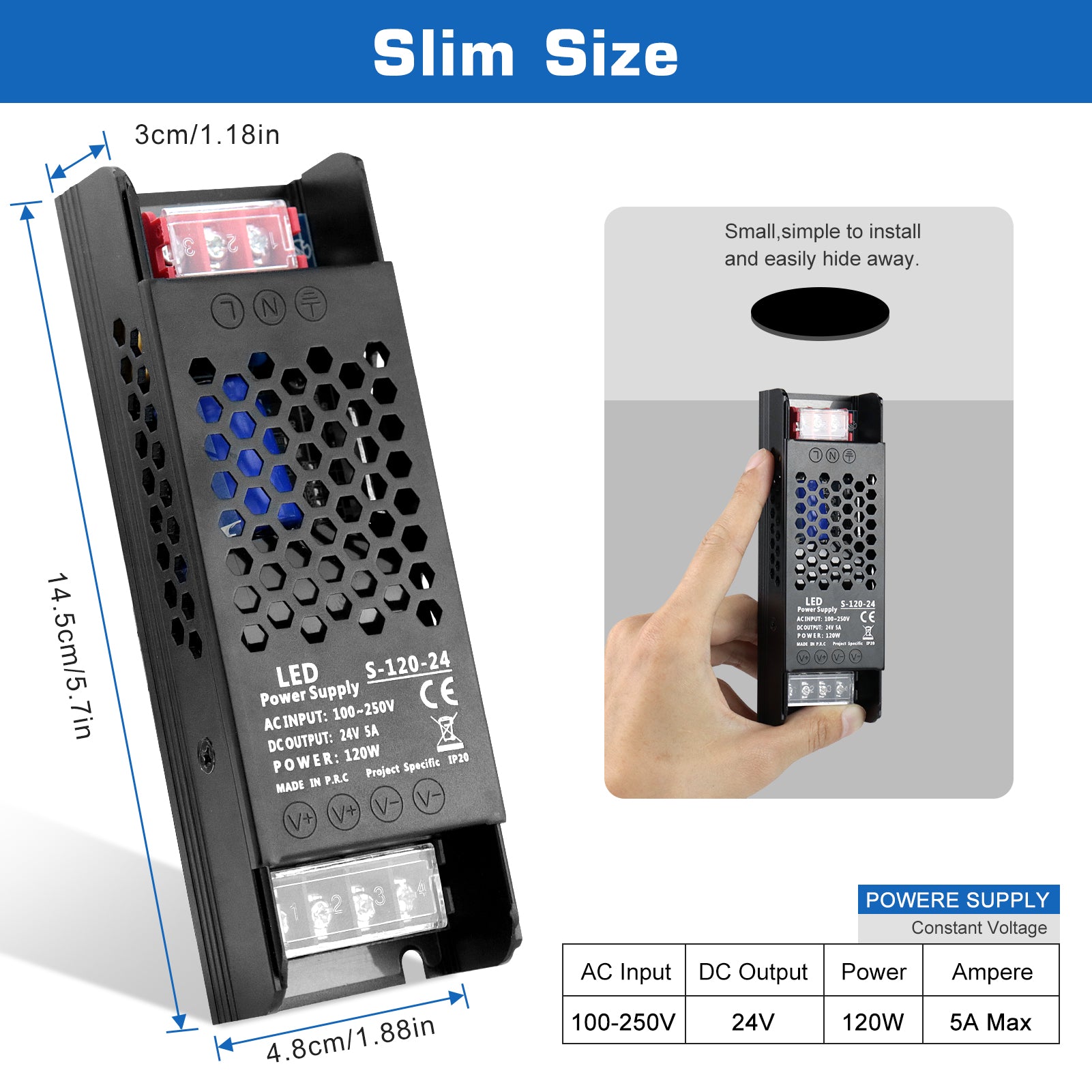

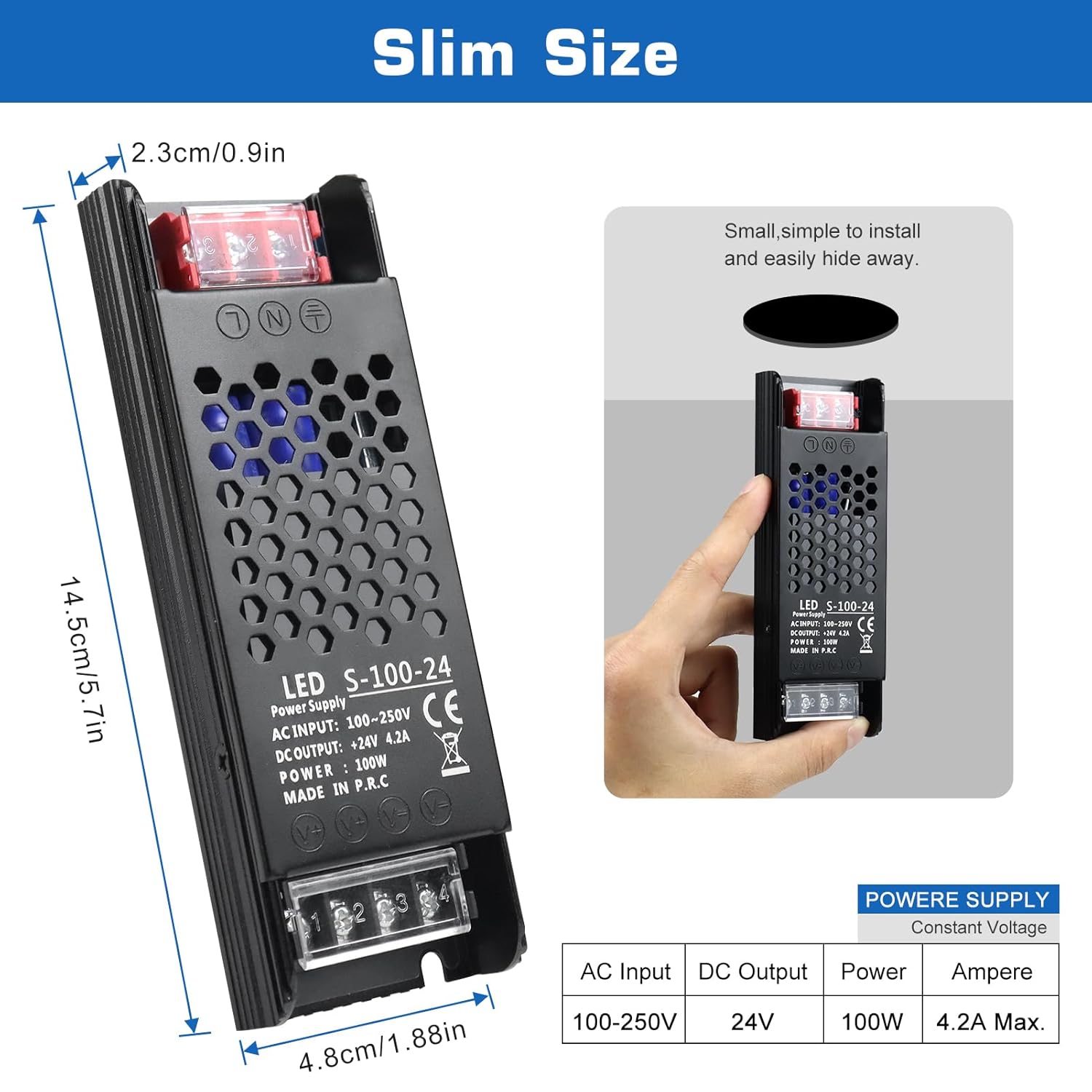

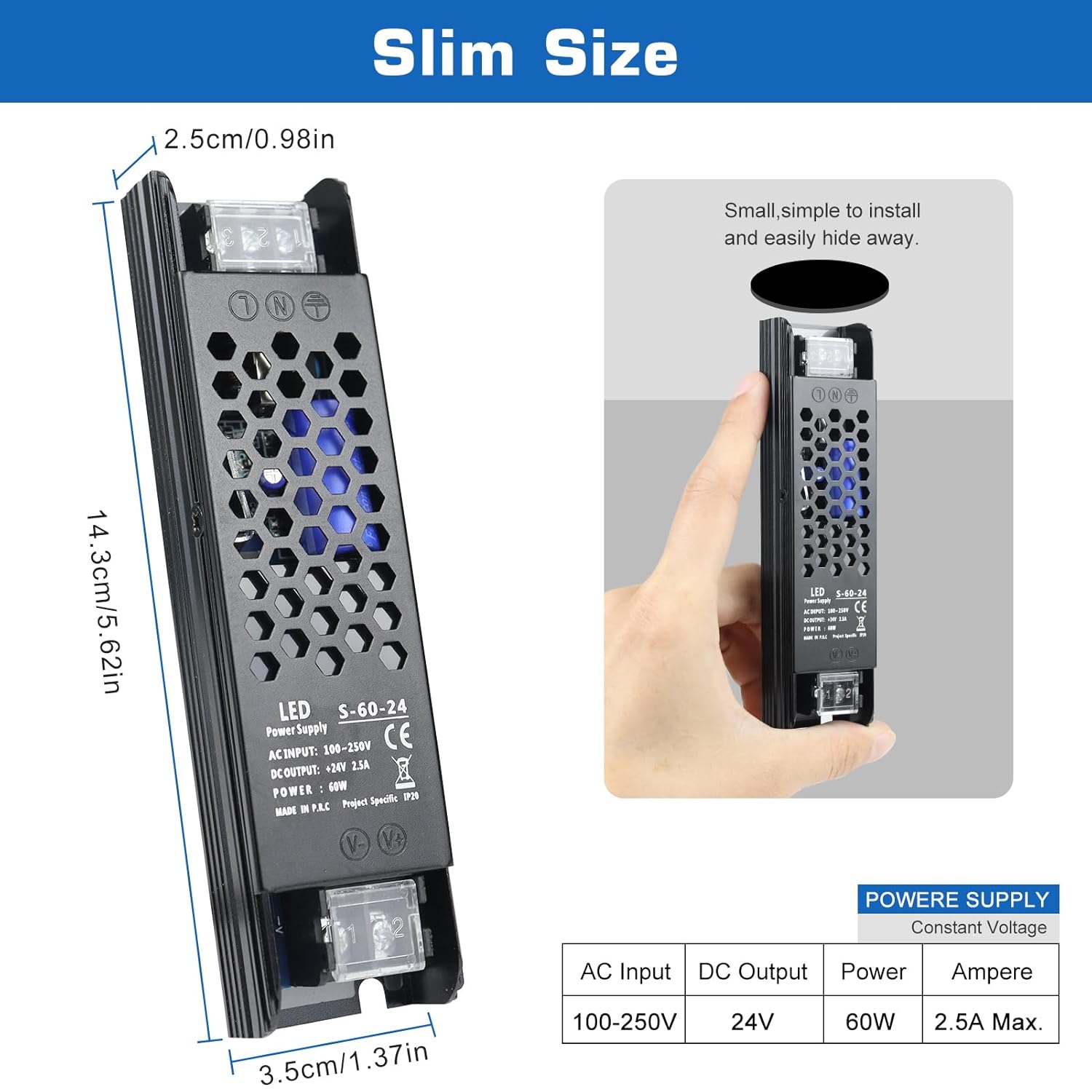

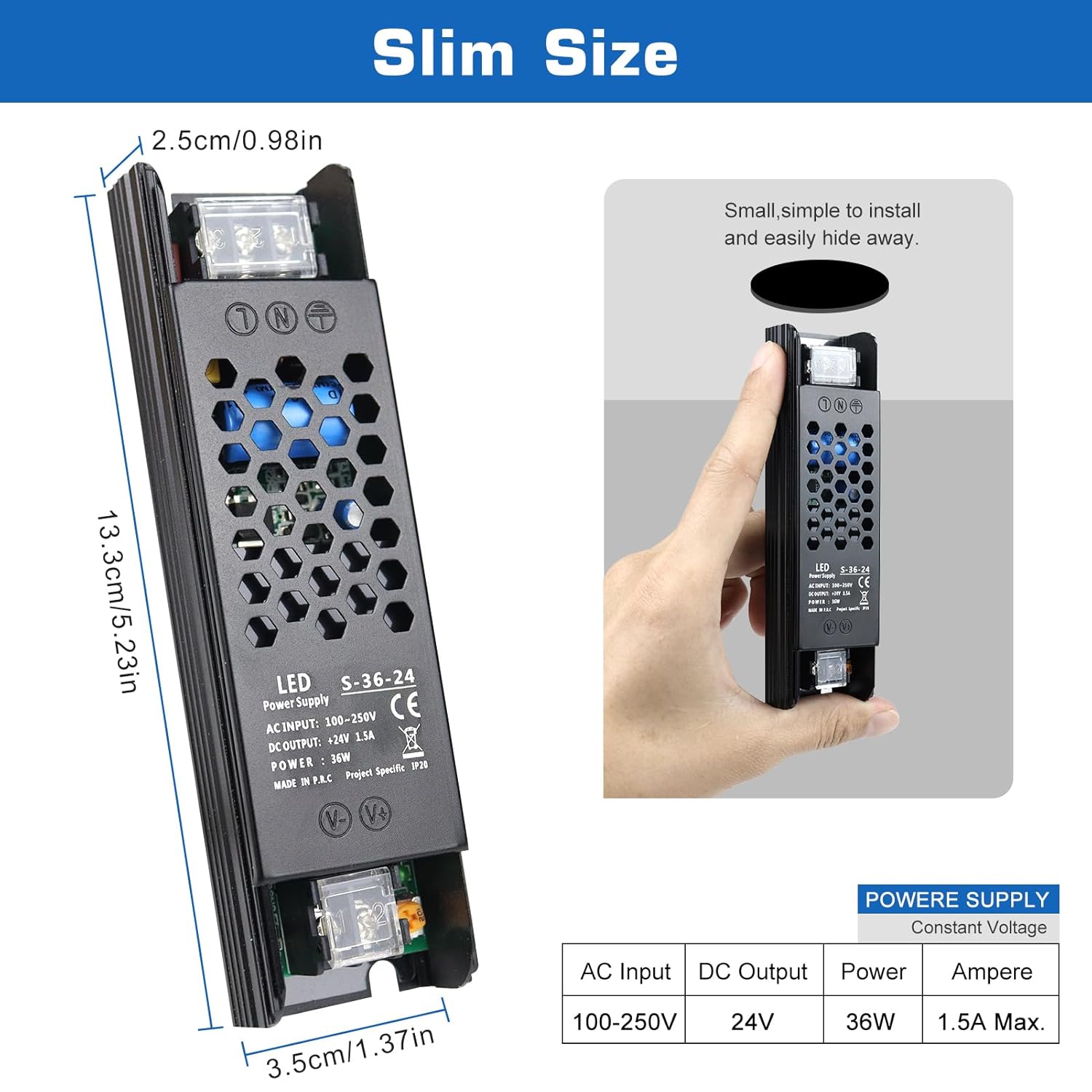

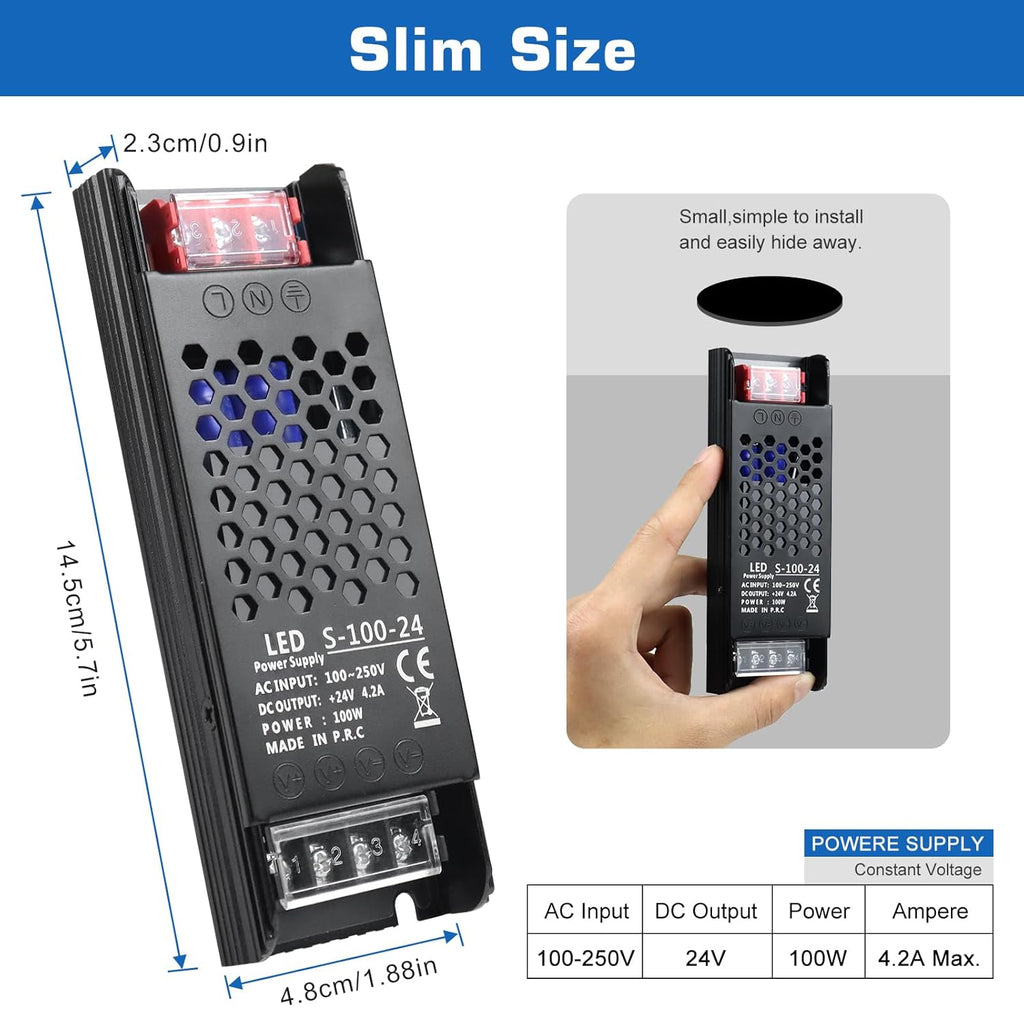

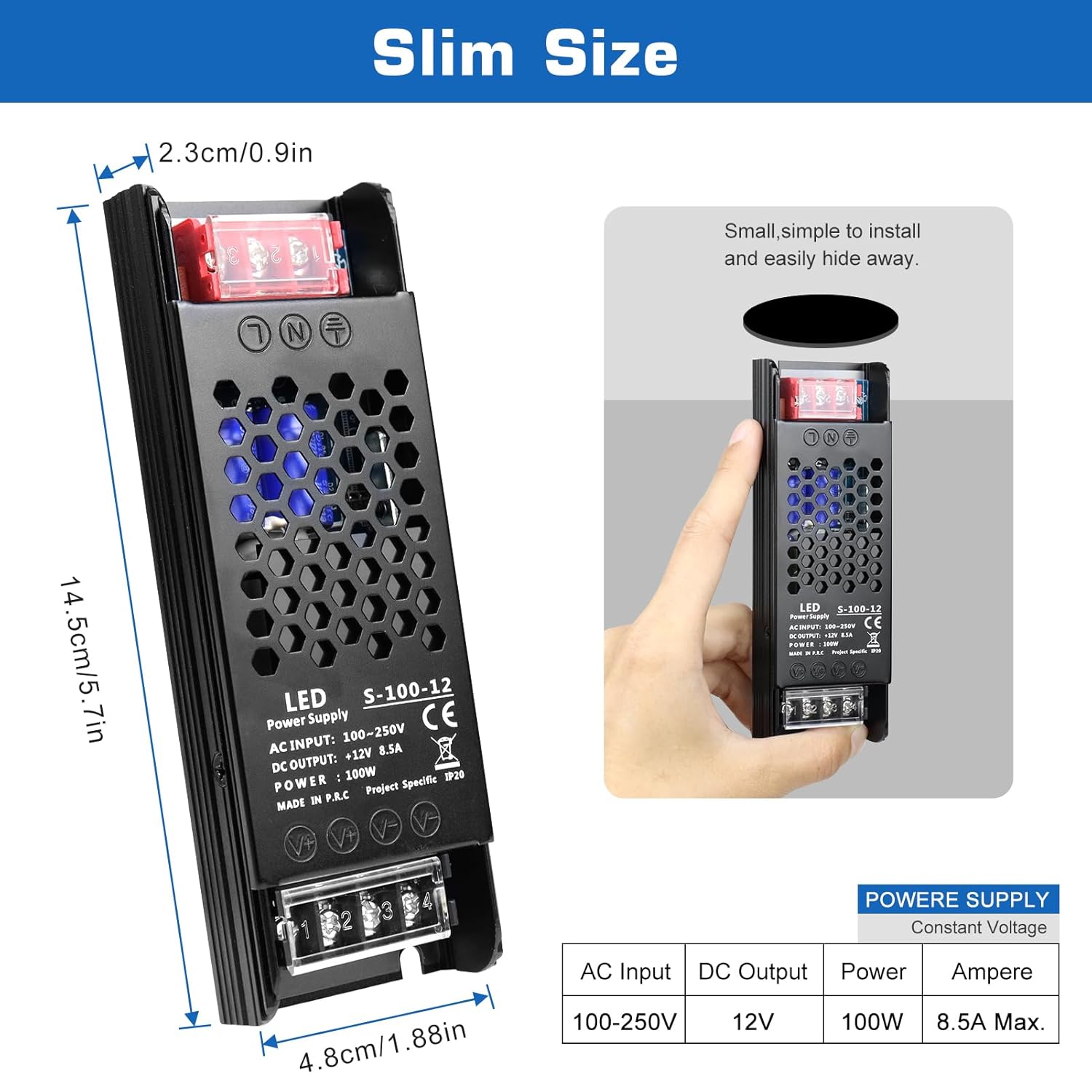

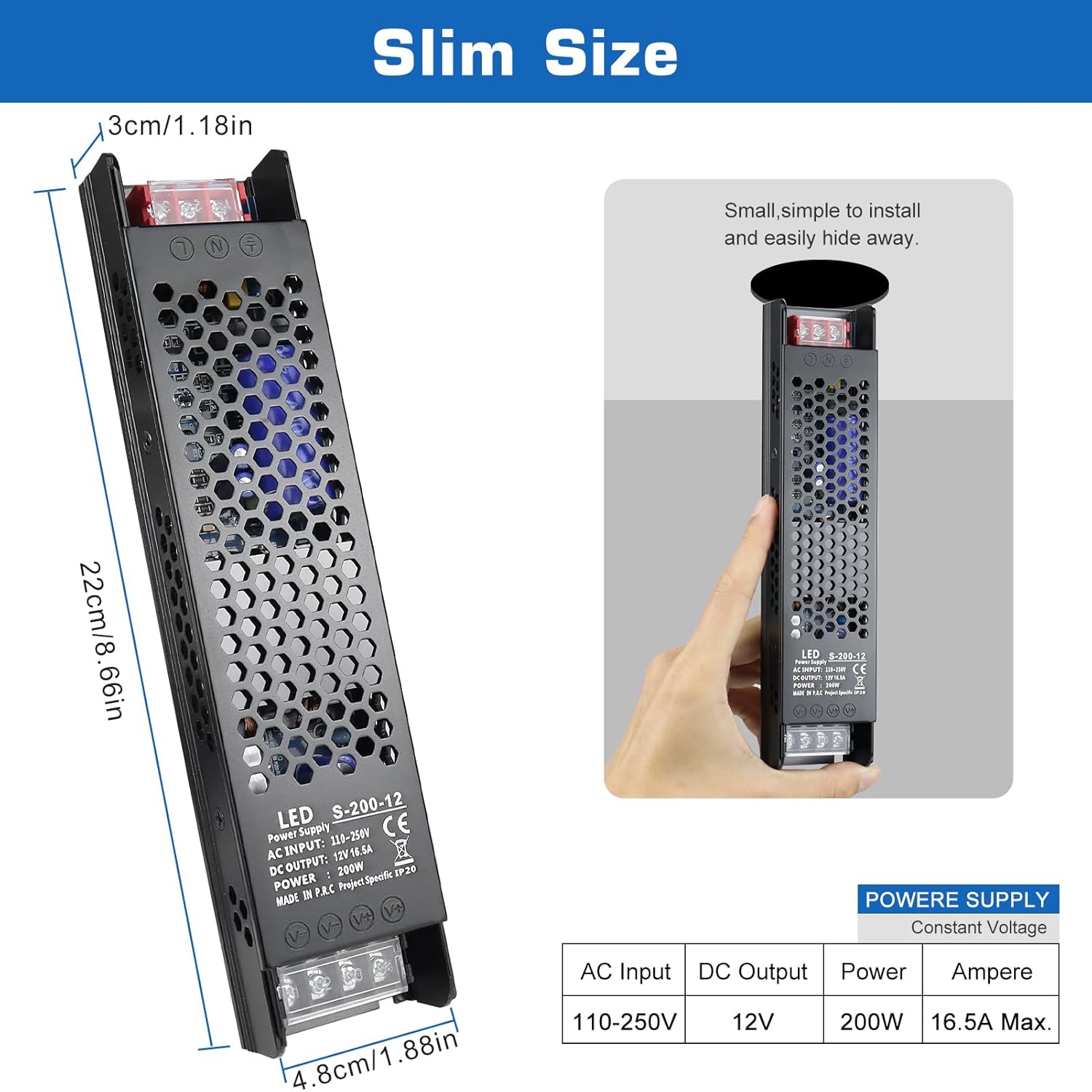

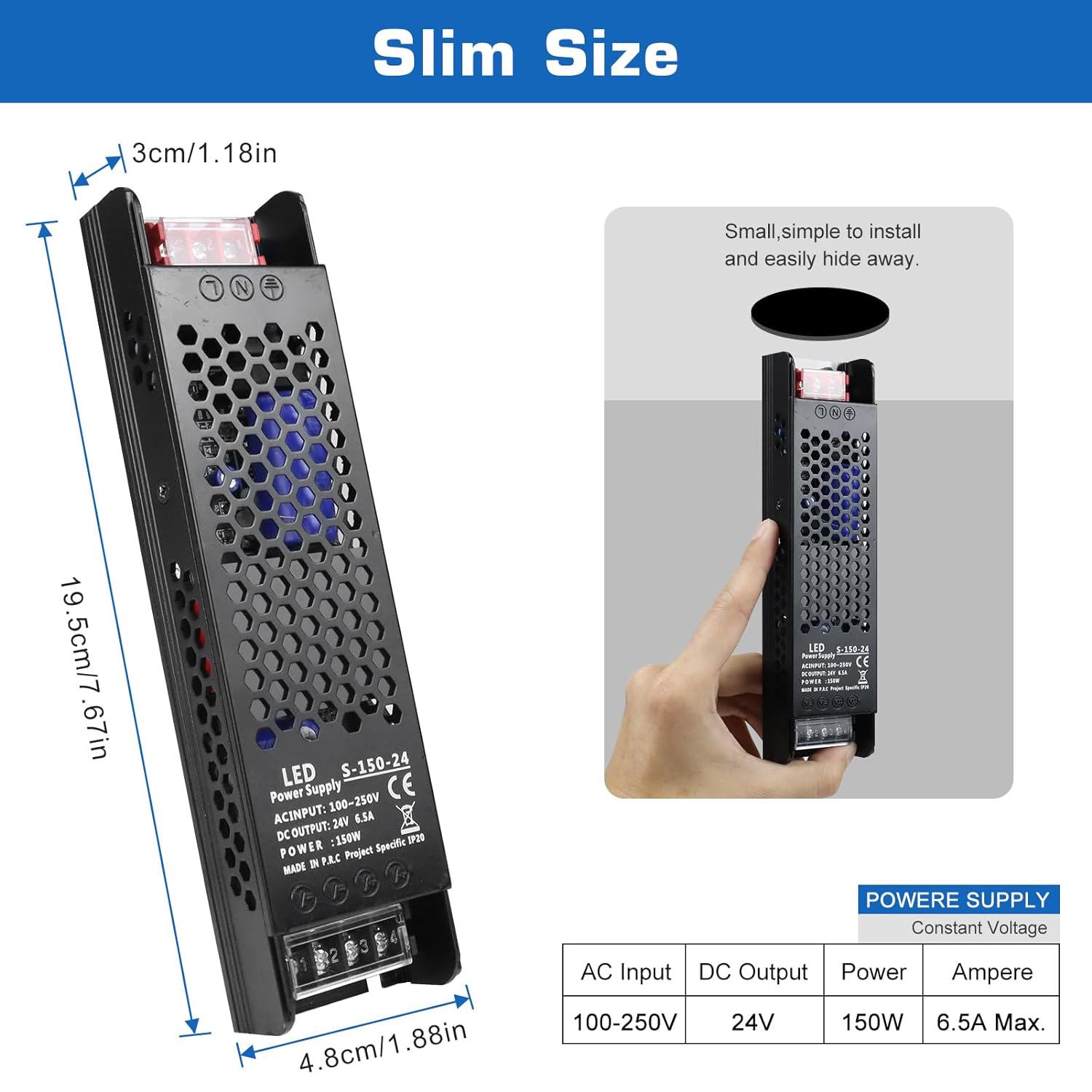

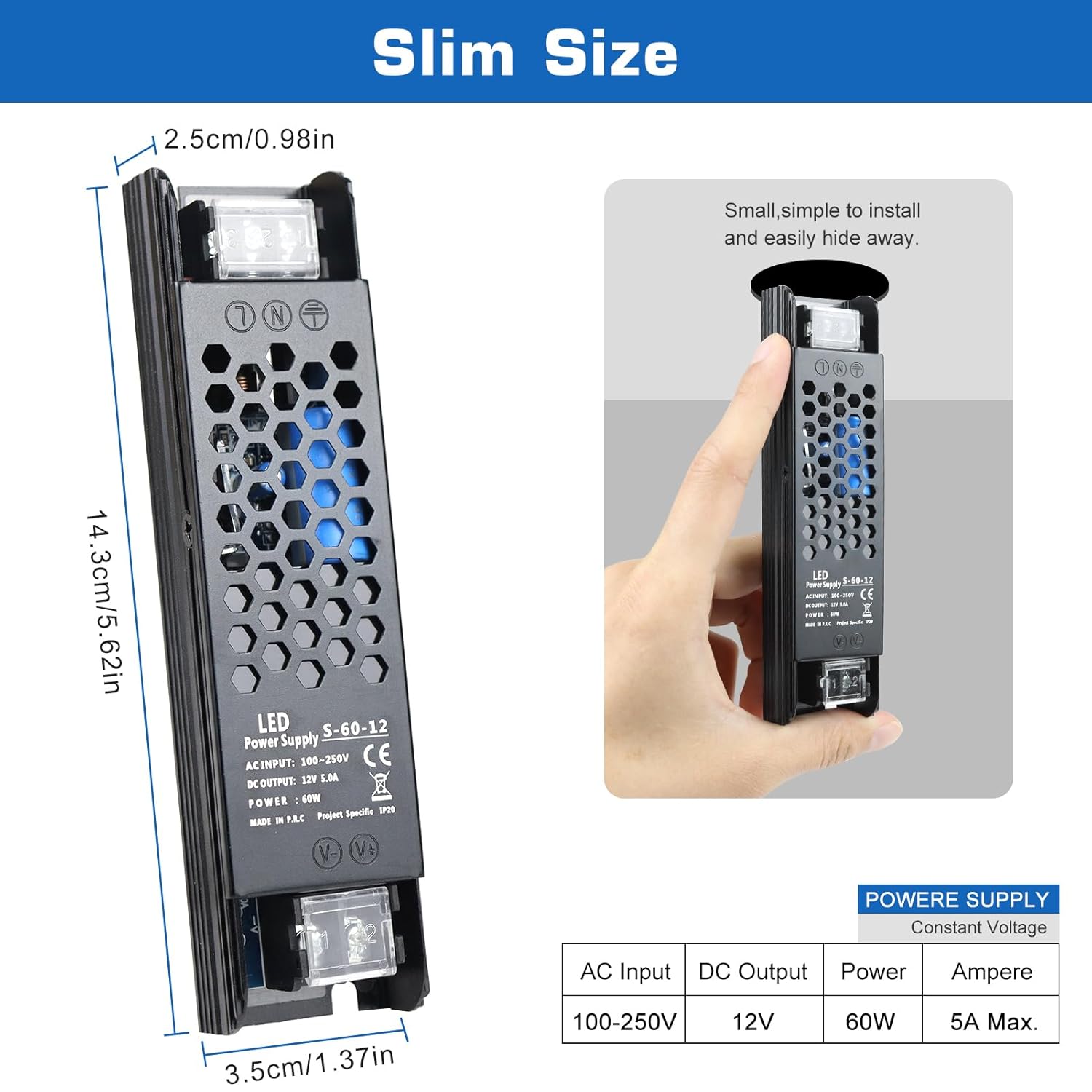

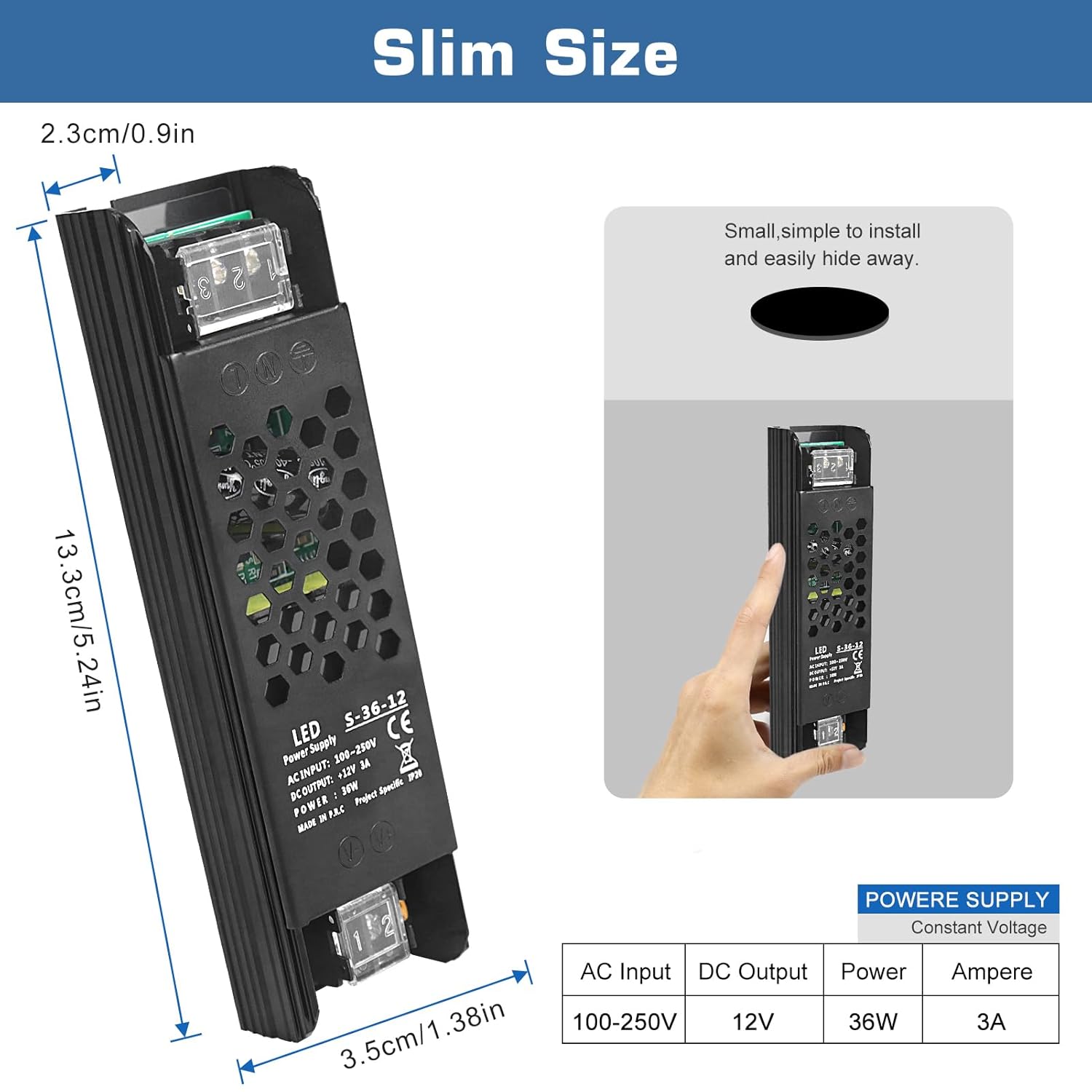

| Package Dimensions | 13.3 × 3.5 × 2.5 cm | 14.3 × 3.5 × 2.5 cm | 14.5 × 4.8 × 2.3 cm | 14.5 × 4.8 × 3.0 cm | 19.6 × 5.1 × 3.2 cm | 20.0 × 5.5 × 3.5 cm |
| IP Rating | IP20 – Non-Waterproof | |||||
| Operating Temperature | -20°C to +60°C | |||||
| Connection Type | Screw terminals | |||||
| Warranty | 1 year warranty; support via email | |||||
Usage Notes / Installation Tips
- Ensure correct AC input before powering on
- Do not exceed the rated wattage capacity of the selected model
- Install in areas with proper ventilation for heat dissipation

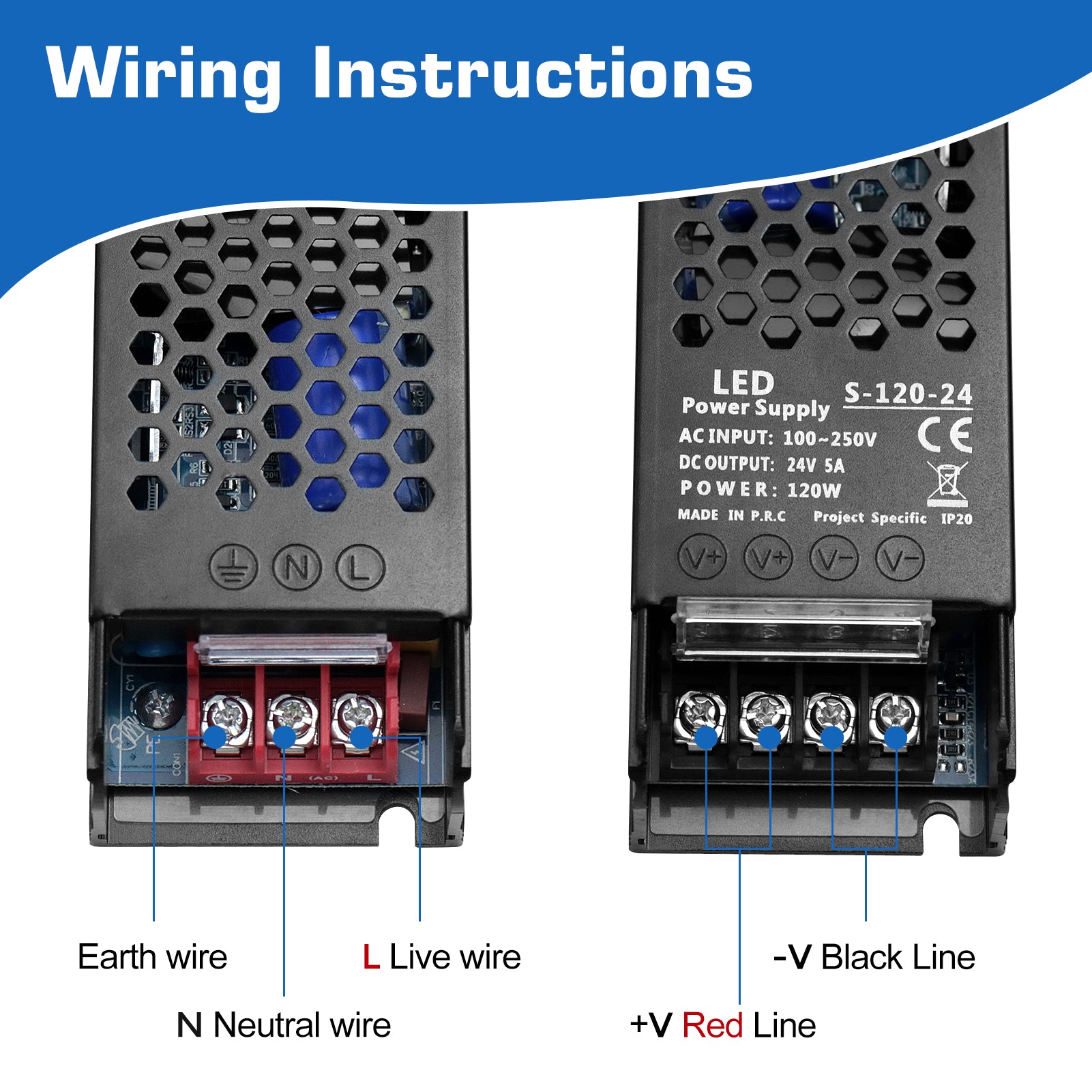

- Disconnect power before wiring or installation adjustments
- Suitable for LED strips, signage, CCTV, and other DC-powered devices

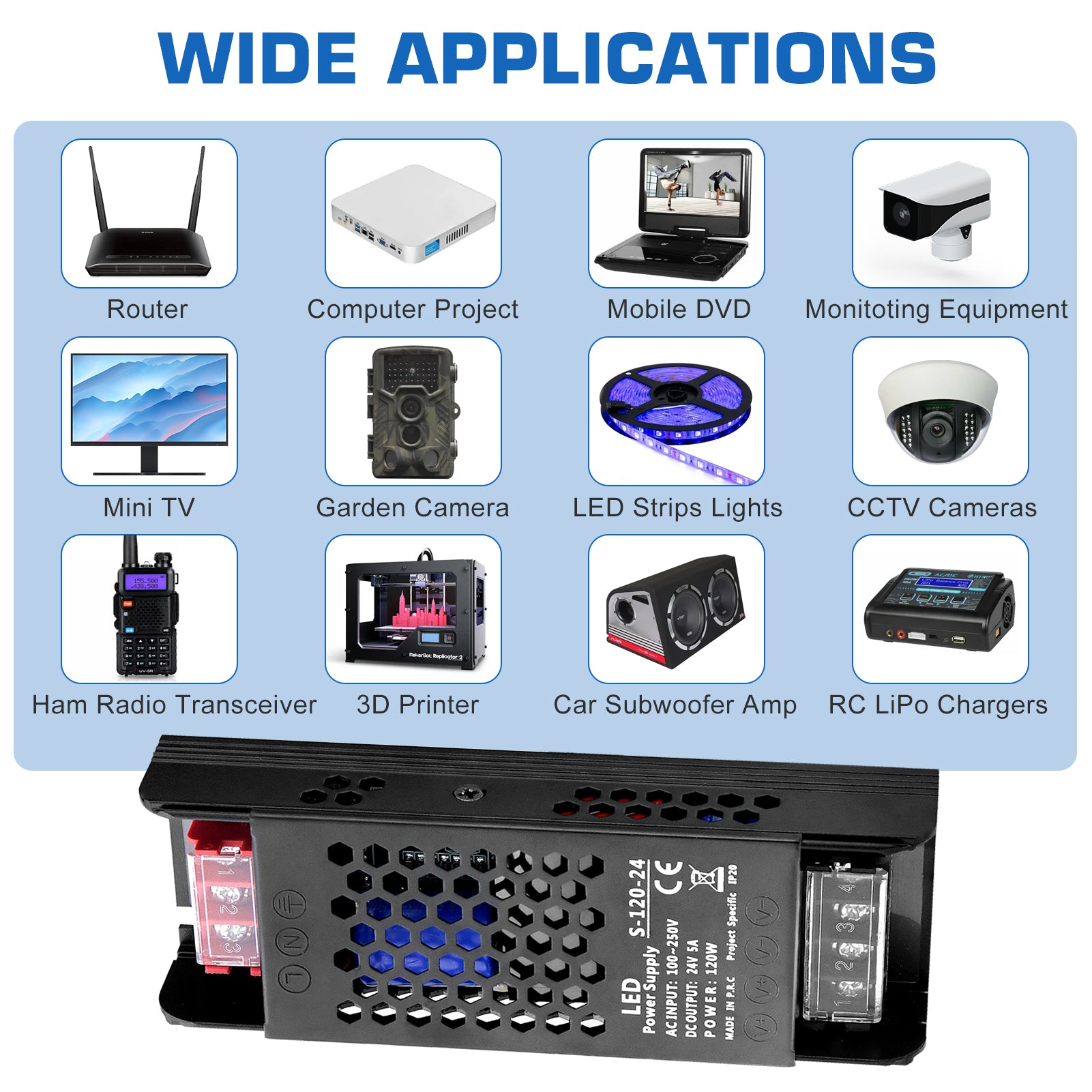

Applications
- LED strip lighting and signage projects
- CCTV cameras and security systems
- Communication devices and routers
- Pumps, fans, and small DC appliances
- DIY and professional electronics setups
You may also like
Customer Reviews
Based on 9 reviews
56%
(5)
44%
(4)
0%
(0)
0%
(0)
0%
(0)
T
Easy to connect, works great for 700 5volt LEDs, will purchase additional units as I add more lights outside my house.
M
It's a good product for the money
J

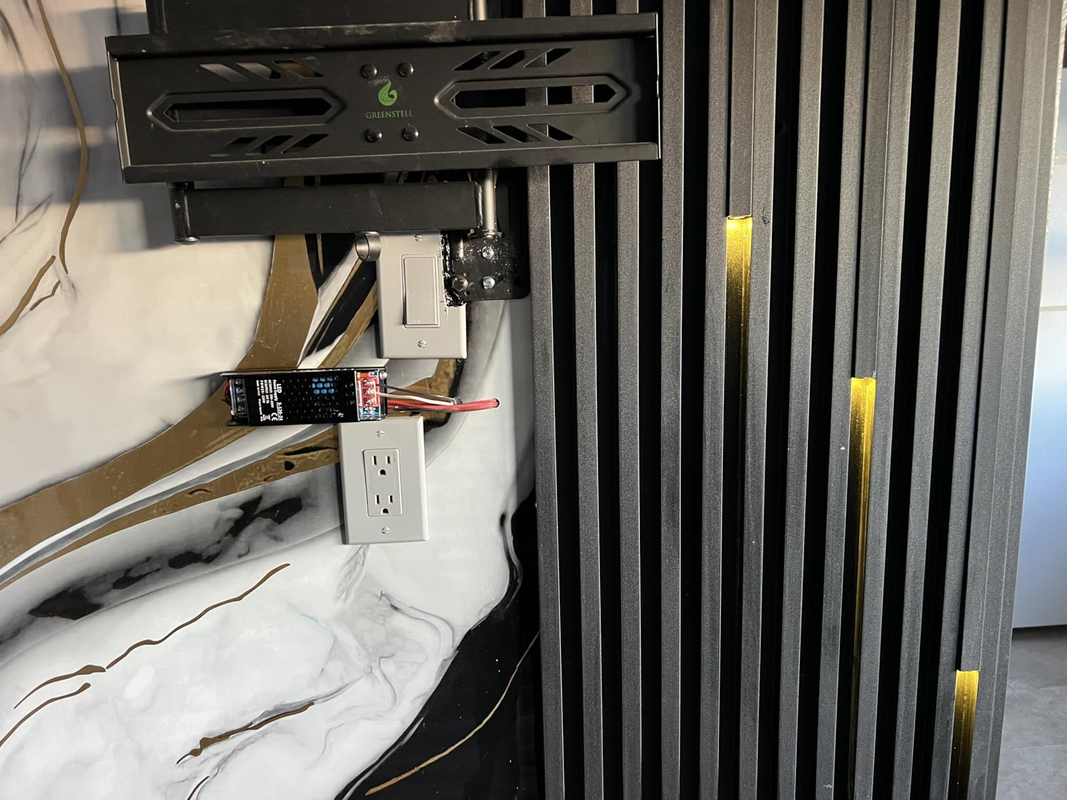

Works well driving 2 16.5ft led strips for outdoor controlled by wled.
G
Works great for a low power stereo amplifier although it s not switchable.
S

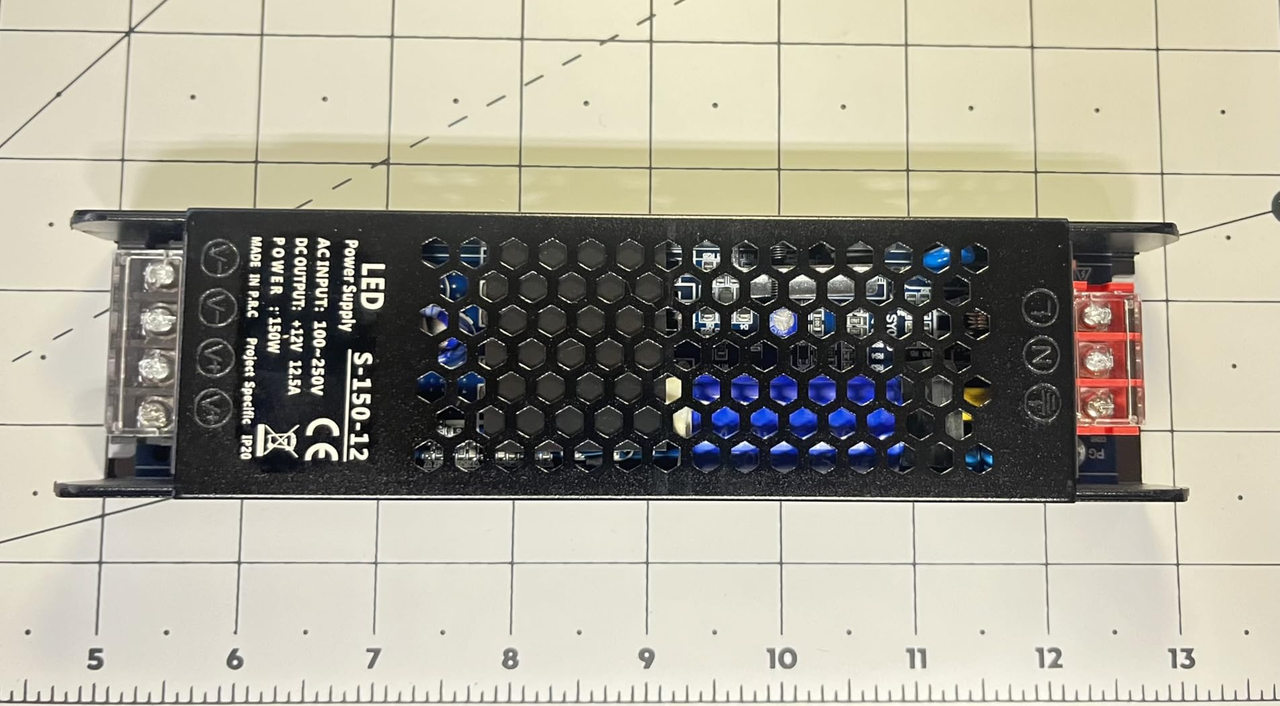

The open design of this part helps the unit run cooler then an enclosed driver.
