1. Automatically adapt input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address code..
3. 1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
4.DMX Master mode, Slave mode available.
5.30 changing modes and 10 speed scales in master mode .
6.Indicator of the DMX512 signal receiving status.
7.Wrong wiring protection at DMX input port.Over current protection and short circuit protection.
8. Power loss memory function.
Brief Introduction
This DMX512 Constant Voltage Decoder is developed only for constant voltage LED lamps. It adopts advanced micro-computer control technology to transfer DMX512/1990 signal to PWM signal. One channel output, max 10A output each channel, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output consol with analog silicon case, and controls LED lamps of architecture and lighting.
Product parameter

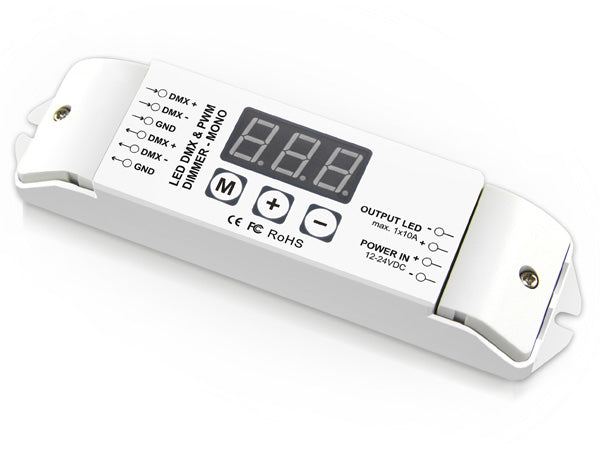

Product Model: BC-831 CV 1CH DMX512 decoder
Input voltage: DC12V-DC24V
Max load current: 1CH×10A
Max Output Power: 120W(12V)/240W(24V)
Grey Scale: 4096 levels×1
Input Signal; DMX512/1990
Output Signal: Constant Voltage PWM
Decode Channel: 1CH
DMX512 socket: Terminal Block
Dimension: L176×W46×H30(mm)
Weight (G.W): 170g
Feature function:
1. Automatically adapt input voltage DC12V-24V.
2. Input standard DMX512 signal; 3-digital-display shows DMX address code..
3. 1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
4.DMX Master mode, Slave mode available.
5.30 changing modes and 10 speed scales in master mode .
6.Indicator of the DMX512 signal receiving status.
7.Wrong wiring protection at DMX input port.Over current protection and short circuit protection.
8. Power loss memory function.
Safty Warnings
1. In order to use it properly and safety, please read user's manual carefully before installation.
2. Please don't install this controller in lightening, intense magnetic and high-voltage fields.
3. To reduce the risk of component damage and fire caused by short circuit, make sure correct connection.
4. Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
5. Check if the voltage and power adapter suit the controller.
6. Don't connect cables with power on; make sure a correct connection and no short circuit checked with instrument before power on.
7. Please don't open controller cover and operate if problems occur.
8. The manual is only suitable for this model, any update is subject to change with our prior notice.
Dimension
Operating Instruction
Wiring Diagram
1) Wiring diagram of Master Mode: (only one decoder is allowed to work as master)
2) Wiring Diagram of Slave Mode
Exception Handles
After-Sales
From the day you purchase our products within 2 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following cases:
1. Any defects caused by wrong operations.
2. Any damages caused by inappropriate power supply or abnormal voltage.
3. Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4. Any damages due to transportation, breaking, flooded water after the purchase.
5. Any damages caused by earthquake, fire, flood, lighting strike etc. force majeure of natural disasters.
6. Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
