Description

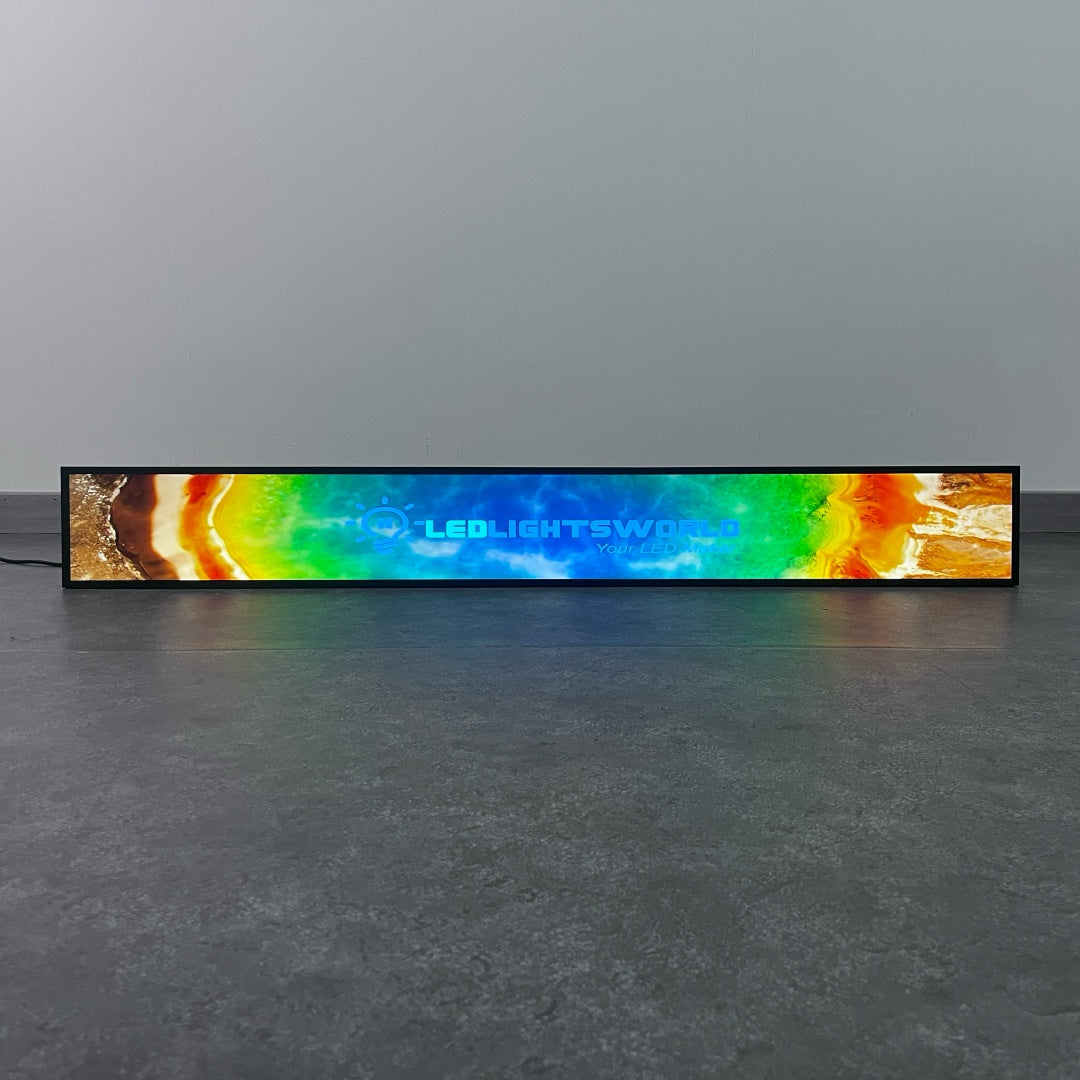

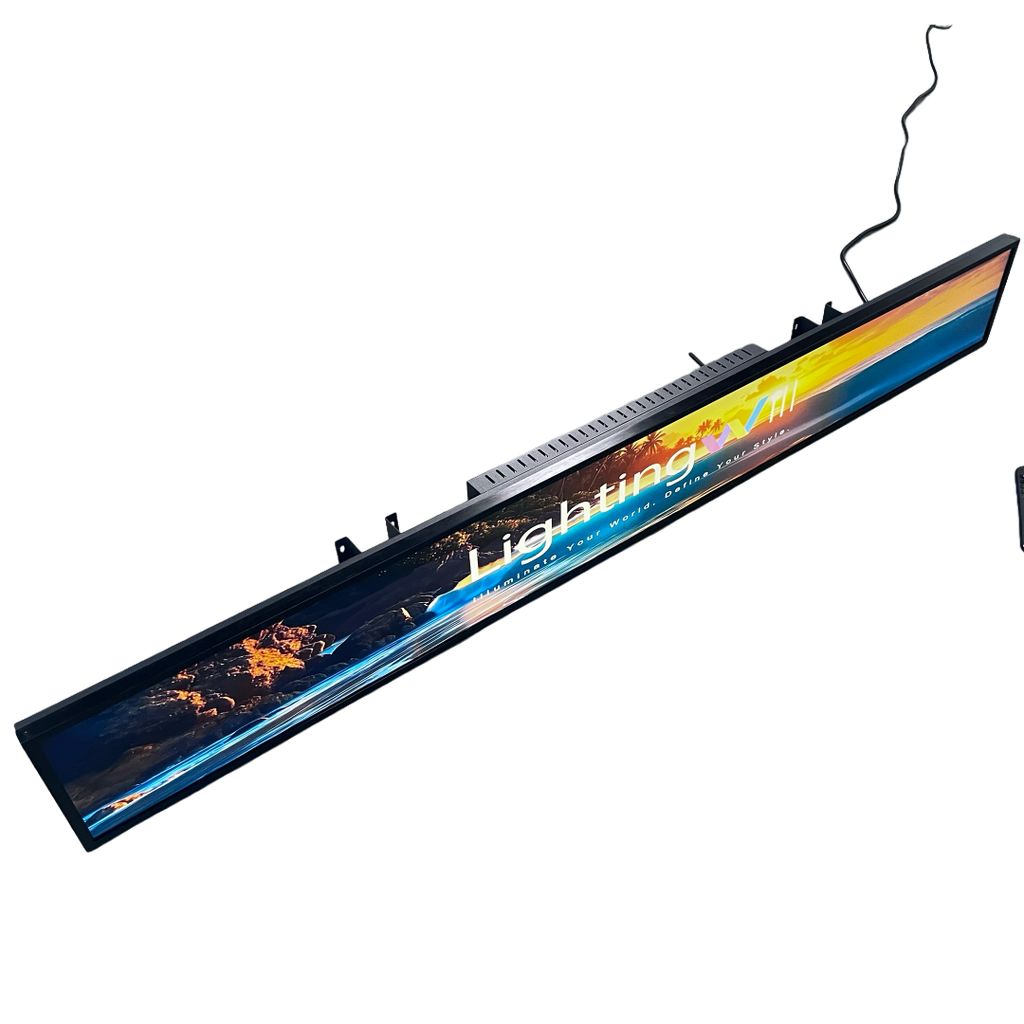

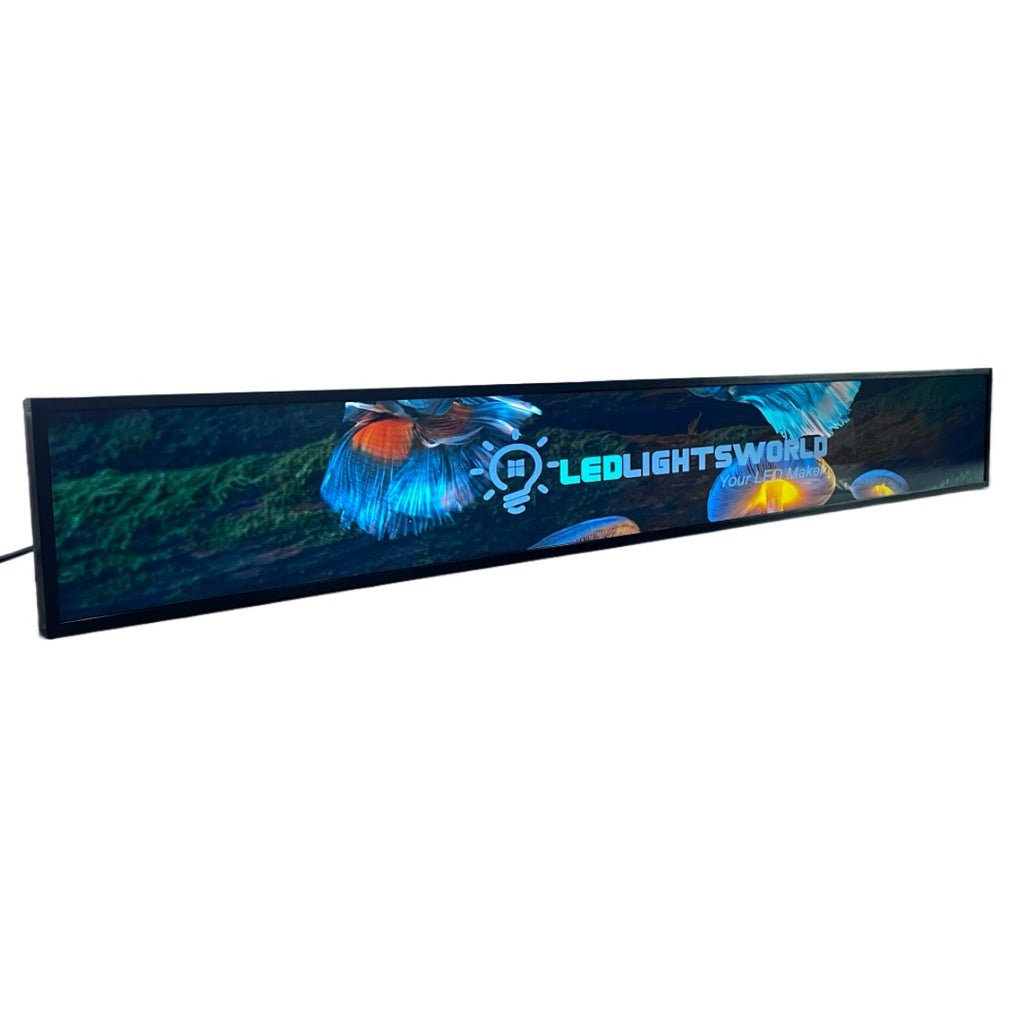

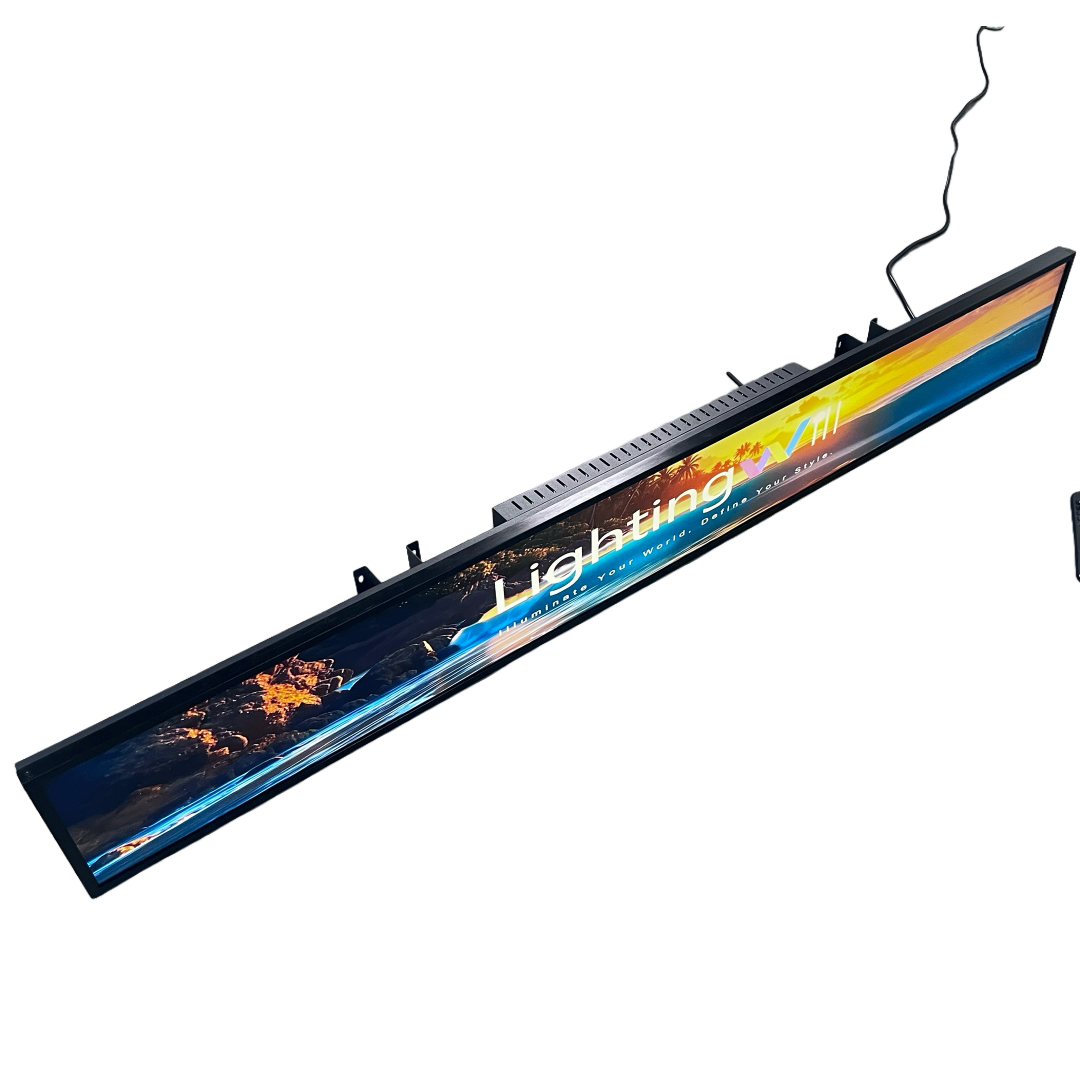

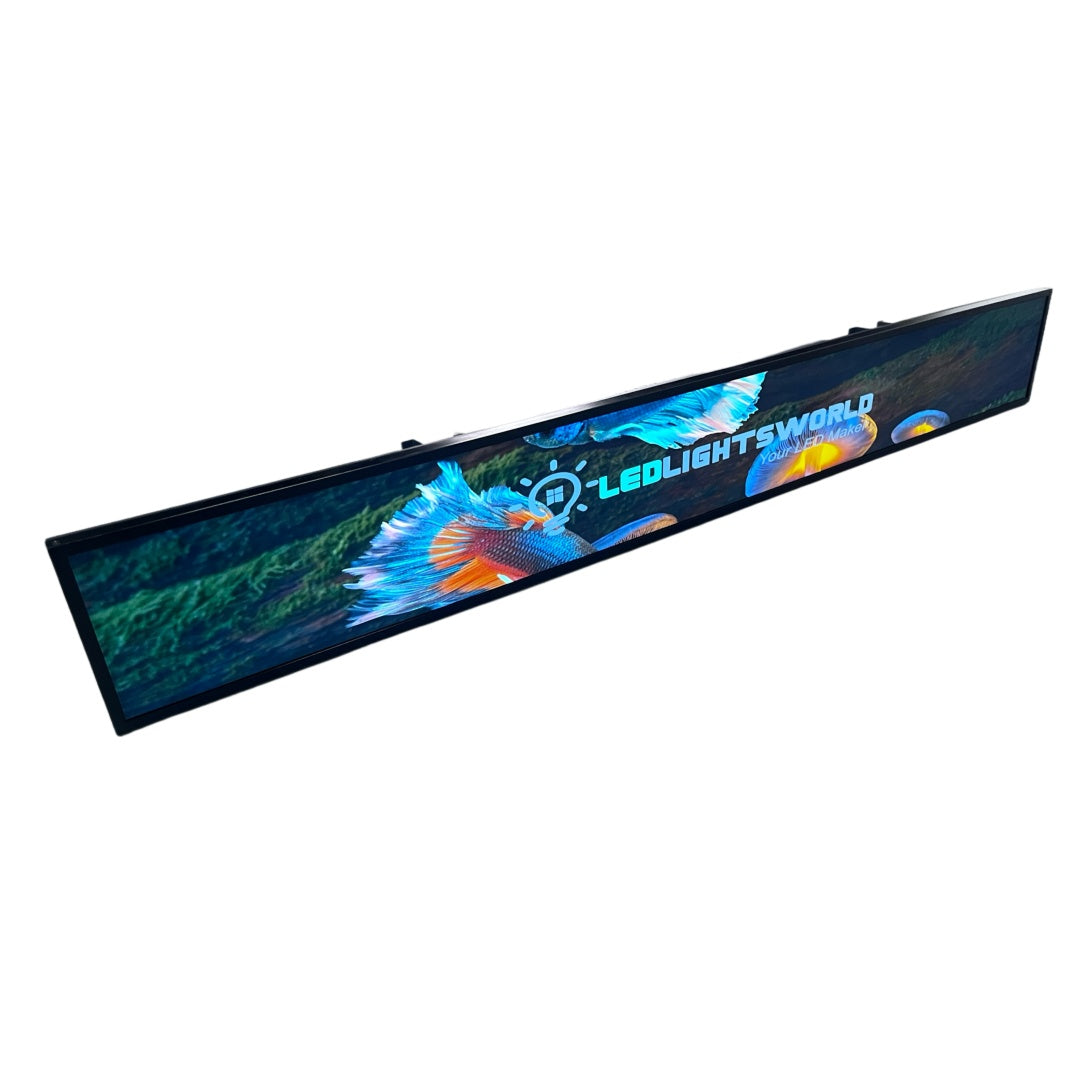

56.6 Inch (1431×160mm Viewable) Commercial Android Stretched LCD Bar Display | Ultra-Wide Shelf Screen | Cloud / USB / Mobile App
Package Included
| Version | Package Included |

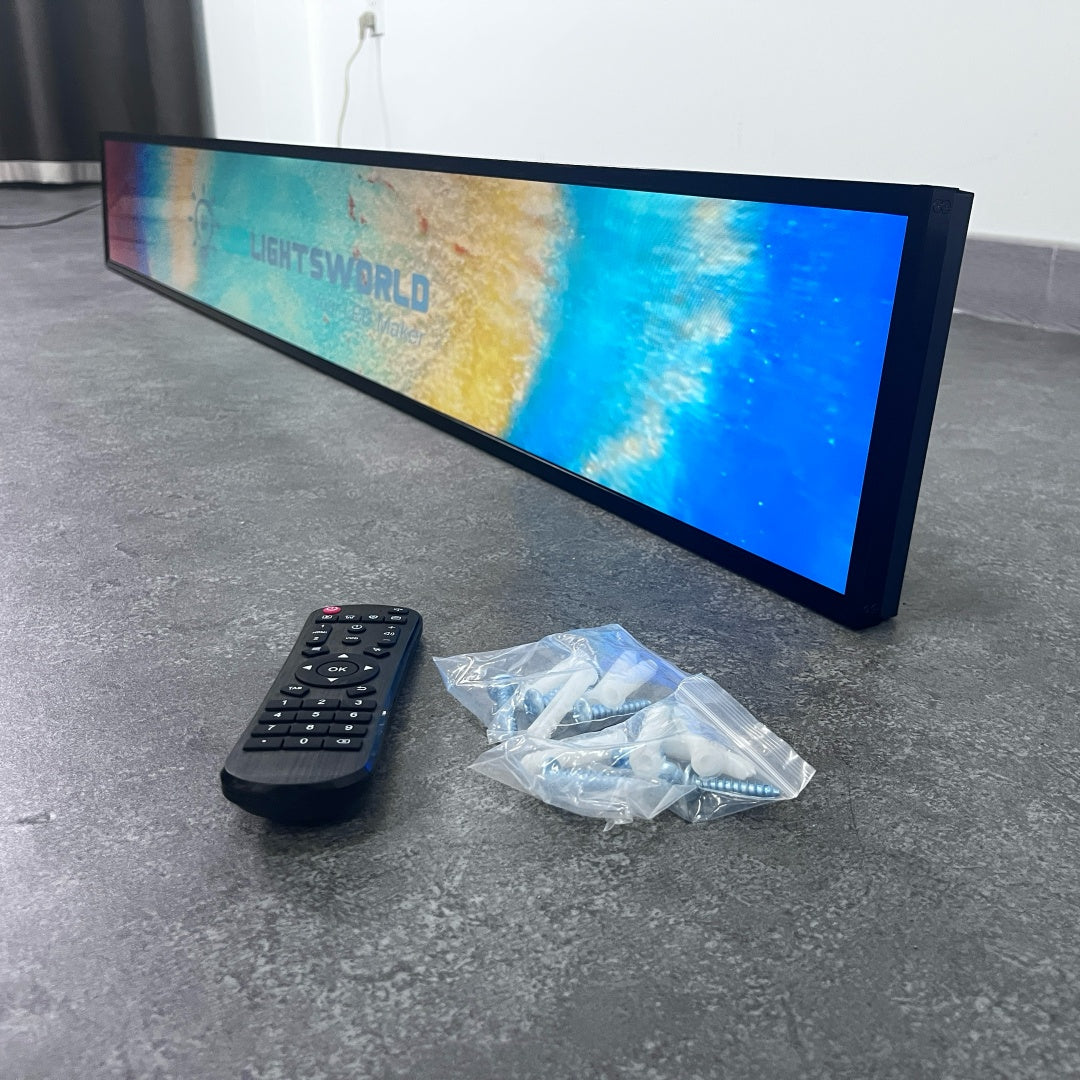

| 56.6" | LCD Bar Display ×1, Power Adapter ×1, Mounting Kit ×1, User Manual ×1 |
About this item
- Ultra-wide 56.6" LCD bar screen with Android OS, ideal for shelf-edge advertising, signage, and creative installations
- High resolution up to 3840×1080 ensures ultra-clear display quality
- Durable aluminum frame with tempered glass for long service life
- Multiple control methods: Cloud CMS, Mobile App, USB plug & play, LAN / Wi-Fi
- Optional capacitive touch screen available for interactive applications
- Widely applied in retail shelves, shopping malls, exhibitions, transportation hubs, and creative installations
Order & Logistics
- Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.

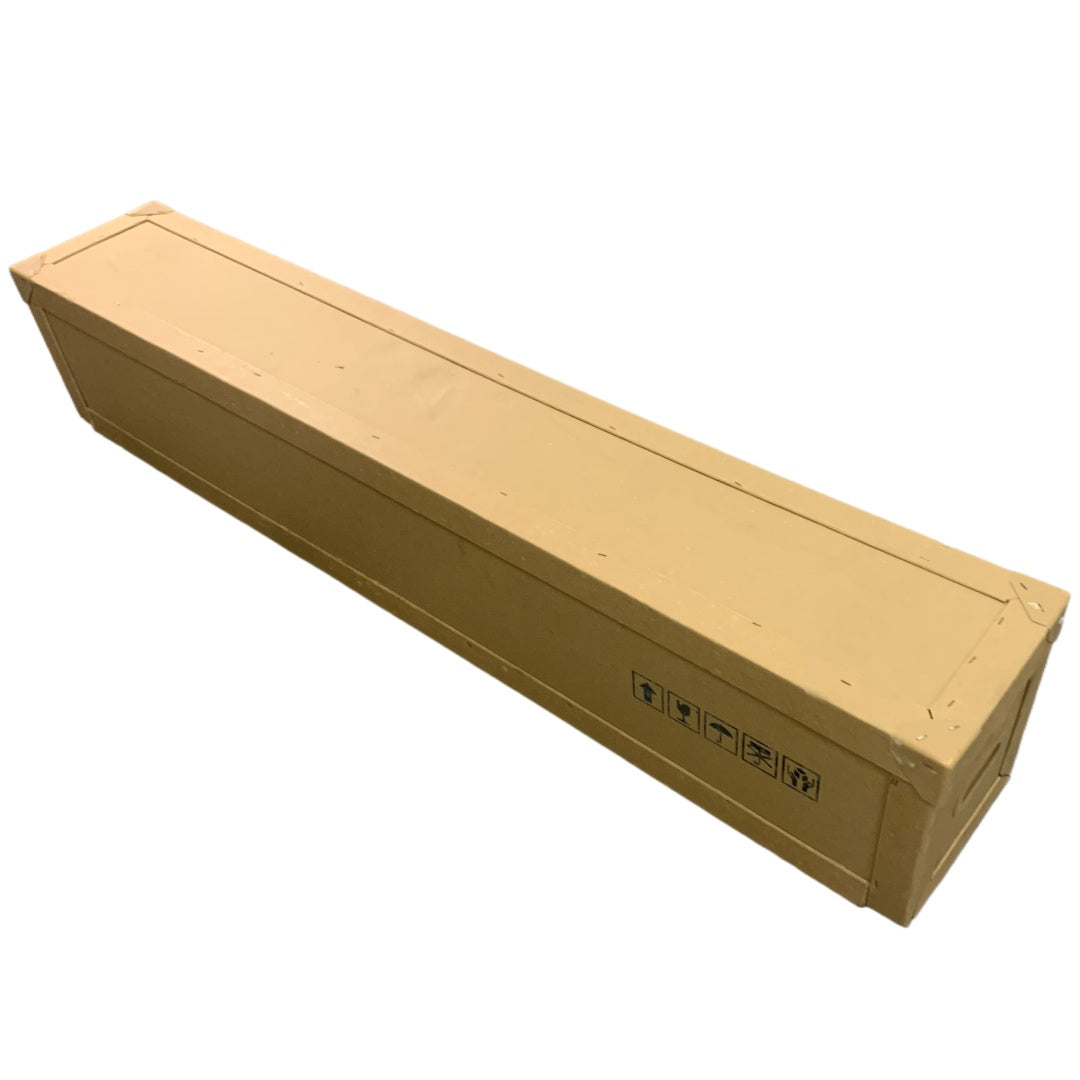

- Packing: Hard carton with protective inner foam.
- Shipping:
- Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
- Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
- DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.
Specifications
| Specification | Value |
| Screen Size | 56.6" (1431×160 mm viewable) |
| Screen Supplier | LG |
| Resolution | 3840×1080 |
| Display Size (mm) | 1431(H) × 160(V) |
| Brightness | 500 cd/m² |
| Contrast | 1200:1 |
| Viewing Angle (H/V) | 89/89/89/89 (Min., CR≥10), 178° total |
| Response Time | 8 ms (typical) |
| Display Colors | 1.07G (10-bit) |
| Pixel Pitch | 0.27963 × 0.27963 mm |
| Refresh Rate | 60 Hz |
| Motherboard | RK3568 Quad-Core ARM Cortex-A55, 2.0 GHz, Mali-G52 GPU |
| Memory | 2 GB RAM + 16 GB Storage |
| System | Android 11 |

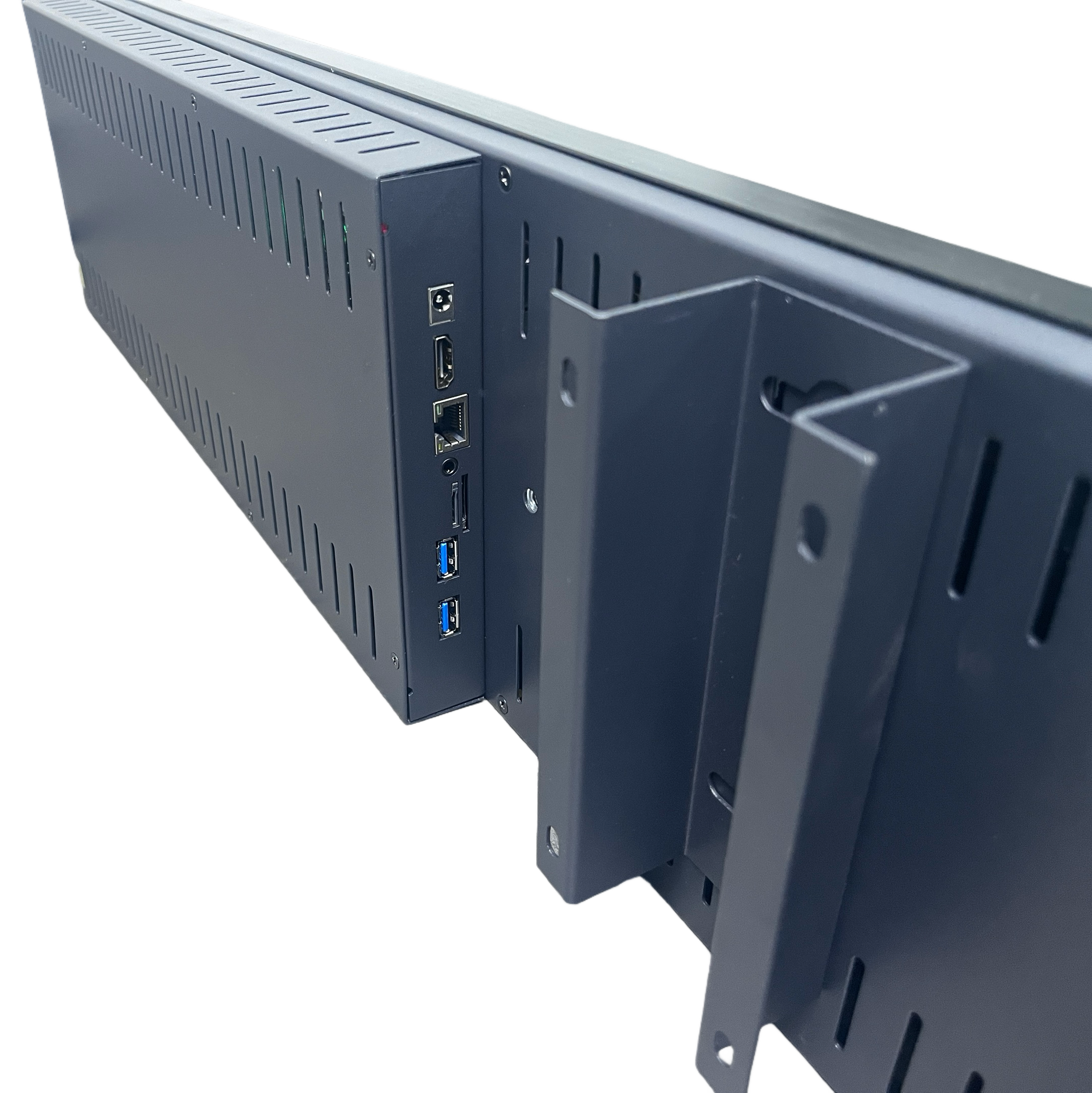

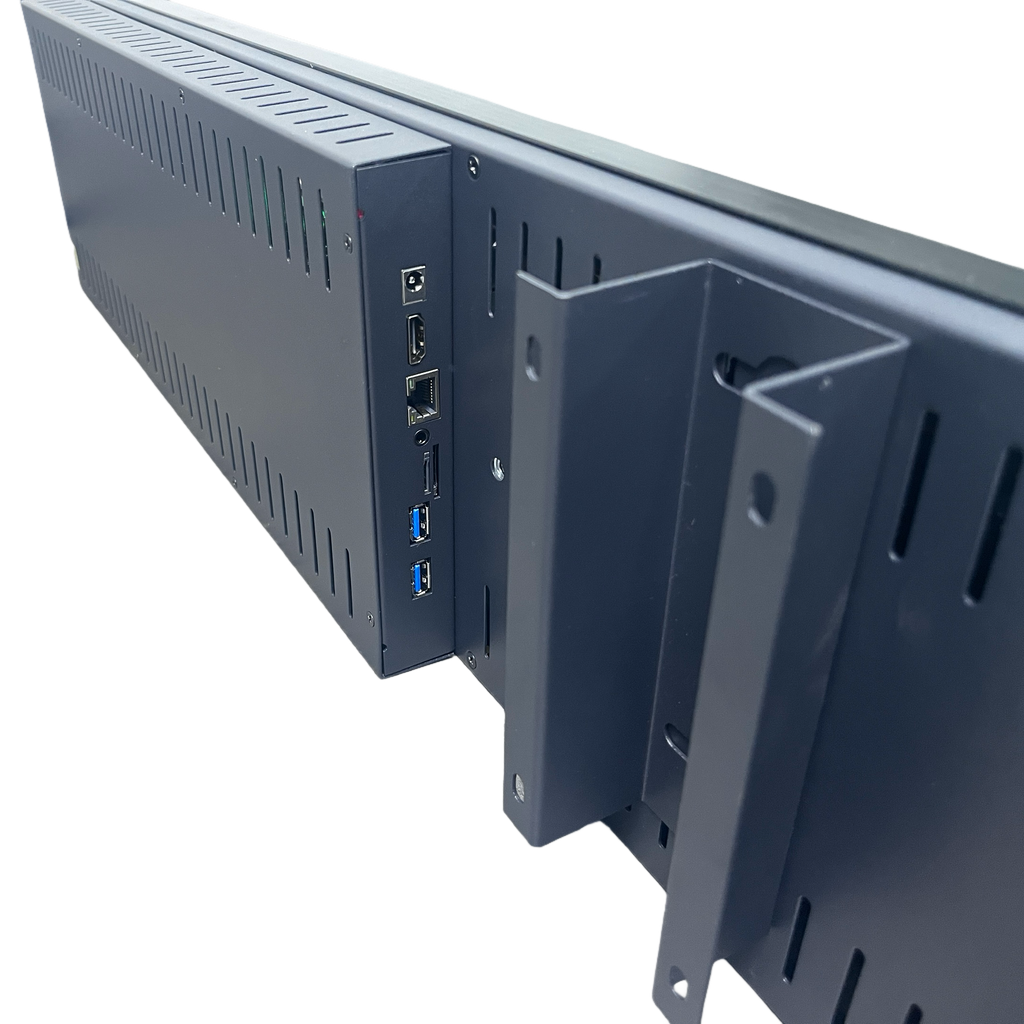

| Interfaces | USB 3.0, OTG, TF card, Audio, RJ45, HDMI In |
| Audio | Optional Speaker |

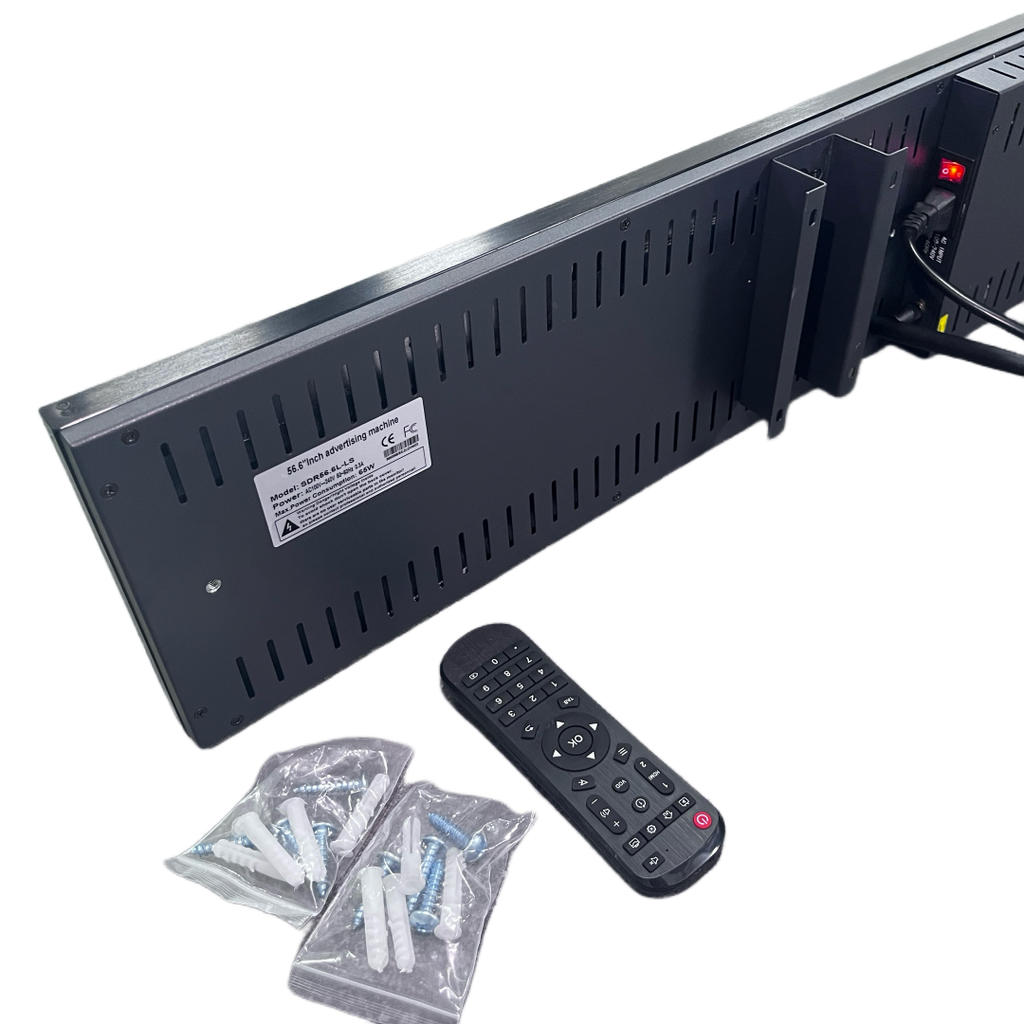

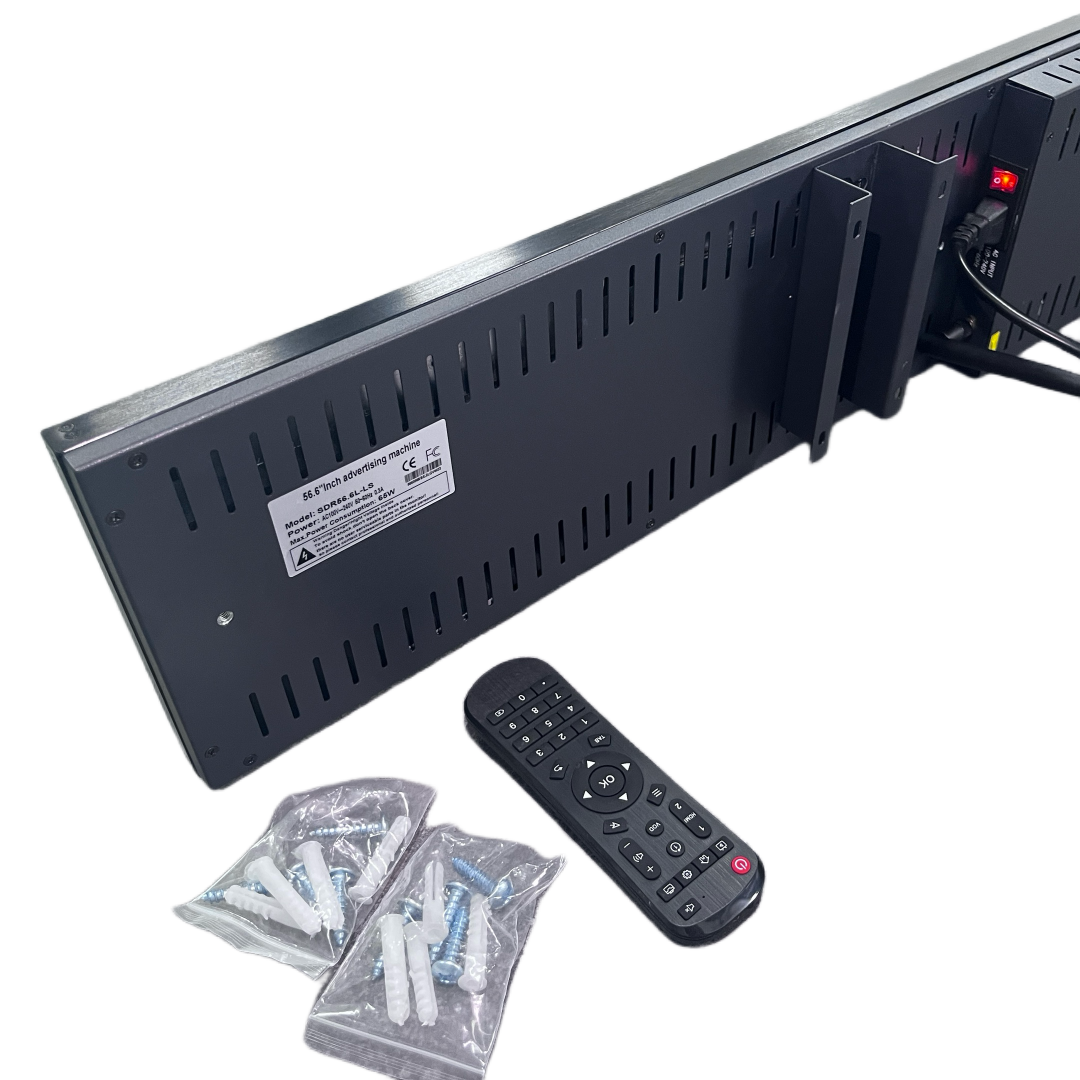

| Remote | Optional Infrared Remote Control |
| Net Weight | ~12 kg |
| Device Size | 1451 × 183 × 58 mm |
| Casing Material | Metal Sheet |
| Power Input Voltage | DC 12V |
| Power Consumption | ≤55 W |
| Standby Power | <1 W |
| Operating Temperature | 0℃ to +50℃ |
| Operating Humidity | 10%–90% RH (non-condensing) |
| Storage Temperature | -20℃ to +60℃ |
| Storage Humidity | 5%–95% RH (non-condensing) |
| OSD Language | English / Chinese |
| Accessories | Power Cord ×1 |
| Touch Screen | Capacitive Touch Screen Optional |
Usage Notes / Operation Tips
|
Send Program via Cloud Platform Operation Steps: 1. Login cloud platform 2. Create and edit programs 3. Send programs to the device Notes: Device must be in networking mode and associated with cloud platform account. Cloud server: www.led-cloud.cn / www.led-cloud.com  |
Send Program via LEDArt Mobile App Operation Steps: 1. Run LEDArt mobile app 2. Create and edit programs 3. Send program to the device Notes: Device must be in stand-alone mode. Mobile phone must be on the same local area network.  |
Play Program via U-disk / SD Card Operation Steps: 1. Save programs into U-disk or SD Card 2. Insert U-disk or SD Card 3. Program plays automatically Notes: Device must be in stand-alone mode. U-disk / SD Card must be formatted to FAT32.  |
Applications
- Retail shelf-edge displays
- Shopping mall signage
- Exhibition & trade show displays
- Airport / metro / bus station information boards
- Creative installations & advertising walls
Download / 下载
- Datasheet for 56.6'' Stretched LCD Display Screen
- HUIDU Cloud Plate Form Content Management Software Manual
- Send via "LEDArt" APP – YouTube
- Send program to LCD display screen by HUIDU Mobile APP LEDArt – YouTube Shorts
- Play via U-Disk/SD Card – YouTube
- Remote Controller – YouTube
- How to rotate the screen – YouTube
- How to set fixed IP address – YouTube
- How to upgrade MagicPlayer – YouTube
- How to splice multiple LCD Digital Signages On XiaoHui Cloud – YouTube
