Description

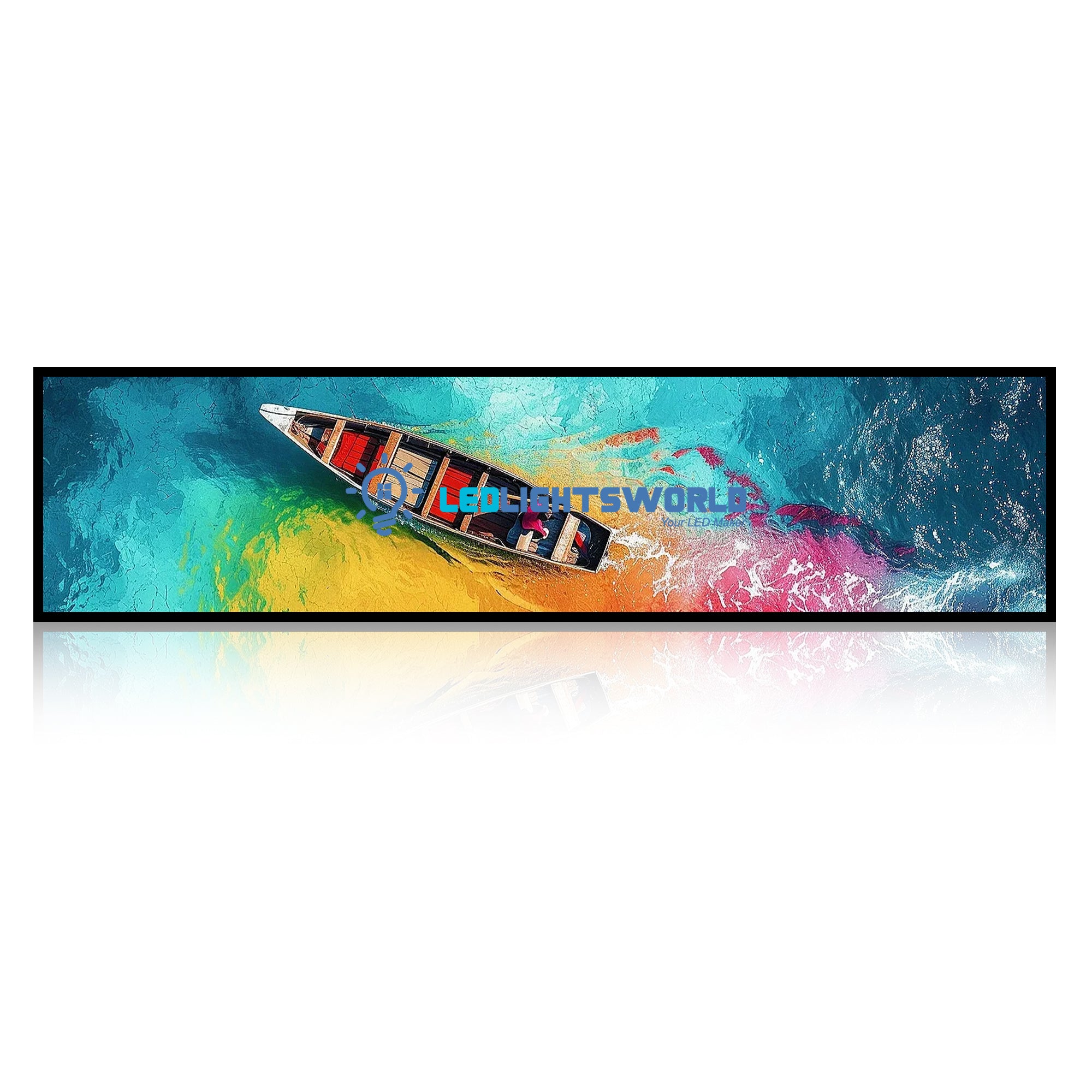

37.6 Inch (885.6×120mm Viewable) Ultra-Wide Android LCD Bar Display for Retail Shelves | Cloud, App & USB Content Management
Package Included
| Version / Model | Package Included |
|---|---|
| TXP-37.6" | LCD Bar Display ×1, Power Plug Cable ×1, Remote Controller ×1, Mounting Screws & Expansion Tubes ×1, Honeycomb Cardboard Box ×1 |
About this item
- Ultra-wide 37.6" LCD bar screen with Android OS, ideal for retail shelf-edge advertising, signage, and creative installations
- High-performance RK3568 motherboard supports ultra-high-definition playback, stable operation, and resolutions up to 1920×540 for detailed image quality
- Durable full-metal construction with tempered glass and shielding against radiation, magnetic fields, and electrical interference ensures long service life
- Control methods include Cloud CMS, Mobile App (LEDArt), USB plug & play, and LAN/Wi-Fi connectivity
- Optional capacitive touch screen available for interactive applications
- Widely used in retail shelves, shopping malls, exhibitions, transportation hubs, and creative installations
Order & Logistics
- Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.
- Packing: Hard carton with protective inner foam.
- Shipping:
- Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
- Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
- DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.
Specifications
| Parameter | Specification |
|---|---|
| 37.6 inch Stretched LCD Bar Screen Datasheet | TXP-37.6" |
| Screen Supplier | LG |
| Resolution | 1920×540 |
| Display Size (mm) | 920(H) × 258(V) |
| Brightness | 700 cd/m² |
| Contrast | 1000:1 |
| Viewing Angle (Horizontal/Vertical) | 89/89/89/89 (Min., CR≥10) |
| Response Time | 8 ms (typ.) |
| Display Color | 1.07G |
| Pixel Pitch | 0.4788 mm × 0.4788 mm |
| Refresh Rate | 60 Hz |
| Control Board | RK3568, 4-Core A55 2.0GHz, Mali-G52 GPU |
| Memory | 2+16G |
| System | Android 11 |
| Interface | USB3.0, OTG, TF-card, Audio, RJ45, HDMI out |
| Audio | Optional Speaker |
| Remote Controller (YouTube) | Optional |
| Net Weight | TBD |
| Physical Size | 951×290×58 mm |
| Casing Material | Metal Sheet |
| Power Input Voltage | DC 12V |
| Device Power | ≤ 70W |
| Standby Power | <1W |
| Operating Temperature | 0℃–50℃ |
| Operating Humidity | 10%–90% RH Non-Condensing |
| Storage Temperature | -20℃–60℃ |
| Storage Humidity | 5%–95% RH Non-Condensing |
| Language | English / Chinese |
| Accessories | Power Cord ×1 |
| Touch Screen | Capacitive Touch Screen Optional |
Usage Notes / Operation Tips
| Cloud Platform | Send via "LEDArt" APP | Play via U-Disk/SD Card |
|---|---|---|
|
Operation Steps: Login cloud platform, create and edit programs, send programs to the device Note: Device mode needs to be adjusted to networking mode and associated with the cloud platform account. Cloud server address: http://www.led-cloud.cn or http://www.led-cloud.com (international version) |
Operation Steps: Run mobile APP LEDArt, create and edit programs, send program to the device Note: Device mode needs to be adjusted to stand-alone mode, and the mobile phone is in the same local area network |
Operation Steps: Save programs into U-Disk or SD Card; insert U-Disk/SD Card, playback program automatically Note: Device mode needs to be adjusted to stand-alone mode, and the system format of the U-Disk/SD Card needs to be FAT32 |
 Cloud Platform |
 LEDArt APP |
 U-Disk/SD Card |
Other operation tips:
- Rotate the LCD Screen: Portrait or Landscape
- Set Fixed IP Address on HUIDU Android LCD Control Board
- Control via LAN/Wi-Fi Network
Applications
- Retail shelf-edge displays
- Shopping mall signage
- Exhibition & trade show displays
- Airport / metro / bus station information boards
- Creative installations & advertising walls
