Wavelength Options: 365nm-370nm and 380nm-385nm
Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.

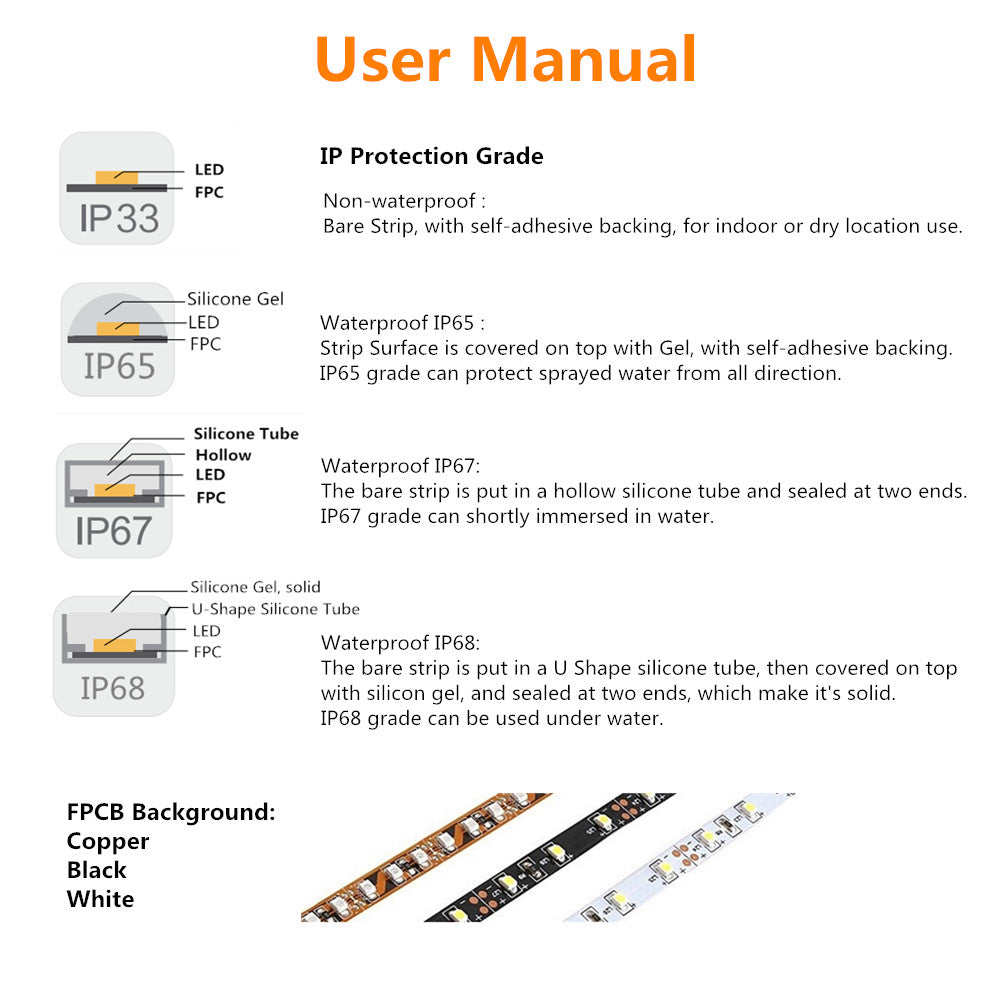

IP Grade avaliable : Non-Waterproof , IP65 Waterproof , IP67 Waterproof , IP68 Waterproof

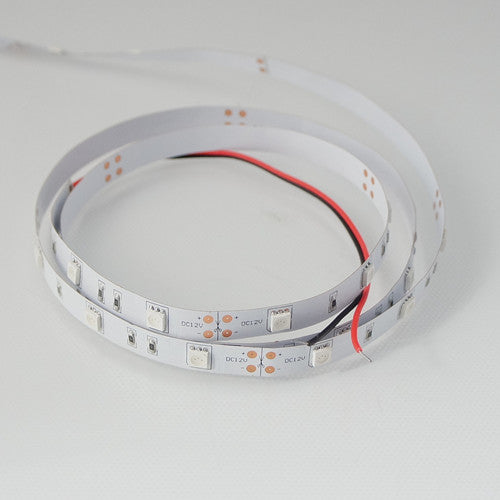

365nm-370nm & 380nm-385nm SMD5050-150 12V DC <36W, 3Amp UV (Ultraviolet) LED Strip Light Non-Waterproof Flexible White PCB Strip Light Ideal for UV Curing, Currency Validation, Mosquito killer, Fluorescence disclosing and Medical Field
Note: Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
Available Lengths and Suggested Power Supply to power (the power supply is not included)
|Length||Wattage (w)||Suggested Power Supply|
|50cm||3.6||12V, 0.5Amp, 6W|
|100cm||7.2||12V, 1.0Amp, 12W|
|200cm||14.4||12V, 2.0Amp, 24W|
|300cm||21.6||12V, 2.0Amp, 24W|
|400cm||28.8||12V, 3.0Amp, 36W|
|500cm||36||12V, 4.0Amp, 48W|
To use bigger power supply than rated power of the strip is to avoid full loaded working, which is better for the lifespan of the Power Supply.

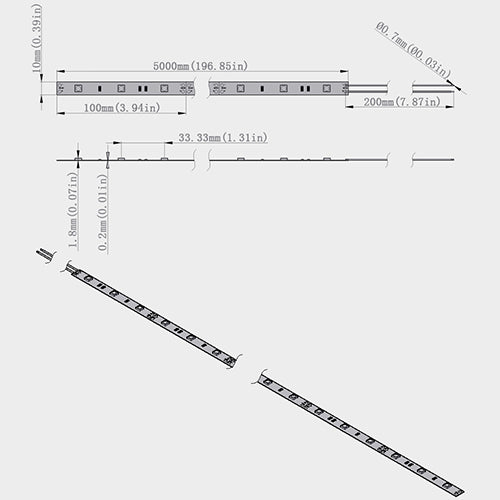

Strip Light Specification for 5 Meter Roll

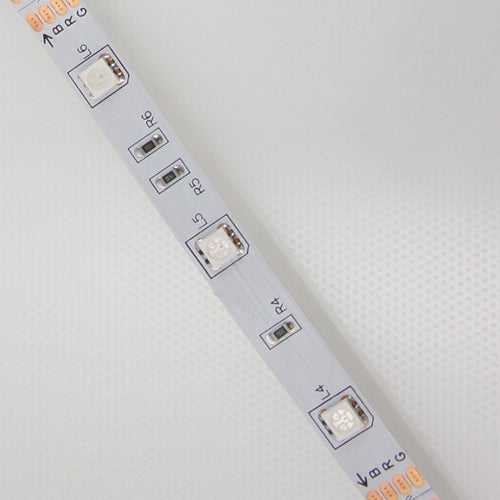

LED Type: UV SMD5050
LED QTY.: 30LED/Meter
Input Voltage: 12V DC
Wattage (max): 7.2Watt/Meter
Cuttable: Every 3LED per 4'' can be cut
Weight: 0.15kgs per 5meter per roll

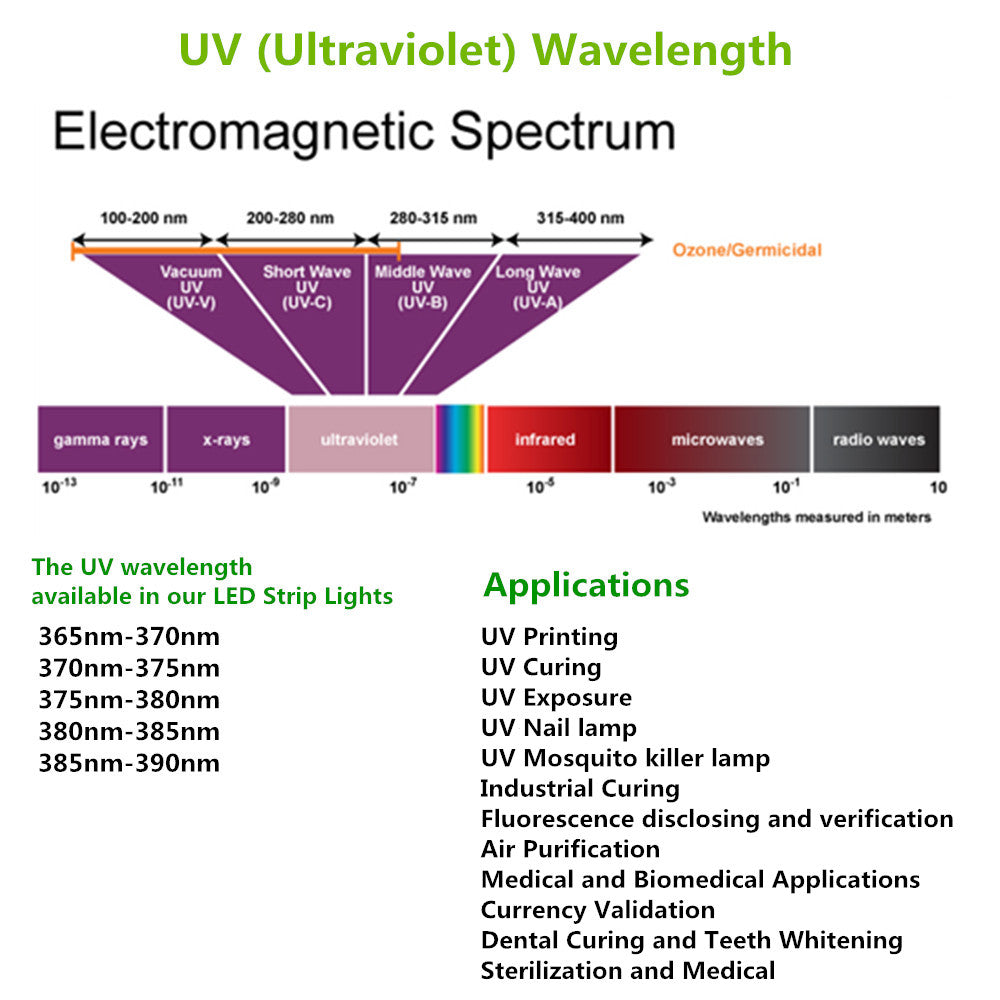

Wavelenght: 365nm-370nm, 380nm-385nm
PCB Background color: White
PCB Backing: Double-sided Adhesive backing
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use)
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
UV LED Lights Application
