Description

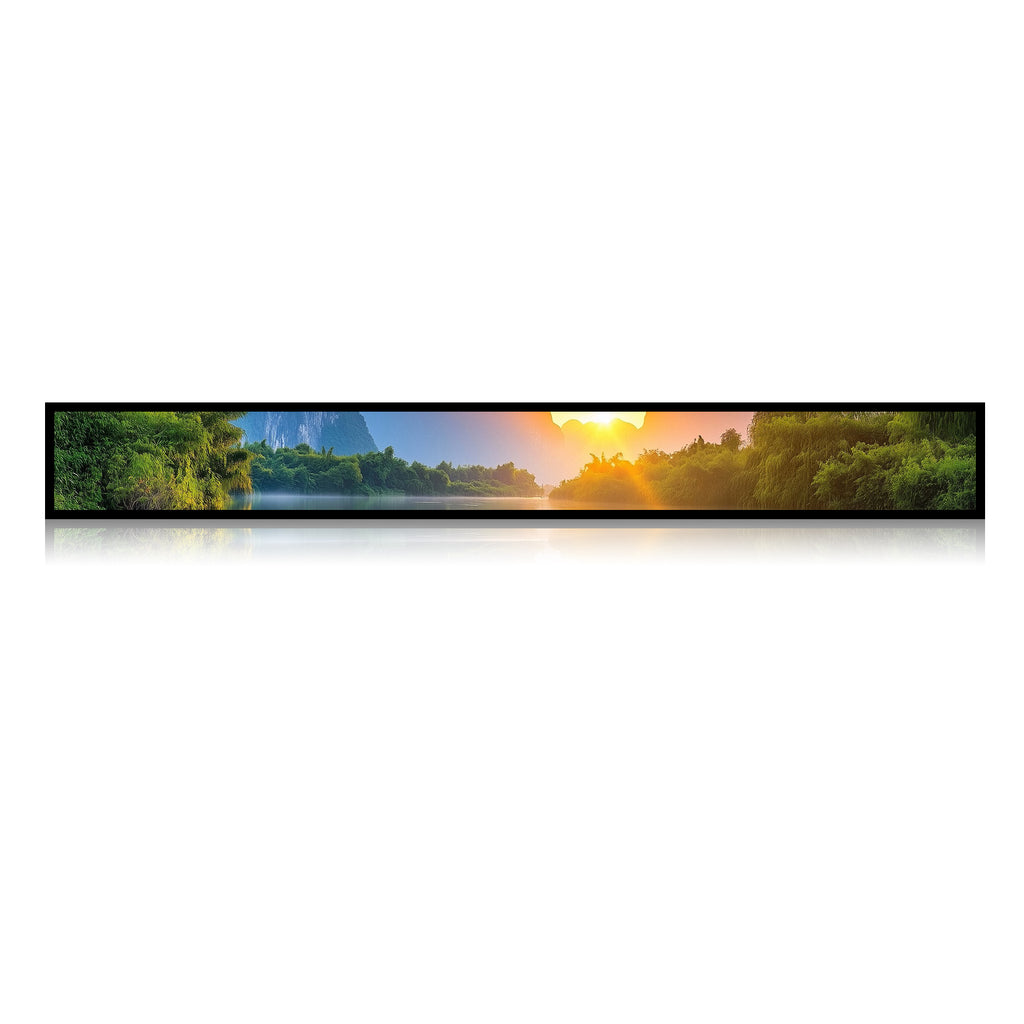

32.1 Inch LCD Screen Android Stretched Bar LCD Shelf Display, Content Upload and Play by Cloud Platform | Mobile APP | USB Disk
Package Included
| Version | Package Included |
| 32.1" Model | LCD Bar Display ×1, Power Adapter ×1, Remote Controller ×1 (Battery not included), Mounting Kit ×1, User Manual ×1, Honeycomb Cardboard Box ×1 |
About this item
- The 32.1-inch strip screen uses LED backlight, providing uniform brightness and wide color gamut
- Industrial-grade design with ultra-high reliability and stability; average trouble-free operation time over 50,000 hours
- RK3566 quad-core chip, Android 11 OS, main frequency up to 1.8GHz for superior performance
- Supports AFBC, 4K/H.265 hardware decoding, 1080P video decoding, and 4K-level video playback
- Supports multiple interfaces: infrared remote control, USB, OTG, and TF card
- Metal casing is radiation-proof, magnetic-field-proof, and strong-electric interference-proof
- Professional hard screen technology with large viewing angle, fast response, and high color reproduction
- 3440×247 resolution, 178° viewing angle, 1200:1 contrast ratio, vivid picture display
- Industrial-grade design ensures high reliability, high stability, and low power consumption

Order & Logistics
- Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.
- Packing: Hard carton with protective inner foam.
- Shipping:
- Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
- Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
- DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.
Specifications
| Parameters | Value |
| Screen Size | 32.1" (TXP-32.1) |
| Screen Supplier | LG |
| Resolution | 3440×247 |
| Brightness | 500 cd/m² |
| Contrast | 1000:1 |
| Viewing Angle | 89/89/89/89 |
| Response Time | 8 ms (typ.) |
| Display Color | 16.7M |
| Pixel Pitch | 76.2(H) × 228.6(V) μm |
| Control Board | RK3566, 4 Core A53 1.8GHz, Mali-G52 GPU |
| Memory | 2+16G |
| System | Android 11 |
| Interface | Micro-USB, TF card, USB, OTG, DC-IN |
| Device Size | 895 × 63 × 27 mm |
| Casing Material | Metal Sheet |
| Power Input | DC 12V |
| Device Power | ≤30W |
Usage Notes / Operation Tips
| Send Program via Cloud Platform | Send Program via LEDArt | Play Program via U-Disk/SD Card |
| Login cloud platform; Create and edit programs; Send programs to the device; NOTE: The device mode needs to be adjusted to networking mode and associated with the cloud platform account. Cloud server address: http://www.led-cloud.cn or http://www.led-cloud.com (international version) | Run mobile APP LEDArt; Create and edit programs; Send program to the device; NOTE: The device mode needs to be adjusted to stand-alone mode, and the mobile phone is in the same local area network | Save programs into U-disk or SD Card; Insert U-Disk or SD Card; Playback program automatically; NOTE: The device mode needs to be adjusted to stand-alone mode, and the system format of the U-disk/SD Card needs to be FAT32 |



- Remote Controller can be used as auxiliary control
- How to rotate the screen
- How to set fixed IP address
- How to upgrade MagicPlayer
- Splice Multiple LCD Digital Signages On XiaoHui Cloud
Applications
- Retail shelf-edge displays
- Shopping mall signage
- Exhibition & trade show displays
- Airport / metro / bus station information boards
- Creative installations & advertising walls
