Description
23.1 Inch (579.5×37mm Viewable) Android Stretched LCD Bar Shelf Display | Ultra-Wide Digital Signage Screen | Cloud / Mobile / USB Content Upload
Package Included
| Version | Package Included |
| TXP-23.1'' | LCD Bar Display ×1, Power Plug Cable ×1, Remote Controller (Battery not included) ×1, Mounting Screws & Expansion Tubes ×1, Honeycomb Cardboard Box ×1 |
About this item
- 23.1" ultra-wide Android LCD bar screen, ideal for shelf-edge promotions and signage
- 120 (H) x1880 (V) pixel resolution, 500 cd/m² brightness, 178° wide viewing angle for clear display
- Android 13 with quad-core CPU, 2 GB RAM, 16 GB storage for smooth performance
- Multiple content upload options: Cloud Platform / LEDArt App / U-Disk & SD Card
- Optional Remote Controller and built-in speaker for interactive applications
Order & Logistics
• Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.
• Packing: Hard carton with protective inner foam.
• Shipping:
• Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
• Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
• DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.
Specifications
| Specification | Value |
| Model # | TXP-23.1'' |
| Screen Vendor | LG |
| Resolution | 120 (H) x1880 (V) pixel |
| Display Size | 579.51 (H)x 36.99mm(V) |
| Brightness | 500 cd/m² |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 89/89/89/89 (CR≥10) |
| Response Time | 8 ms |
| Display Color | 16.7M |
| Refresh Rate | 60 Hz |
| CPU | RK3566 Quad-core ARM Cortex-A55 1.8GHz |
| GPU | Mali-G52 |
| RAM / ROM | 2 GB / 16 GB |
| System | Android 11 |
| Interfaces | TFx1, DC-in, Micro USB 2.0 x1 USB 2.0 x1 |

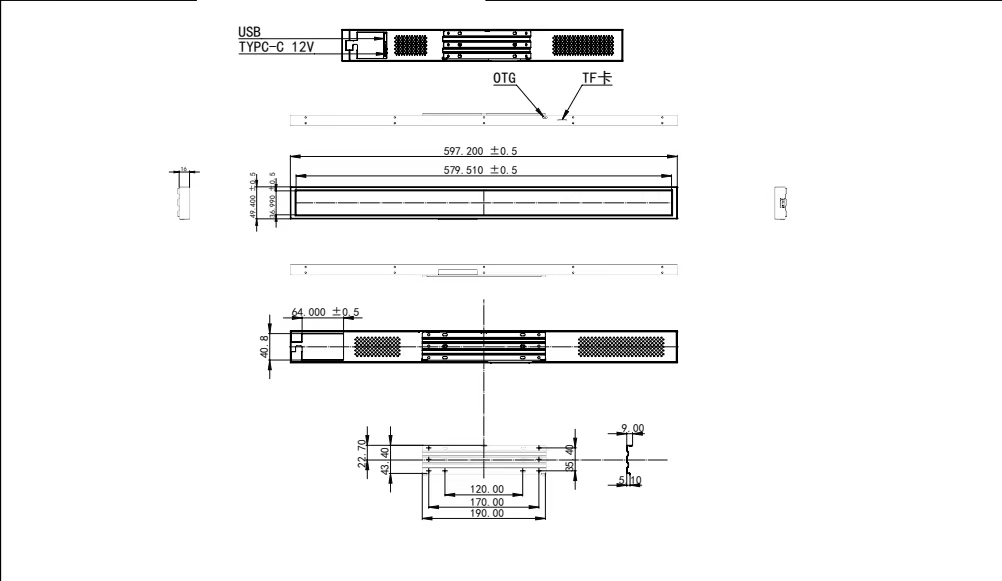

| Dimensions | 594×64×27 mm |
| Housing Material | Iron Metal Sheet |
| Power Input | DC 12 V |
| Power Consumption | ≤15 W (Standby <1 W) |
| Operating Temp. | 0℃–50℃ |
| Operating Humidity | 10%–90% RH Non-condensing |
| Storage Temp. | -20℃–60℃ |
| Storage Humidity | 5%–95% RH Non-condensing |
| OSD Languages | English / Chinese |
| Data Sheet | Download Parameters (PDF) |
Usage Notes / Operation Tips
- Remote Controller can be used as auxiliary control
- How to rotate the screen
- How to set fixed IP address
- How to upgrade MagicPlayer
- Splice Multiple LCD Digital Signages On XiaoHui Cloud
Content Upload & Operation Steps
| Send Program via Cloud Platform | Send Program via LEDArt | Play Program via U-disk / SD card |
| ① Login cloud platform ② Create and edit programs ③ Send programs to the device
Notes: Device mode: Networking mode; associate with cloud platform account.
|
① Run LEDArt mobile app ② Create and edit programs ③ Send program to the device
Notes: Device mode: Stand-alone mode; phone on the same local network.
|
① Save programs to U-disk / SD card ② Insert U-disk / SD card ③ Auto playback
Notes: Device mode: Stand-alone mode; format media as FAT32.
|
Applications
- Retail shelf-edge displays
- Shopping mall signage
- Exhibition & trade show displays
- Airport / metro / bus station information boards
- Creative installations & advertising walls
Downloads
- 23.1 inch LCD Display Screen Datasheet (PDF)
- HUIDU Cloud Platform Content Management Software Manual (PDF)
- Send via "LEDArt" APP (YouTube)
- Send program to LCD via LEDArt (Shorts)
- Play via U-Disk / SD Card (YouTube)
- Remote Controller (YouTube)
- How to rotate the screen (YouTube)
- How to set fixed IP address (YouTube)
- How to upgrade MagicPlayer (YouTube)
- How to splice multiple screens via XIAOHUI cloud (YouTube)
