NovaStar MRV208-1 Series LED Screen Receiving Card
Specification Sheet
Introduction
The MRV208-1 is a general receiving card developed by Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as
NovaStar). For PWM driver ICs, a single MRV208-1 supports resolutions up to 256×256@60Hz. Supporting various
functions such as pixel level brightness and chroma calibration, quick adjustment of dark or bright lines, and 3D, the
MRV208-1 can significantly improve the display effect and user experience.

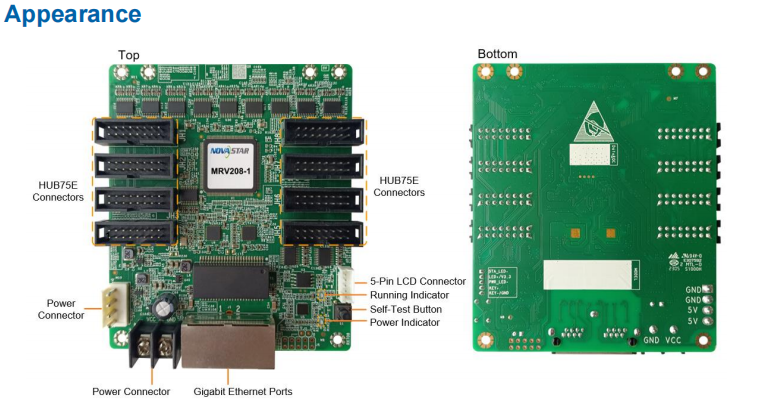

The MRV208-1 uses 8 standard HUB75E connectors for communication, resulting in high stability. It supports up to
16 groups of parallel RGB data. Thanks to its EMC compliant hardware design, the MRV208-1 has improved
electromagnetic compatibility and is suitable for various on-site setups.
Certifications
RoHS, EMC Class A
If the product does not have the relevant certifications required by the countries or regions where it is to be
sold, please contact NovaStar to confirm or address the problem. Otherwise, the customer shall be
responsible for the legal risks caused or NovaStar has the right to claim compensation.
MRV208-1 | MRV412 | MRV416 | MRV432 | |
Loading capacity | 256*256 | 512*512 | 512*384 | 512*512 |
RGB Parallel Data Group | 16 | 24 | 32 | 32 |
HUB Connector | HUB75E | HUB75E | HUB75E | HUB320 |
Temperature, Voltage, Communication Status | √ | √ | √ | √ |
Chroma / Brightness Calibration | √ | √ | Brightness Calibration | √ |
Mapping | √ | √ | √ | √ |
Individual Gamma Adjustment | × | √ | √ | √ |
18bit+ | × | √ | × | √ |
Color Adjustment | × | √ | × | √ |
90 degree rotation | × | √ | × | √ |
