Description
46.6 Inch Stretched Bar LCD Display for Store Shelf Promotion Wi-Fi Android System LCD Enclosure
Features:
1. Support real-time management and publishing on PC
2. Support remote upgrade of advertising machine software version and OTA upgrade
3. Support synchronous and consistent playback of advertising machines in the same group, with a synchronization interval of less than 500ms
4. Support remote setting of advertising machine properties, control of advertising machine volume, rotation angle, time zone, power on and off, etc.
5. Support remote monitoring of advertising machine network status, system status and hardware status, and monitoring of advertising machine playback content
6. Support the needs of various forms of scrolling subtitles and bullet screens, and the font, size and content of subtitles and bullet screens can be edited
7. Scheduling supports multiple priorities, supports gasket/normal/insert/emergency message priorities
8. Scheduling supports multiple cycle modes, daily/weekly/monthly cycle 9. Supports multiple media such as video/picture/marquee/subtitle/RSS/component/ppt/pdf
Specification
| Screen Parameter | Model | 46.6" |
| Panel type | a-Si TFT-LCD | |
| Display area | 37mm(H)x1138.68mm (V) | |
| Display ratio | >3：1 | |
| Resolution | 3840*120 | |
| Display color | 16.7M | |
| Dot pitch | 0.305(H)×0.305V)mm | |
| Brightness | 450CD | |
| Contrast | 3000：1 | |
| Viewing angle | 178° | |
| Response time | 8ms | |
| Refresh rate | 60Hz | |
| Menu language | Chinese/English | |
| Interface | Video interface | NA |
| Audio interface | N/A | |
| Other interfaces | N/A | |
| Control Board | CPU | ARM Corter-A55 Quad core |
| Memory | 2G DDR3 | |
| Hard disk | 16G EMMC | |
| WIFI | 2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK |
|
| Bluetooth | N/A | |
| Network port | N/A | |

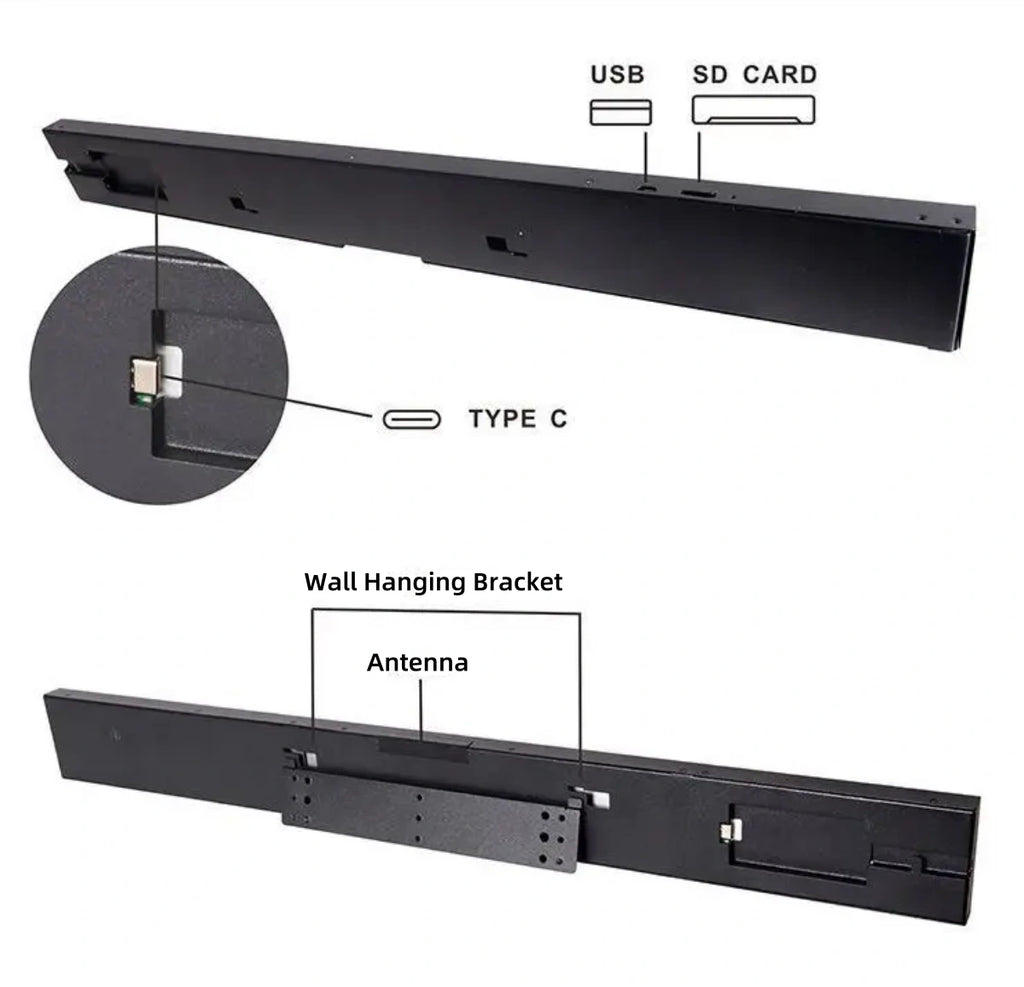

| Interface support | TF Card×1/USB×1/Type-c×1 | |
| System version | Android 11 | |
| Power | Input voltage | ～AC 100-240V 50/60Hz |
| Maximum power consumption | 20W | |
| Standby power consumption | ≤0.1W（Board only） | |
| Physical | Storage temperature | -20--60° |
| Amplifier power | N/A | |

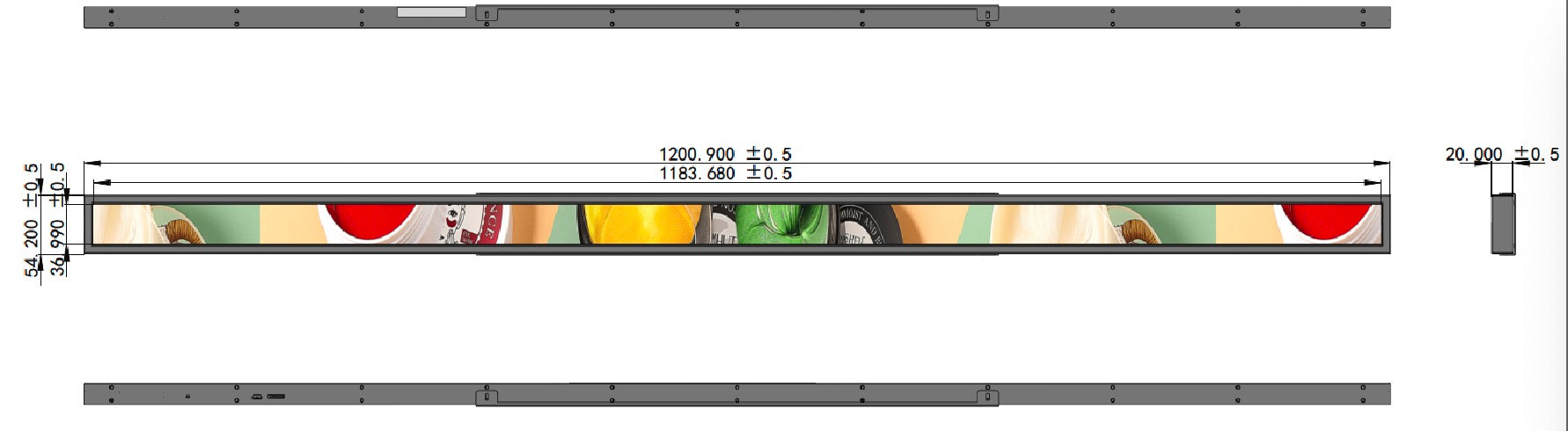

| Product dimensions | 1200.9×54.2×22 (mm) | |
| Packaging dimensions | TBD | |
| Product net weight | TBD | |
| Accessories | Remote control | N/A |
| Power adapter | 12V/4A |
IMPORTANT NOTICE !
- 【Lead Time】: The product take 15-20days to make .
- 【Packing】：The LCD Screen will be packed in one-time hard carton box for shipping.
- 【Free Shipping】：
- For shipping, the price on this page is include free shipping by AIR +Delivery to door by truck. It's by flight + UPS delivery to door which in regular would take around 12-15days at least in transportation after flight departure;
- DDP TERM (all fee included) except the to destination country that this shipping service is not available, then we will contact the buyer if this clause does not apply to his country.
