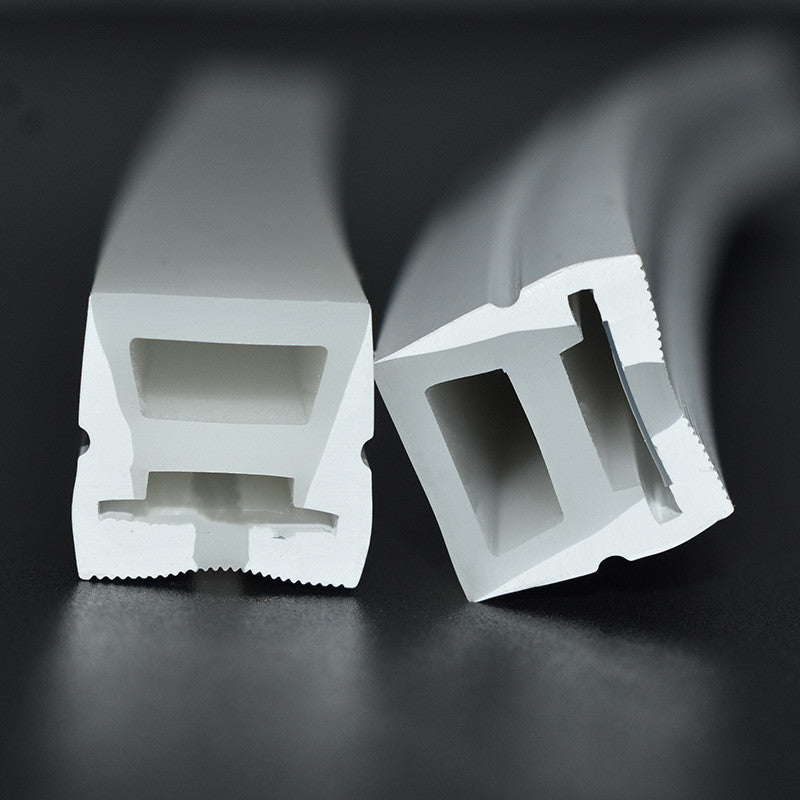

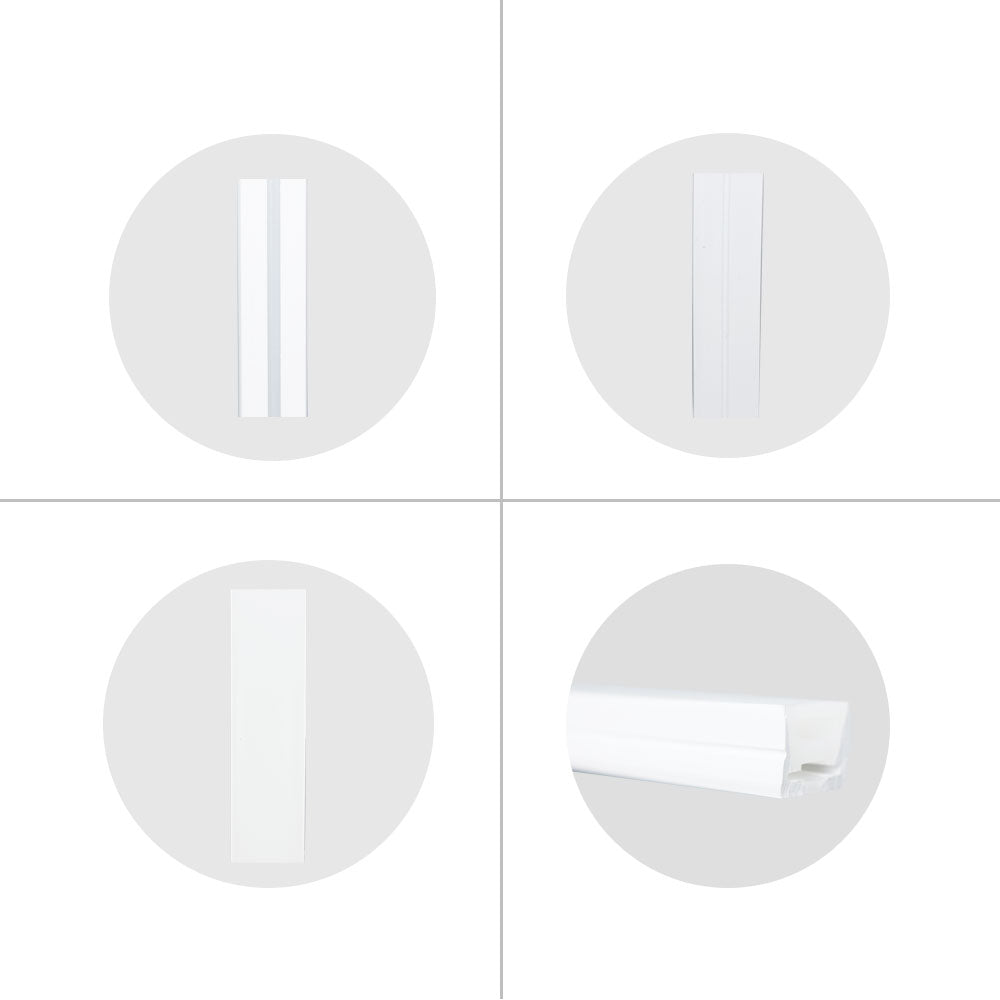

T1616 One Face Top Emitting LED Neon Light Housing Kit with End Caps and Mounting Clips, Flexible Neon Channel Fit for 10/12 Wide LED Strip Lights
* New Generation Silicon Tube Housing: Fire-proof Grade V0, High Temperature Resisitance -20 to 150 C degree
* Perfect Replacement for LED Aluminum Channel: Flexible, Longer Lengths available with no Black Area

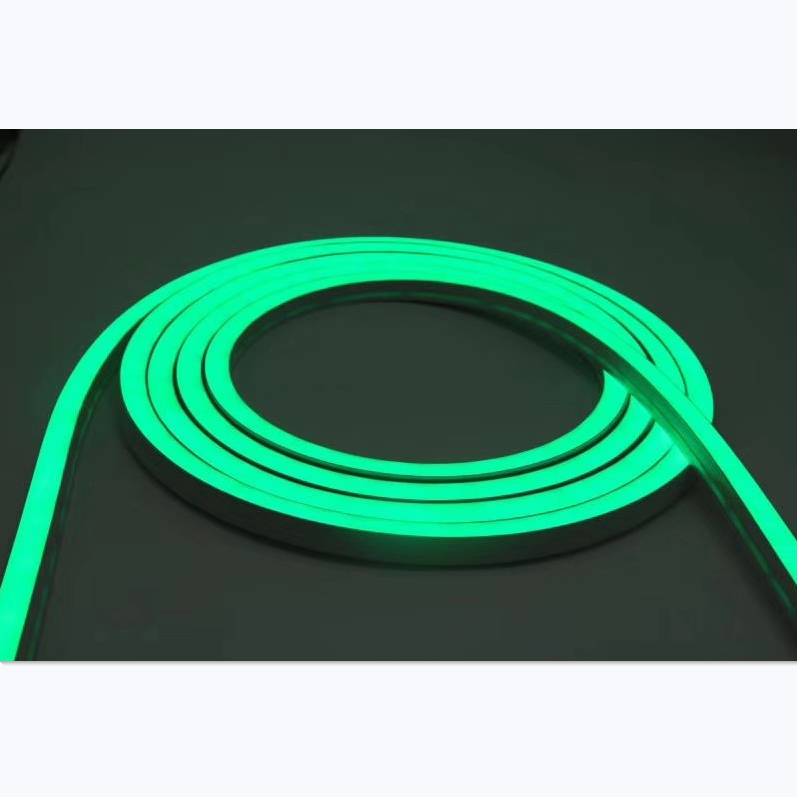

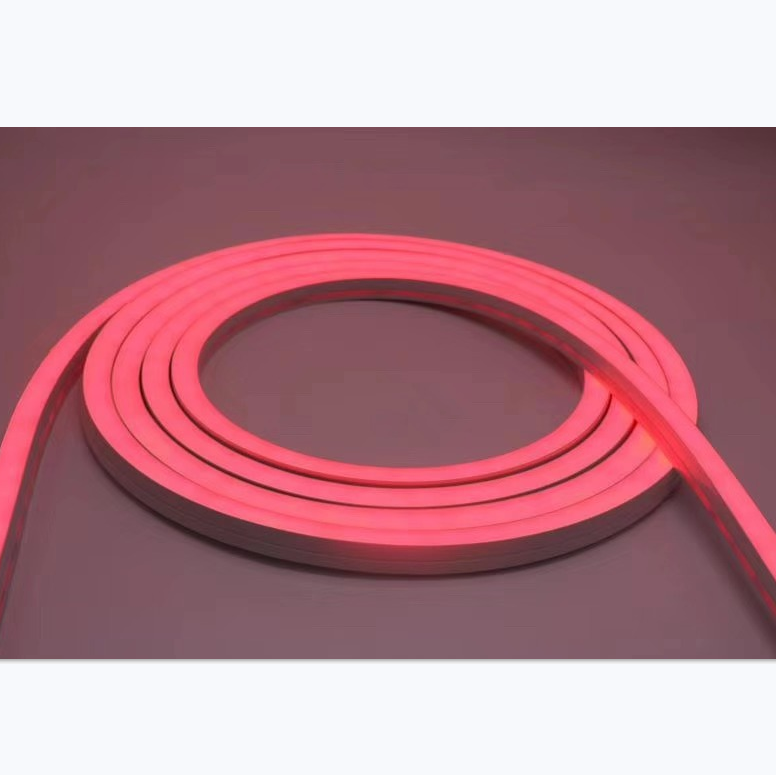

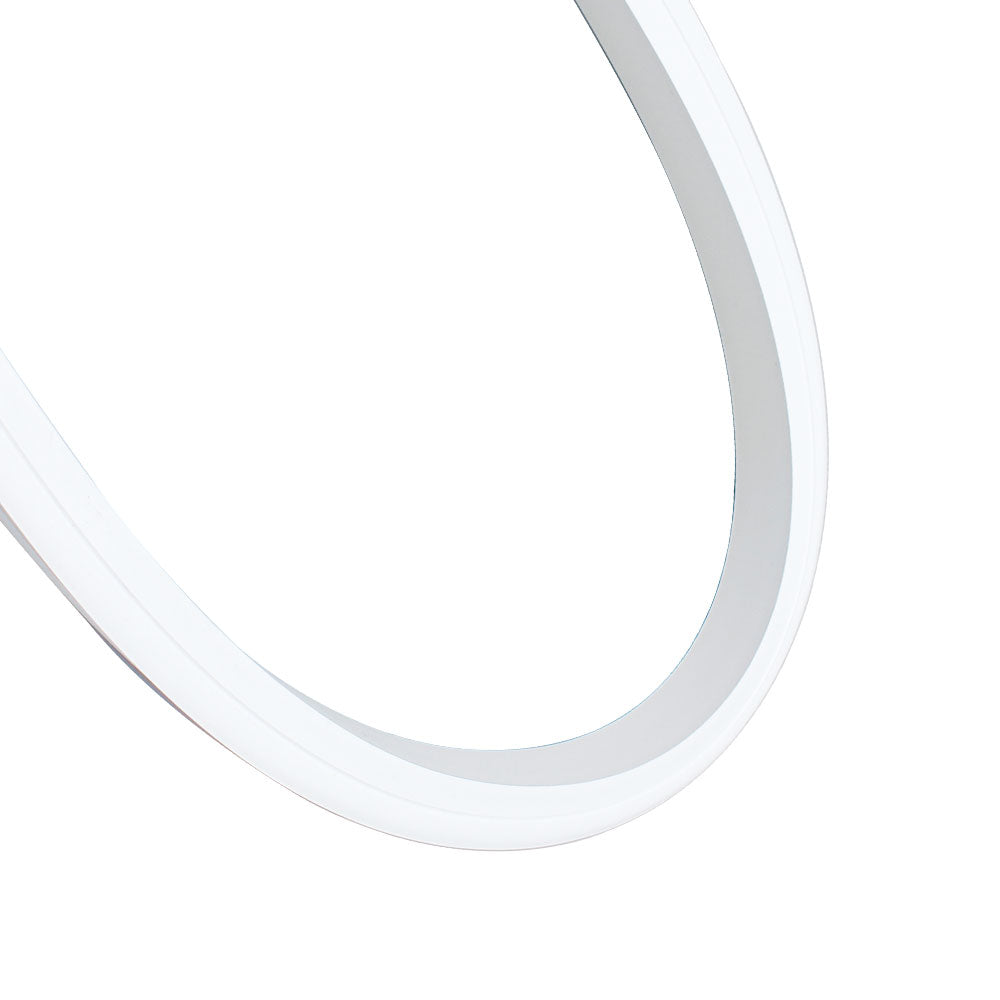

* Ideally for DIY Neon LED Sign or Letters: Easy to bend and make turning, protect well the LED strip inside
* Improved Light Transmittance: up to 60%-80%
* High Protection for LED Strips: IP67 Waterproof & Dust Proof
* Spotless Look Produced with Proper LED Strip Light Models

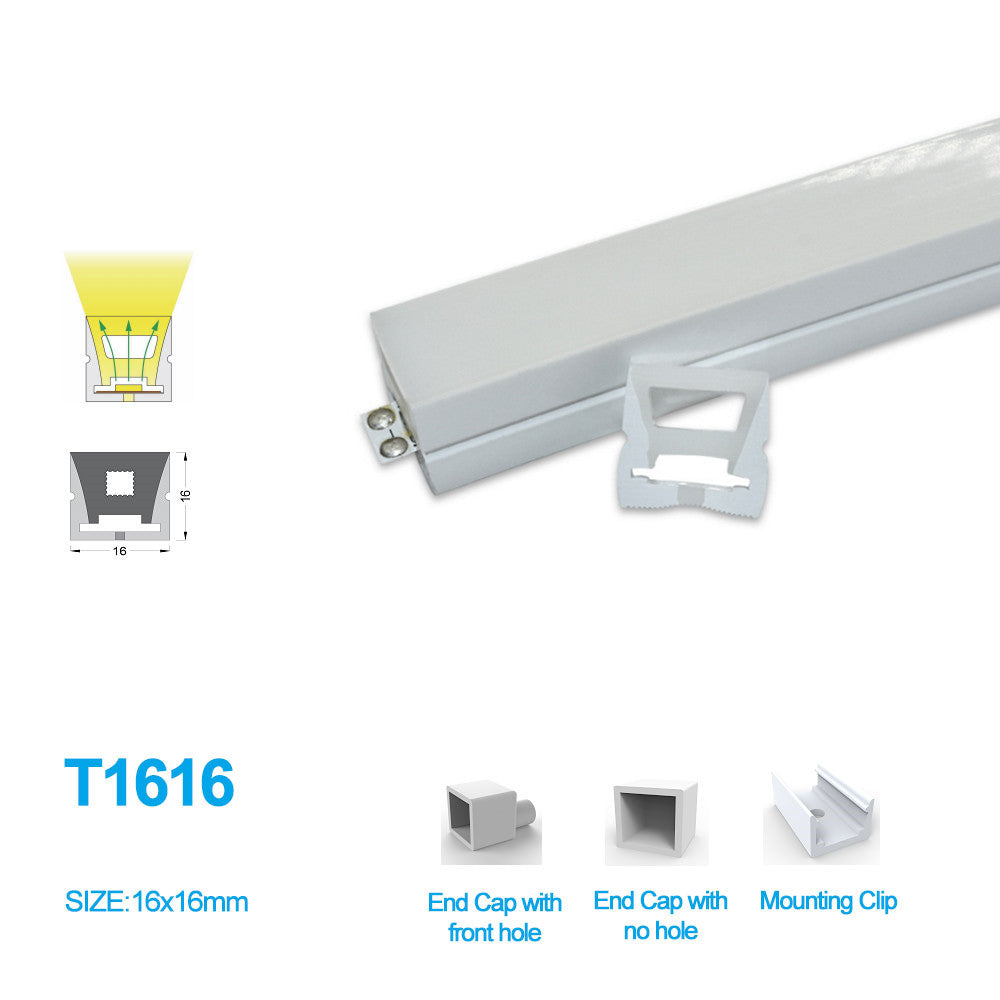

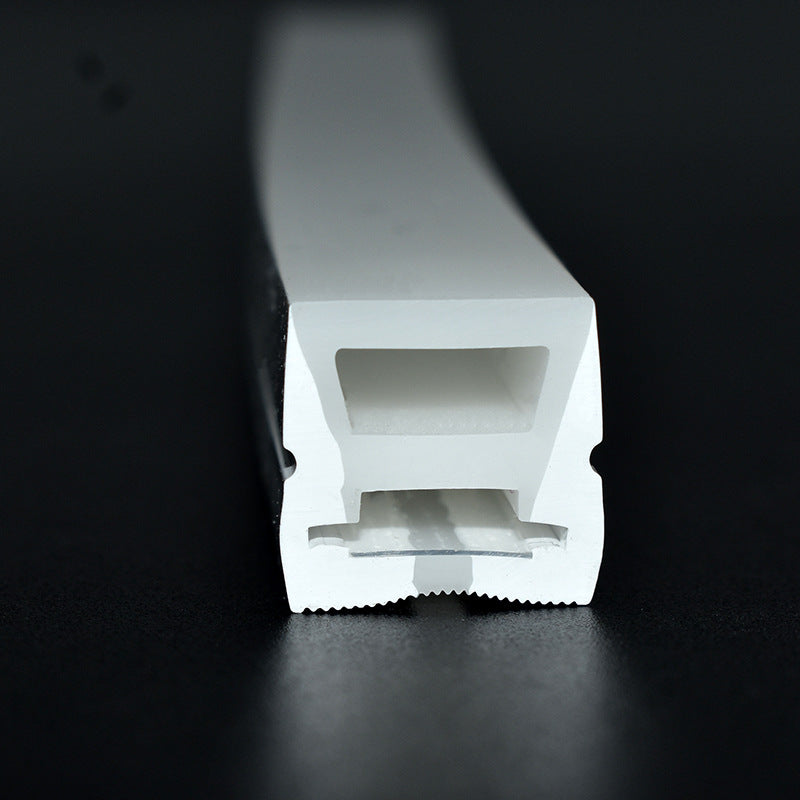

Size ( W*H):16x16 (mm)
Length Available: 1Meter Roll , 5Meter Roll, 10Meter Roll, 20Meter Roll Lighting Direction : Postive Lighting
Accessories per Meter Included: 1x End Cap (with Hole), 1x End Cap (with no hole), 3 x Mounting Clips & Screws
Fit for: 8mm wide LED Strip Light.
Waterproof Grade: IP67, get the end sealed with end caps with gel, it will reach IP67 Waterproof grade, ideal for any wet locations and outdoor applications.
1Meter Pack include:
1x 1Meter Neon Light Housing

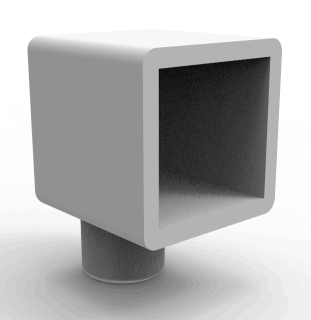

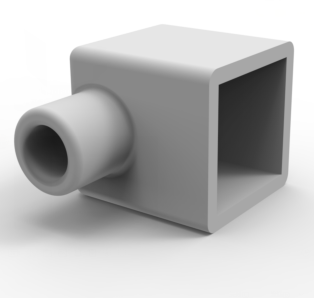

1x End Cap w/ hole

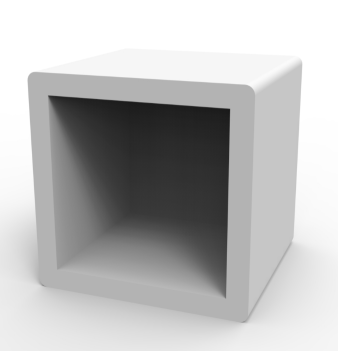

1x End Cap w/o hole
3x Mounting Clips & Screws
5Meter Pack include:
1x 5Meter Neon Light Housing
5x End Cap w/ hole
5x End Cap w/o hole
15x Mounting Clips & Screws
10Meter Pack include:
1x 10Meter Neon Light Housing
10x End Cap w/ hole
10x End Cap w/o hole
30x Mounting Clips & Screws
20Meter Pack include:
1x 20Meter Neon Light Housing
20x End Cap w/ hole
20x End Cap w/o hole
60x Mounting Clips & Screws

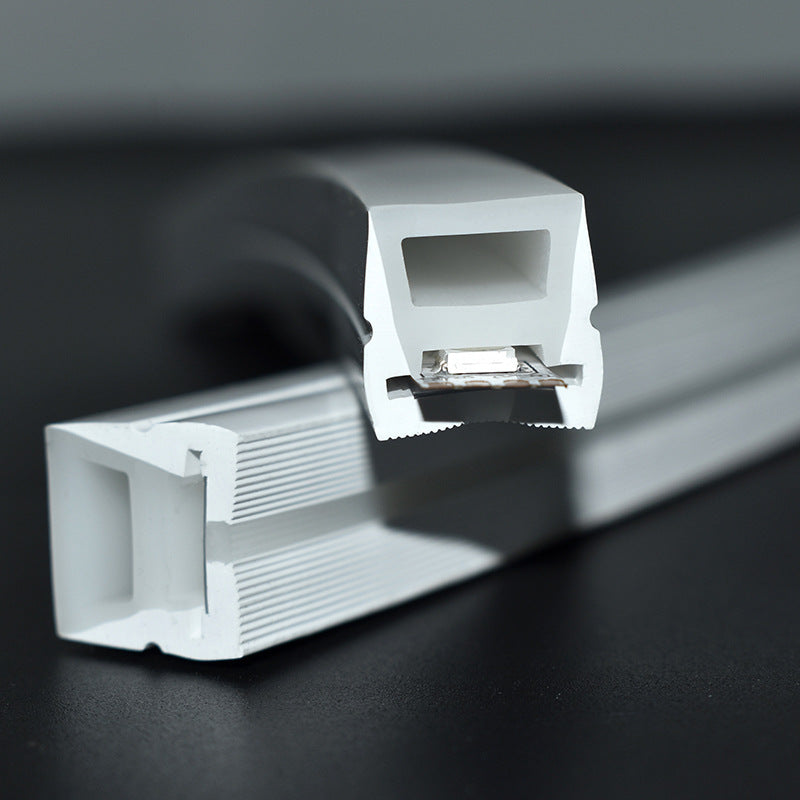

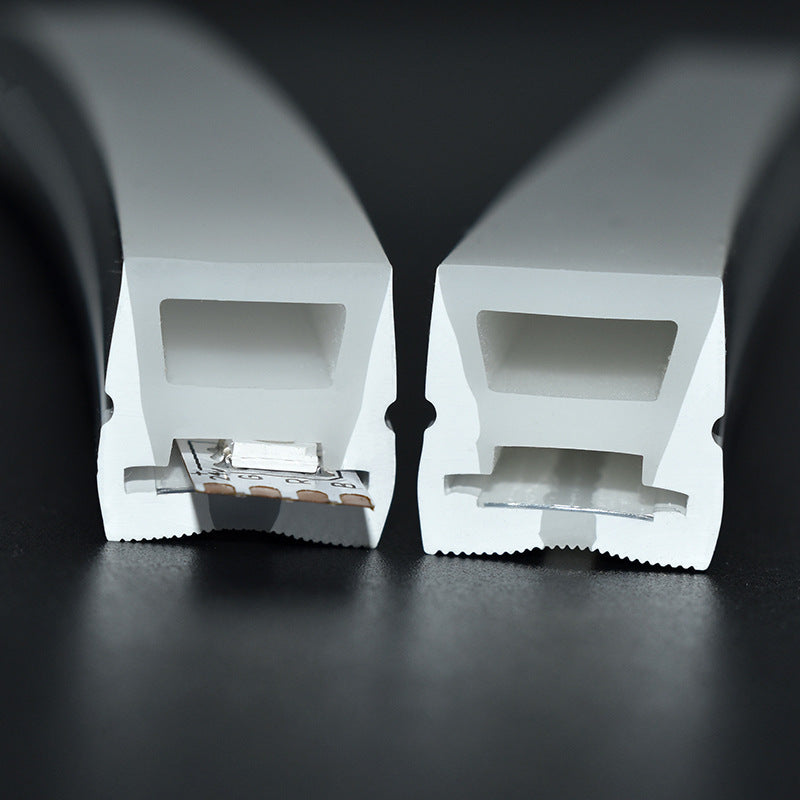

How to Put LED Strip Through The Tube
Tie the LED strip to the string in the channel and pull it into the channel slowly until the strip comes out on the other side.
You can also try to apply the lubricating oil or wax to the back of the strip to make it easier and more slippery to pass through the tube.
If do it manually, the max length can be done would be only 10meters long the max.

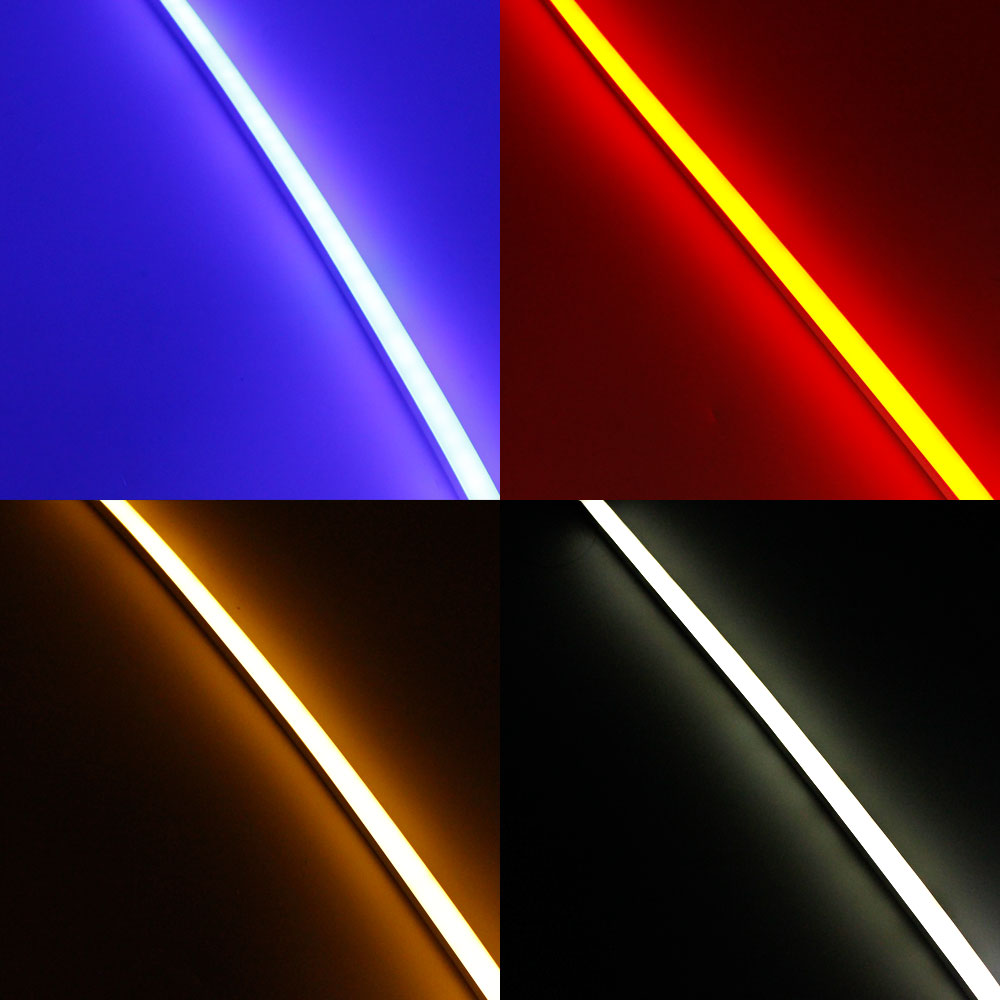

* We recommend to use high density LED strip lights, for example the 120LED/meter LED strips. It will produce a spotless look with more LEDs on the strip.
* The Neon Light Housing Lengths can be customzied to shorter and longer lengths. Please contact us for special need.
* When cut the Neon Light Housing, please pay close attention to cut it straight. Or to use special scissors. If the cut section is not flat, it will affect the seal with end caps.
Note: The LED strip light does not included in this unit, need to purchase separately !
