Description

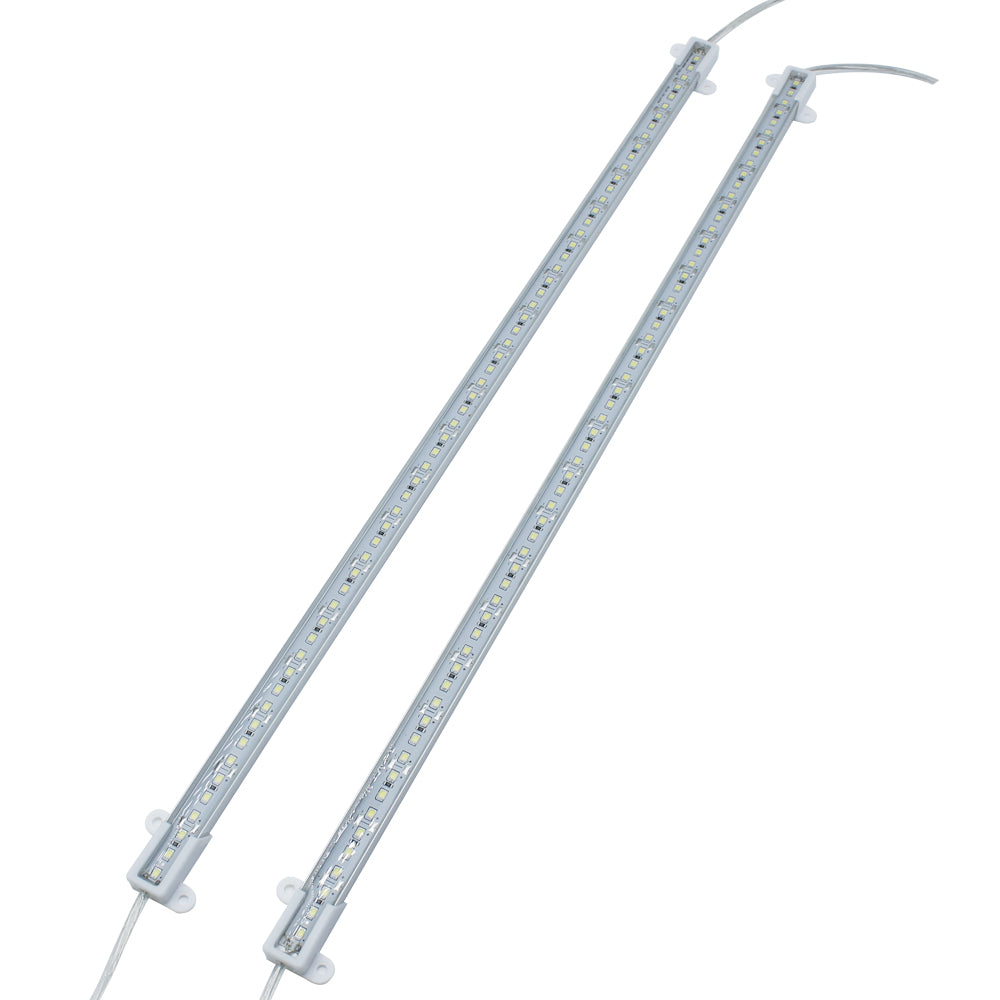

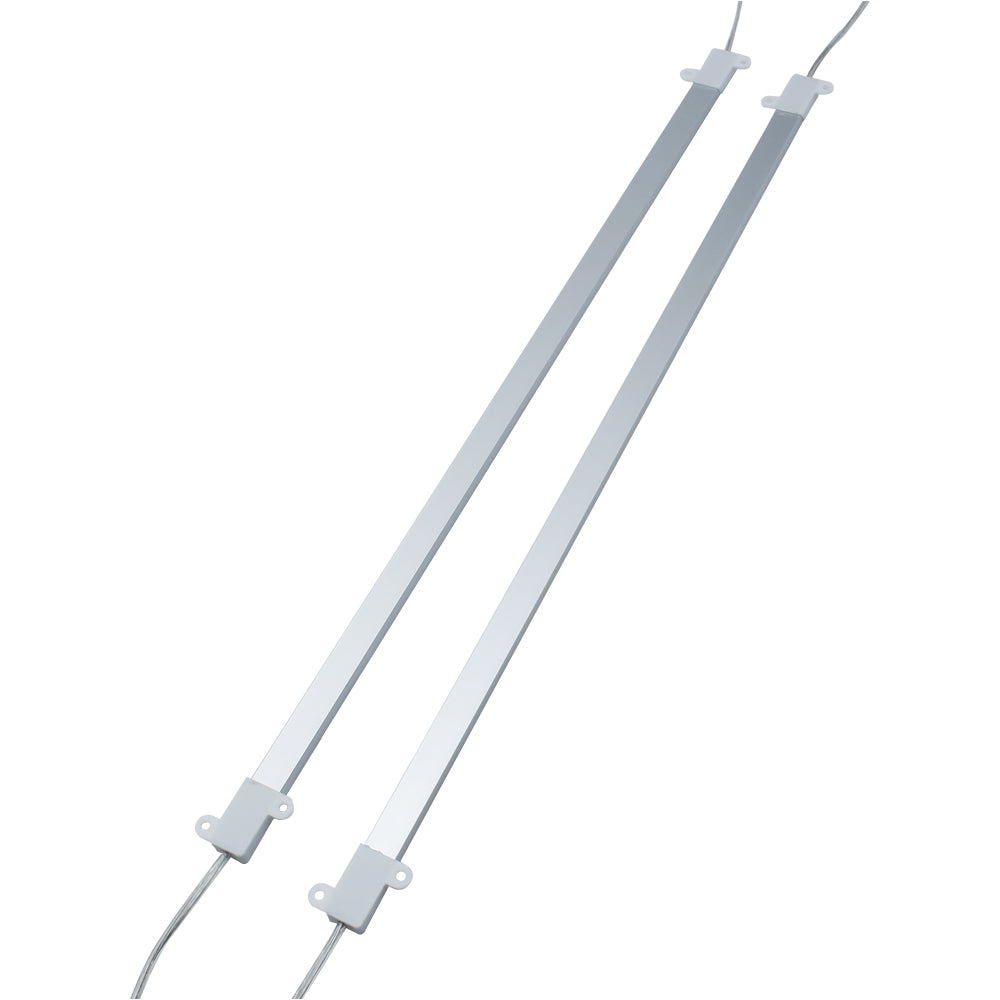

SMD2835 DC12V 50cm IP65 Waterproof Rigid LED Strip – 36 LEDs, 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm
| Technical Specification |
| Wattage | 4 |
Voltage | 12V DC |
| Beam Angle | 120° | Dimming | Yes |
| LED Type | SMD2835 | Strip Section | 3LED per 1.93inch |
| WxH | 14x7(mm) (not include end cap size) | LED QTY.: | 36LED/pc |
| Length Available | 500mm (customized length available) | Available Color | 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm |
| Protection Grade | Waterproof IP65 | Finish Color | Silver |
| Other Features |
| Item | 12VDC Waterproof IP65 SMD2835-36-IR Infrared 635nm, 660–670nm, 730–735nm, 810nm, 850nm, 940nm LED Linear Rigid Strip, 36LEDs 4W per piece |
| Weight | 150g/pc |

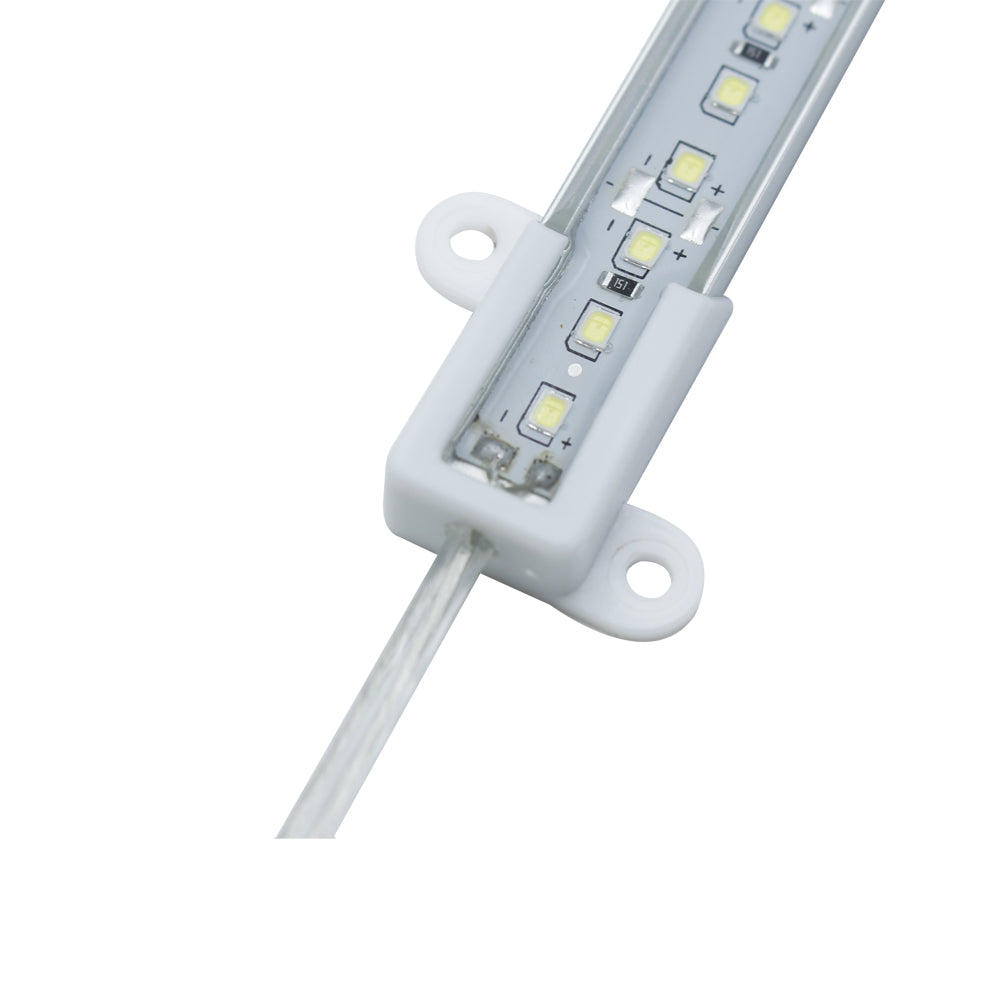

| Mounting | The light bar end cap with hole on it, can use screw that provided to fix on to object surface. |

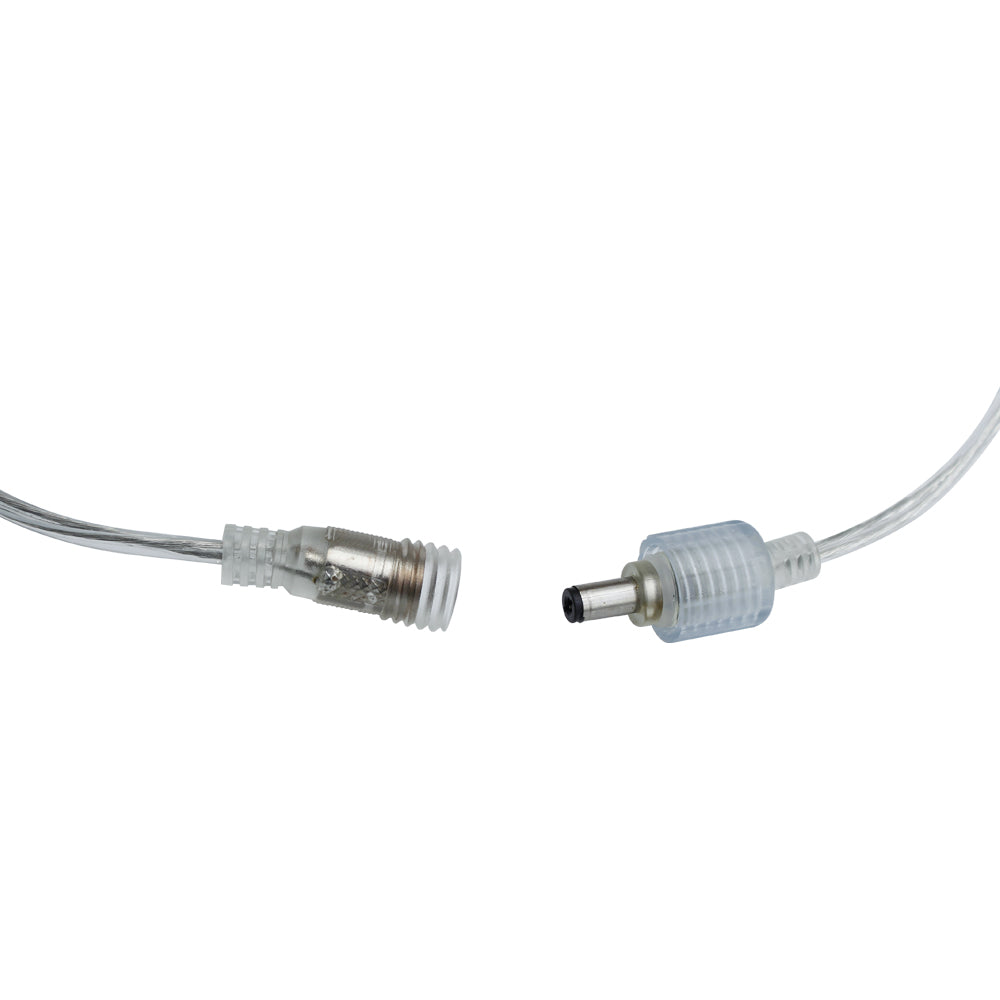

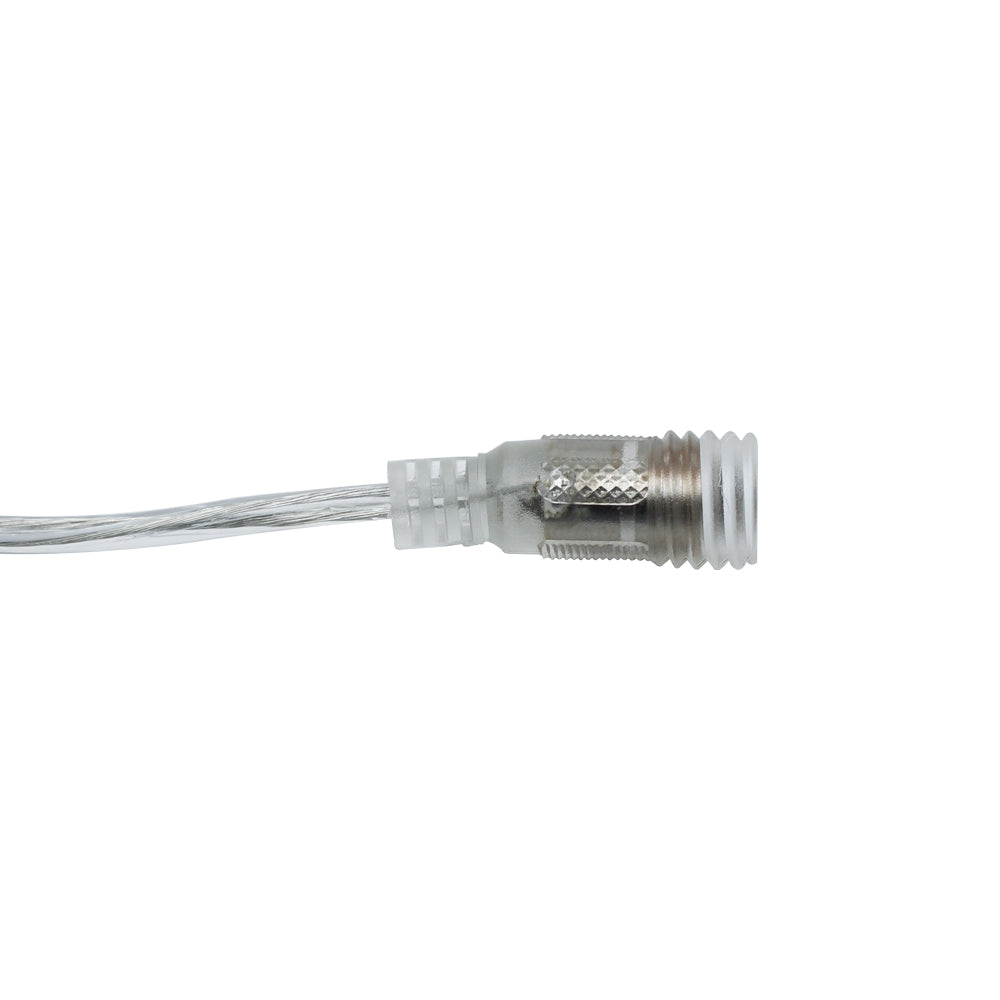

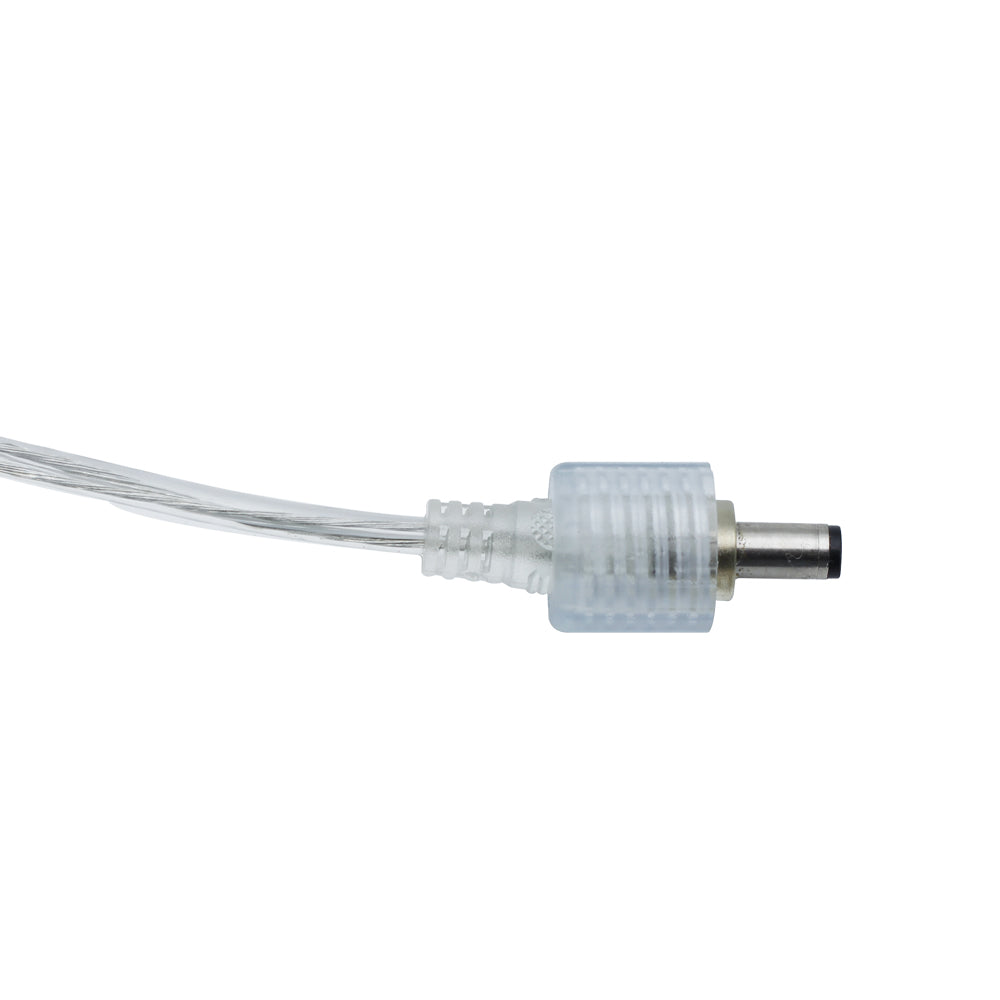

| Accessories | Solder with DC5.5x2.1*(mm) plug connector at both ends, one end with female, the other end with male. |
| Lead | V+ and V-, polarities sensitive |
Applications
*For surveillance or security
*For the multitouch display
*For Night Version Light
Features
*Can be cut into 3-LED segments
*Adhesive backing
*12VDC Operation
*Dimmable - See our Dimmer Selection
Safety Tips
*Always disconnect power supply before cutting/connecting LED Light Rigid Strips.
*Do not crimp or bend the Rigid Strips.
*Do not connect LED Rigid Strips. directly to 120V AC power.
*Apply power to test LED Rigid Strips before mounting.
Installation Planning
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
