Description
The combination of LED walls and immersive visual technologies is generating more and more surprises, reshaping the way of content creation and engagement with the audience. From studios to stages, from filming, broadcasting to live events and online education.

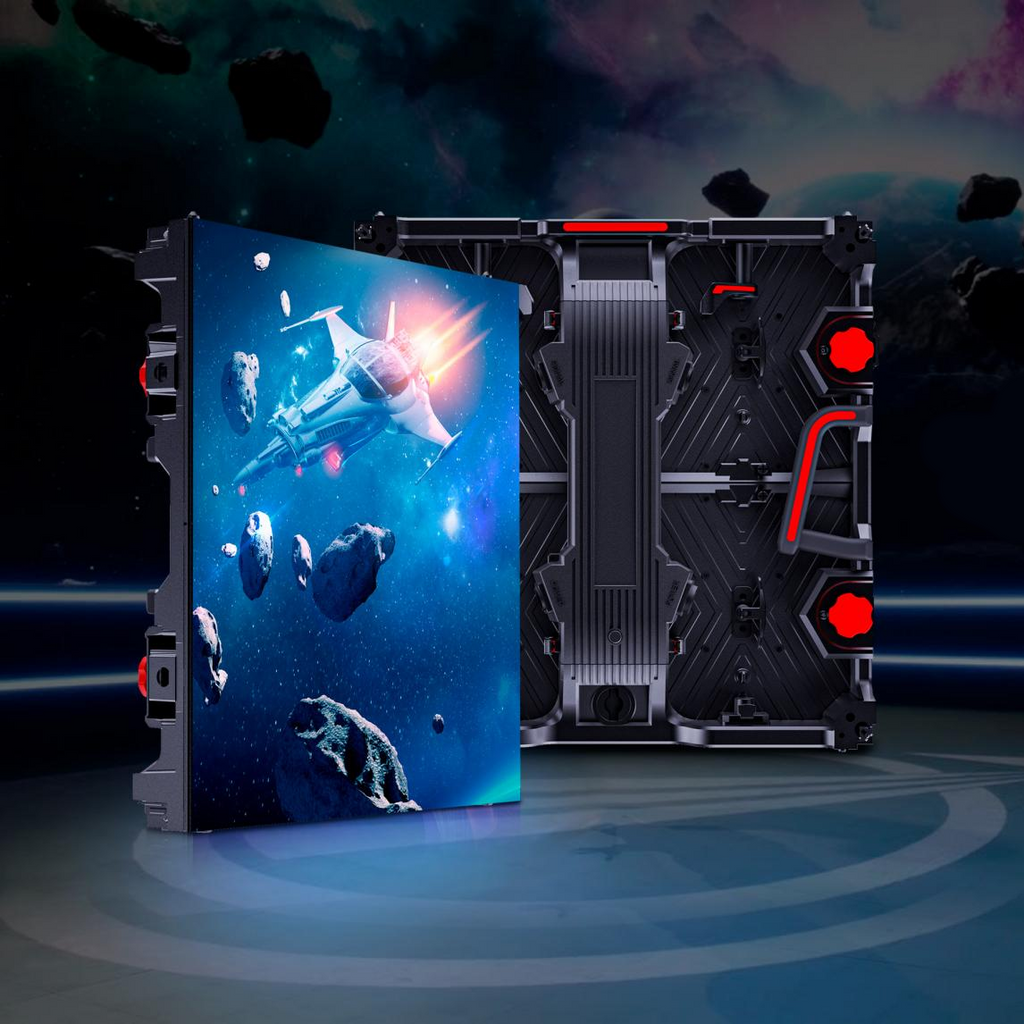

Specification of Background LED display screen wall for XR Virtual Application
|
Model |
KR1.9 |
KR2.3 |
KR2.6 |
||
|
LED |
SMD1212 |
SMD1515 |
SMD1515 |
||
|
Pixel Pitch (mm) |
1.9531 |
2.3148 |
2.6041 |
||
|
Density(dots/m²) |
262,144 |
186,624 |
147,456 |
||
|
Brightness﹙after calibrated﹚ |
≥1,200 nit |
≥1,200 nit |
≥1,200 nit |
||
|
Refresh rate﹙Hz﹚ |
7,680 |
7,680 |
7,680 |
||
|
Module size (mm) |
250×250 |
250×250 |
250×250 |
||
|
Module resolution(dots) |
128×128 |
108×108 |
96×96 |
||
|
Panel size (mm) |
500×500 |
500×500 |
500×500 |
||
|
Panel resolution (dots) |
256×256 |
216×216 |
192×192 |
||
|
Scan mode |
1/8 |
1/9 |
1/8 |
||
|
Gray degree﹙bit﹚ |
16 |
||||
|
View angle |
H160˚/V160˚ |
||||
|
Controller |
Brompton/NOVA |
||||
|
Frequency of frames﹙Hz﹚ |
23.5~240 |
||||
|
Max Power Consumption (W/m²) |
800 |
||||
|
Average Power (W/m²) |
267 |
||||
|
Panel weight (kg/pcs) |
8.5 |
||||
|
LED Failure rate(%) |
≤0.02 |
||||
|
Operation Voltage (V/AC) |
100~240 |
||||
|
Operation temp (℃) |
-20~+45 |
-20~+40 |
-20~+40 |
||
|
Operation Humidity (RH) |
10%-85% |
10%-85% |
10%-85% |
||
|
Storage Temp (℃) |
-10~+60 |
-10~+50 |
-10~+50 |
||
|
Storage Humidity (RH) |
10%-90% |
||||
|
LED life span |
100,000 hrs |
||||
|
IP Degree |
Indoor |
||||
|
Installation way |
Stand / hanging |
||||
|
Service type |
Front / Rear |
||||
|
Certificate approved |
CE、ETL、FCC |
||||
|
Arc degree range |
Inner arc 6˚~Outer arc 6˚ |
||||
|
Best Viewing distance (m) |
2.45~6.5 |
2.9~7.7 |
3.25~8.67 |
||
