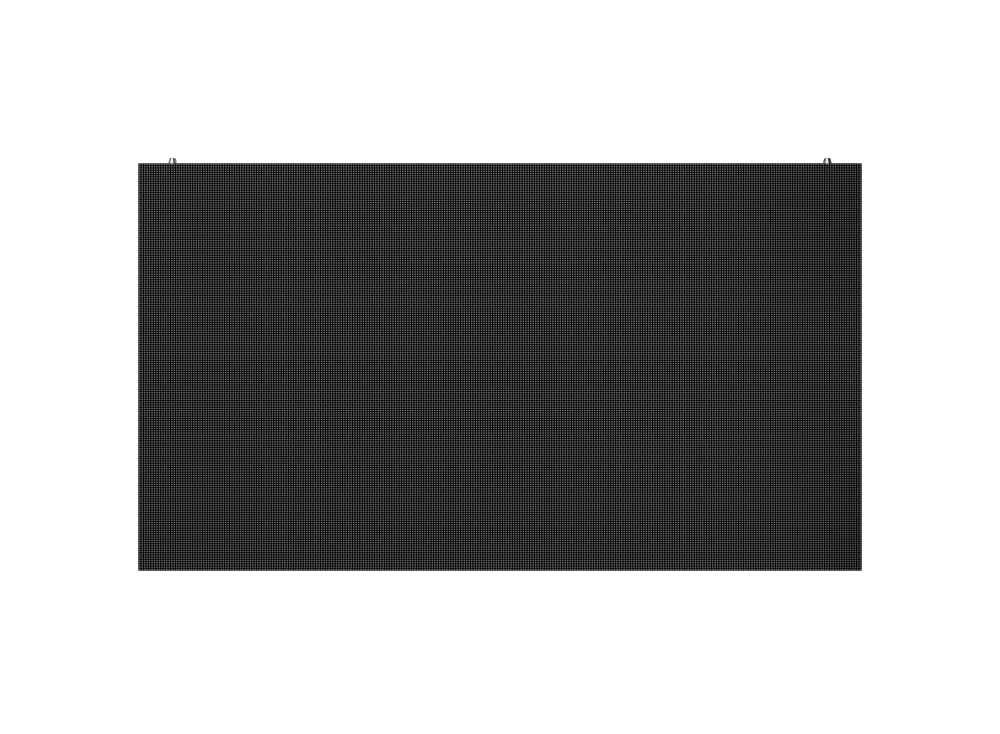

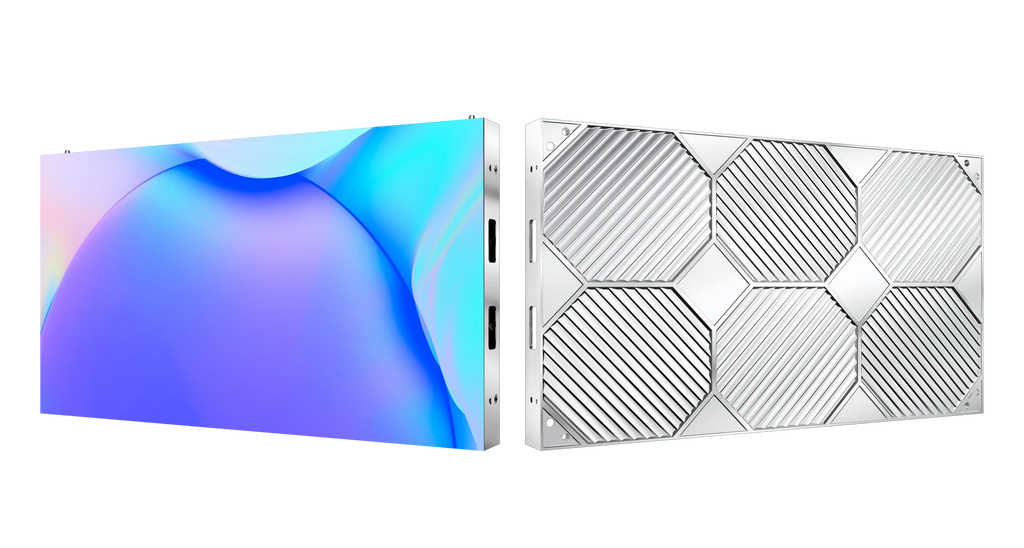

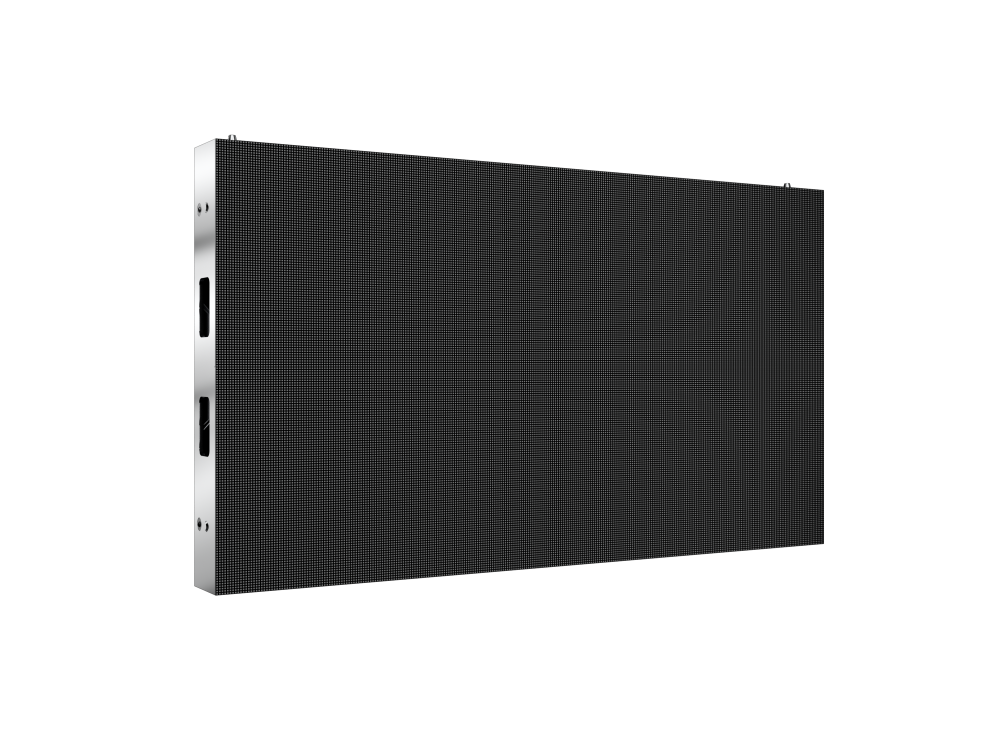

TrueHD-600 Series Indoor Fine Pixel in 0.93/1.25/1.56/1.875 mm LED Display 600x337 mm Aluminum Cabinet Small Pixel Pitch LED Display Screen


Available Pixel Pitch: 1.25mm
Price:
Sale price$18,999.00 USD

Description

TrueHD-600 Series Indoor Fine Pixel in 1.25/1.45/1.56/1.875/2.0 mm LED Display 600x337 mm Aluminum Cabinet Small Pixel Pitch LED Display Screen

Unit Price Here is per 1 Square Meter, Standard Version

Click to Download Full Catalog of Fine Pixel Pitch LED Display Screen



Features:
* Fine Pixel Pitch produce high resolution pictures
* IP30 at Front and Back
* 16:9 Aspect Ratio Cabinet Size 600x337.5mm
* 160 ° Wide Viewing Angle
* Intelligent Correction
* Double Backup of Power Signal
* Remove Colored Moire
* None-wire Connected Cabinet, More Humanized Design
* Front/Rear Installation; Front Maintenance



 TrueHD-600 Series Series Indoor LED Display Specification


PART NUMBER BREAKDOWN
HD600-1.25:  HD【Series Code : High Definition 】- 600【Cabinet length: 600mm】- 1.2【Pixel Pitch: 1.25mm】


Part No.:    HD600-1.25 |   HD600-1.45 |     HD600-1.56  |    HD600-1.87
Pixel Pitch:    1.25mm   |   1.45mm  |    1.56mm  |    1.875mm
LED:    SMD1010 |     SMD1010  |    SMD1010  |    SMD1515
LED Brand :   Standard: Kinglight/Huaguang etc.   Premium:Nationstar
Pixel Configuration:    1R 1G 1B
Wave Length:    R:620~625nm, G:520~530nm, B:460~475nm
Module
Module Size:    200*168.75mm |     200*168.75mm  |    200*168.75mm |     200*168.75mm
Module Resolution:    160*120  |    138*116  |    128*96  |    106*90
Module Pixles:    19,200dots |     16,008dots   |   12,288dots  |    9,540dots
Scan:    1/27  |    1/30 |     1/27  |    1/32
Cabinet/Panel
Cabinet Type:    Die-casting Aluminum
Cabinet Size:    600*337.5*63mm
Module Qty./Cabinet :   6 |  6  |   6  |   6
Cabinet Qty./㎡ :   4.94 |    4.94 |    4.94 |    4.94
Cabinet Resolution:    480*270 |   414*232 |  384*216  |  320*180
Cabinet Pixles:    129,600dots |   96,048dots |  82,944dots |  57,600dots
Pixel Density:     640,000dots/㎡   | 474,477dots  |  409,600dots   |   284,444dots/㎡
Power Consumption (W/㎡):      Max.850 Avg.285
Optical Parameter
Brightness:    800 - 1200 cd/㎡
Contrast Rate:     3000:1
Color Depth:    16bit
Grey Level :   16384
Refresh Frequency:    >3840HZ
Driving IC:    MBI/ICN
Color Uniformity:     ≥97%
Viewing Angle:     H:160deg.  V:160deg.
Blind Spot Rate:    ≤0.0003
Life span:    ≥100,000 hours
Physical Parameter & Operation Conditions
Cabinet Weight:    7.0Kgs
Protection Rating:    IP30
Operating Temperature:    -20°C ~ 60°C(-4°F ~ 140°F)
Operating Humidity :   10% ~ 90%
Input voltage:    AC100-240V
Power Supply:    Standard: CE*1  /  Premium:UL CE MeanWell *1
Controlling System:    Nova
Maintainance:    Front / Rear Installation; Front Maintenance
