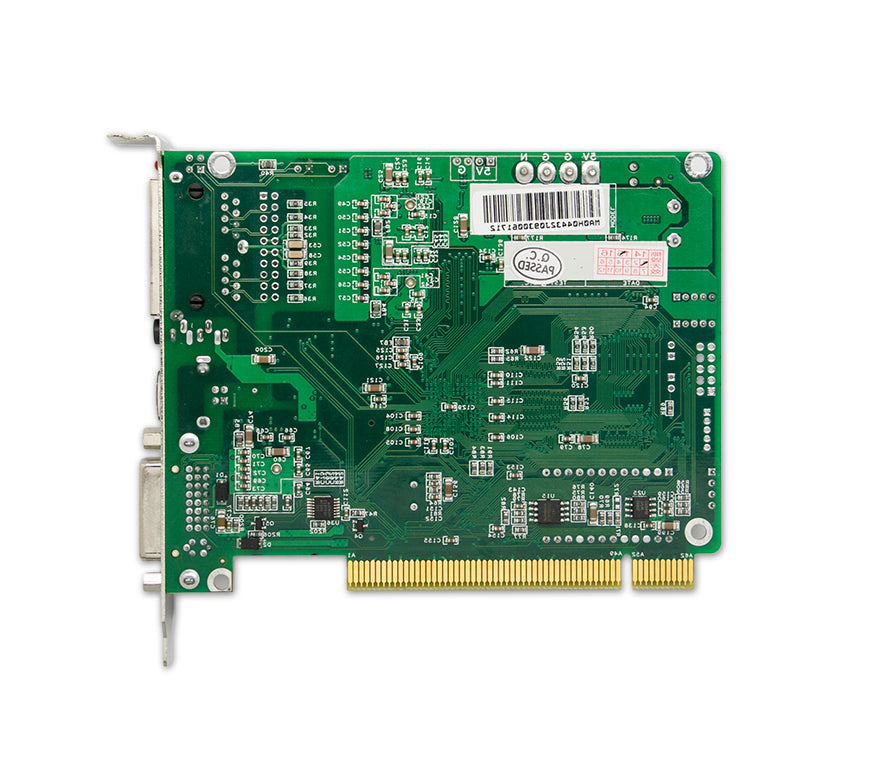

NovaStar MSD300 Sending Card – 1280×1024 Pixels | Entry‑Level LED Video Sender Card for LED Display Screens
Package Included
| Version | Package Included |
| MSD300-1 | MSD300-1 sending card |
About this item
- LED screen controller with DVI input and dual Ethernet outputs
- Supports up to 1920×1200 resolution for various LED module pitches
- Features USB cascade control and light sensor interface for stable performance
- Compact design with effective heat dissipation for long-term use
- Suitable for fixed, rental, and creative LED displays
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）
Key Specifications

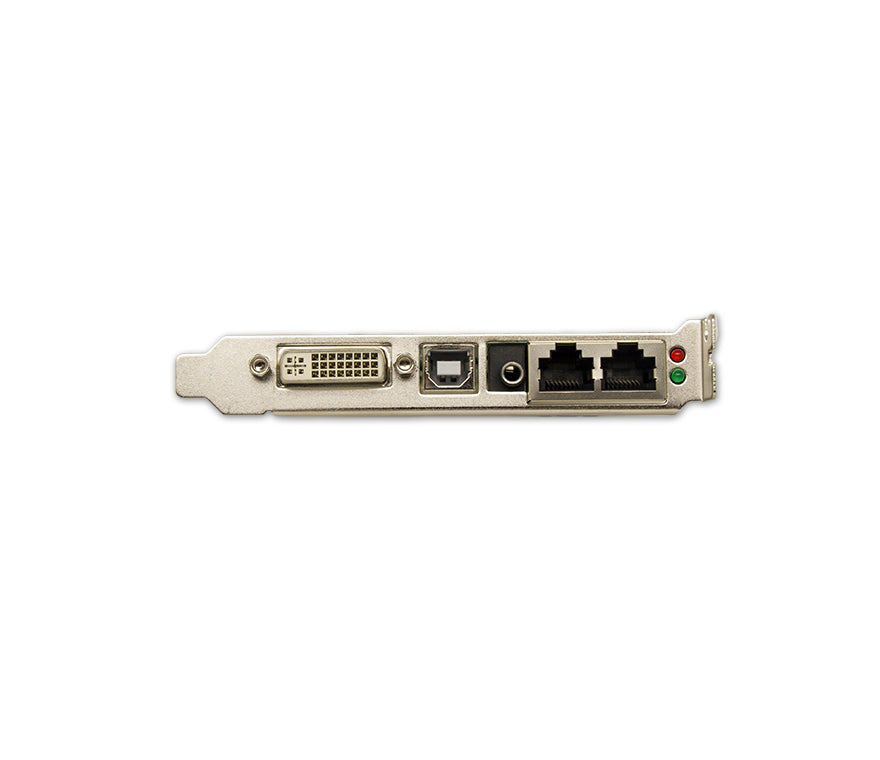

- Input Ports: 1× DVI video input, 1× audio input
- Output Ports: 2× Ethernet port output
- Supported Resolutions: Up to 1920×1200@60Hz
- Control Method: USB
- Power Supply: AC 100–240V
- Operating Temperature: -20°C to +60°C
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Technical Specifications
| Specification | Value |
| Capacity | 1.3 million pixels |
| Supported Resolutions (examples) | 1280×1024, 1024×1200, 1600×848, 1920×712, 2048×668; up to 1920×1200@60Hz |
| Video Input | 1× DVI |
| Audio Input | 1× 3.5 mm audio |
| Output | 2× Ethernet ports |
| Control | USB (supports cascade control) |
| Light Sensor | 1× light sensor interface |
| Power Supply | AC 100–240V |
| Operating Temperature | -20 °C to +60 °C |
Applications
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
