Description
S Shape Bendable LED Strip Light | SMD2835 | 6000K / 4000K / 3000K / Red / Green / Blue / Yellow / Pink | 120 LEDs/m | 12V DC | 6W/m | 6mm PCB | 5m Roll | Flexible for Curves & Signage
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 100 Rolls × 5 m (1640 ft total) (Strip Only) | 100 Rolls × 5 m (1640 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
Order & Logistics:
- Lead Time: Typically 1–3 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:
-

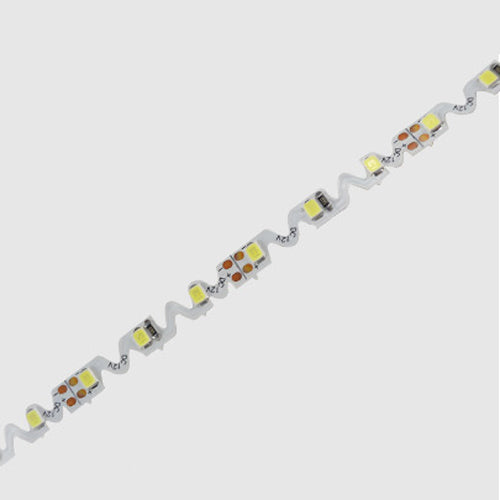

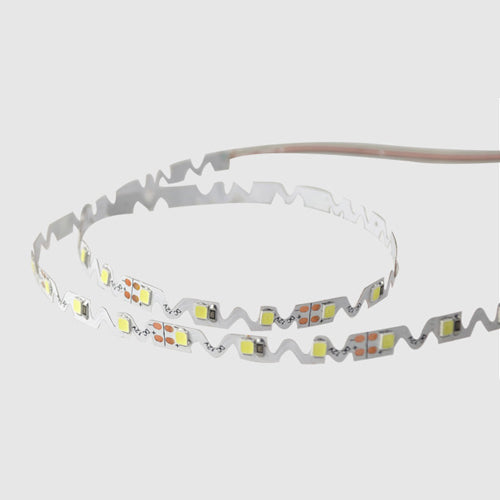

Bendable “S” Design – Special S-shape PCB allows flexible bending for curved surfaces, letters, logos, and creative signage applications.
-
Multiple Color Options – Available in white tones (6000K, 4000K, 3000K) and vibrant colors (Red, Green, Blue, Yellow, Pink) to meet diverse lighting needs.
-
High LED Density – 120 LEDs per meter ensure uniform brightness and smooth lighting with no dark spots.
-
Energy Efficient – Consumes only 6W per meter at 12V DC, delivering high brightness with low power consumption.
-
Easy Installation – Compact 6mm PCB design fits narrow spaces; available in 5m rolls with bulk package options for larger projects.
Technical Specifications Table：
| Specification | Details |
| Model | S Shape Bendable LED Strip Light |
| LED Type | SMD2835 |
| Color Options | 6000K / 4000K / 3000K / Red / Green / Blue / Yellow / Pink |
| LED Density | 120 LEDs/m |
| Power Consumption | 6W per meter |
| Input Voltage | 12V DC |
| PCB Width | 6mm |

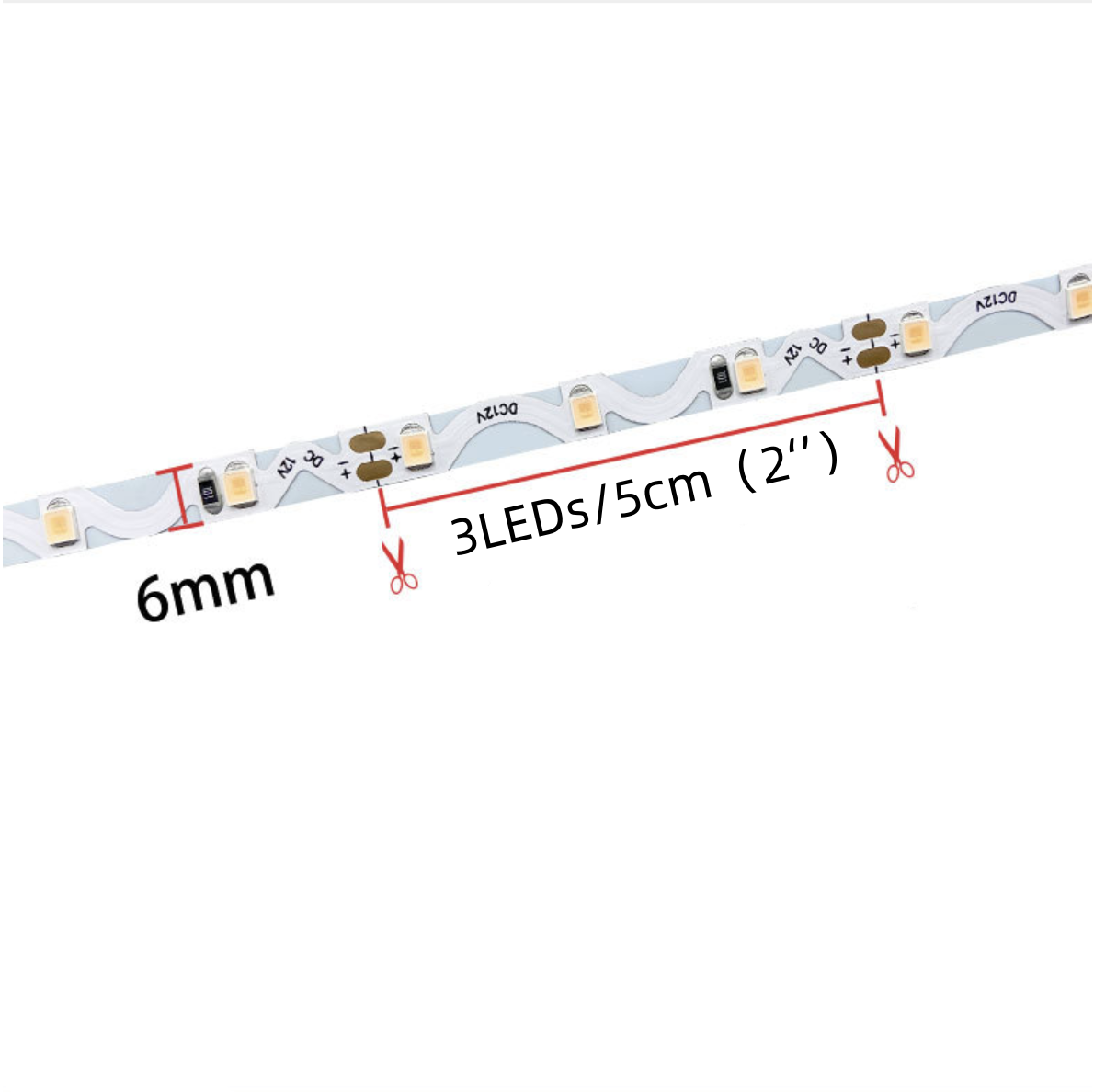

| Cutting Unit | Every 3 LEDs per 5cm (2'') |
| Roll Length | 5m (16.4 ft) per roll |
| IP Rating | Non-Waterproof (IP00) |
| Package Options | 1 Roll × 5m / 20 Rolls × 5m / 100 Rolls × 5m |
| Application | Curved signage, channel letters, decorative shapes, creative displays |
Application

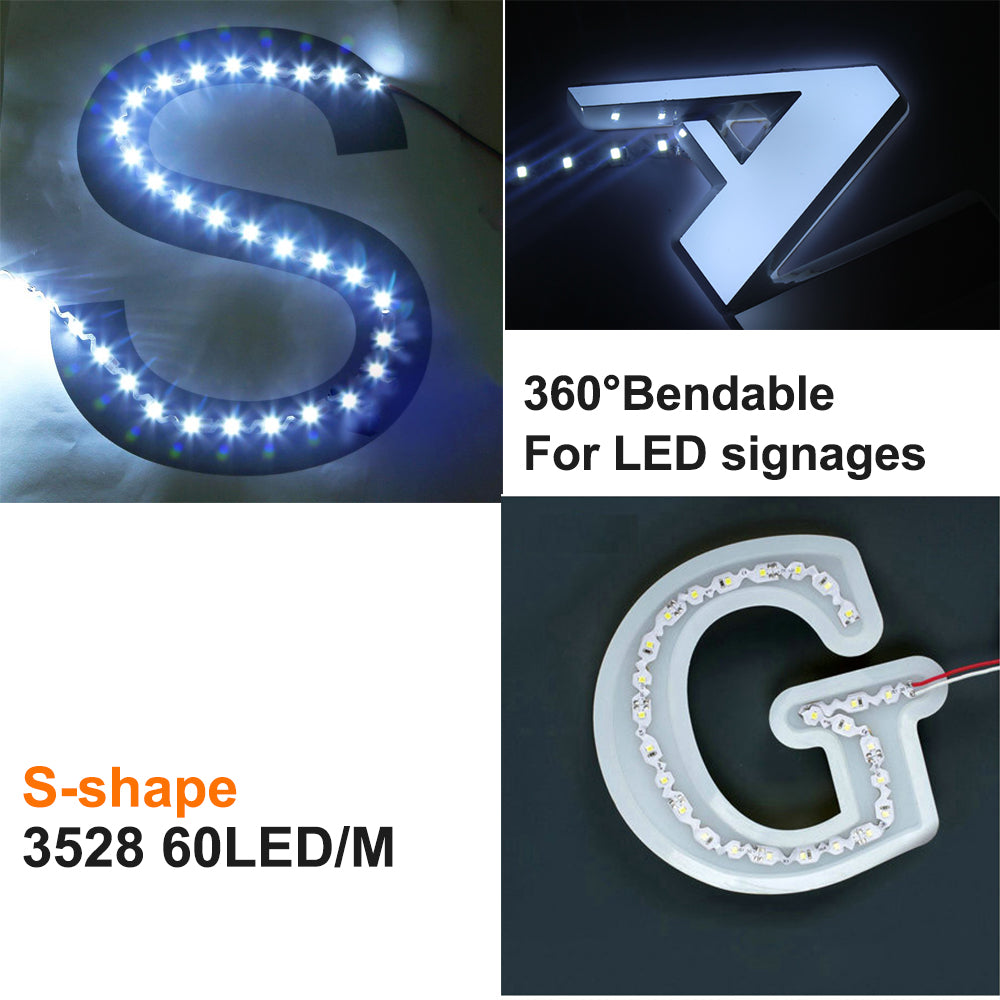

- Illuminating slim light box, channel letter, signage, cove lighting.
- Lighting sources for super market, home, showcase, shop.
- Hotel decoration.
- Other lighting projects.
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
And a big power transformer do no harm to the strip but good for safty.
Below please find the connection diagram for Single Color Light Strip for reference.
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
