Description
19.68FT by 9.84FT (6x3 Meters) Portable Rolling LED Display Screen P2.604 LED Video Wall Turnkey
NOTE: The price in this page, the shipping include is by SEA +delivery, 35-40days in transportation. If need fast shipping by AIR, please help to contact for cost.
| SPECIFICATION | |
| Mode | GOB-R2.604-18SQM |
| Pixel Pitch | 2.604mm |
| Screen Size | 19.68FT by 9.84FT - (H) 3m X(W) 6m |
| Screen Area | 18m² |
| LED Configuration | SMD1515 |
| Pixel Density | 147456 dots/m² |
| Module Size | 500x62.5 (mm) |
| Module Resolution | 192x24 |
| Screen Resolution | 2304x1152 |
| Scan Mode | 24S |
| Brichtness | 700~1000nits |
| Viewing Angle | 140° |
| Color Depth | 12-16bit |
| Colors | 4096 -65,536 |
| Refresh Frequency | 3840HZ |
| Thickness | 30mm |
| Weight: | 15KG/SQM |
| Controller | Sending Box NOVASTAR VX600 |
| IP rating | IP65(front)/IP21(rear) |
| Application | Indoor or dry location |
| Input Voltage | 100-240V AC |
| Max. Power Consumption | 510 Watt/m² |
| Avg. Power Consumption | 170 Watt/m² |
| Life Span | 100,000 Hours |
| Maintenance Way | Front /rear |
| PACKAGE INCLUDED | |||||||||||||
| # | Item | QTY. | Unit | ||||||||||
| 1 | P2.604 Rolling Floor LED Screen body (W6*H3m) | 18.0 | m2 | ||||||||||
| 2 | Power Supply -QianYuan-2000W-24V with suitcase | 6 | pcs | ||||||||||
| 3 | Sending Box NOVASTAR VX600 | 1 | pcs | ||||||||||
| 4 | Hanging Bar (aluminum 1meters/pc) | 6 | pcs | ||||||||||
| 5 | Left and right splice strips | 5 | set | ||||||||||
| 6 | Flight Case | 3 | pcs | ||||||||||
| SPARE PARTS | |||||||||||||
| # | Item | QTY. | Unit | ||||||||||
| 1 | Module | 18 | pcs | ||||||||||
| 2 | Receiving Card | 6 | pcs | ||||||||||
| 2 | 24V Cable | 2 | pcs | ||||||||||
| 3 | Flat Cable | 40 | set | ||||||||||
| 4 | Signal Cable | 4 | set | ||||||||||
| 5 | Left and right splice strips | 2 | set | ||||||||||
| 6 | Configuration File | 1 | set | ||||||||||
Rolling LED Display Screen Catalog
FEATURES
- Fine pixel pitch: P2.604: Small pitch pixel ensures the HD display,higher contrast and more realistic colors
- GOB Technology (IK10 &IP65) : Surface safty with IK10 anti-collision grade and IP65 Waterproof grade,also with Non-slip mat and anti-reflection.And high visual performance (with high contrast LED for uniform visual performance in black)are considered.
- Built-in receiving card: save space.
- 6063 Aluminum module case : Aluminum case adopts stretching process,which makes sure the accurate size and have the best heat dissipation from the LED.
- Low voltage input : :Low voltage 24V/DC input for every unit screen ensures safer use.
-

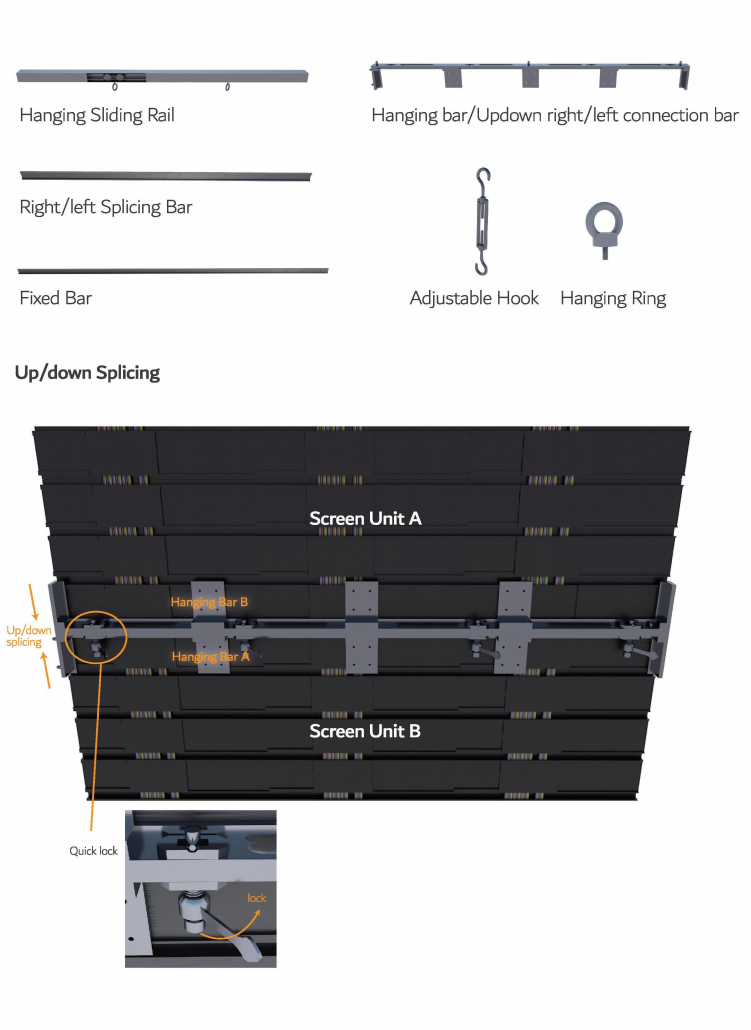

Free installation and easy maintenance : lts simple structure allows for easy installation and quick maintenance. Hanging, ideal for overhead truss system, a
ceiling grid, a crane, or other support structure from above.; Wall Mountable, stickable compatible surface.
- Low voltage input ：Low voltage 24V/DC input for every unit screen ensures safer use.
 |
 |
 |
 |
