New Generation M-WF series P3.2 (3.2mm) Outdoor Waterproof LED Module, 3.2mm Pixel Pitch Full RGB LED Panel Screen in 256* 128 mm with 3200 dots, 1/20 Scan, 4500 Nits For Outdoor Display
* New Generation: with a re-designed silicon base for LED module, all the data cable and power cable interfaces be shelled from water, completely waterproof LED Tile!
* Outdoor Waterproof IP65 Rated! With surface and back be covered by special gel, the LED Module can be used outdoor.

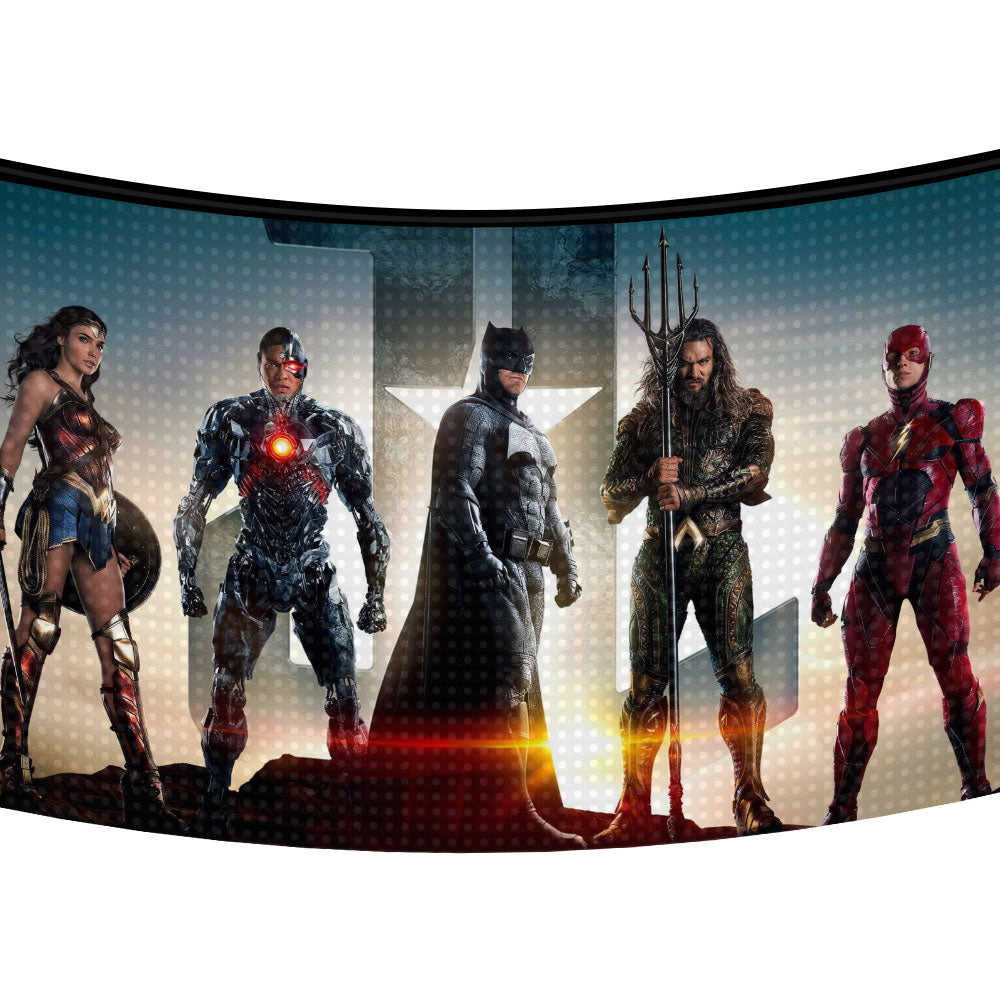

* Flexible LED Tiles can be bent into concave and convex with a radian around 150 degree
* Ideal for customizing outdoor and irregular LED display screen
* More Elaborate Performance! The pixel pitch of this outdoor module is only (4mm), smooths the image on screen, and shows more details. (10scans) per seconds, provides great dynamic expression.
* Bright and Even for Long Usage! This display screen provides a brightness of (4500 Nits) and could be automatically adjusted according to the changes in surroundings. Less lumen depreciation than LCD and DLP display, guarantee the even performance in long time usage!
* Vivid Visual Experience! Bigger view angel(140°-160°) with digital RGB chip could provide a great visual of color, plus its scanning rate of 1/10, could almost bring you the real scenery.
* A Whole Screen! This module could be seamlessly spliced, not like LCD or DLP display. It looks like a whole screen but LCD or DLP display has terrible black cracks on the screen.
* DIY with Widely Usage: It has so many combinations to fit your situation. [Tips for Customers: Need the cooperation of receiving card, sending a card, software, and DC 5V power supply to work. Make sure you know about this product and the parts before you buy it.] If you have your plan of display, please feel free to contact us!
Pixel Pitch: 3.2mm
Module Size: 256*128mm
Module Resolution: 80*40
Module Pixles: 3200dots
Viewing Distance: >3m
Pixel Configuration: 1R 1G 1B
Contrast Rate : 3000:1
Color Depth: 16bit
Grey Level: 16384
Refresh Frequency: >3840HZ
Driving IC: MBI/ICN
Color Uniformity: ≥97%
Protection Rating: IP65
Life span: ≥100,000 hours
Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
Operating Humidity: 10％ ～ 90％
Viewing Angle: H:160deg. V:140deg.
Power Consumption(w) : Max. 40W
Blind Spot Rate: ≤0.0003
1 * Power Cable
1 * Data Cable
1 * P3.2 256*128mm RGB full color LED display module
