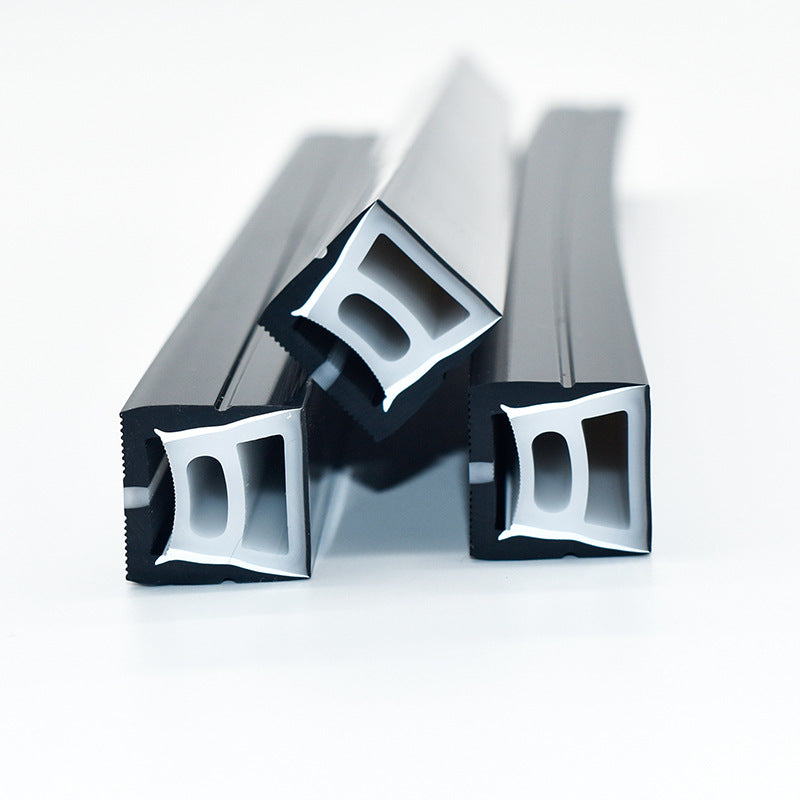

16.4FT(5Meters) 16*16mm 120° Top Emitting IP67 Waterproof Flexible Full Black Silicon LED NEON Tube Housing Fit for 10mm Wide LED Strip Light
About this item
* Flexible & Easy to cut - 100% made of silicone. Can be bent in different shape you want freely and cut to the length you need.
* All Black Housing & Anti-dazzle – Four colors in one extrusion technology helps the luminous surface for anti-dazzle & better lighting.
* Fit for less than 10mm LED light strips (like 2835/5050). Waterproof led light strip is not applicable.
* IP67 Water & Dust resistant - (The end caps should be glued with sealant if used in moisture environment.) Rainproof and can be soaked in water for a short time ( Can not be soaked for a long time).
* Easy to Install - Fasten the LED strips to the string in the channel and pull it into the channel until the strip come out the other side. End caps and brackets are included. Can mount on surface or install recess into the wall.
* Wide Application - Achieve under-cabinet and back splash lighting, accent lighting and decoration lighting with ease. Can be widely used in kitchen, cabinet, patio, living room and temporary use of outdoor parties etc.
- Total length: 5M/16.4Ft
- Color: All black (integrated one piece)
- For Strip Width: ≤10mm
- Beam Angle: 120 degree
- Material: 100% Silicone
- Waterproof: IP67
- Light Source: SMD 2835,3528,5050, etc.
- Outside Dimensions: 16 x16 mm
- Working Temperature: -20~50 °C.

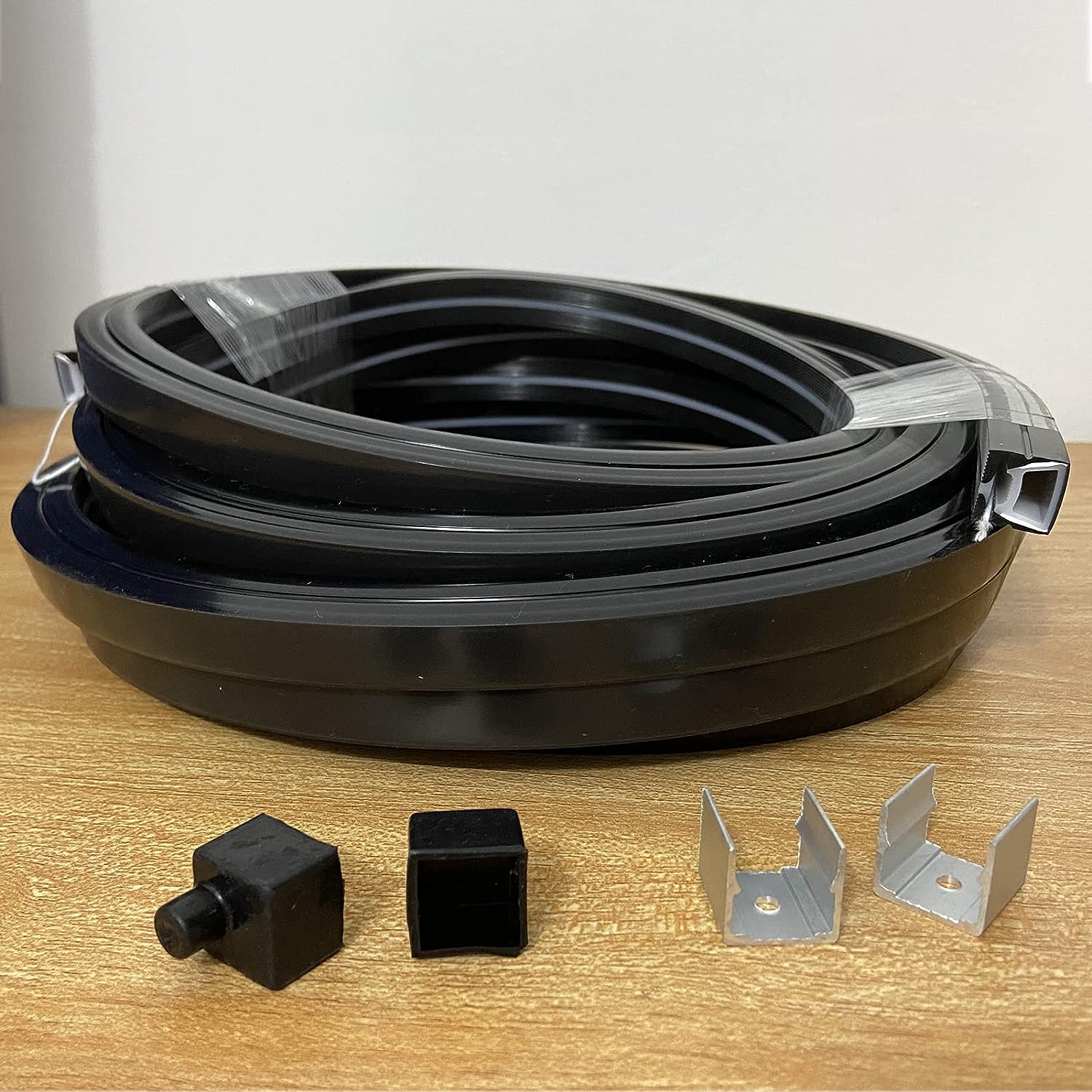

5Meter Pack include:
1x 5Meter Neon Light Housing
5x End Cap w/ hole
5x End Cap w/o hole
15x Aluminum Mounting Clips
How to Put LED Strip Through The Tube

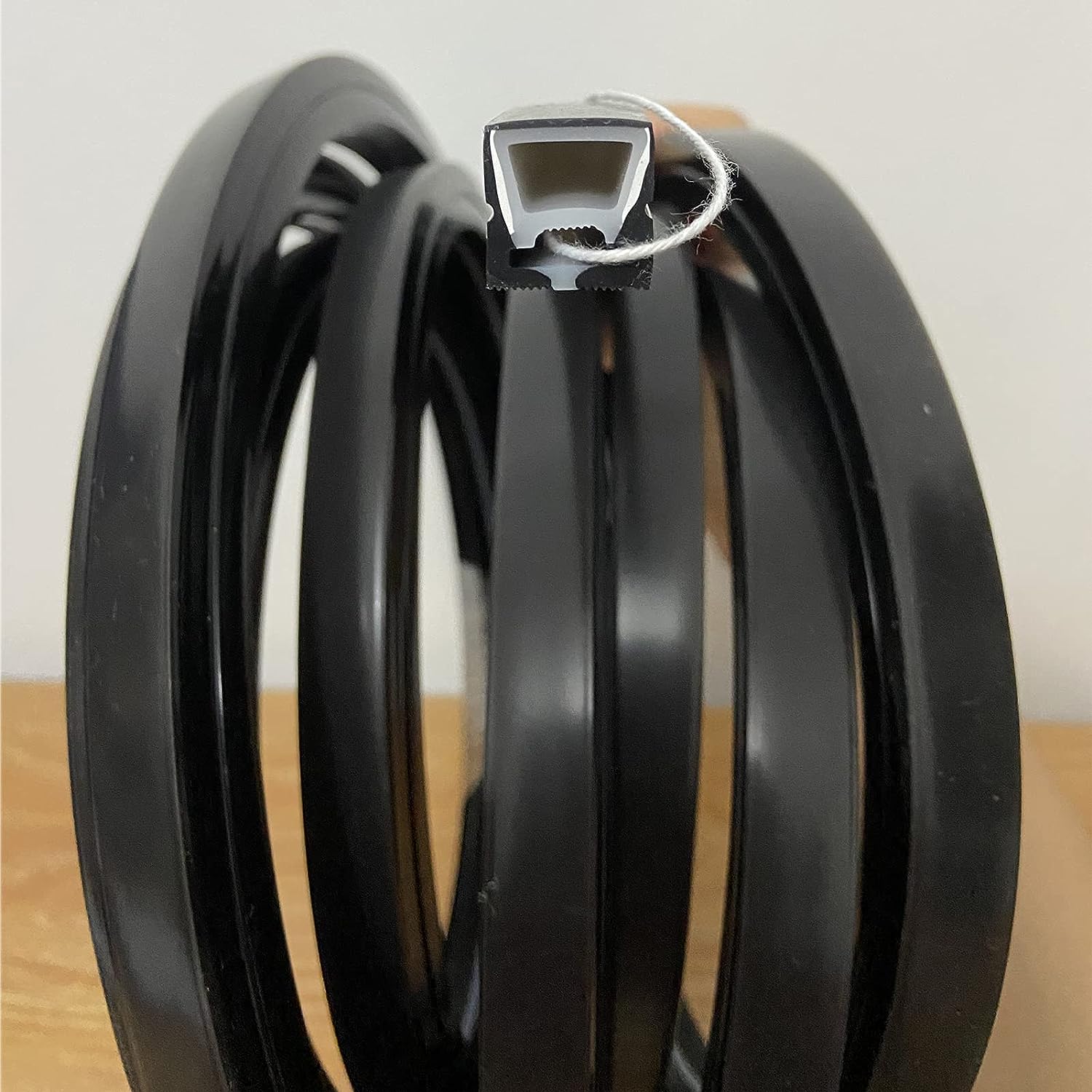

Tie the LED strip to the string in the channel and pull it into the channel slowly until the strip comes out on the other side.
You can also try to apply the lubricating oil or wax to the back of the strip to make it easier and more slippery to pass through the tube.
If do it manually, the max length can be done would be only 10meters long the max.
* We recommend to use high density LED strip lights, for example the 2835 120 LEDs/Mtr. It will produce a spotless look with more LEDs on the strip.
* The Neon Light Housing Lengths can be customzied to shorter and longer lengths. Please contact us for special need.
* When cut the Neon Light Housing, please pay close attention to cut it straight. Or to use special scissors. If the cut section is not flat, it will affect the seal with end caps.

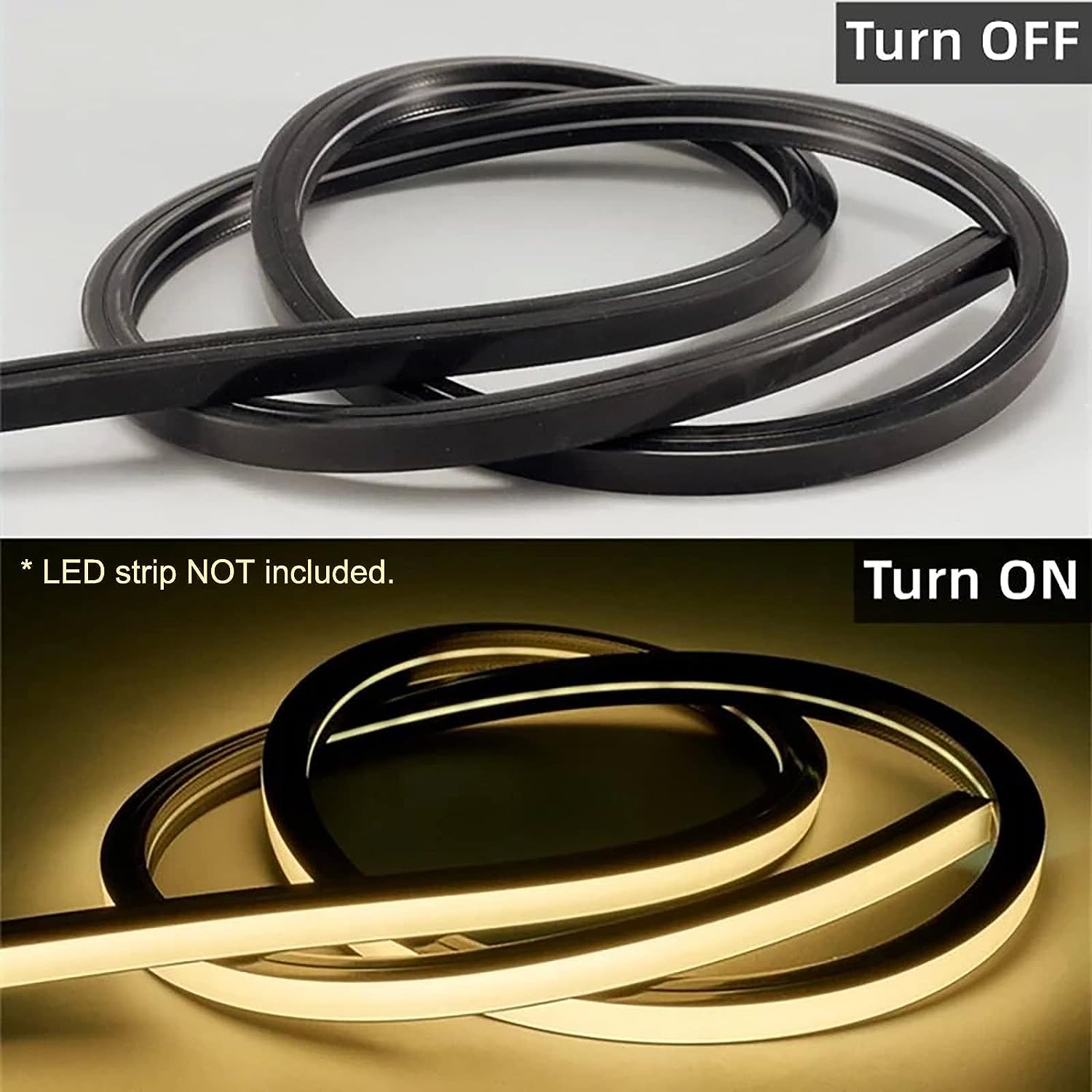

Note: The LED strip light does not included in this unit, need to purchase separately !
