Description

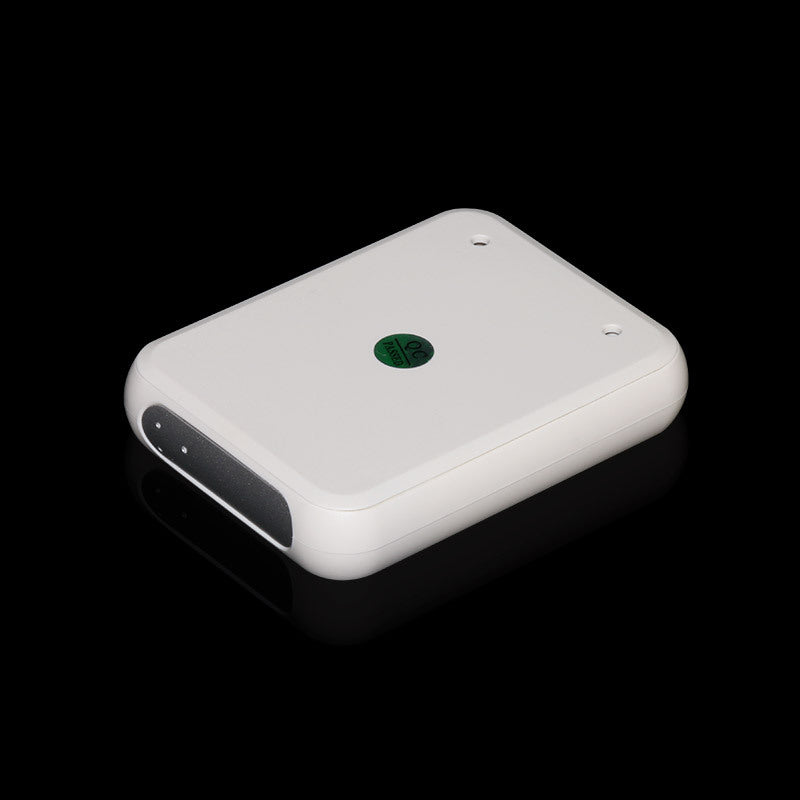

12V-24V DC 5in1 WiFi LED Controller Compatible with Alexa Google Home Magic Home Smart APP Control for Monochrome RGB RGBW WW+CW RGBCCT LED Strip
1. Features:
1. Mobile phone APP control, long remote control distance, user-friendly operation;
2. Music function:
●Use the music controller inside the phone to control the light rhythm
3. Microphone function:
●Use the phone's microphone to feel the rhythm of ambient music, the sensitivity is adjustable
4. Work with Google Home, Amazon Alexa
5. Grouping function:
●Classify multiple controllers into the same group, you can switch and dim them at the same time
●At the same time, in order to facilitate the identification of the controller name, the group name of the grouped controller group can be modified to identify each group, such as bedroom, living room, bathroom, etc.
6. Timing function:
●You can set the time and output the effect regularly
●You can set a repeating schedule seven days a week
●If the device is powered on again, the timing function will take effect, and the app needs to be restarted for time synchronization
2. Download and install the mobile APP:
The controller is controlled by the mobile APP and supports IOS and Android systems.
• iPhone requires IOS9.0 or higher;
• Android phone requires Android 4.0 or higher;
• You can find the APP by searching for "Magic Home" in the App Store, Google Play, and App Store, or scan the corresponding QR code to download and install:
3. Technical Parameters:
●APP software: Magic Home Pro
●Version requirements: Android 4.0 or IOS 9.0 or above
●Working temperature: -20℃~55℃
●Power supply voltage: DC12~24V
●Maximum power: 240W
●Output channel: 1/2/3/4/5 way
●Drive type: constant voltage MOS tube
●Connection method: common anode
●Product net weight: 40g
●Product size: 80*60*16mm
●Guaranteed size: 95*95*30mm
●Through the certification: CE RoHS FCC
● Warranty: 1 year
●Application range: constant voltage lamps such as light bars, panel lights, etc.
Wiring Reference
