Tour-GOB Outdoor Series Rental LED Display 1.95/2.6/2.9/3.9 mm Pixel Pitch in 500x500mm Aluminum Cabinet with Glue Covered Protective Surface Waterproof IP65 LED Screen
Unit Price Here is Per One Square Meter, Standard Version
Specification:
PART NUMBER BREAKDOWN
TGO1.95: TGO【Series Code : Tour GOB Outdoor】- 1.95【Pixel Pitch: 1.95mm】
Part No.:TGO1.95 | TGO2.6 | TGO2.9 | TGO3.9 | TGO4.8
Pixel Pitch:1.95mm | 2.6mm | 2.9mm | 3.9mm I 4.8mm
LED:SMD1515 | SMD1515 | SMD1515 | SMD2121| SMD2121
LED Brand:Standard: Kinglight/Huaguang etc. Premium:Nationstar
Pixel Configuration:1R 1G 1B
Wave Length:R:620~625nm, G:520~530nm, B:460~475nm
Module Size:250*250mm
Module Resolution:128*128 | 96*96 | 84*84 | 64*64 | 52*52
Module Pixles:16384dots | 9216dot | 7056dots | 4096dots | 2704dots
Scan:1/32 | 1/28 | 1/22 | 1/16 | 1/13
Viewing Distance: >2m | >3m | >3m | >4m | >5m

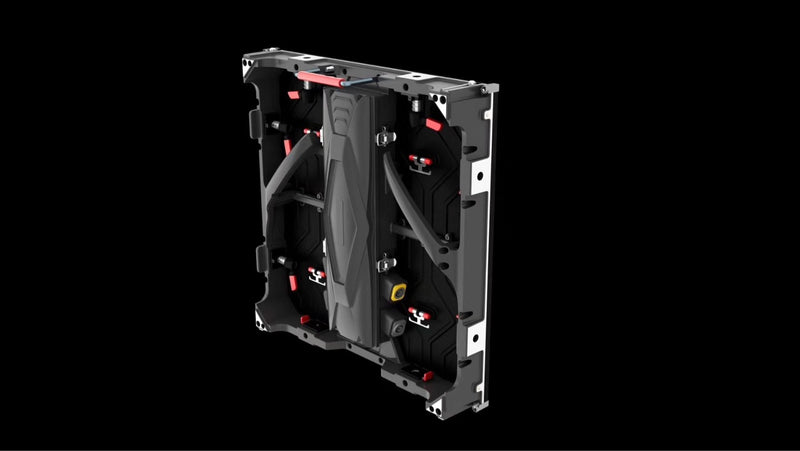

Cabinet Type:Die-casting Aluminum
Cabinet Size:500*500*75mm
Module Qty./Cabinet:4
Cabinet Qty./㎡:4
Cabinet Resolution:256*256 | 192*192 | 168*168 | 128*128
Cabinet Pixles:65536dots | 36864dots | 28224dots | 16384dots |10816dots
Pixel Density :262,144dots/㎡ | 147,456dots/㎡ | 112,896dots | 65,536dots | 43,264dots
Power Consumption :Max.640W/㎡ Avg.200W/㎡
Brightness:4500cd/㎡
Contrast Rate :3000:1
Color Depth:16bit
Grey Level:16384
Refresh Frequency:>3840HZ
Driving IC : MBI/ICN
Color Uniformity : ≥97%
Viewing Angle: H:160deg. V:160deg.
Blind Spot Rate: ≤0.0003
Life span: ≥100,000 hours
Cabinet Weight: 9Kgs
Protection Rating: IP65
Operating Temperature: -20°C ~ 60°C(-4°F ~ 140°F)
Operating Humidity : 10% ~ 90%
Input voltage: AC100-240V
Power Supply: Standard: CE*1 / Premium:UL CE MeanWell *1
Controlling System: Nova
Maintainance: Front / Rear Installation; Back Maintenance
NOTE: The Aluminum Cabinet Housing may not be different as pictures showed, this can be confirmed when place the order.
Product Video:
P1.95mm GOB 500x500 Rental LED Display Make a Concuve Screen
